| Detailed Specifications | |

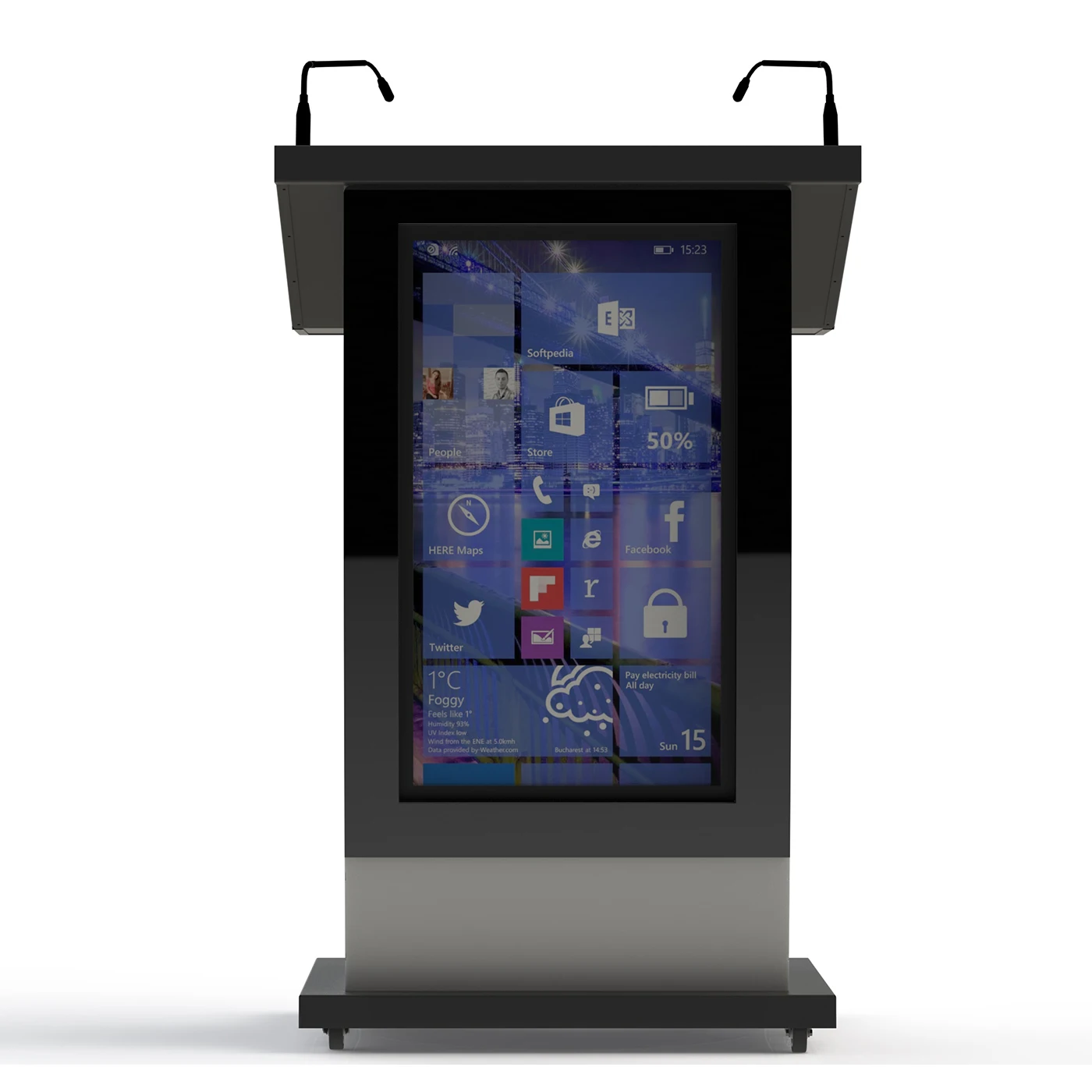

| Front Panel | 32" |
| Screen Specifications | |
| Resolution | 1920x1080 FHD |
| Brightness | 350 cd/m2 |
| Aspect ratio | 16:9 |
| Panel Type | IPS |
| Front Panel Player | Built-in Digital Signage Media Player |
| Front Panel Content Management Software | Available |

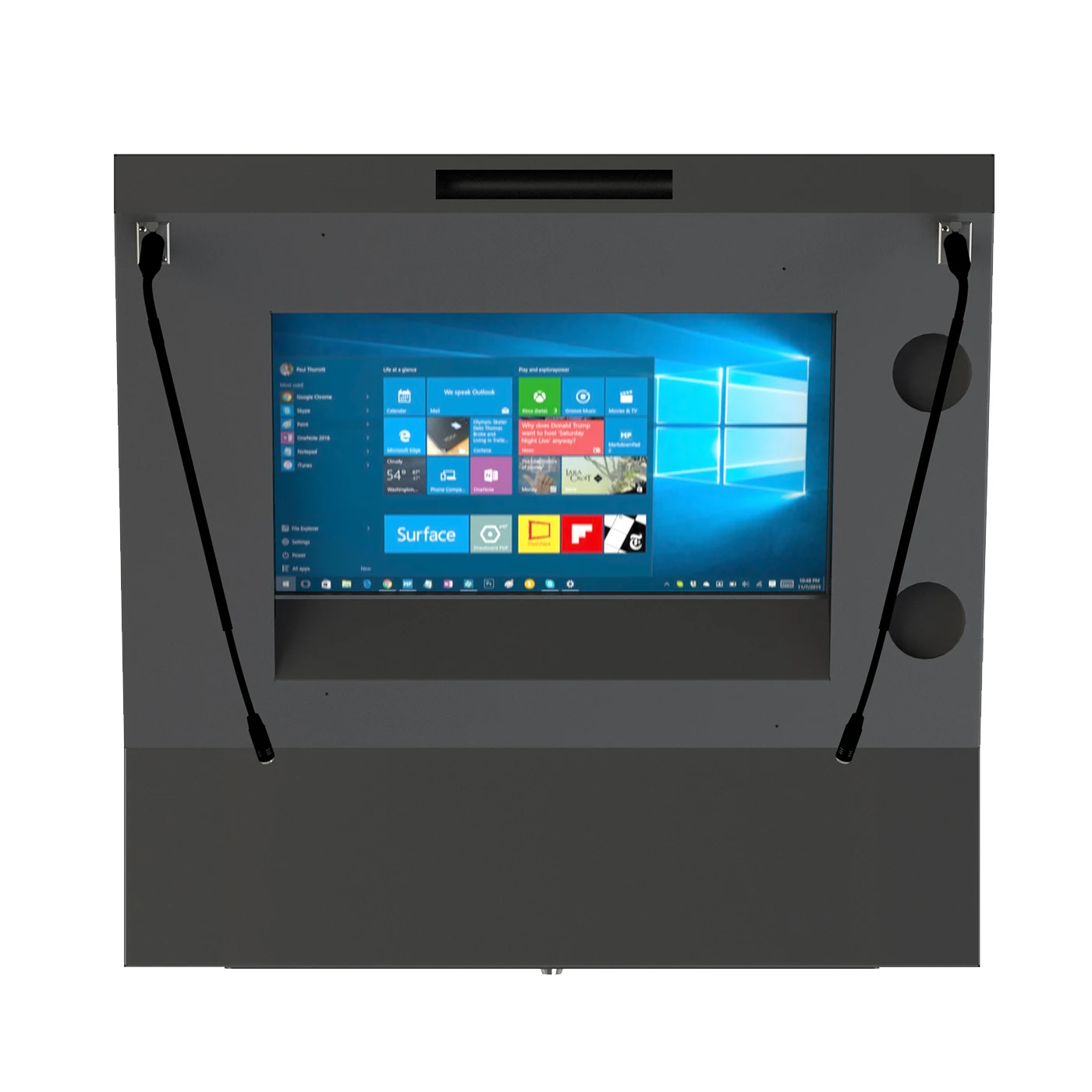

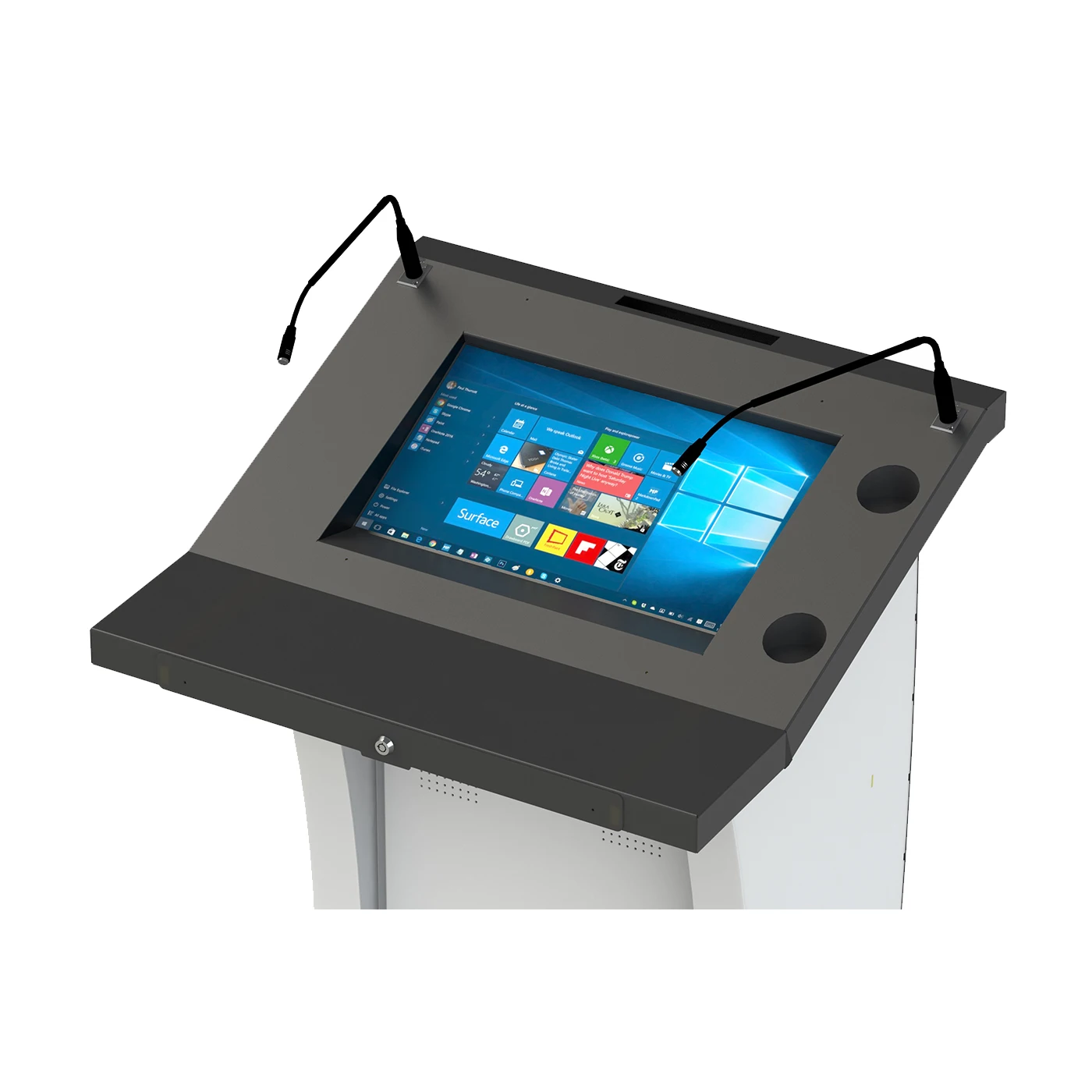

| Lecturer Panel | 22" |
| Screen Specifications | |
| Resolution | 1920x1080 FHD |
| Brightness | 250 cd/m2 |
| Panel Type | IPS |
| Aspect ratio | 16:9 |
| Touch Technology | Capacitive |
| Touch Points | 10 points |
| Lecturer Panel PC Specifications | |
| CPU | 4th Generation Intel Core i3 |
| RAM | 4 GB DDR4 |
| HDD | 120 GB SSD |
| Operating System | Windows Embedded 10 IoT |
| Microphone | |
| Length | 18" |
| No of microphone | 1 pcs |
| Output Connector | 3-way XLR (Male) |
| Microphone Type | Cardioid |
| Frequency Response | 50 -18 kHz |
| Sensitivity (at 1,000Hz) | -60dB ± 3dB |
| Impedance | 220Ω |
| Power ON indicator | LED |
| Power requirement | Phantom Power (48V) |
| Timer & Chronometer | |
| Screen size | 3,5" |
| Clock | Available |
| Timer | Available |
| Stopwatch | Available |
| Touch | Single touch |
| Inputs (on Speaker Panel) | |
| USB | USB 2.0 and USB 3.0 (for internal PC) |

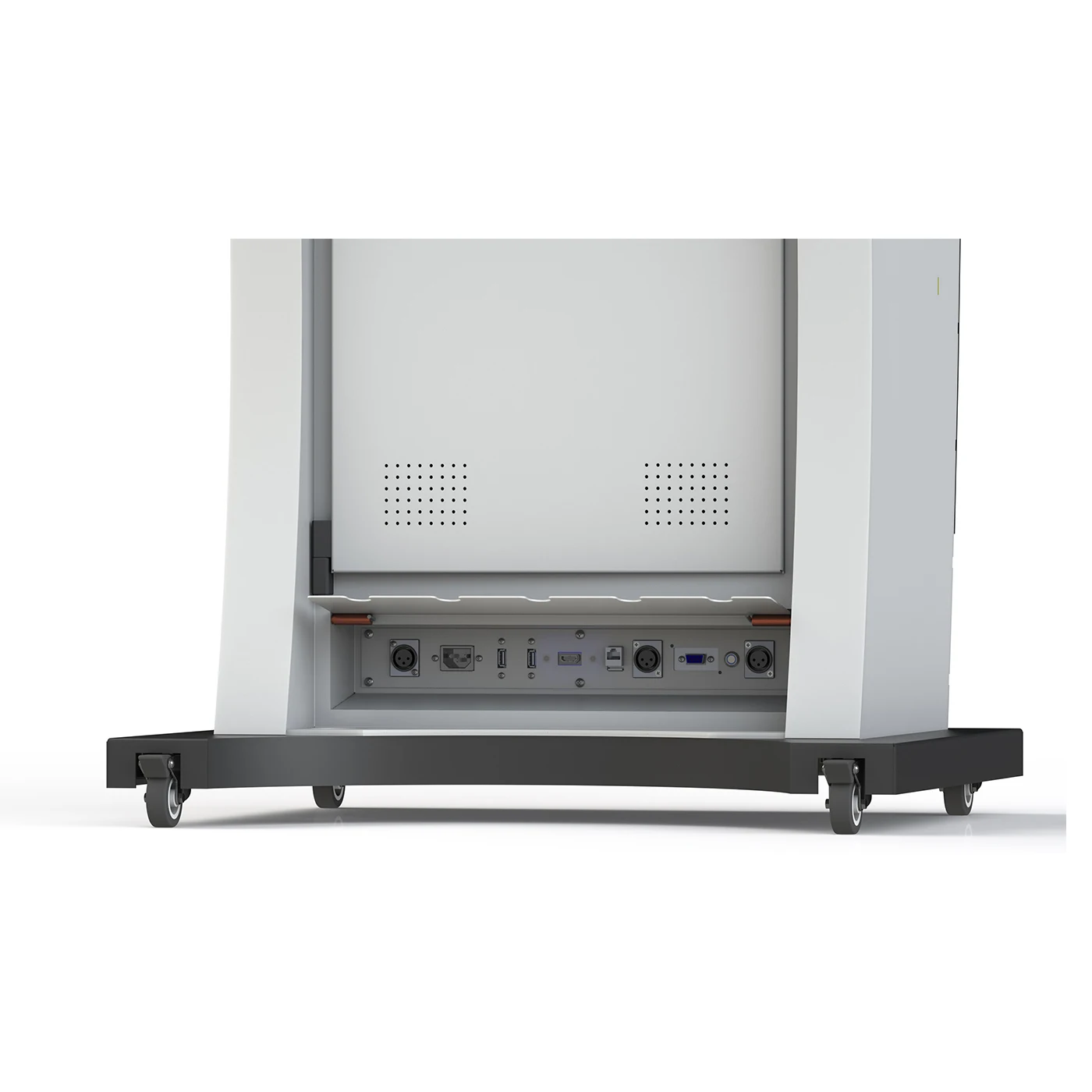

| Outputs (Bottom of Podium) | |
| HDMI | Available |
| Ethernet | Available |
| XLR for microphone | Available |
| USB | USB 2.0 (for internal PC) |
| Power | |
| Power Input | 230V 50Hz |
| Power Consumption | 450W (max) |
| Peripherals &other features | |
| Color | Black speaker panel and base, gray body |
| Packing | Wooden box export packing |
| Mechanical Specs | |
| Outline Dimension (mm) | Set: 697 X 744 X 1157 |
| Package: 850 X 900 X 1350 | |
| Weight (kg) | Set: 62 kg |
| Package: 109 kg | |
| Optional features | Front screen PC |
| Flight case |
Wooden export packing
Temas is an multimedia podium manufacturing company based in Istanbul Turkey and exporting its solutions over 50 countries.
From the basic need to more advanced requirements, Temas is offering all kind of multimedia podiums for schools, auditoriums, conference halls, training centres and universities.
