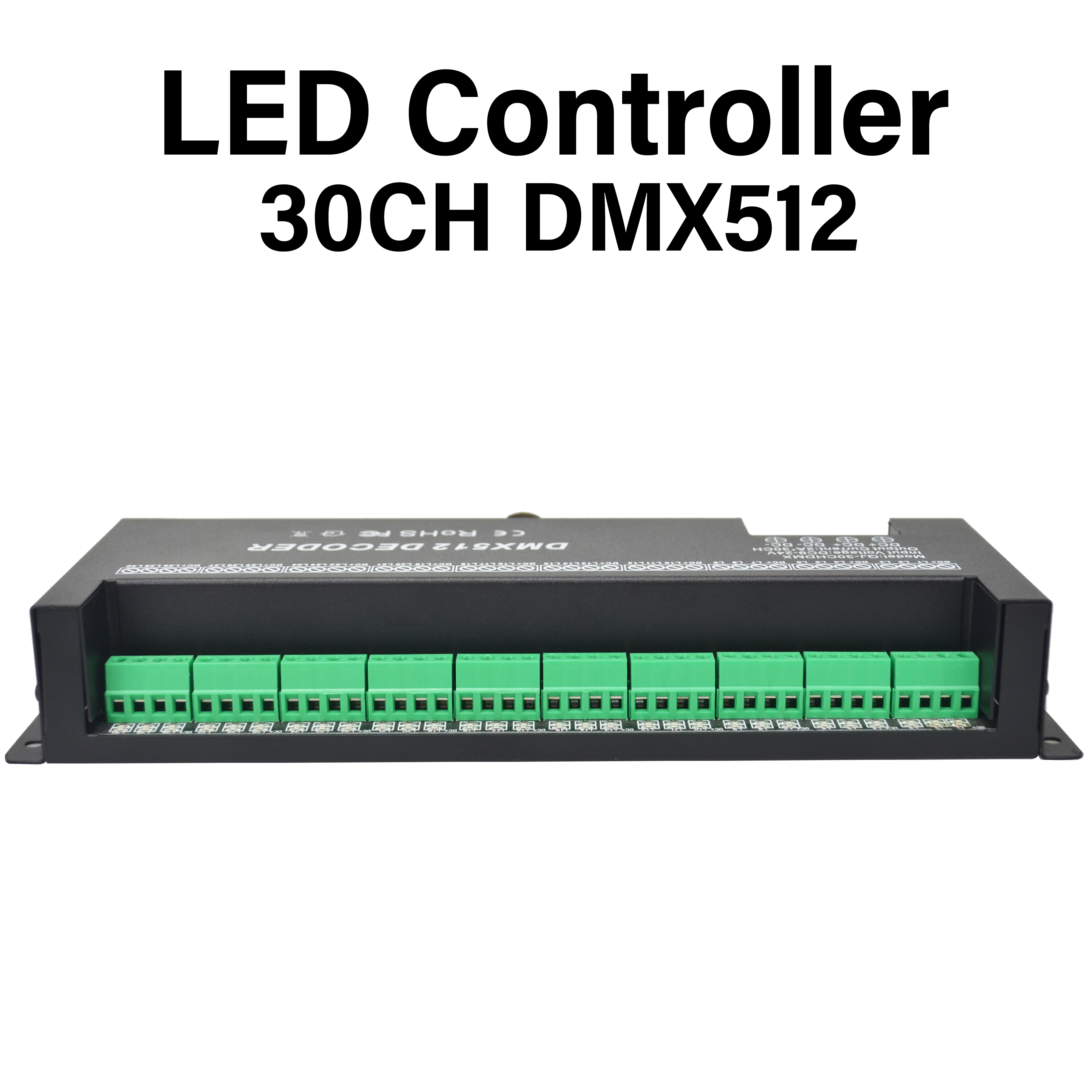

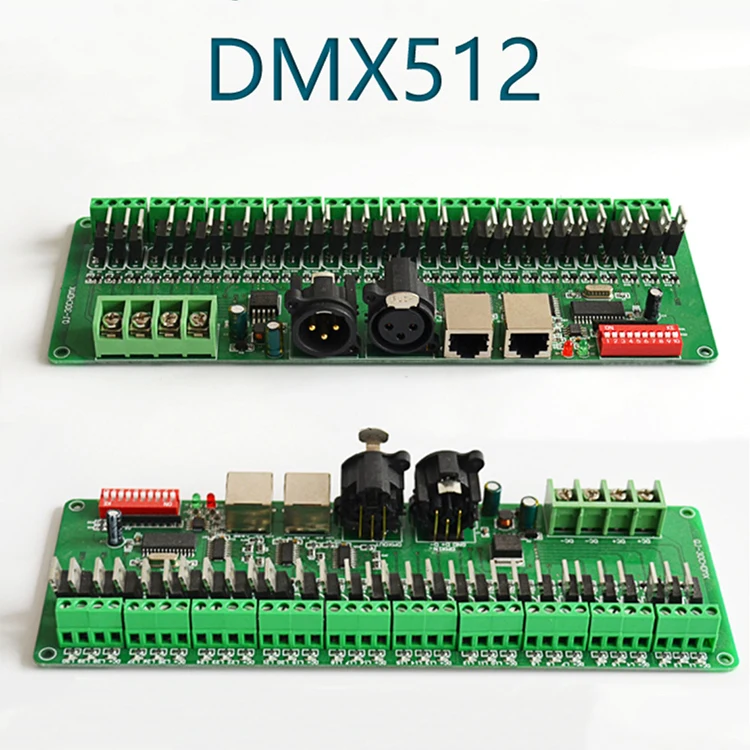

30-канальный 1440 Вт DMX512 светодиодный декодер с постоянным управлением одиночными или цветными лампами для сцены RGB
- Категория товара: Приспособление для освещения >>>
- Поставщик (Оптовый магазин): Huizhou,Karrey,Plastic,Metal,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
30 Channels 2A LED MDX512 Decoder with Pull Code Control Single or Colorful Lamps for RGB Stage Light
Welcome to use the 30CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1~30 output channels; Each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting.
Base Features:
*** There are 30 output channels, can connect with single or RGB lamps.
***This DMX decoder control 30 Channels LED lights via a DMX control signal.

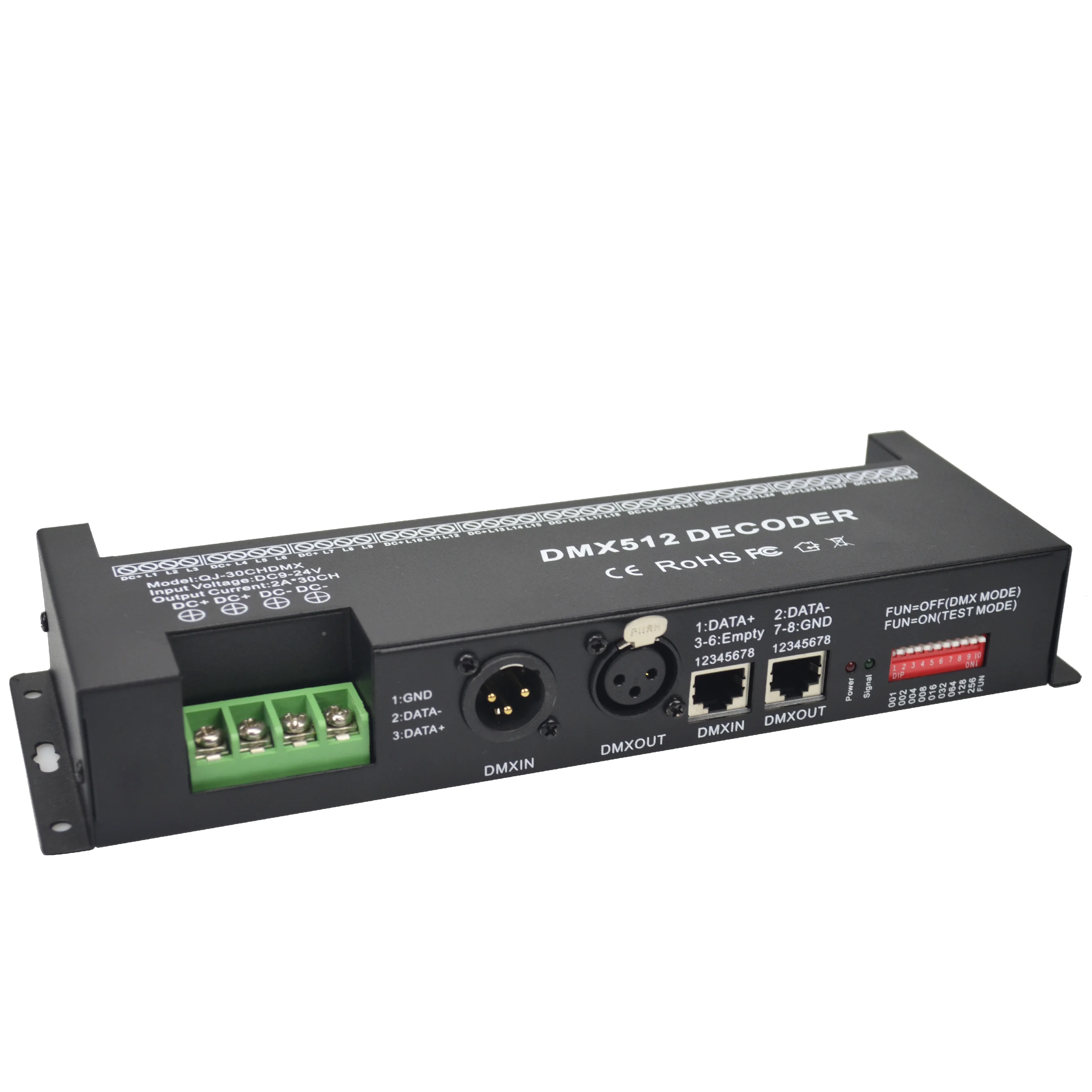

***This decoder accepts standard XLR-3 caron plug, RJ45 type connections for the DMX signal input and output.
*** International standard DMX512 input protocol, address code set by DIP switches.
***There are a total of ten, 3 channel, common anode outputs with screw-down terminal blocks for easy connection to your LED lights.
***This decoder is able to accept 9-24VDC at 2A per channel (thirty channels total) for max load of 540W/9V, 720W/12V, or 1440W/24V.
***Each DMX decoder requires 30 addresses in the DMX universe being used as well as a 9-24VDC driver large enough to power the lighting load.
*** The decoder comes with 16 kinds of test patterns, 16 levels for rate of change.

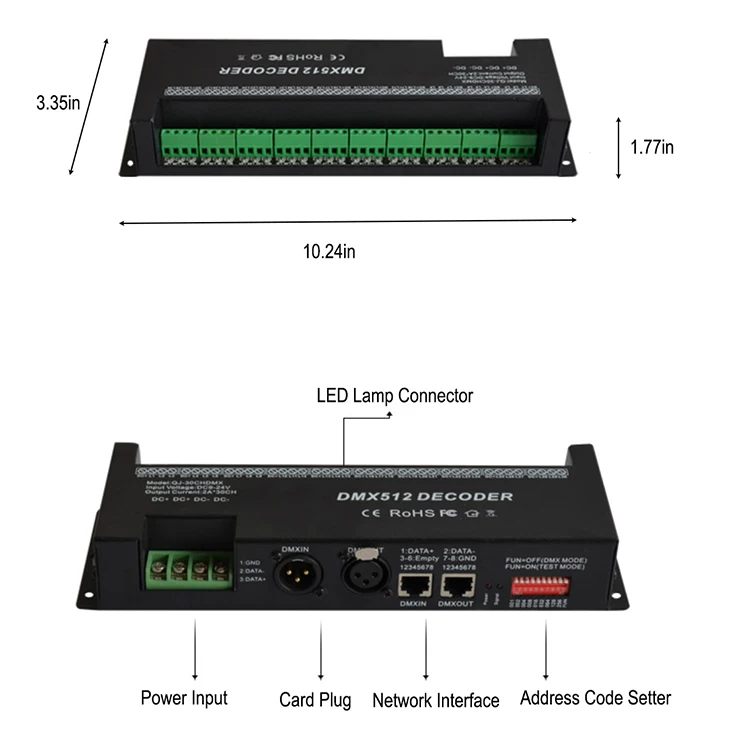

SPECIFICATIONS | ||||||
Model | 30 Channels DMX512 Decoder | SKU | QJ-30CHDMX | |||
Input Power | 9~24V DC | Max. Load Current | 2A/CH*30 | |||
Max. Power Load | 720W(12V) 1440W(24V) | Input Signal | DMX512/1990 | |||
Output Signal | 30 Channels Constant PWM | Output Gray Level | 256 | |||
Dimensions | L225 X W80 X H32 mm | Warranty Period | 2 Years | |||
Standard XLR-3 caron plug, RJ45 | Connection Method | Common Anode | ||||

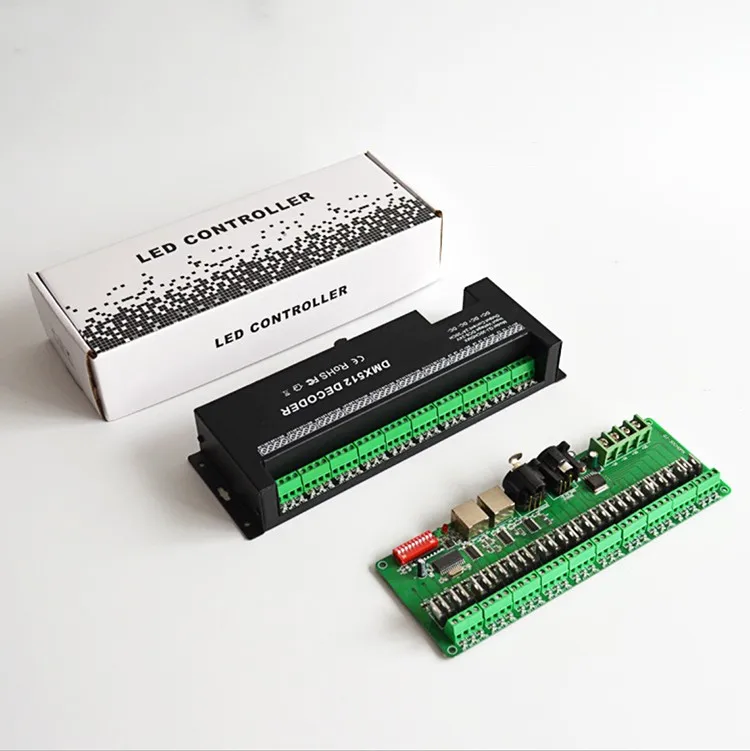

Remark:

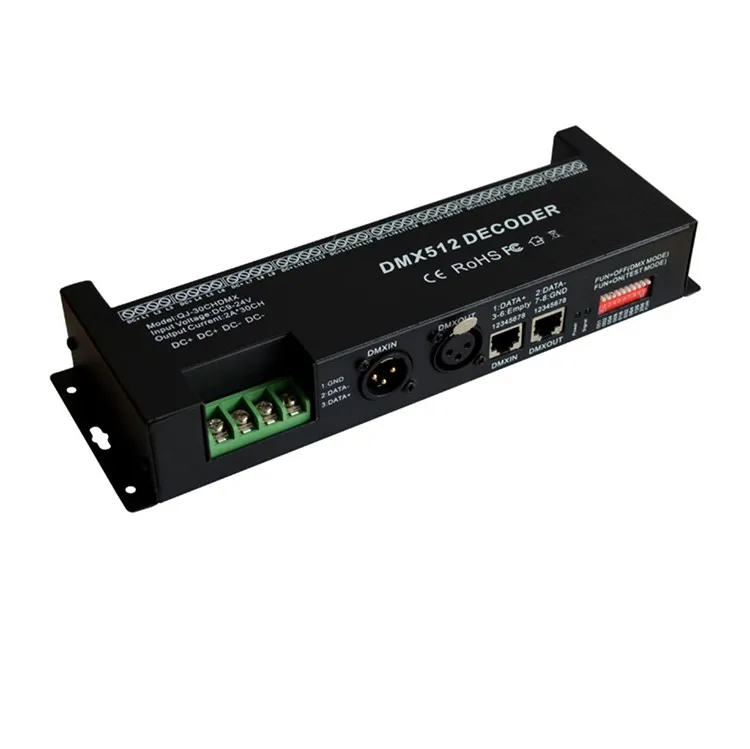

QJ-30CHDMX-1 with metal shell;
QJ-30CHDMX-2 without metal shell.

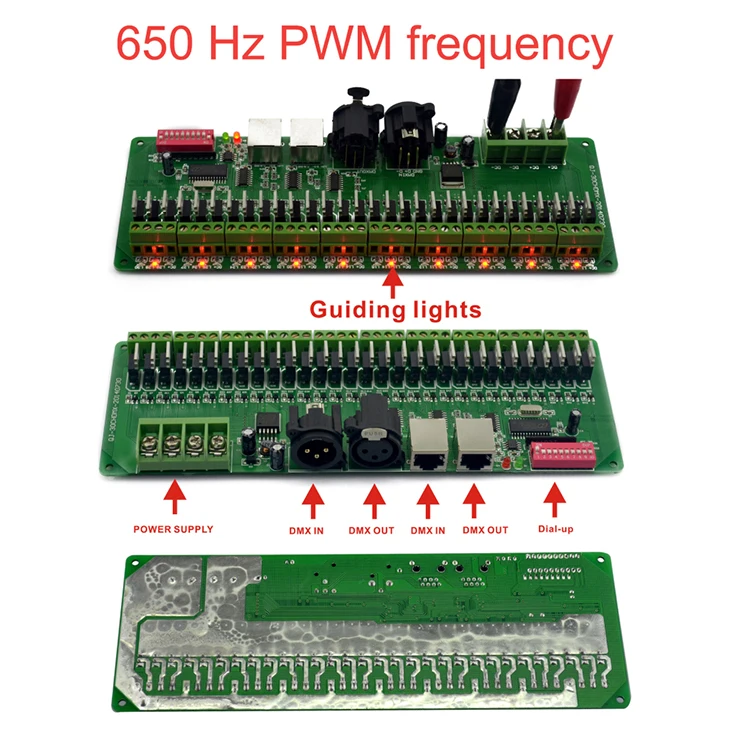

Detailed Images

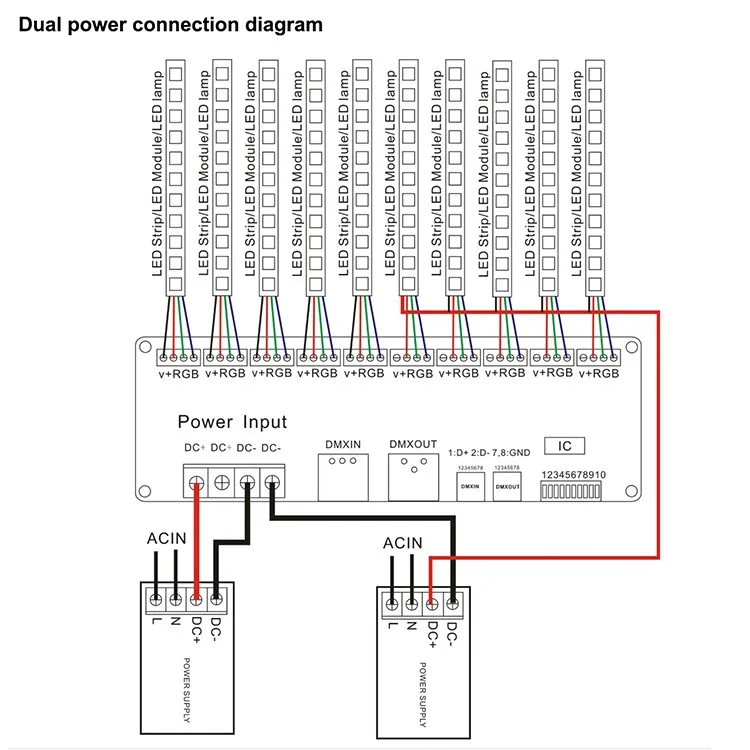

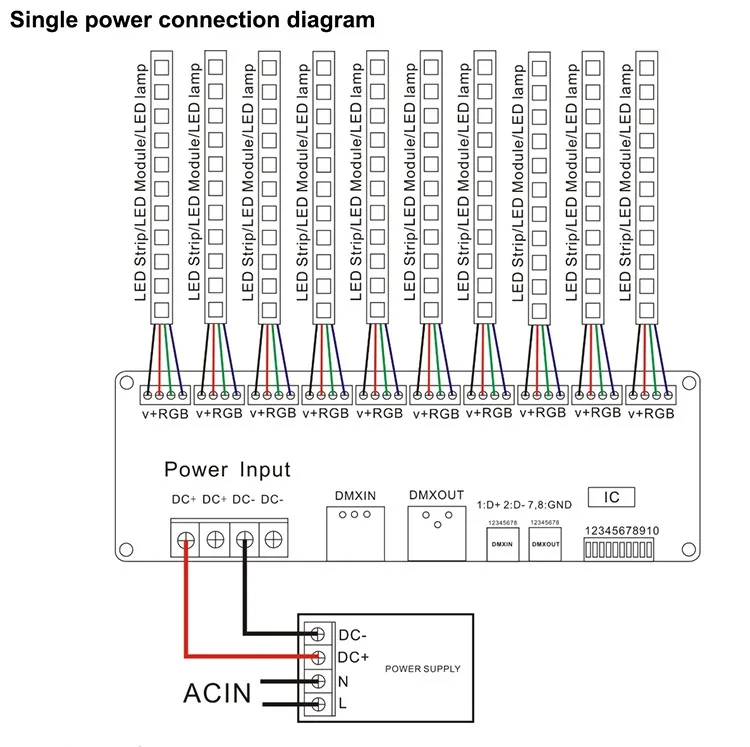

How to Use the 30CH DMX512 LED Decoder
DMX512 Function
The item have DMX512 function, can be used in serval online.
There are DMX512 mode and Automatic mode.
1. DMX MODE
In this mode, you can control the LED decoder with DMX512 console or PC DMX512 console.
Note: FUN=OFF (the tenth code switch up) means to accept DMX512 signal mode.
The first DMX address setting:
The decoder set the address bit by coding switch, of which 1-9 is for setting the start address of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one is the highest.
Bit of address code can be set to 512.
DM512 start address code is the sum of switches 1-9, at the same time turn downside of the code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"), the value of the bit is 0.
The first DMX address setting:
The decoder set the address bit by coding switch, of which 1-9 is for setting the start address of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one is the highest.
Bit of address code can be set to 512.
DM512 start address code is the sum of switches 1-9, at the same time turn downside of the code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"), the value of the bit is 0.
Example 1:
As the following Schematic 1, DMX512 start address is set to 38, encoding the No. 6,3,2 position on switch dial to "1", others set to "0", then the sum of the switch 1-9 code value is 32 + 4 + 2, that is the DMX512 start address 38.
Example 2:
As the schematic 2, DMX512 start address is set to 388,
encoding the no. 2,3,6,8 switch dial to "1", others set to "0", then the sum of the switch 1-8 code value is 4 + 128 + 256 = 388, that is the DMX512 start address 388.
2. AUTOMATIC MODE
In this mode, the LED decoder will run automatically.
Note: It will be automatic mode when the No.10 switch is turned down.
Effect choice (DIP switch No.1 to No.4):
Effect choice (DIP switch No.1 to No.4):
No. | Dial code | Effect | No. | Dial code | Effect |
1 | No.1 | Automat cycling | 2 | No.2 | Seven-color cycle gradient |
3 | No.1&2 | RGB fade in and out | 4 | No.3 | Seven-color jump |
5 | No.1&3 | RGB jump | 6 | No.2&3 | Red |
7 | No.1&2&3 | Green | 8 | No.4 | Blue |
9 | No.1&4 | Yellow | 10 | No.2&4 | Purple |
11 | No.1&2&4 | Cyan | 12 | No.3&4 | White |
13 | No.1&3&4 | Seven-color cycle gradient and jump | 14 | No.2&3&4 | RGB cycle gradient and jump |
15 | No.1&2&3&4 | Seven-color jump and RGB jump |
Speed Choices (DIP switch No.5 to No. 8):
No. | Dial code | Speed | No. | Dial code | Speed |
1 | No.5 | 0.5 second | 2 | No.6 | 1 second |
3 | No.7 | 1.5 second | 4 | No.8 | 2 second |
Packing & Delivery
