Неоновые цветные светодиодные фигурки
US $1.00-$2.30
Технология производства белой электропанели и сырье
- Категория товара: EL Products >>>
- Поставщик (Оптовый магазин): Shanghai,Keyan,Phosphor,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

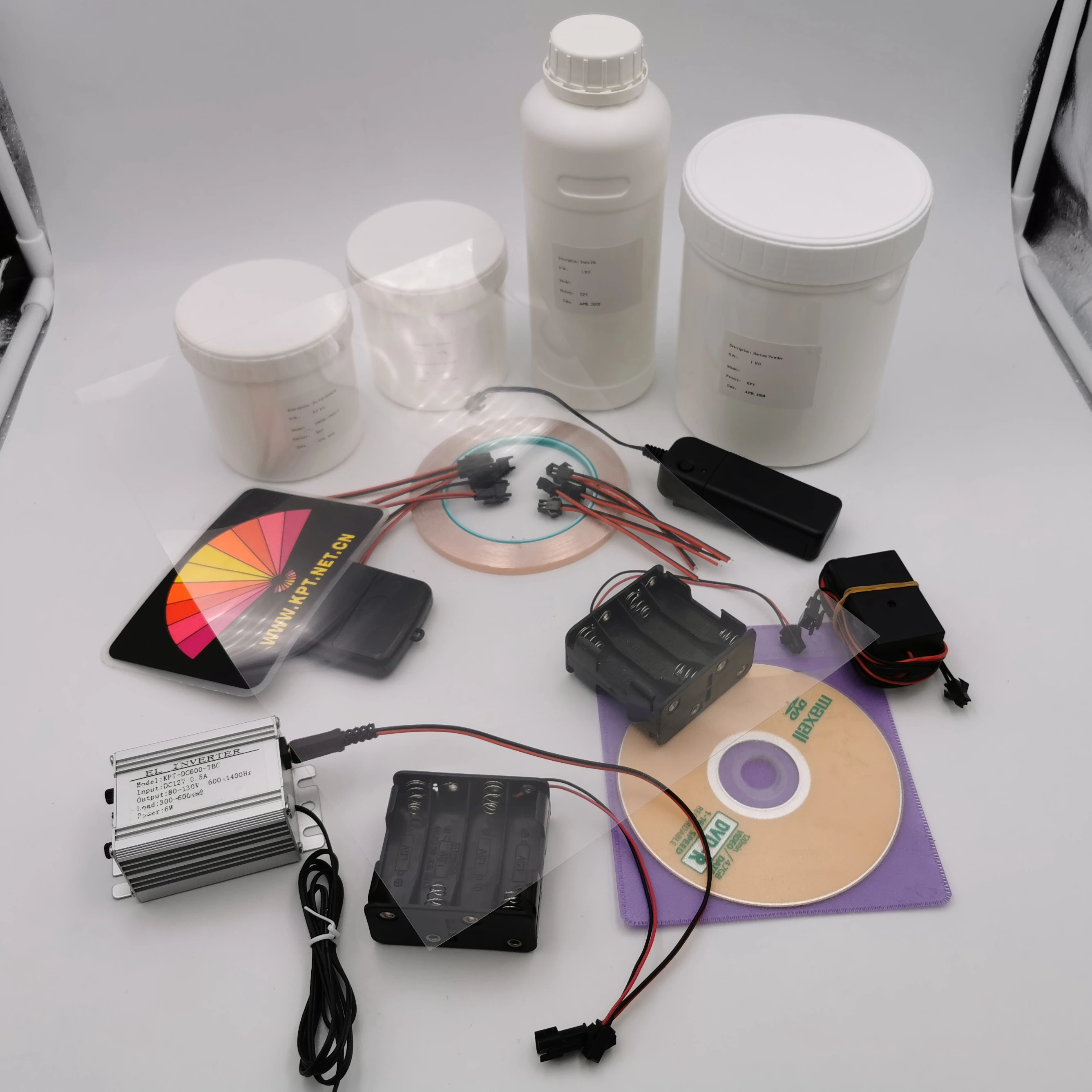

Electroluminescent Panel material manufacture

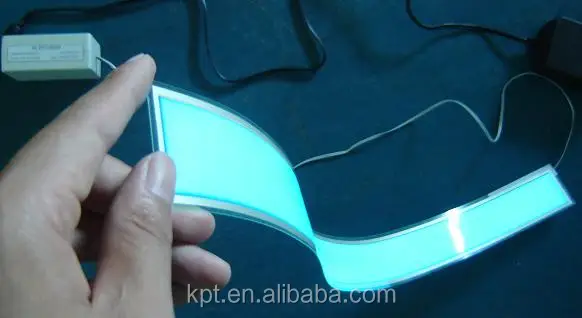

The special material developed by KPT combines with kinds of EL phosphor to make EL display. It's completely applicable to screen printing, spraying in EL glass panel, enamel panel, plastic panel, EL wire display products etc.
Reference tech data for kinds of EL display applied of the special material is :
Voltage 40V-400V, Frequency 50Hz-4KHz, Temperature from under zero 40 to 60 centigrade degree, Current 0.02-0.2mA/ cm2, Electric Capacity 0.2-0.7nF/cm2, humidity 0%-90%, Power Consumption 2-7mW/ cm2, Application lifetime over 1000-20000hrs, Brightness 5-100cd/ m2
TYPE | APPLICATION | CHARACTERISTIC |
Medium Power(Carrier) | Median Layer Printing | High reflectivity, High conductivity |
glue | Additive for A, B Paste | Solidify Improvement |
Diluter, Wash thinner | Viscidity Adjusting, Washing Tool | Dilution, Washing |
ITO Film | Transparent Plastic Electric Film | Transparent, Flexible |
Silver paste | Transparent Plastic Electric Film | Transparent, Flexible |
EL phosphor | Lighting and Median Printing | Easier and Prompt Application Be dry with 110 centigrade degree |
Electrode zebra paper(which usually used inside of the panel) Or Copper electrode strip(which usually used on edge the the panel) | Back Electrode Printing | Good Conductibility |
Insulating Coating: Insulation ink | Back Electrode Protection | Easier Application |
EL Paste
Model | Application | Feature |
AB | Infrared heating,slow drying(3-4 hrs) | Property-adjustable Solvent |
A B | Lighting layer Infrared heating,slow drying (3-4 hrs) Medium layer, Infrared heating,slow drying (3 -4hrs) | Property-adjustable Solvent |
FB | Nornal temperature,fast drying(2 hrs)or Infrared heating(10 mins) | High brigness,easy fast drying |
PB | Nornal temperature,fast drying(5 hrs)or Infrared heating(1 hrs) | High brigness |
UV | UV Ultraviolet solidification(30-120 seconds) | High brightness,super fast drying |
We’re able to supply consulting service for EL instrument production technics
