Переработанный полипропилен ПЭ пластик и Древесина WPC террасный Профиль Экструдер машина под ключ завод производитель заводская

Поделиться:


Цена:36 406,58 $ - 41 922,73 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Product Description


Recycled PP PE plastic and recycled wood rice husk powder WPC decking profile making extruder machine

WPC decking machine, WPC granulation machine, WPC wall cladding machine




Material
Percentage
Recycled PP/PE plastic material
25-30%
Wood powder made from wood/rice husk/rice straw/wheat straw/wheat husk
65-70%
Chemicals: PE wax, stearic acid, CaCo3, pigments, coupling agent
5%

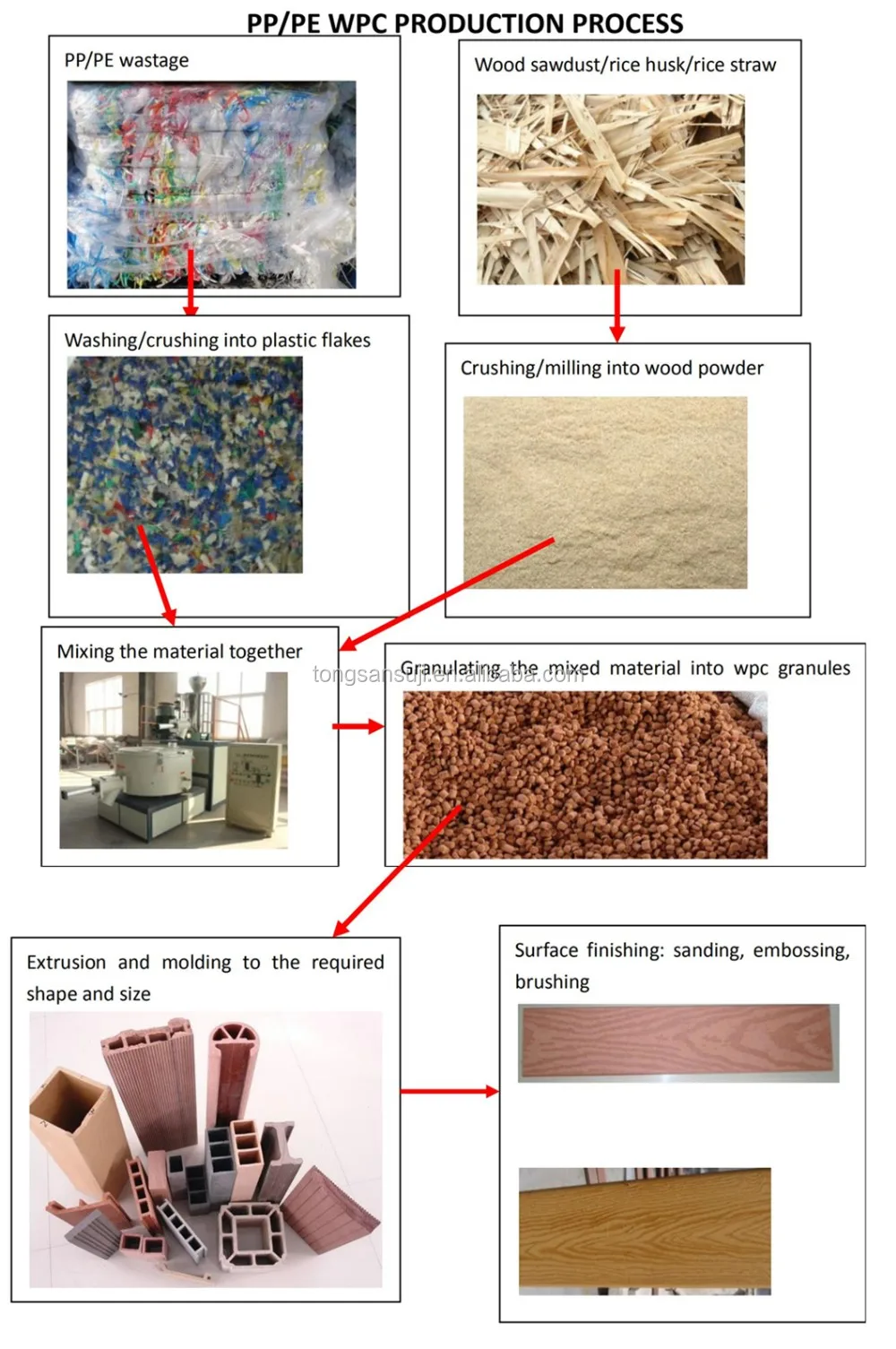

1.2 Production flow

Complete process for making WPC products from raw material to final products




1, plastic recycling: washing, crushing ,drying the PP/PE plastic wastage into flakes, the flakes shall be used for WPC production directly.
2, wheat straw powder making: crushing, milling and drying the wheat straw into 80-100 mesh powder
3, material mixing: weighting and mixing all material together according to our formula by hot mixing machine
4, WPC granulating: extrusion by parallel double screw extruder and do hot-pelletizing into WPC granules.

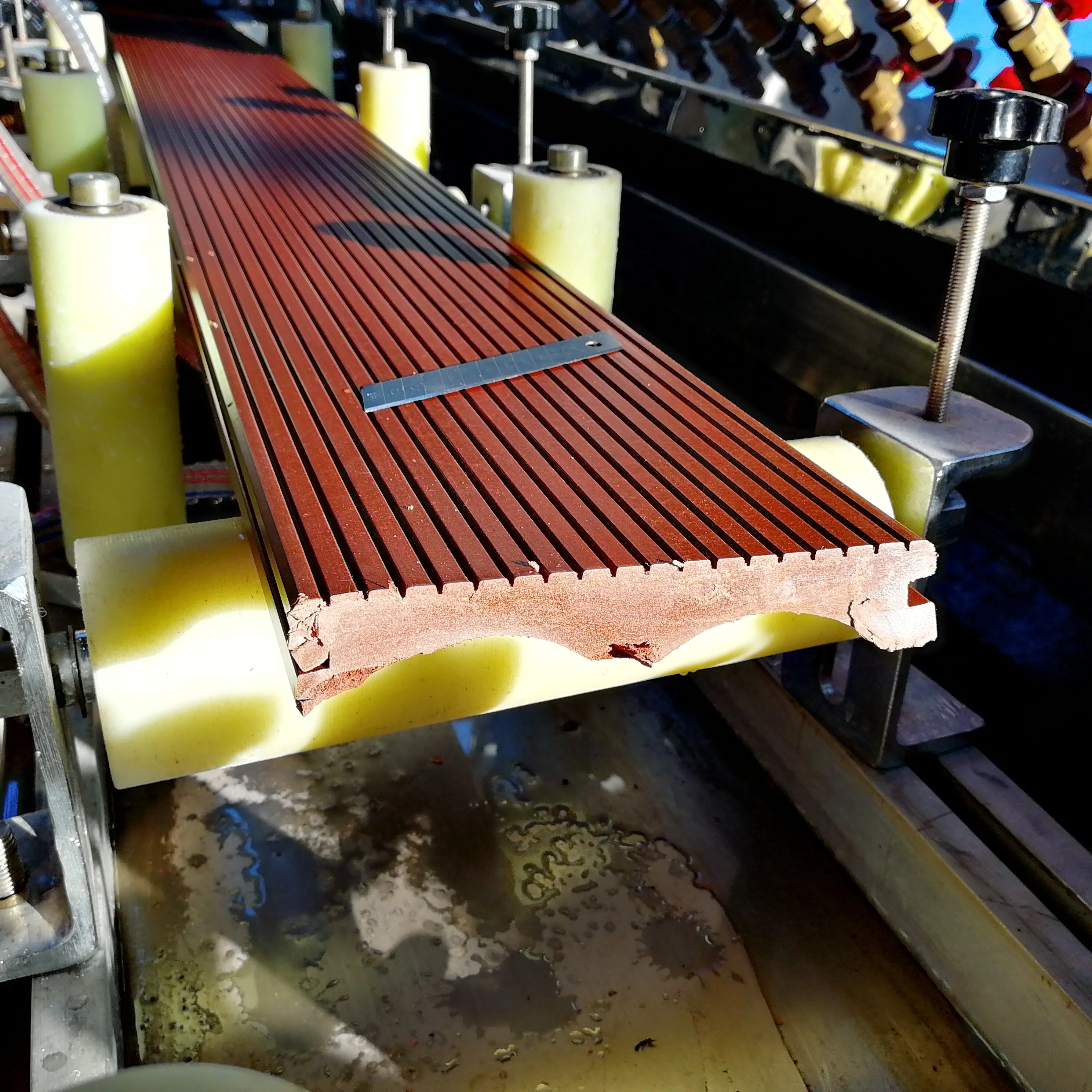

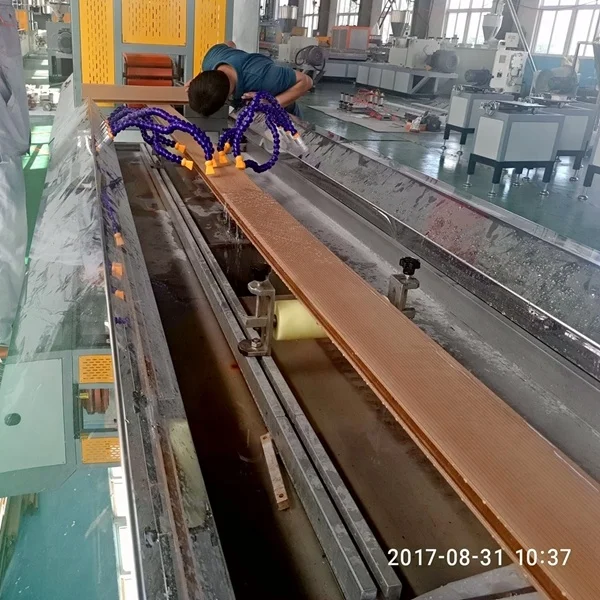

5, WPC extrusion: extrusion by conical double screw extruder and molding in required size and shape with water cooling calibrating, online fixed length cutting.
6, WPC surface design: embossing, brushing, or sanding on the surface to make different wooden grain feeling.



1.3 Equipment List for WPC production

we are professional for the turnkey production line as below, we have all these machines in factory stock


Item
Machine
Capacity
1
Wood chipping machine:
it is used for making big wood into chipped wood
3 tons/hour
2
Wood crushing and milling machine:
it is used for making wood powder from rice husk/straw/wood sawdust
300kgs/h
3
Wood drying machine:
it is used for reducing the moisture in wood powder
300kgs/h
4
WPC Mixing machine:
it is used for mixing all material together according to the formula
500kgs/h
5
SHMS75 WPC granulator machine:
it is used for making WPC granules, with venting system, to ensure the wood and plastic composition to be strong to increase the final product quality
400kgs/h
6
SJMS65 WPC profile extrusion line:
The mold shall be installed on this line to make the final product size and shape.
150kgs/h
WPC profile molds:
you can change different molds for making different size and shape
Co-extrusion system:
you can make WPC products with good surface for anti-weather, beautiful color, anti-sunshine, long using life, no color fadding
Online embossing machine:
you can do embossing online to make beautiful wooden design
7
Off line sanding machine
8
Off line brushing machine
9
Off line double face embossing machine
10
crusher


Detailed Images

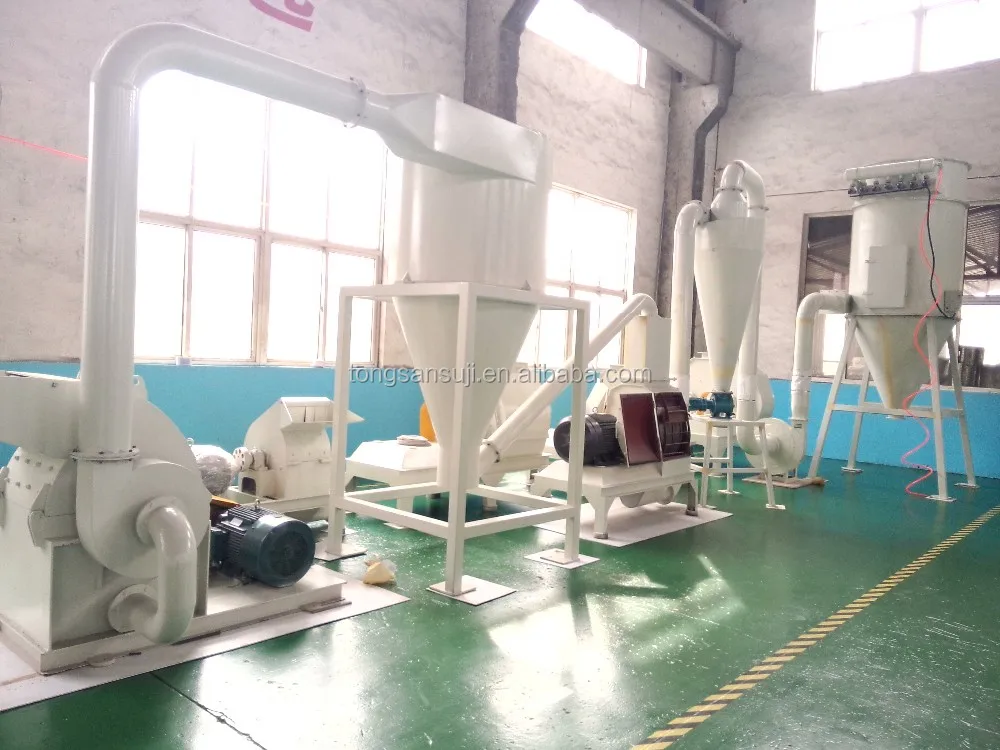

Wood powder making machine: chipping, crushing and milling

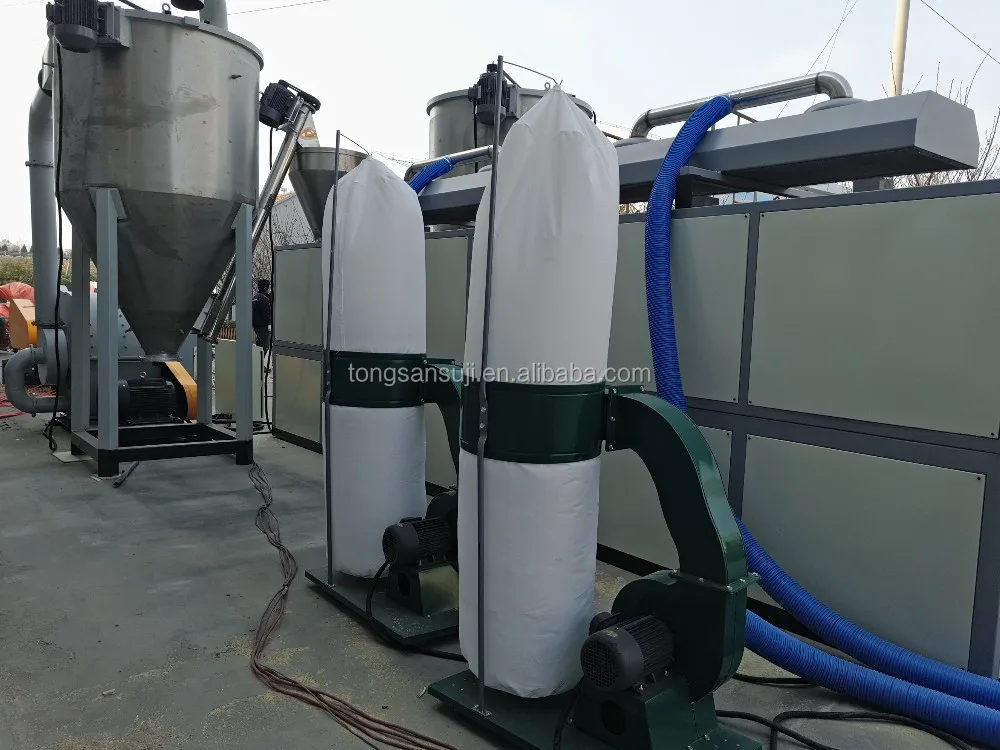

Wood powder drying machine, drying by heating barrel, moving by screw rotating.

High capacity, low cost, stably production, safe operation

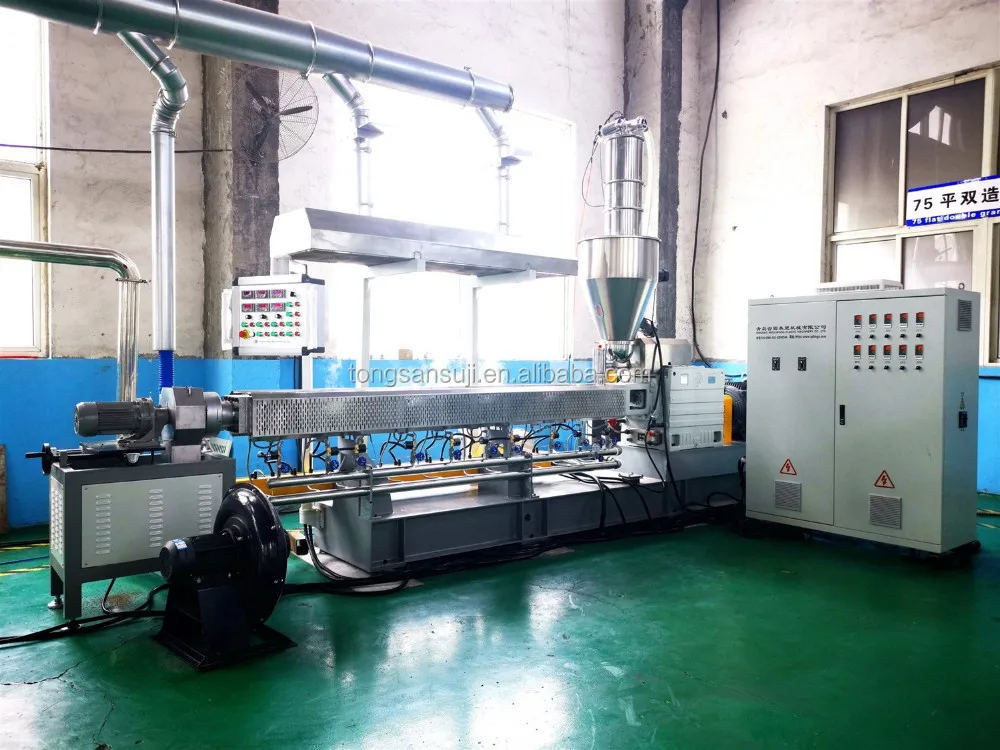

WPC granulation machine: parallel double screw extruder

high capacity, good plastization,specially designed for wood and plastic composition

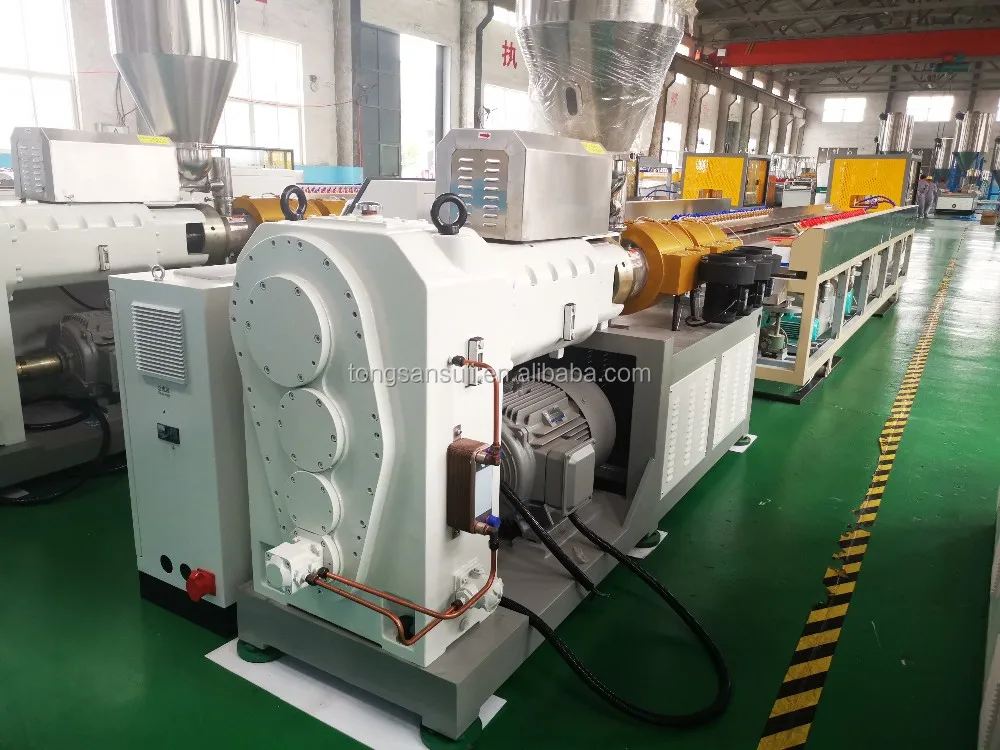

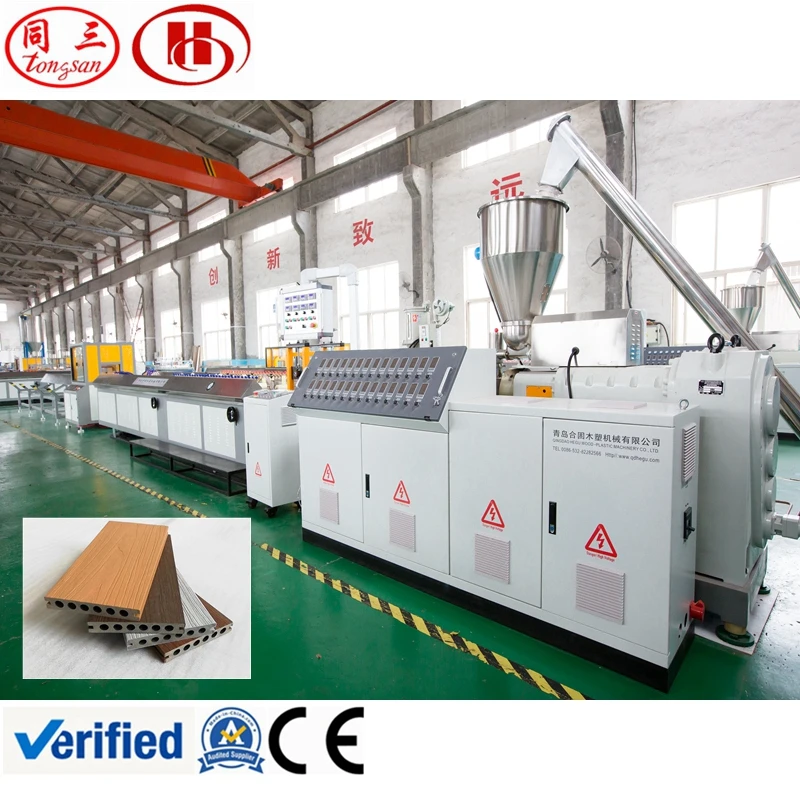

WPC profile extrusion line: excellent quality, professional design

high output, long using life, power saving, professional design for WPC profiles making

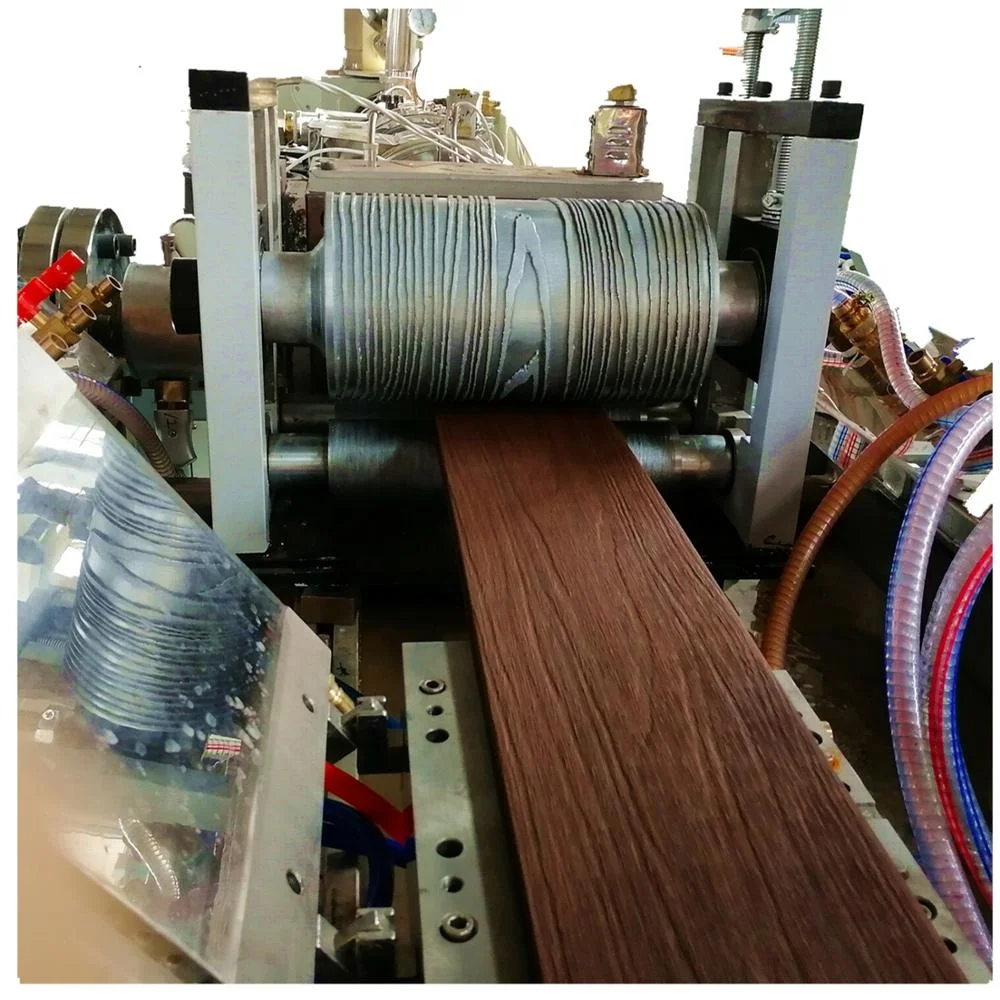

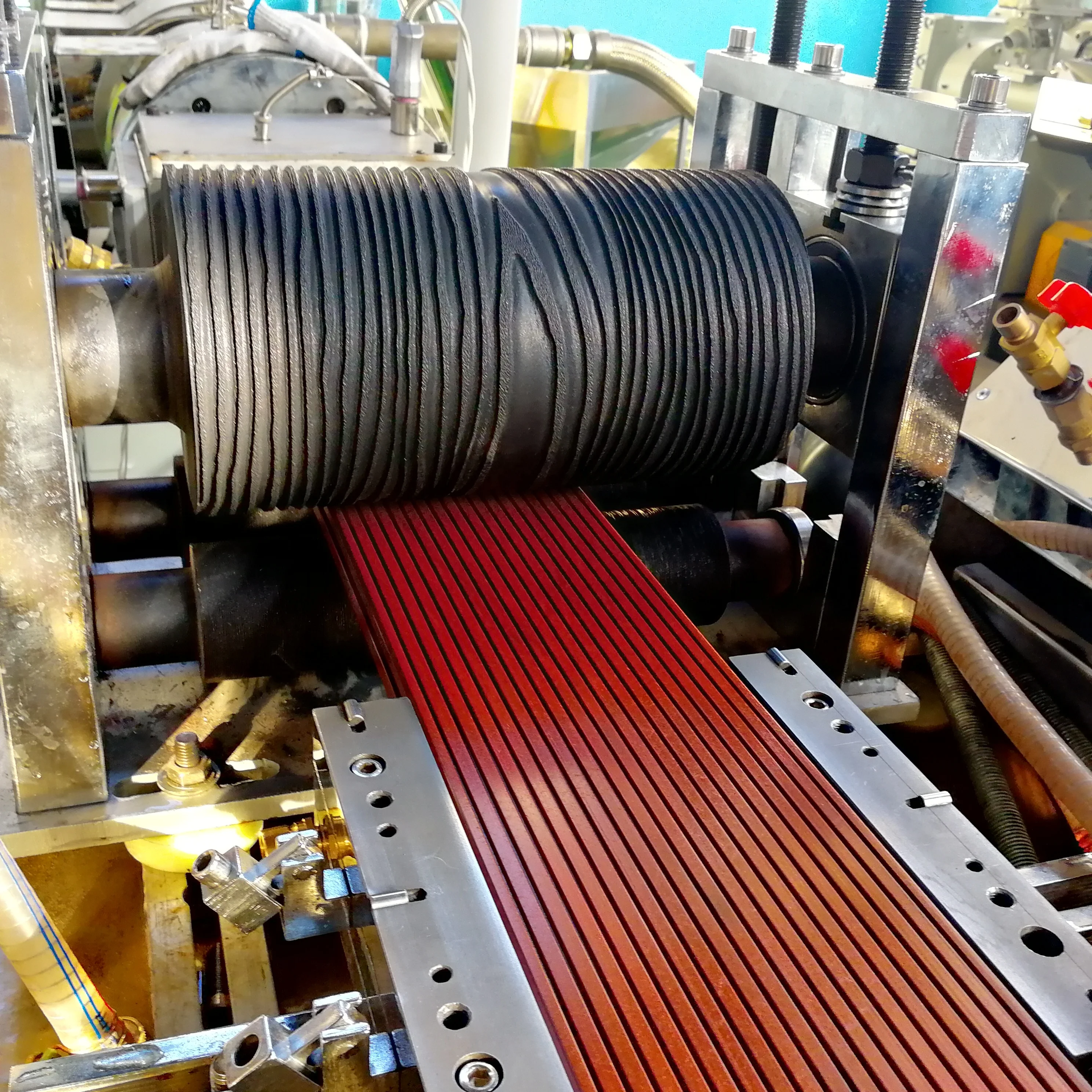

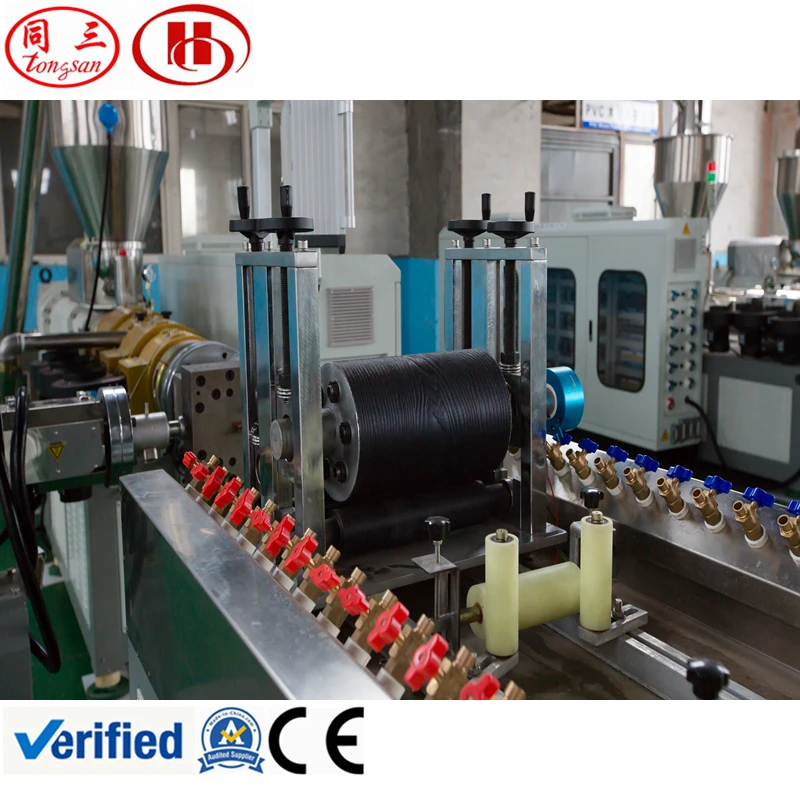

Online embossing machine:  3D embossing is avaliable

beautiful design, easy operation,saving manpower

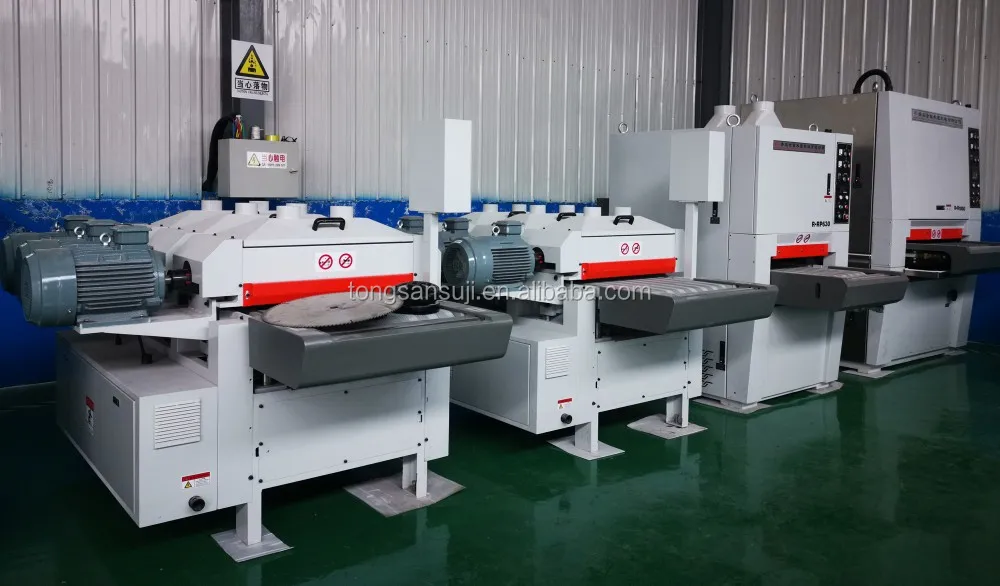

Sanding and brushing machine: various sizes

easy operation, long using life

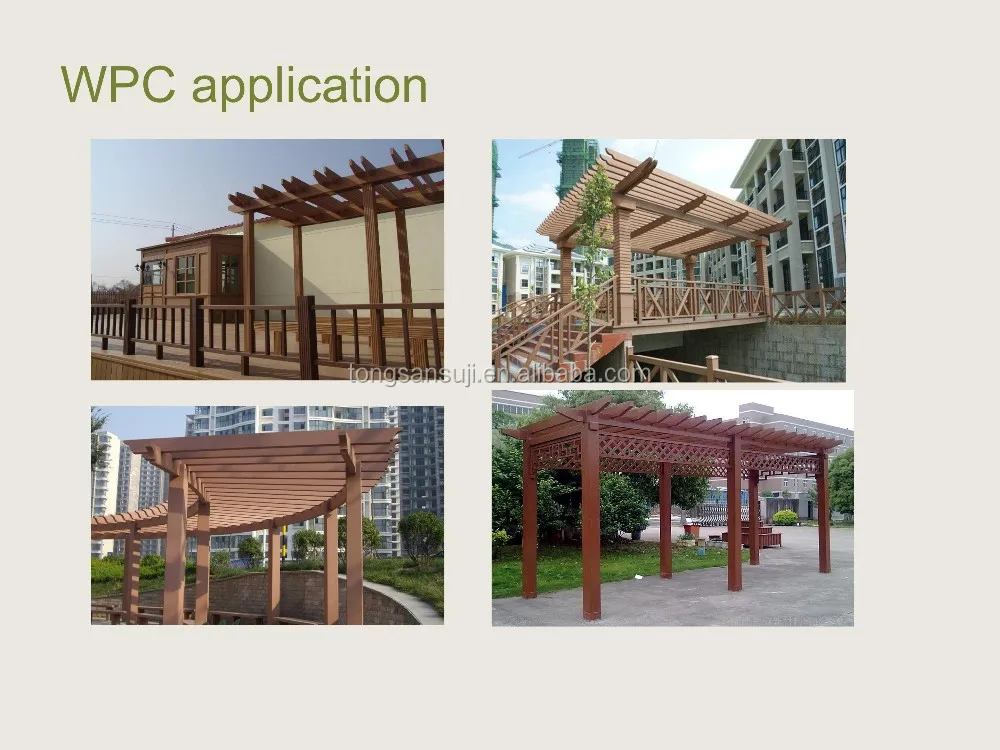

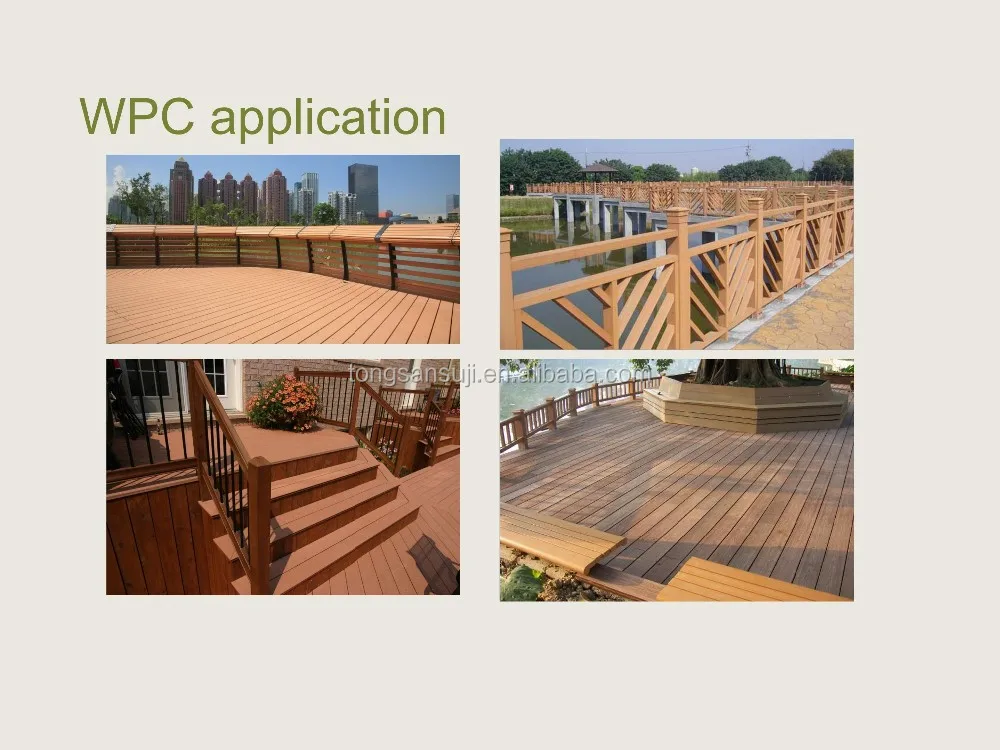

WPC application

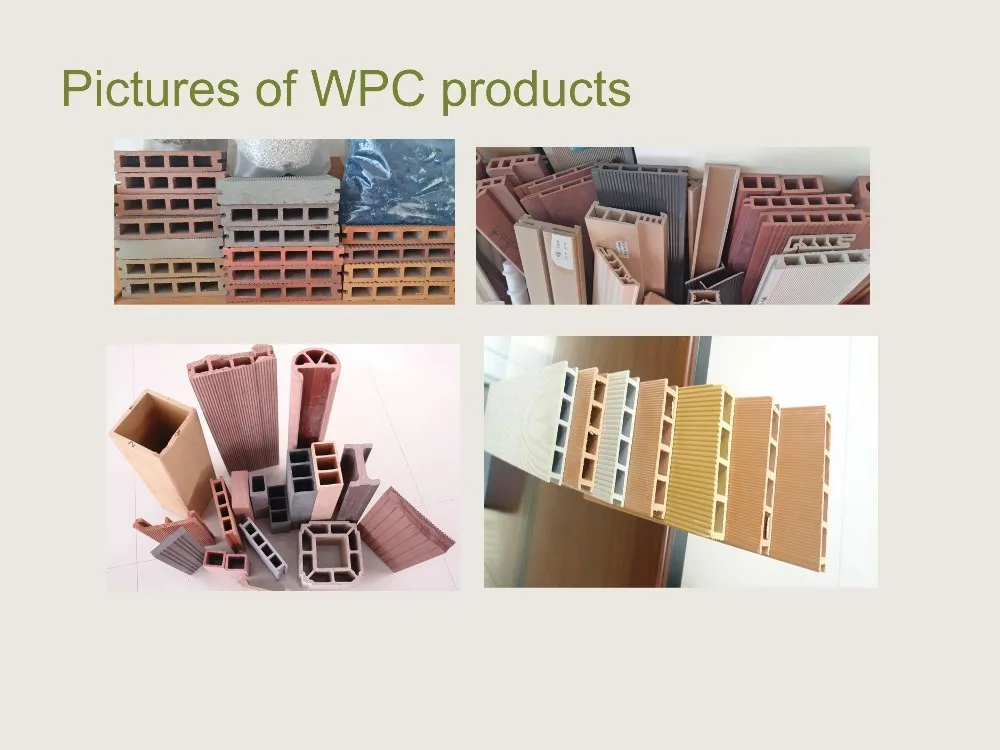

Advantage and application for WPC products

The wood plastic composite material(WPC) is a new kind of environment-friendly and 100%recycable material,

which uses straws in agricultural production (such as wheat-straw, cotton stalk, rice chaff, wood sawdust) and

recycled plastic( such as plastic film bags, plastic bottles) as main raw material. The WPC profiles and plates

can be used as package material, industrial pallets, guardrail, pavilion, and decking in city construction, national

defense building material, car and ships indoor decorative material, window and doors, ceiling, wall cladding,

indoor floor, furniture and cupboard etc.

The WPC products can be used instead of the wood products and plastic products. As it's physical and

mechanical properties are as good as wood, and it has many other performance than the wood products

and plastic products, such as environment-friendly, moisture proof, antiseptic and anti-crush. It is not only

environment-friendly and comprehensive utilization, but also in high technology, good quality and widely

application. It is more and more popular in the international market.







Company profile








Our service


TURNKEY PROJECT SERVICE:

1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other informations to help customer to build the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. let us do win-win business together.



INSTALLATION AND COMMISSIONING
WE WILL SEND THE TECHNICIAN TO BUYER'S FACTORY FOR INSTALLATION AND TESTING THE WHOLE LINE, AND OUR ENGINEER WILL DO TRAINNING TO BUYER'S WORKERS UNTIL THEY CAN RUN OUR MACHINE FOR STABLY PRODUCTION



AFTER SELL SERVICE: ONE YEAR GUARNTEE, FOREVER SERVICE!
WITHIN THE GUARANTEE OF ONE YEAR, WE WILL PROVIDE EFFICIENT AND ON TIME MAINTAINS,IF ANY SPARE PARTS DAMAGED IN THE GUARANTEE TERM BECAUSE OF QUALITY PROBLEM, WE WILL PROVIDE NEW SPARE PARTS FOR FREE FOR REPLACMENT.
