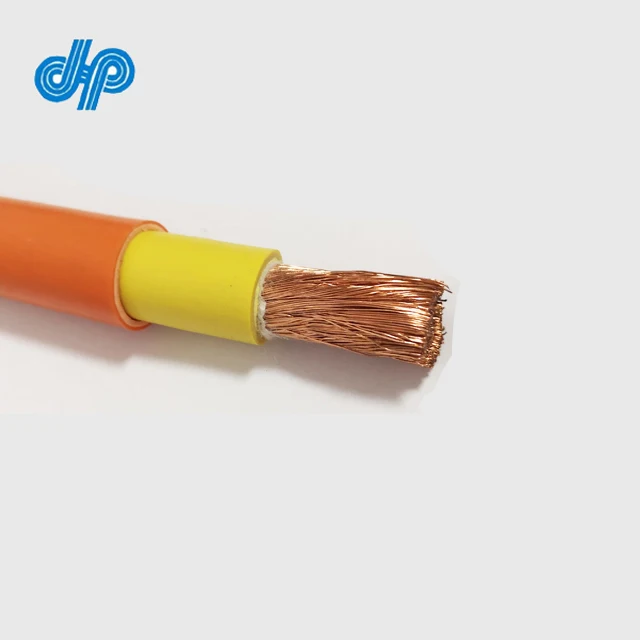

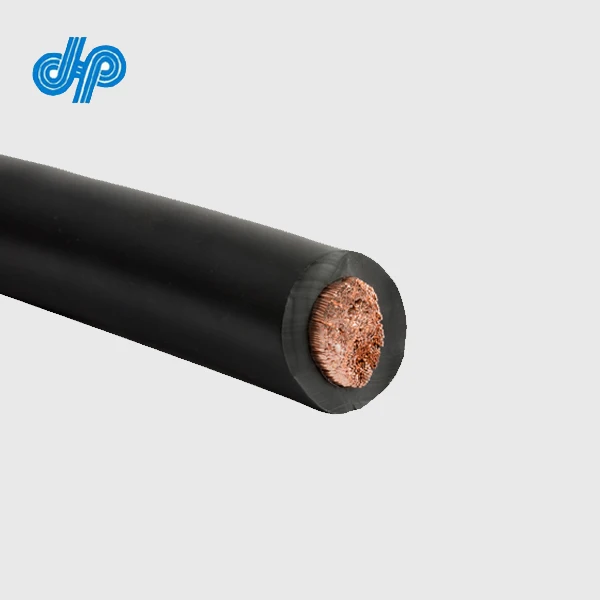

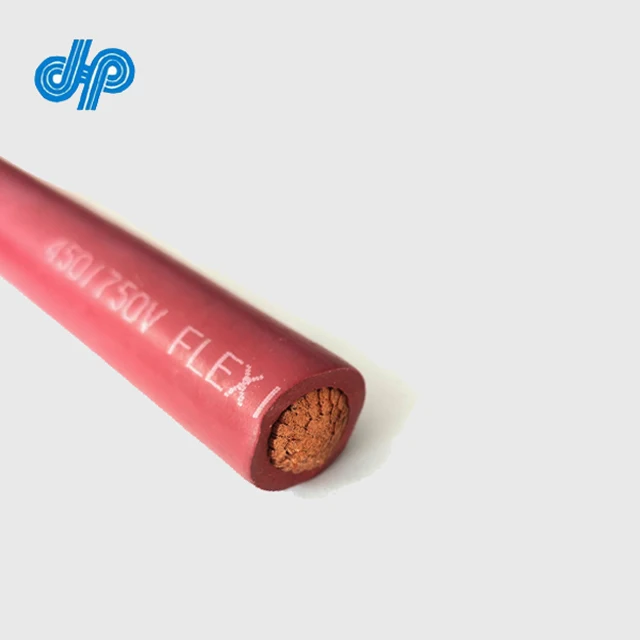

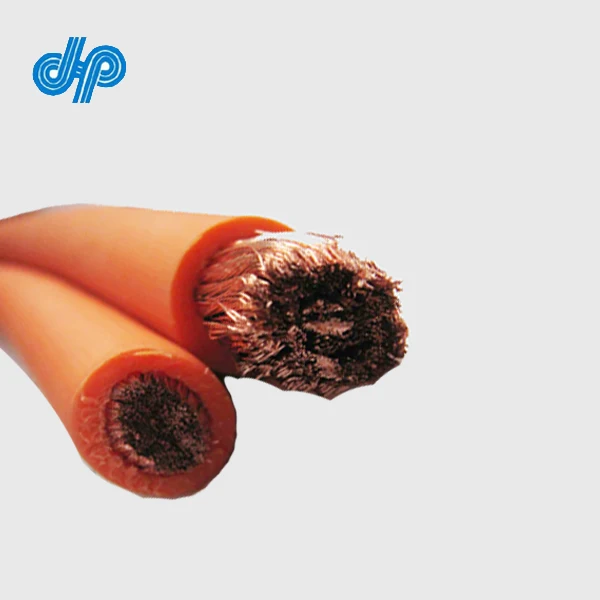

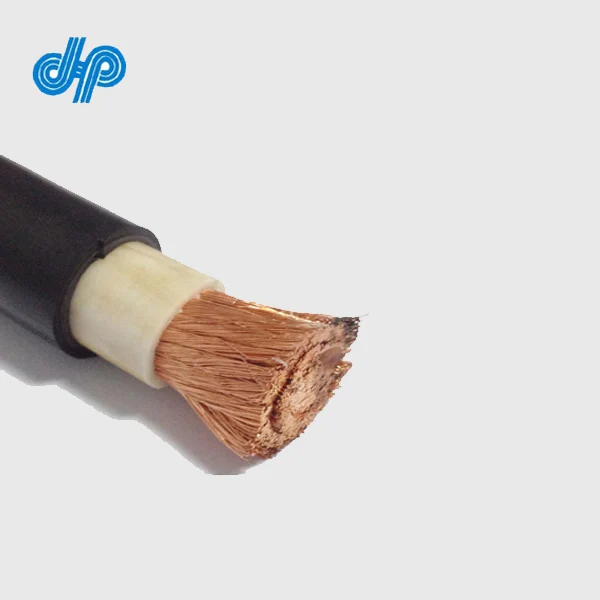

Сверхгибкий сварочный кабель 600 вольт AWG 4/0 3/0 2/0 1/0 EPDM
- Категория товара: Power Cables >>>
- Поставщик (Оптовый магазин): Zhengzhou,Hesheng,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
600 Volt AWG 4/0 3/0 2/0 1/0 Welding Cable

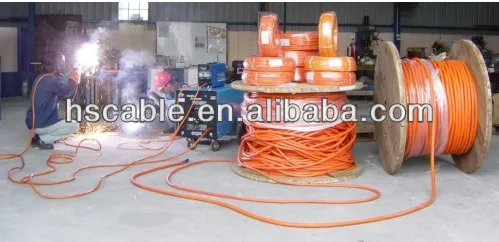

Application
Secondary voltage resistance welding leads
Power supply applications not exceeding 600 Volt AC
Construction
Conductor: 6 AWG through 500 MCM fully annealed stranded bare copper
Jacket: 105°C EPDM, black or red
Sample Jacket Marking:
WELDING CABLE 600 VOLT (SIZE) ZHENGZHOU HESHENG CABLE CO., LTD.
Technical data
Rated voltage:600/1000V
Test voltage:3500V
Conductor stranding:fine copper strands, class 5 or 6
Temperature range:-50°C to +80°C
AWG/KCMIL: 10 8 6 4 2 1 1/0 2/0 3/0 4/0 250 350 400 500 600 750 1000
Nominal section area (mm2) | Max. diameter of wire (mm) | Coated layer thickness (mm) | Sheath thickness in double coated layers(mm) | Average outer diameter (mm) | Max. resistance at 20℃ (Ω/km) | ||
Min. | Max. | Tin coated wire | Copper wire | ||||
16 | 0.21 | 2.0 | 1.3 | 9.2 | 11.5 | 1.190 | 1.160 |
25 | 0.21 | 2.0 | 1.3 | 10.5 | 13.0 | 0.780 | 0.758 |
35 | 0.21 | 2.0 | 1.3 | 11.5 | 14.5 | 0.552 | 0.536 |
50 | 0.21 | 2.2 | 1.5 | 13.5 | 17.0 | 0.390 | 0.379 |
70 | 0.21 | 2.4 | 1.6 | 15.5 | 19.5 | 0.276 | 0.268 |
95 | 0.21 | 2.6 | 1.7 | 18.0 | 22.0 | 0.204 | 0.198 |

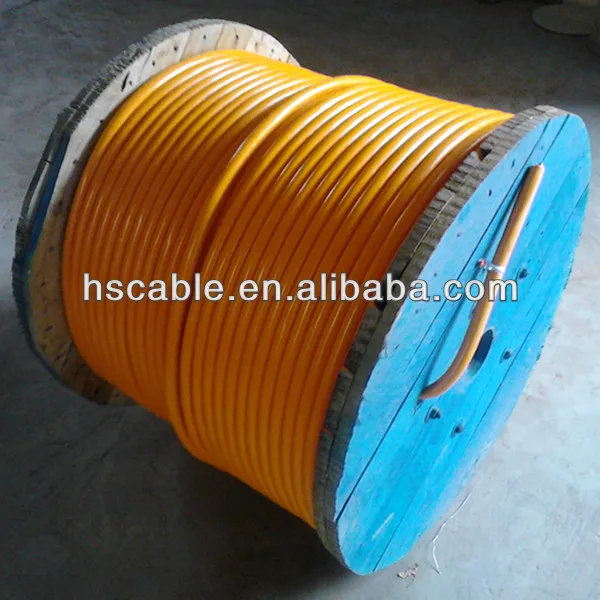

Packaging & Shipping
Our Services
HESHENG, OEM, ODM

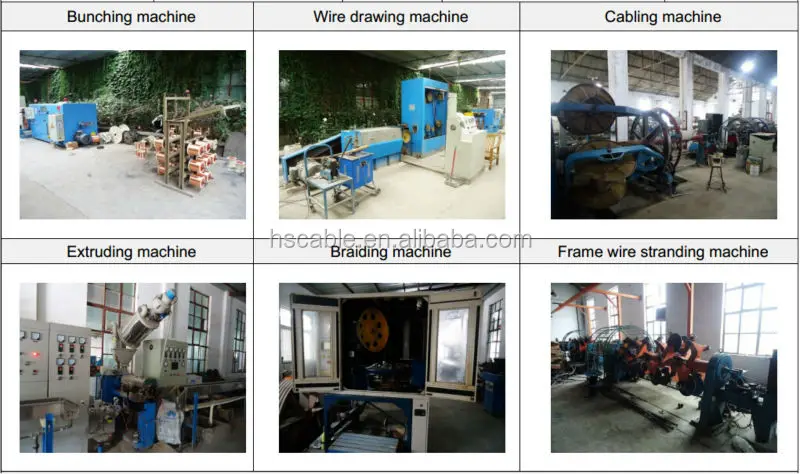

Company Information
FAQ
Q: Why choose Hesheng? Any advantages?
A: The answer is Yes. There are 5 advantages.
(1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.
(2) CUSTOMIZE: We can make the product as your request, Specification and Quality can meet your request.
(3) OEM: (1)Printing your Logo. (2)Designing your packing.
(4) MIX ORDER: We accept mix order, different model and small quantity order.
(5) AFTER SERVICE: 1 Years Guarantee.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
Q: If I want cheaper quality, can you produce?
A: Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Thank you for your visiting!
Any questions, please feel free to contact us. I am Jed here.
