PC Housing 24V LED Traffic Light for South America Market

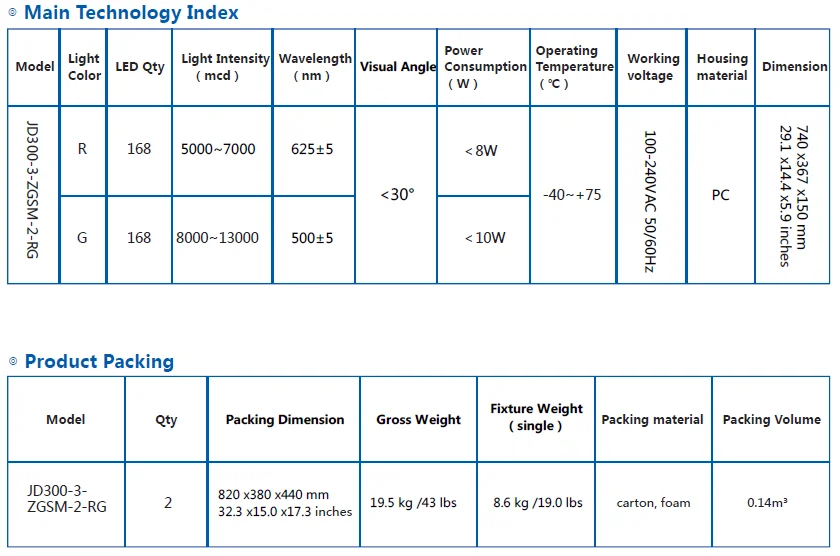

| Model No. | JD300-3-ZGSM-2 | |||||
| Electrical Specifications | ||||||
| Power | Red: ≤ 8W | Green: ≤ 10W | |||||
| LED Q'ty | Red: 168 pcs | Green: 168 pcs | |||||
| Operating Voltage | 100-240VAC ,50/60Hz | |||||
| Operating Temp. | -40ºC ~ +75ºC | |||||
| Operating Humidity | 10% ~ 90% | |||||
| Photometric Specifications | ||||||
| Apply Diameter | 300 mm (12 inches) | |||||
| Visible Range | 200m (656ft) | |||||
| Wavelength | Red:625±5nm | Green: 500±5nm | |||||
| Intensity | Red: 5000-7000mcd | Green:8000-13000mcd | |||||
| Visual Angle | <30º | |||||
| Mechanical Specifications | ||||||
| IP Rating | IP54 | |||||
| Warranty | 1 Year | |||||
| Housing Material | PC or Aluminum | |||||
| Lens Material | PC Housing: PC | Aluminum Housing: Glass | |||||
| Fixture Dimension | PC: 740 x367 x150 mm | |||||
| Aluminum: 700 x367 x125 mm (27.6 x15.2 x5.9 inches) | ||||||
| Fixture Weight | PC: 8.6 kg (19.0 lbs) | Aluminum: 11.6 kg (25.6 lbs) | |||||
| Standard(s) | GB14887-2011, EN50293:2000 & EN12368:2006 | |||||
| Certificate(s) | CE, RoHS | |||||
