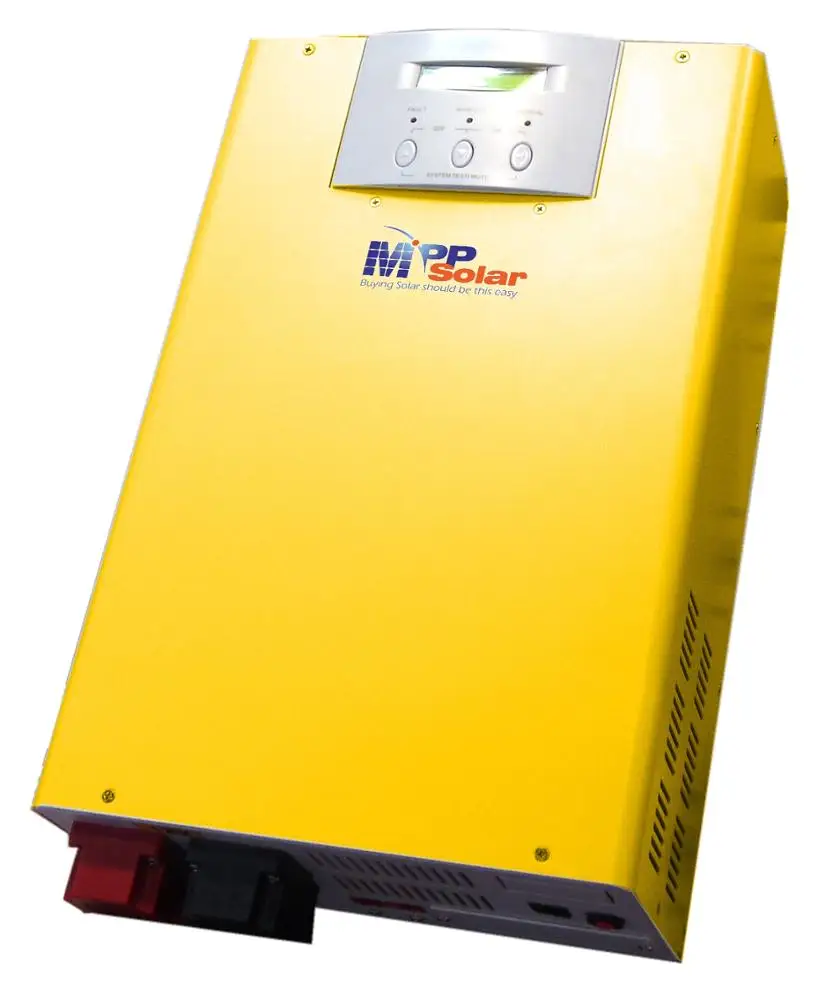

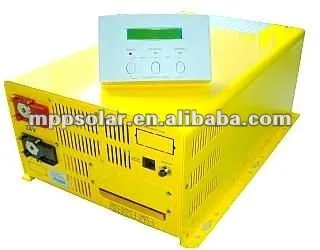

PIP-2424LC is a 2400w surge 4.8kw 50A Pure Sine Wave power inverter charger 24v UPS inverter featuring:
- SUPPORT both AC or DC priority adjustable in LCD
- Multiple microprocessor design base
- 2400W Pure sine wave inverter/ up to 2X surge support
- Built-in 50A AC high efficiency battery charger
- FREE Green Power Mode (power saving, $60 dollar value)
- Works with 24V battery system only
- Low Frequency design to support wider range of high energy loads
- DC start and automatic self-diagnostic sequence
- <3% total harmonic distortion (THD)
- Transfer time <8ms
- Programmable parameters
- 24 hour operation
- System designed to operate under harsh environment

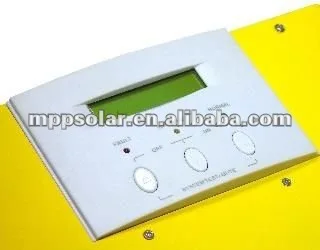

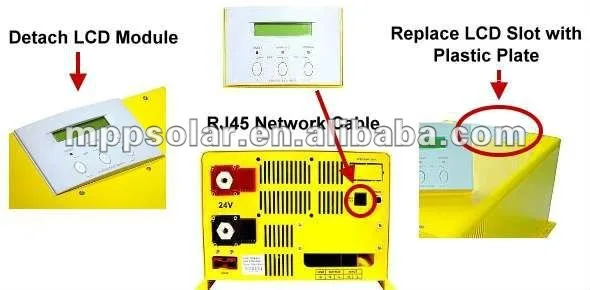

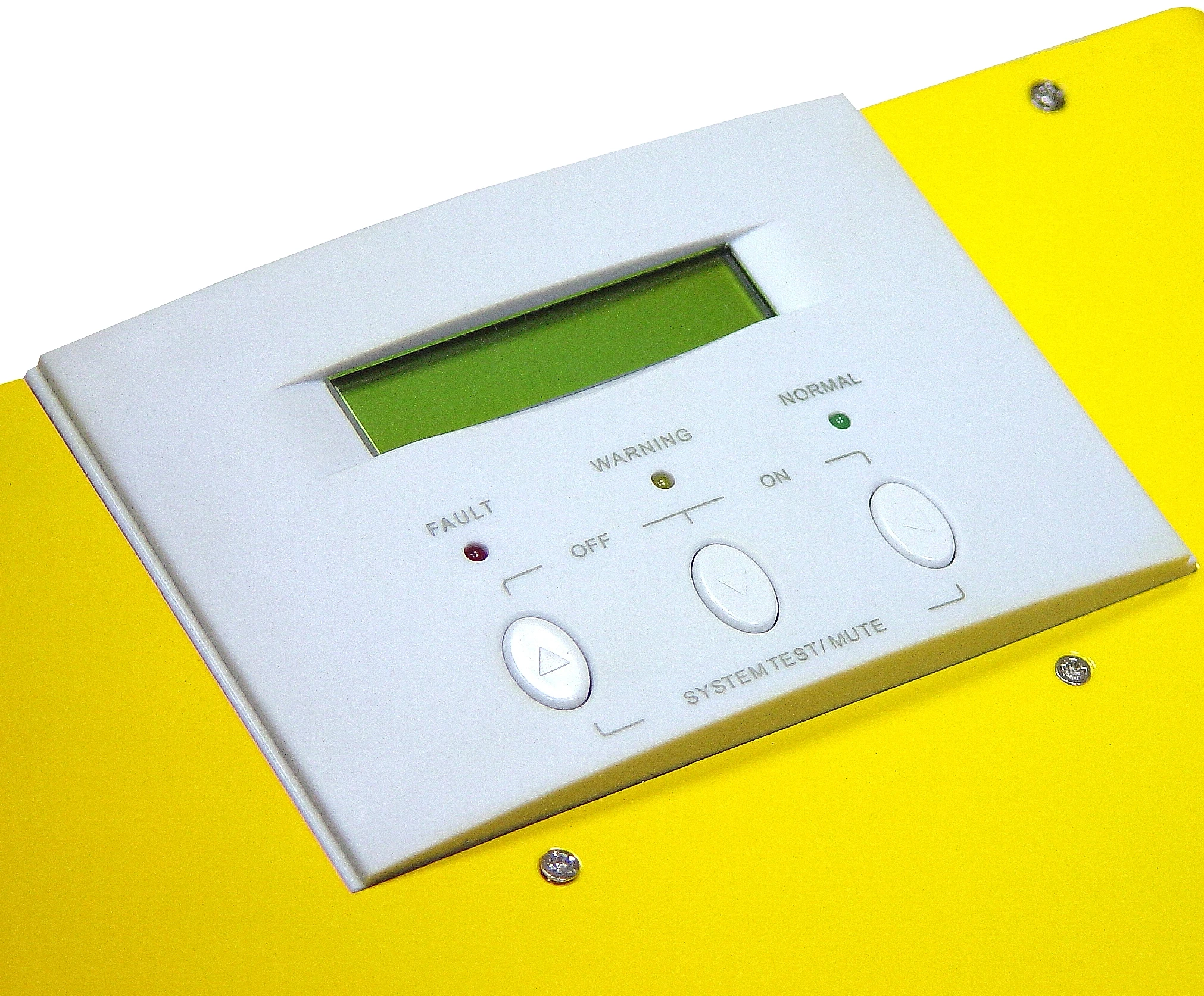

- LCD module on front may be detached to support remote viewing
- Inherent full-feature safety protection
- Wall-mounting
- 100% MADE IN TAIWAN with all reliable quality component
- CE, EMC certified, Green product ( ROHS)
**Note: Standard stocks are 220~240V, 110V input/output may be customized upon request.
PIP-LC SERIES | 1624 | 2424 |
ELECTRICAL SPECIFICATIONS | ||
Continuous/Surge Output | 1.6/3.2KW | 2.4/4.8KW |
Input Voltage Range | 60~135V or 120~270VAC (120 or 230V) | |
Output Voltage | 110/115/120Vac or 220/230/240VAC (programmable) | |
Output Waveform | Pure Sine Wave | |
Output Frequency | 50Hz or 60Hz (auto sensing 45Hz~70Hz) | |
Output Regulation | < 3% RMS for battery voltage range | |
Peak Efficiency | >85% | |
Input VDC / Range | 24V: 20~29.3V | |
Transfer Time | < 8ms | |
Recharging Current | >50A | |
PROTECTIONS | ||
Batt. Reverse Polarity | By Fuse | |
Overload (UPS/Batt. Mode) | > 110%: Pre-Alarm, Amber LED Blinking / >110~150% for 30 sec, > 150% for 200ms Shutdown | |
Over Temperature | > 60°C Pre-Alarm | |
Low Batt (Alarm/Shutdown) | <21.5V / <20V | |
Short Circuit | Circuit (UPS Mode) / Electronic Circuit (Battery Mode) | |
LED Indicator | Green: Power, Amber: Warning, Red: Fault | |
LCD Display | UPS Status, Input / Output Voltage Frequency, Load, Battery Voltage, Battery Capacity, Temperature | |
ENVIRONMENTAL / MECHANICAL SPECIFICATIONS | ||
Certification / EMC | CE / EN62040-1-1, EN62040-2 | |
Operating/Storage Temp. | 0°C ~ +40°C / -20°C~ +70°C | |
Operating Humidity | 20~90%RH Non-Condensing | |

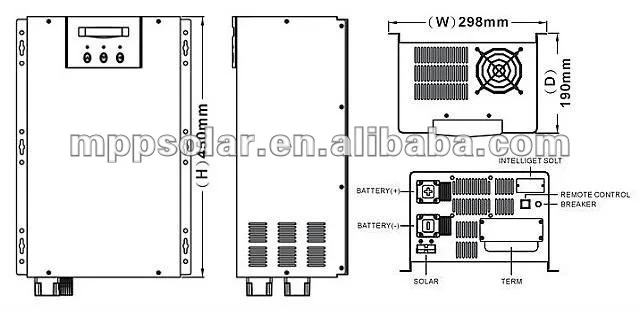

Dimension | 298*450*190mm | |
Weight/Packing | 24Kg | 25K |
