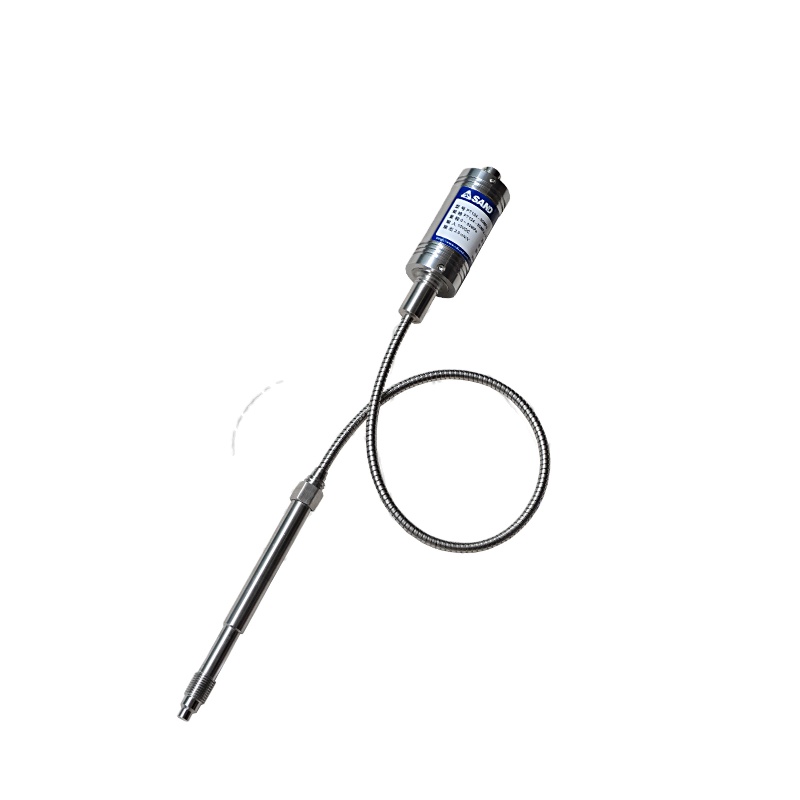

Песок PT127 преобразователь Давления Расплава M22

Категория товара: Pressure Measuring Instruments >>>
Поставщик (Оптовый магазин): Chengdu,Sand,Electronic,Co.,Ltd.

Цена:160,00 $ - 180,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

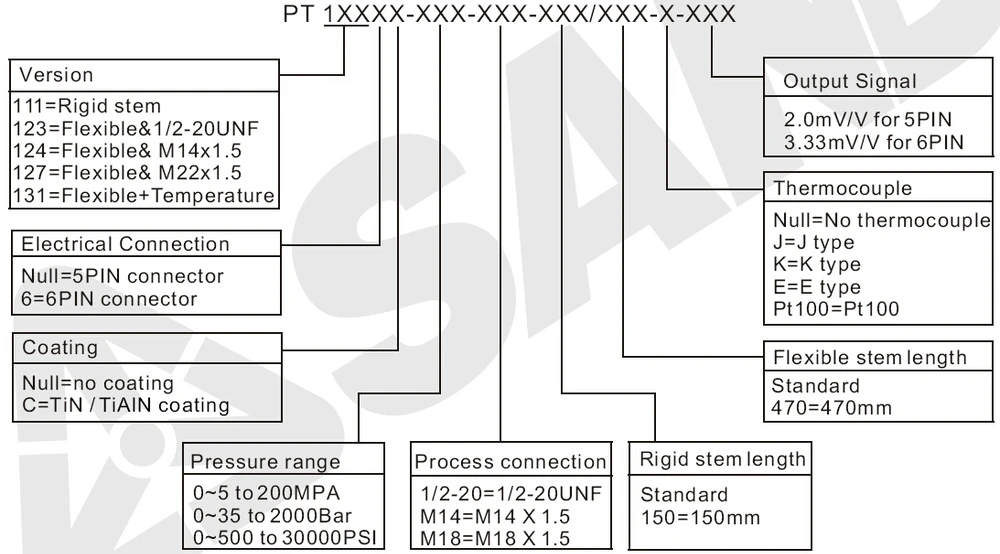

PT1XX Series : PT111 Series, PT123 Series, PT124 Series, PT127 Series, PT131 Series.

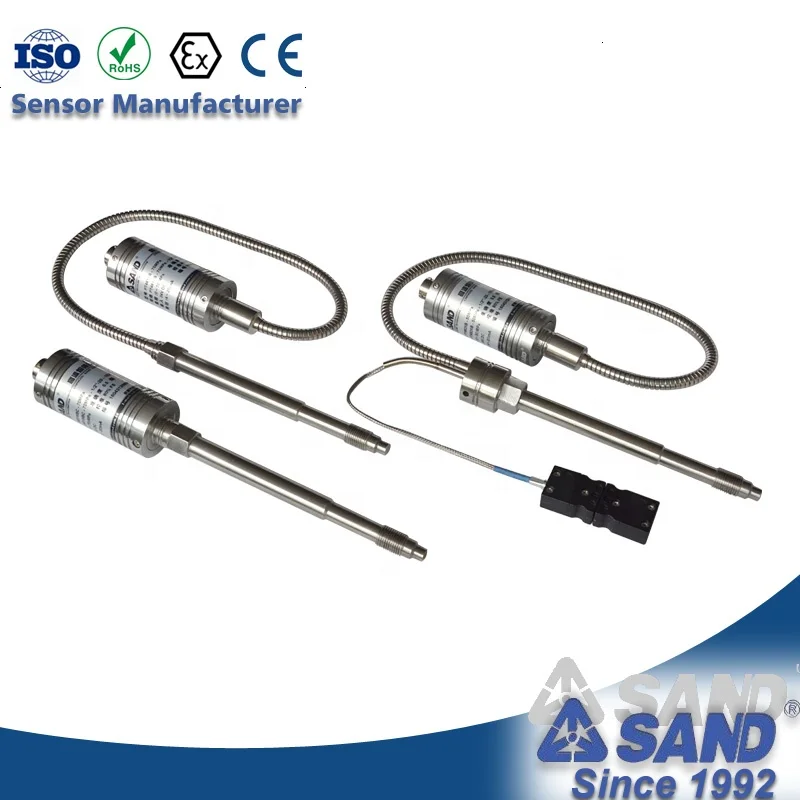

High Temperature Melt Pressure Transducer (Melt Pressure Sensor)

High Temperature Melt Pressure Transmitter

Product Description

Product Introduction

SAND PT1XXX series pressure transducers are ideal for the measurement of melt pressure in extrusion processes at temperatures up to 400 . The main applications are plastics extrusion and rubber,spinning systems and equipment for manmade fibers,petrochemical industries and so on.Optional thermocouple or RTD configurations are available.Electrical connection 5PIN and 6PIN option.

Specification:

Pressure Range	0~50 to 2000bar(0~750 to 0~30000psi)
Pressure Units	PSI, Bar, Mpa or Kg/cm2
Accuracy	±1.0% FS
Repeatability	±0.8% FS
Input excitation	10VDC ( 6 ~ 12 V DC )
Output Signal	2.0mV/V for 5PIN,3.33mV/V for 6PIN
Maximum diaphragm temperature	662 F (350 ) for rigid stem 752 F (400 ) for flexible
Zero shift due to temperature change	≤0.15 MPa/100°C
Insulation Resistance	≥500MΩ/500VDC
Maximum Overload Pressure Rating	1.5 x FSO

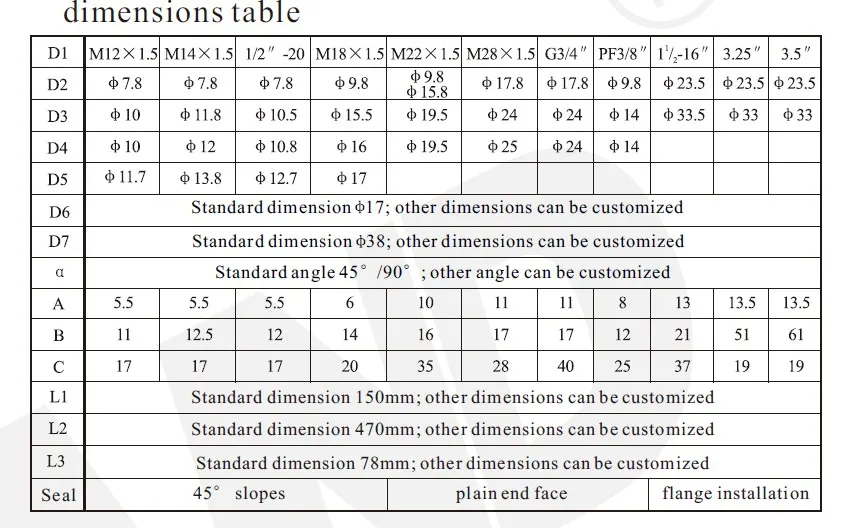

Process connection	1/2"-20UNF, M10x1.5, M12x1.5, M14x1.5, M18x1.5, M22x1.5 etc.
Electrical Connection	5PIN or 6PIN
Internal Shunt Calibration	80% FSO
Measurement principle	4-arm bonded foil strain gage Wheatstone bridge
Temperature Sensor (optional)	E,J,K,S type or Pt100
