Кольцевой резак для шин/резак для полос/резак для блоков

Name: Кольцевой резак для шин/резак для полос/резак для блоков
Brand: Qingdao,Eenor,Science&Technology,Co.,Ltd.
Availability: InStock

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

Tyre Ring Cutter/Strip Cutter/Block Cutter

Product Description

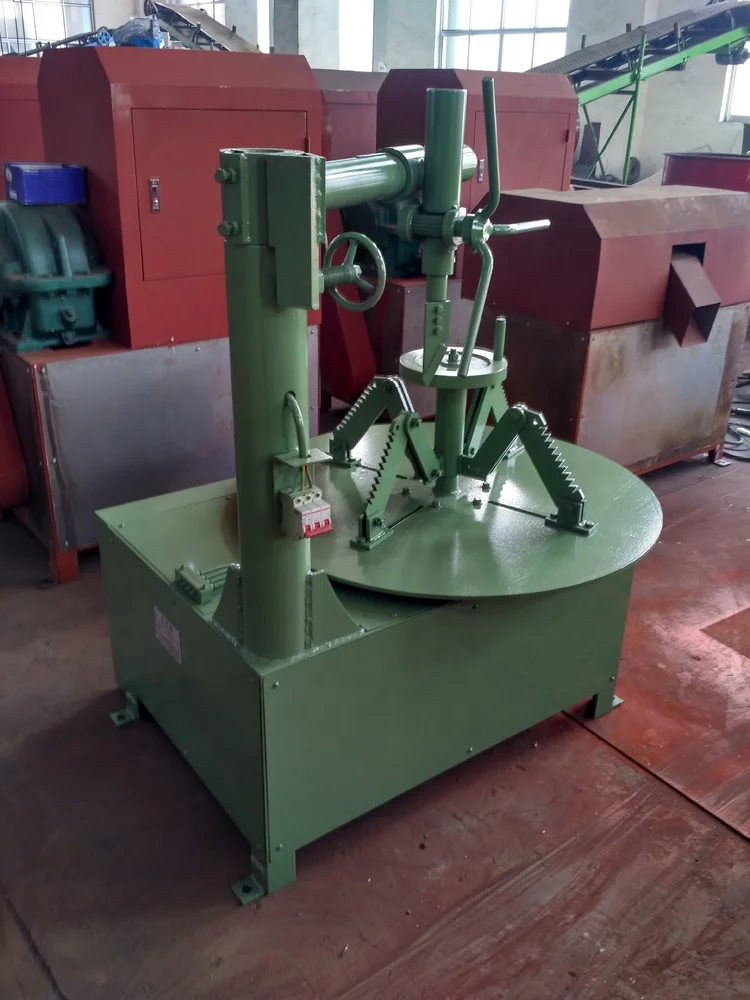

1-1.Ring cutter

Item	Specification
motor power	5.5
Speed of main screw	46.8 r/min
MAX Diameter of tyre	1200mm
Dimension	11009001700mm
Purpose :To cut the steel ring from the tyre

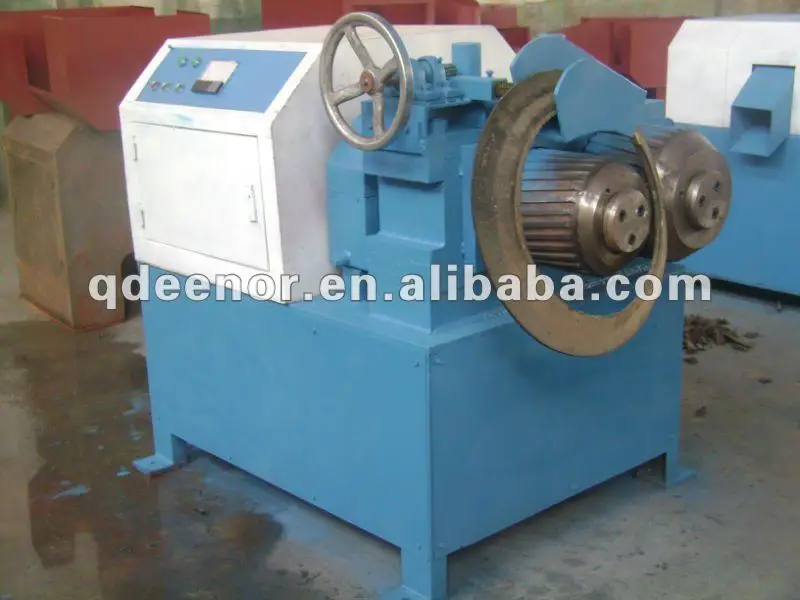

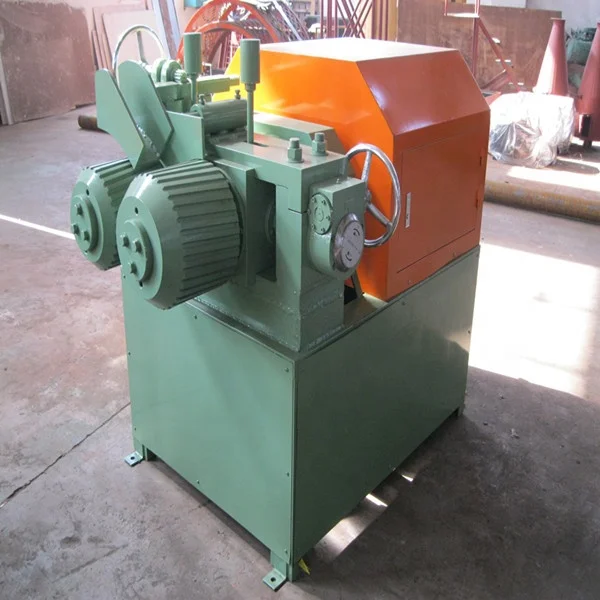

1-2.Loop machine

Item	Specification
Motor power	15 KW
Linear speed of front roller	15.5 m/min
Ratio of speed	1.1
Dimension	1520115012101mm
Purpose:To Separate the steel ring from the rubber after 1 step.

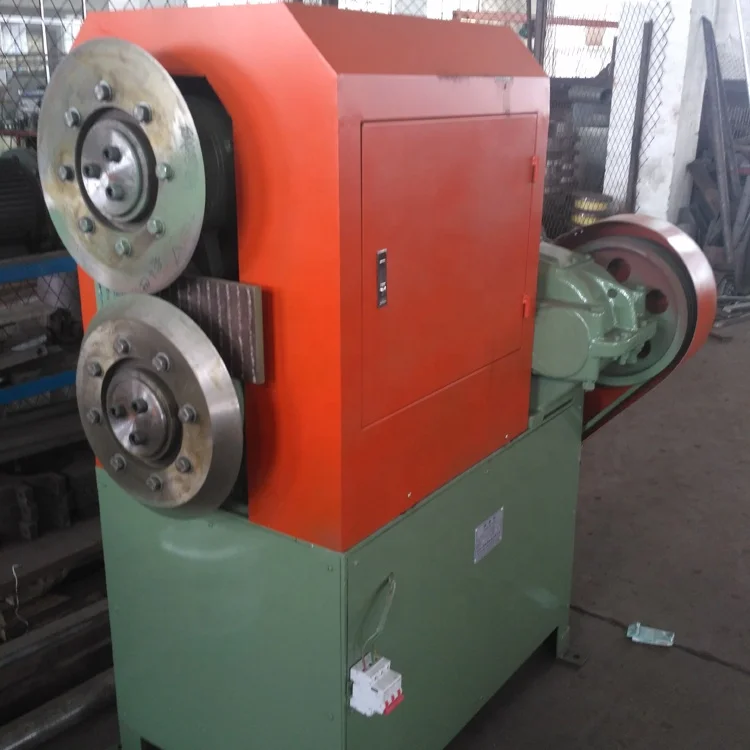

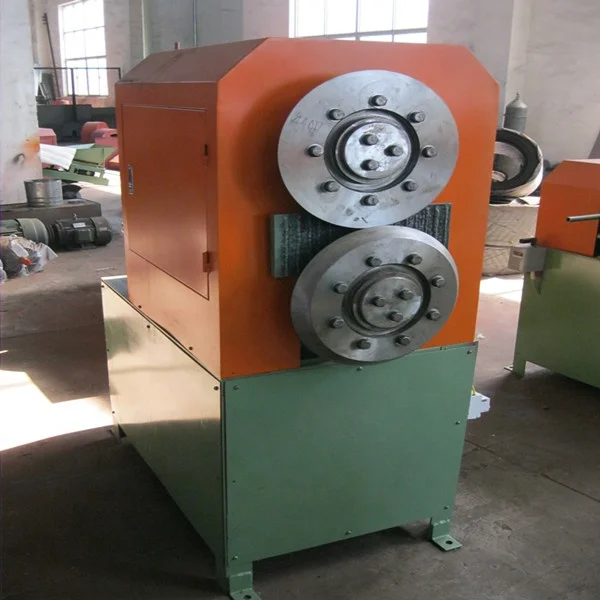

1-3.strip cutter

Item	Parameter
Motor Power	5.5kw
Disc Diameter	380mm
Rotate Speed	18.4r/min
Dimension	12908701550
Purpose: To cut the old tyre intostrip

1-4.block cutter

Item	Specification
motor power	11kw
Speed of main screw	420 r/min
Out diameter of cutter	200mm
Dimension	11308301100
Purpose: To Cut the strip into block

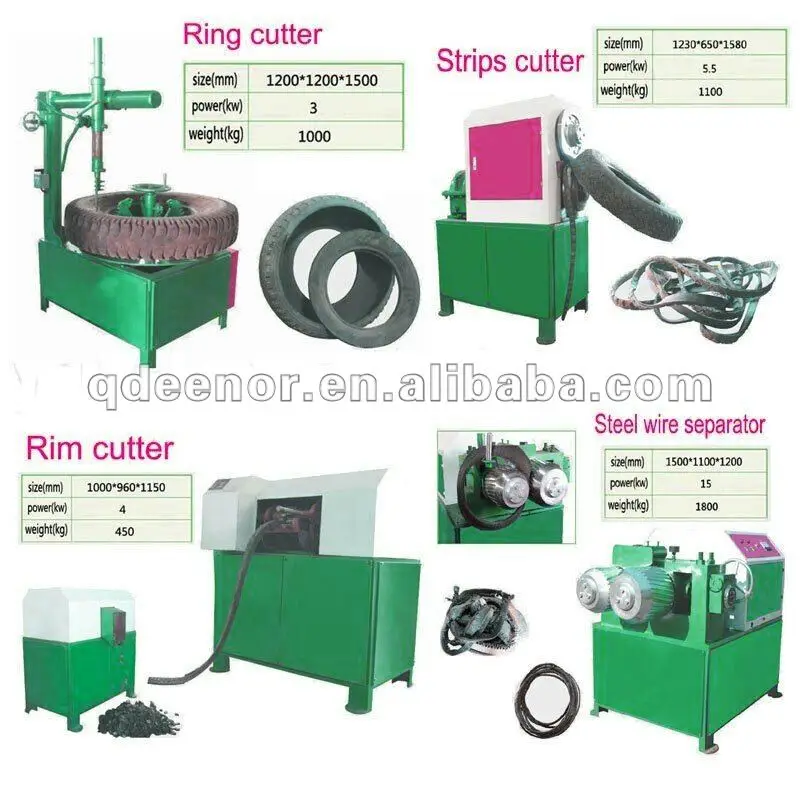

manual control.jpg
