Л встроенные солнечные водонагреватели без давления с плоской пластиной

1.2 Structure

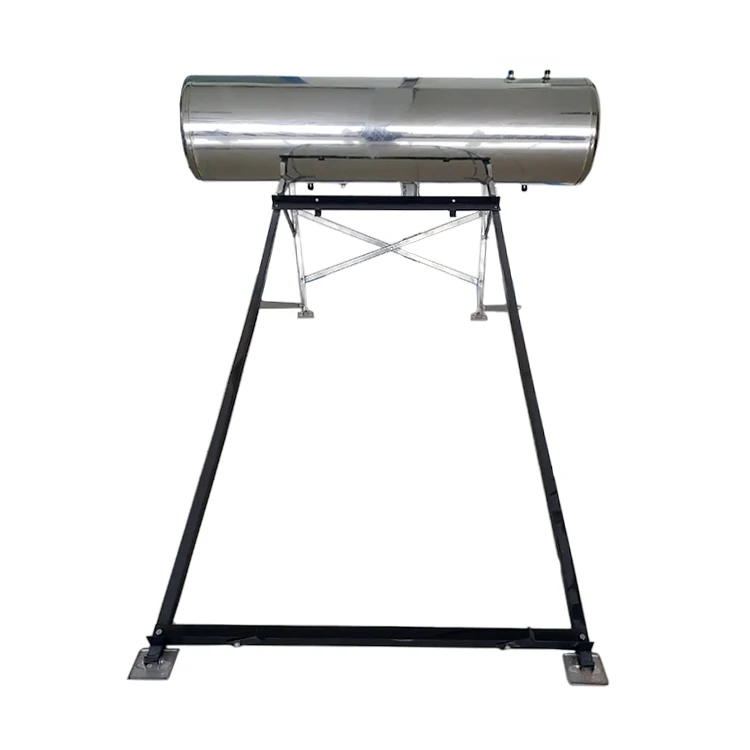

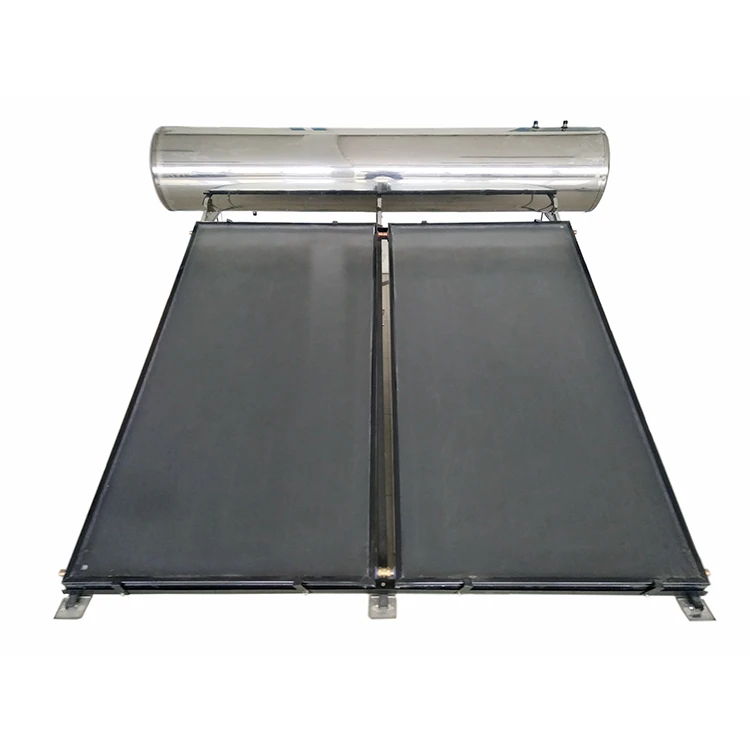

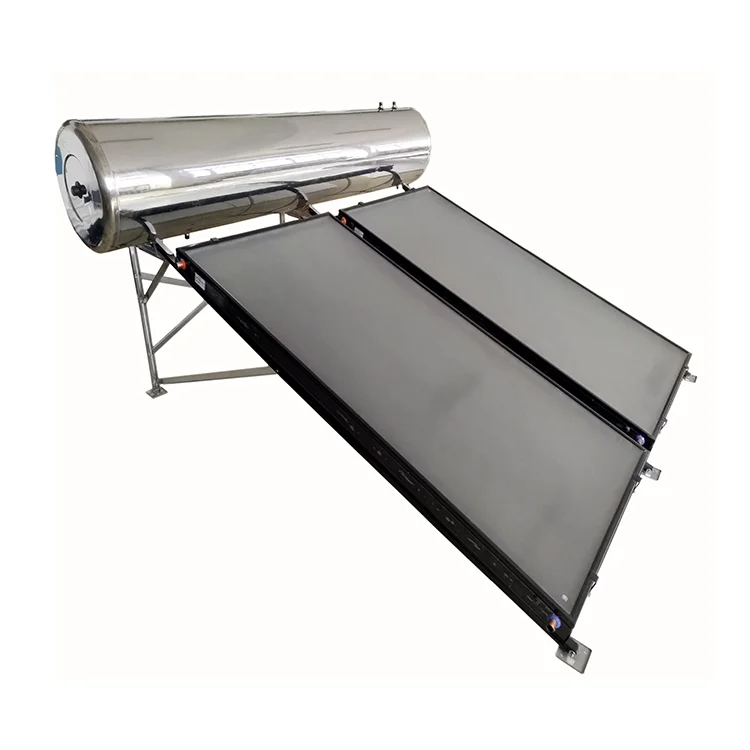

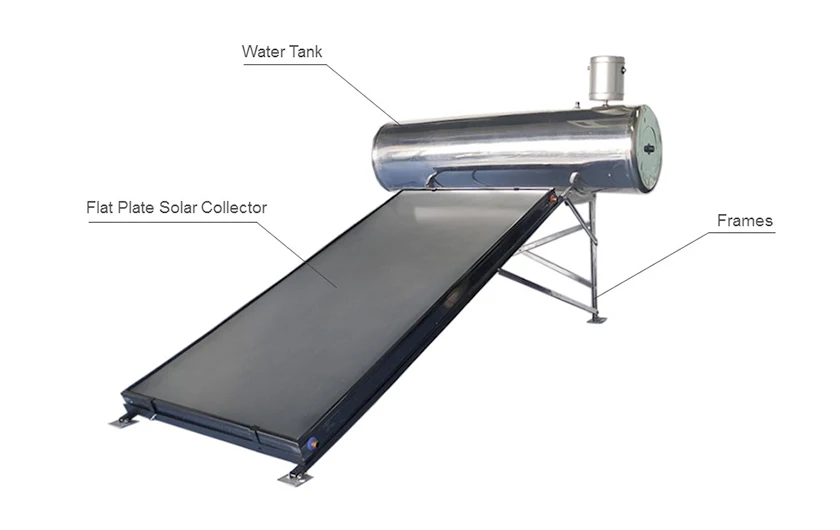

SFFU mainly consists of a hot water storage tank, solar flat plate collector and frame.

1.3 Working principle

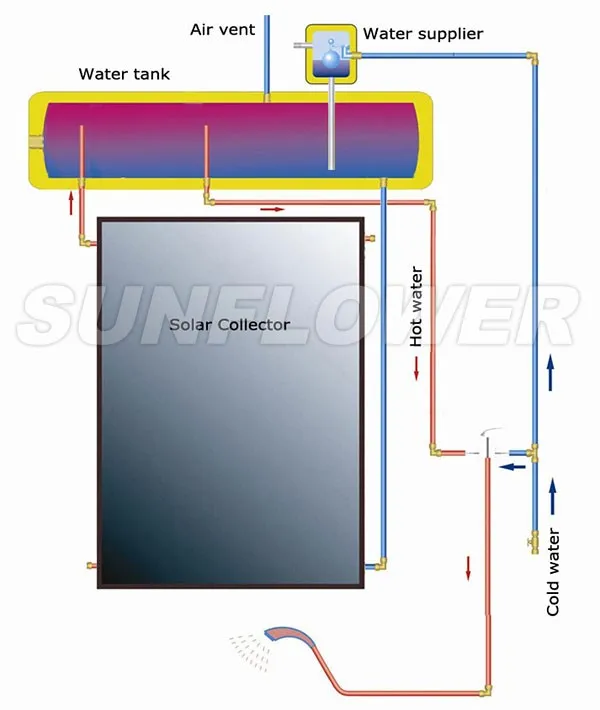

The flat plate solar collector absorbs light energy through the coating and converts the light energy into heat energy stored in the insulated water tank. It relies on the thermosiphon principle to naturally circulate the water tank. Open water tanks are not subjected to pressure and are also known as low-pressure solar water heaters.

2.1 Features

• Actively carry out natural circulation by relying on the principle of thermosyphon, 100% solar energy, and no running cost.
• Hot water draining out from tank by gravity. Water pressure is determined by the difference between the installed height of the solar tank and the height of the hot water outlet at user side.
• The inner tank is made of food grade SUS304. It is fully automatic argon arc welding and double-sided argon gas protection to effectively prevent the surface from being oxidized. Strict welding process control measures to better protect the crystal structure of SUS304 from damage. The inner tank has a service of life 15 years more.
• The insulation layer of solar tank is polyurethane having independent bubbles with foaming density 36KG/m³, and the temperature drop of hot water within 12H is less than 2 °C. Under the ambient temperature of 25 ° C, the temperature is kept for 24 hours, and it will not deform for a long time.

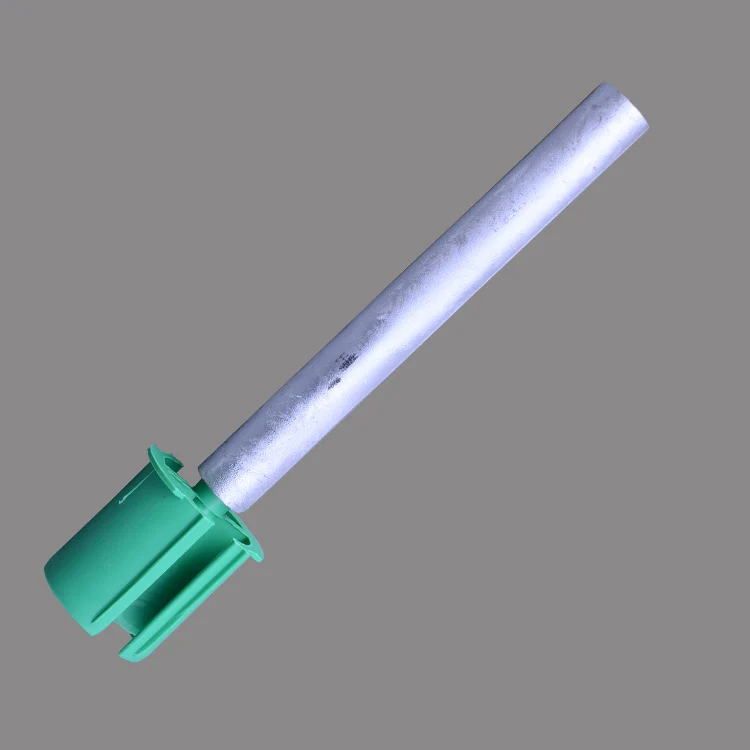

4. Magnesium rod

Anode protection, protect the inner tank from corrosion.

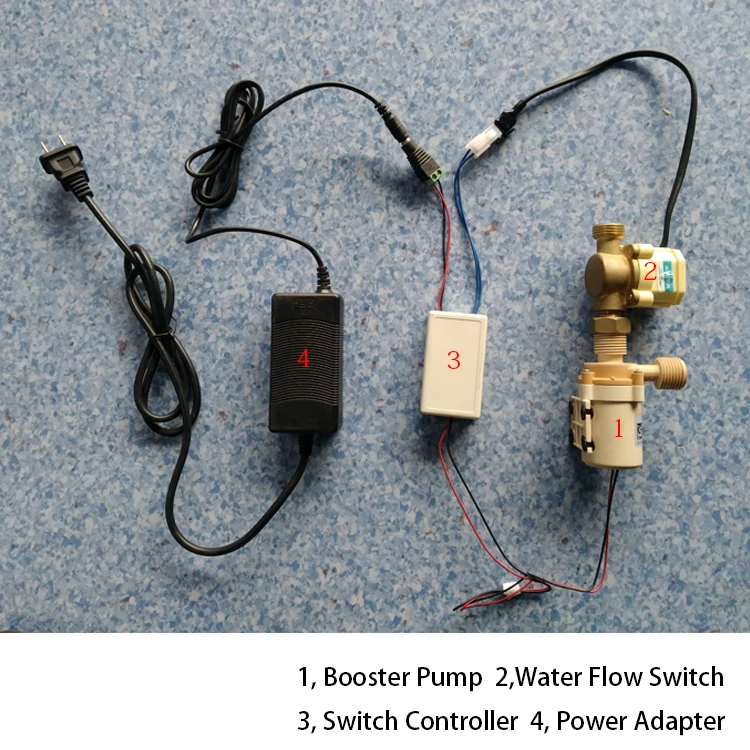

5. Booster pump + water flow switch

Increase hot water pressure.

3.1 Installation

• The SFFU can be mounted on a flat roof or a sloping roof. The installation height of the water tank need to be higher than that of user side, and the greater the height difference, the greater the pressure of the water. The frame are fixed connected with base (roof or ground).
• Installation and use steps: Select the installation location, frame assembly, water tank standby, install flat plate solar collector, connect hot and cold water pipe, water supply, inspection, fix the screws, normal use, regular inspection and maintenance.

Who we are?

Welcome to the website of Jiangsu 1st Sunflower Intelligence Technology Co., Ltd
Since entering the field of manufacture of solar products in 1998, 1st sunflower has accumulated deep expertise, good R&D and production skills in solar products and green environmental friendly products. Therefore, we have excellent product design capabilities to provide customers with fast solutions and after-sale support.
We are committed to promoting a low-carbon, natural and healthy lifestyle, and we are committed to providing the most advanced green and sustainable products to our customers around the world.
In the process of continuous development of the company, 1st sunflower continuously improves products according to the regional characteristics and living habits of different countries in order to make the product more concise, more convenient to use, more efficient and less maintenance. At last but not least, reduce energy costs while maintaining comfort and protecting the environment.
1st sunflower aims to provide comprehensive, innovative and sustainable solutions for pollution-free solar products, solar energy utilization, and health & sports, including design, manufacturing and delivery. In addition to our main products, like solar water heaters, solar power systems, solar fans, solar air conditioners etc, we are further extend to the health & sports field, to actively pursue our corporate mission – providing customers with comfortable low-carbon natural health lifestyle.
Our customers are around the world. In order to adapt our products to different scenes, we have also visited many regions over these years. Our long-term experience has taught us the industry habits and international trade policies of many countries. In addition, we have excellent technical staff and experienced international trade service team, who can provide the quickest response and the most powerful support for the problems you face in the process of our cooperation.
1st Sunflower will continue to provide a full range of low carbon, environmentally friendly and natural products&solutions for individuals, families, businesses and public projects to further meet the market's functional and price needs. We strictly follow international practices and quality standards in product development, design, manufacturing, improvement, product trace ability and service procedures. In addition to providing you with high quality with reasonable price products and solutions, we further provide you with fast and active after-sales support and service.
Feel free to contact us for further cooperation.

Shipping Info:

Our Solar Water Heaters can be shipped to the entire global market.
Delivery Time:15 days

Payment Details:

Payment method: T/T, L/C, Western Union, Paypal

Packaging Details:

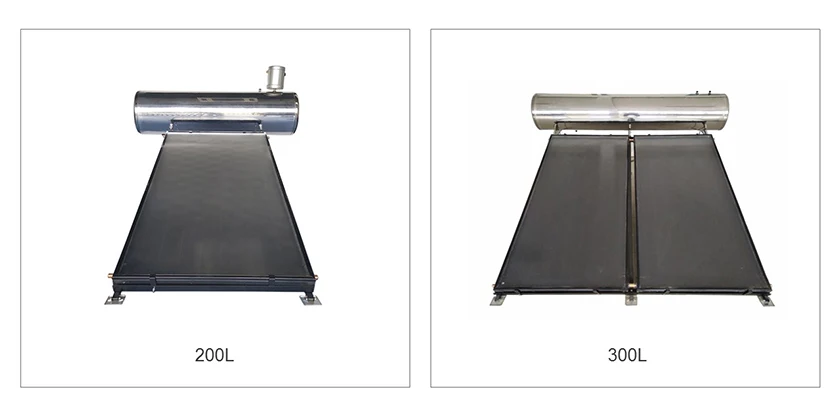

Description: 200L Integrated Unpressurized Flat Plate Solar Water Heaters
Package/volume/weight: Carton/0.66CBM/66kg
Packing quantity: 41/20GP, 82/40GP, 100/40HQ
Shipping Mark: By your requirement
