Горячая окунутая гальванизированная кабельный лоток

Горячая окунутая гальванизированная кабельный лоток

Категория товара: Cable Trays >>>
Поставщик (Оптовый магазин): Anping,County,Yongchang,Metal,Products,Co.,Ltd.

Цена:2,00 $ - 5,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

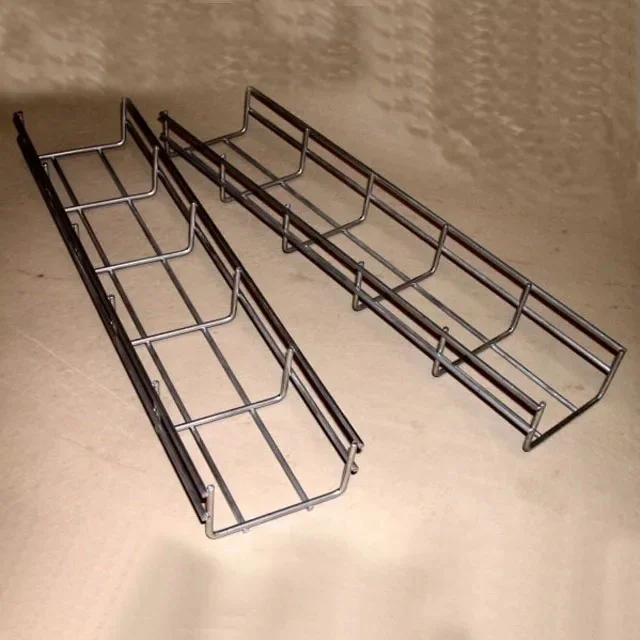

Cable Tray

1) Cable Tray Material: Carbon Steel, Stainless Steel Grade 304/316/316L

2) Surface Finish: Zinc Plated, Hot Dipped Galvanized, Electrolytic Polishing, Powder Coating, Polished
3) Width: standard wire mesh cable tray width include 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm & 600mm

4) Height: standard depth include 35mm, 54mm, 105mm & 150mm

5) Tray Standard Length is 3000mm, usually made to 2997mm to fit the 40'ft container.

6) Wire Diameter:
4.0 mm for trays of widths of 54mm, 100mm, 150mm, 200mm, 300mm

5.0 mm for trays of widths of 300mm, 400mm, 450mm, 500mm, 600mm
6.0 mm for trays of widths of 750mm and 800mm

7) Structure: All standard wire mesh cable trays are constructed with a 50mm x 100mm mesh configuration.

8) Welding Strength: Broken force at least 1166N
9) We mainly produce according to drawings or samples. Custom sizes available.

10) OEM available.

Item	Size(mm)	Width(mm)	Height(mm)
1	50*50	50	50
2	100*50	100	50
3	200*50	200	50
4	300*50	300	50
5	100*100	100	100
6	200*100	200	100
7	300*100	300	100
8	150*150	150	150
9	200*150	200	150
10	300*150	300	150
