| CONCERTINA WIRE/RAZOR WIRE CBT-65 |
| Razor Barbed Tape Wire Kindly refer to below technical information of our products and contact us with your detail requirements. Razor Blade Specification: | Reference Number | Blade Style | Thickness | Wire Dia | Barb
Length | Barb
Width | Barb
spacing | BTO-10 | | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 | BTO-12 | | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | BTO-18 | | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | BTO-22 | | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | BTO-28 | | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 | BTO-30 | | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 | CBT-60 | | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | CBT-65 | | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request. | | Barbed Tape Wire Specification: | | Barbed Tape Wire Specification | | Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes | | 450mm | 33 | 7-8M | CBT-60.65 | Single coil | | 500mm | 56 | 12-13M | CBT-60.65 | Single coil | | 700mm | 56 | 13-14M | CBT-60.65 | Single coil | | 960mm | 56 | 14-15M | CBT-60.65 | Single coil | | 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | | 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | | 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | | 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | | 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | | 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | | 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | | 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | | 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| | | Notes:
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel. |
CONCERTINA RAZOR WIRE TYPES: | | 1.Concertina Cross Type Razor Barbed Tape Wire | | Fasten two razor wires with stainless steel or zinc coated clips, then stretch out to form cross type. Concertina cross type razor barbed tape wire enjoys good appearance, practical use and can ensure stronger protection. |
|

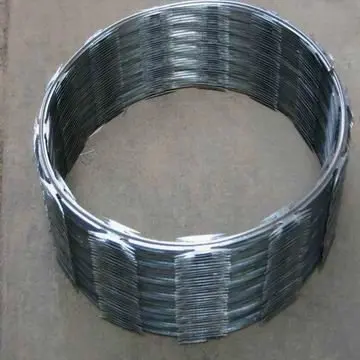

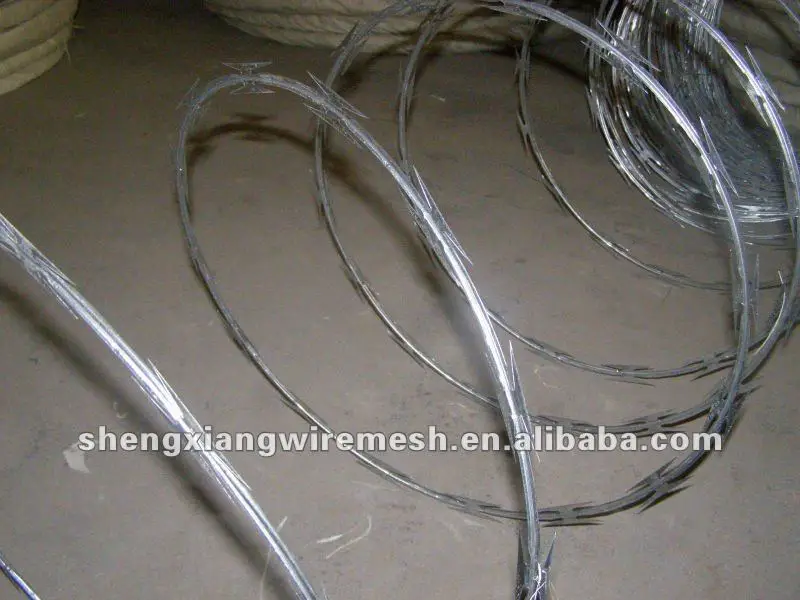

2.Long Blade Razor Barbed Tape CBT-65Extra Long Blade Razors provide maximum frightening effect. SINGLE COIL CONCERTINA WIRE
|

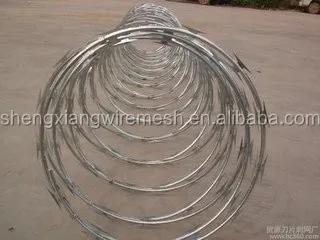

3.Concertina Single Coiling Type Barbed Tape Wire
Concertina type barbed tape wire is installed without clips, it runs in natural loops on walls. Cost less and easy installation.

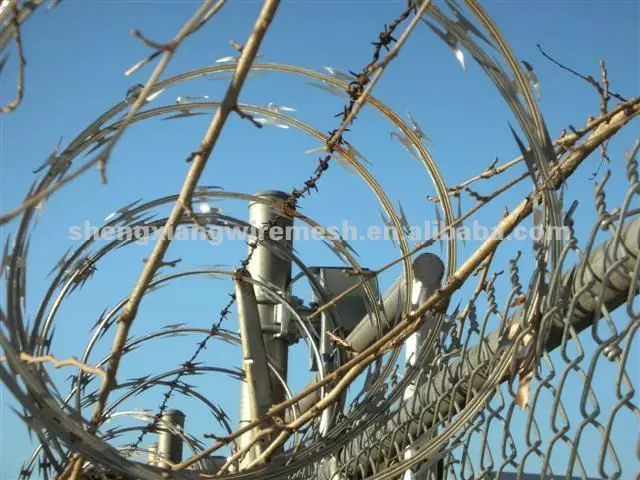

4.Cottage and Society Fencing Wire
Sharp Razor Barbed Tape Wire mounted around brings more security effect for residents.

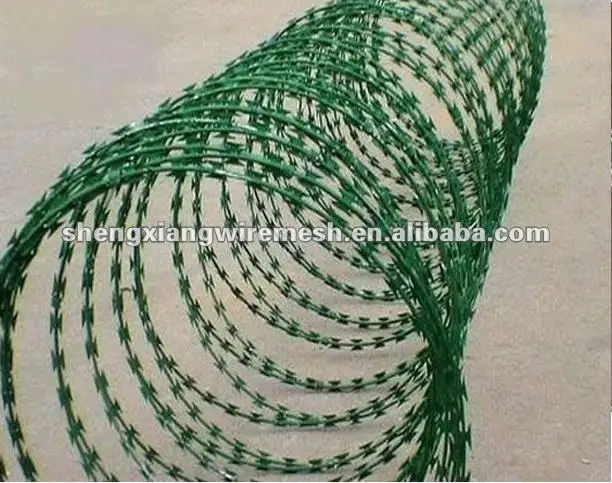

PVC PAINTING RAZOR WIRE
5. CROSSED CONCERTINA RAZOR WIRE WITH CLIPS
STAINLESS STEEL RAZOR WIRE
6. Wall spike
material: hot-dip galvanized steel sheet. Stainless steel AISI430 or AISI304.
Specification of Wall Spike:
Barb length: 64mm.
Barb thickness: 0.8mm-1.0mm.
Length per piece: 0.5M or 1M
