Lcd-плата контроллера антикражная Y2662 V1, 7 дюймов 800x480 разрешение 60pin TFT ЖК-экран

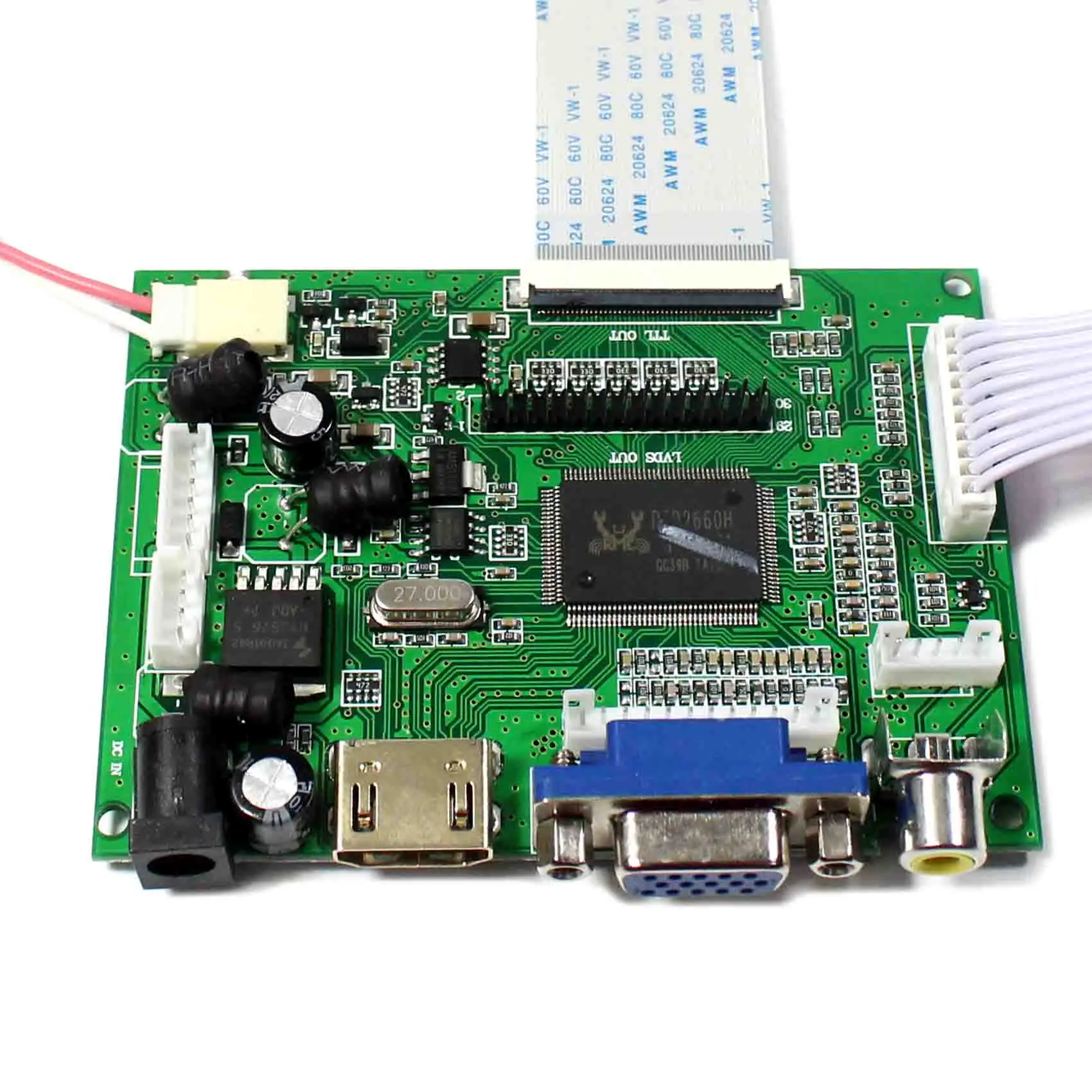

LCD Controller Board VS-TY2662-V1:

VS-TY2662-V1 is a LCD control board, it supports between 7 and 22 inch LCD panel with single /dual LVDS interface.

Size: 90.58mm(L)*65.6mm(W)*12mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, Portuguese,Korean (optional) And So On

KEY FUNCTION: Auto, Menu, Vol-, Vol+, Power

Operation temperature: 0~40°C.

standby< 1W

Panel Interface: 50PIN TTL/6Bit 8it Dual/Single LVDS interface

Panel Resolution: Up to 1920x1080

GENERAL PRECAUTIONS:

Don’t wire in the board to power supply before panel is correctly connected

7inch 800x480 TFT LCD panel HSD070IDW1-A20:

Type: LCM

Resolution: 800x480

Aspect Ratio: 16:9(H:V)

Outline Size: 165(H)×104(V)x5.1(D)mm

Display Area: 153.6(H)×86.64(V)

Viewing Angle: 70/70/50/60(Typ)(CR>10)(L/R/U/D)

Signal Interface: 60pin TTL

Backlight Type: Normally white

Brightness: 200cd/m2

Contrast Ratio: 500:1

Operating Temp: -20 ~ 70 °C

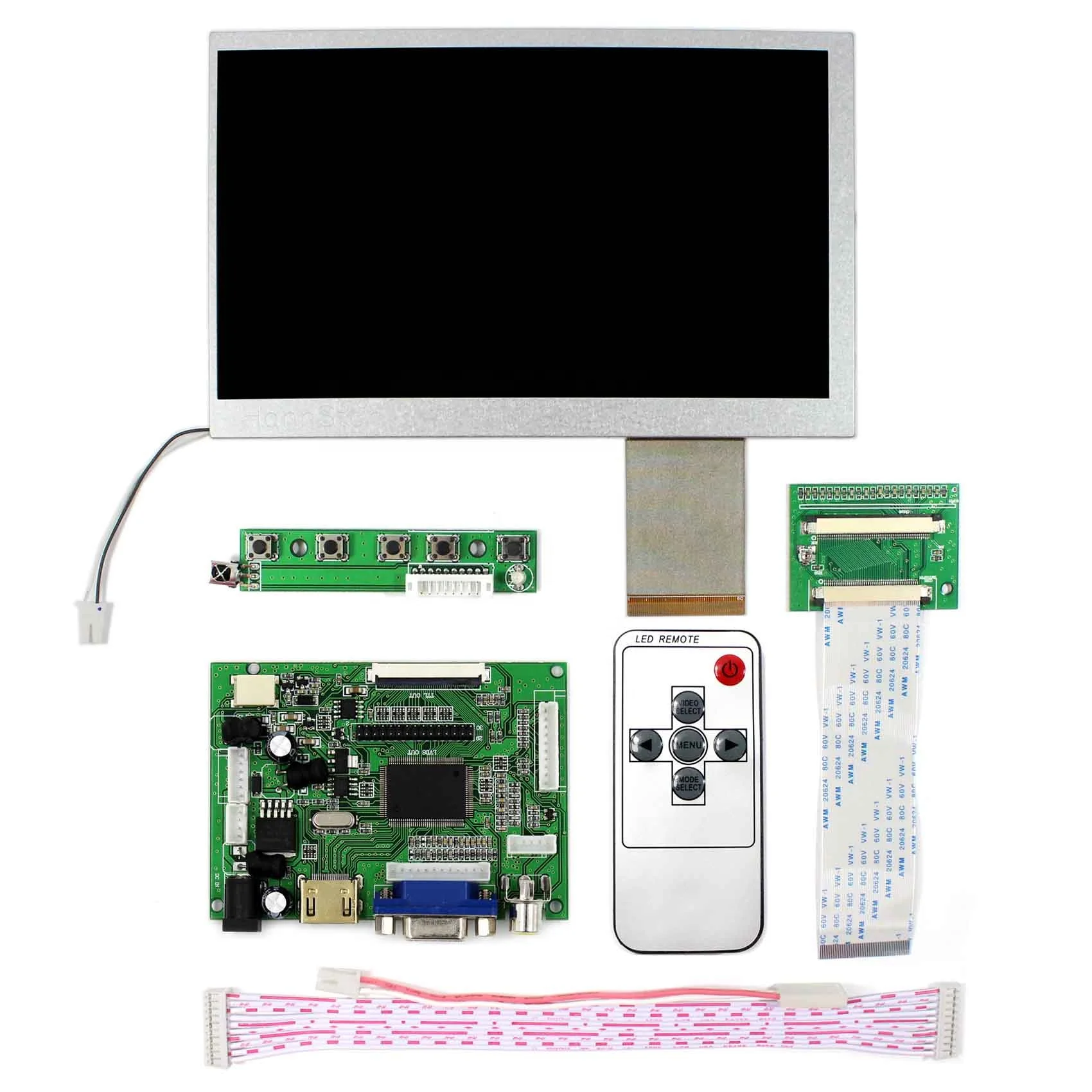

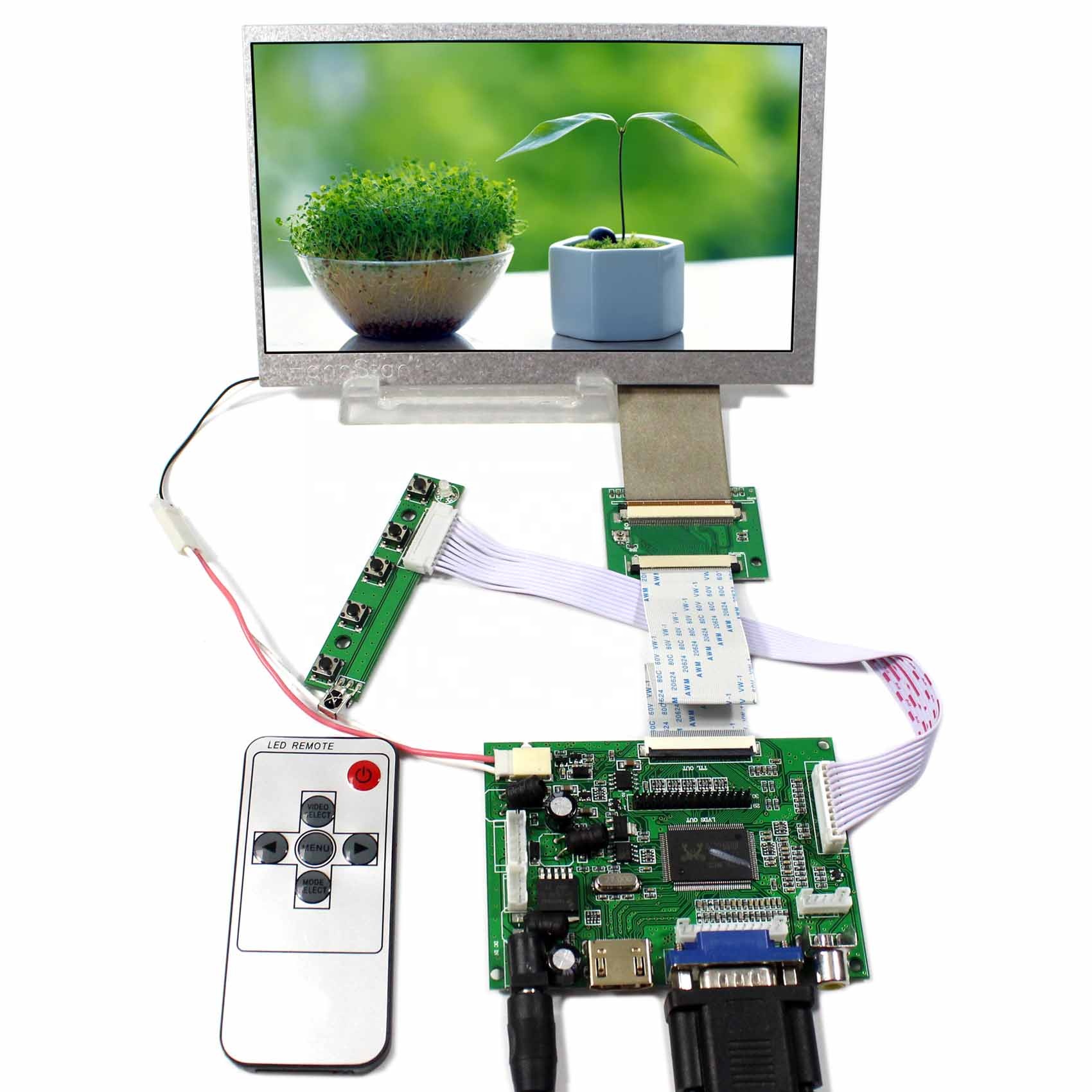

1× LCD Controller Board VS-TY2662-V1 (Support Automatically switch to AV2)

1× 7inch 800x480 tft lcd HDS070IDW1-A20

1× Tcon board VS-TCON60-V1

1× 50Pin flat cable

1× Keyboard with Wire

1x Remote Control  (Battery not included. Battery Model No CR2032)

 1 year warranty from the day the product sold. Some technical issue can be solved online.

Trade Term:  EXW Shenzhen  or  FOB Shenzhen

Shipping: DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment: T/T HSBC, Paypal, Western Union

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA),  mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
