ЖК-дисплей 4x16, ЖК-дисплей 4x16 символов с подсветкой, ЖК-дисплей 4x16 символов
ЖК-дисплей 4x16, ЖК-дисплей 4x16 символов с подсветкой, ЖК-дисплей 4x16 символов

ЖК-дисплей 4x16, ЖК-дисплей 4x16 символов с подсветкой, ЖК-дисплей 4x16 символов

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики


The Module Datasheet

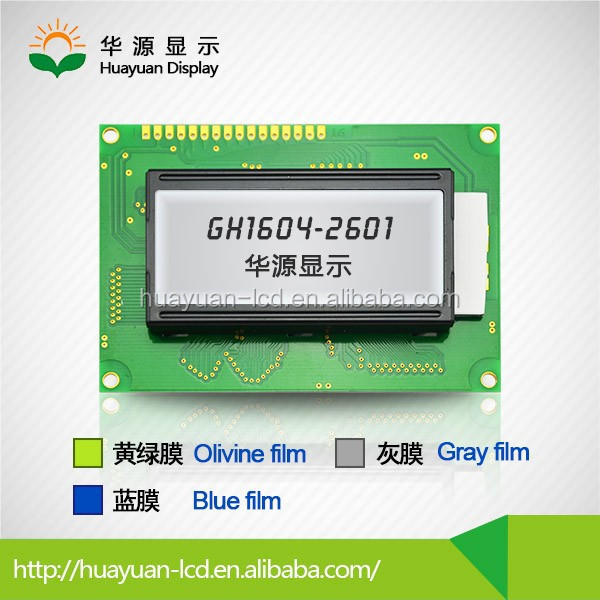

4X16 character lcd with backlight

Model:GH1604-2601
ConstructionCOB
Display TypeSTN
Operating Voltage (VDD)3.3V,5V
Backlight Voltage(VBL)3.3V,5V
Operating Temperature (degree Celsius)-20°C~70°C
Storage Temperature (degree Celsius)-30°C~80°C
Viewing Direction6:00
Dot Matrix16x4
Viewing Area61.8*25.2
Active Area56.2*20.8
Outline Dimension87.0*60.0*14.5
ControllerSPLC780D
BacklightLED,White





Part NumberV.A Size(L*Wmm)DescriptionControllerOutline Dimension
GH12864-310170.70*38.80mmSTN/COB,LED,Y-G,WHITE/6:00/3.3V,5VKS0107 or Compatible IC93.00*70.00*13.00mm
GH12864-310260.00*32.60mmSTN/COB,LED,Y-G,WHITE/6:00/3.3V,5VKS0107 or Compatible IC75.00*52.73*9.00mm
GH12864-310360.00*32.50mmSTN/COB,LED,Y-G,WHITE/6:00/3.3V,5VKS0107 or Compatible IC75.00*54.70*12.50mm
GH12864-310471.00*38.00mmSTN/COG,LED,Y-G,WHITE/6:00/3.3V,5VST7567 or Compatible IC93.00*70.00*12.50mm
GH12864-310573.70*38.80mmSTN/COB,LED,Y-G,WHITE/6:00/3.3V,5VKS0107 or Compatible IC110.0*70.00*12.50mm
GH12864-310681.00*43.00mmSTN/COB,LED,Y-G,WHITE/6:00/3.3V,5VST7920101.0*63.00*10.50mm
GH12864-311072.00*39.00mmSTN/COB,LED,Y-G,WHITE/6:00/3.3V,5VST7920 or Compatible IC93.00*70.00*13.00mm
GH12864-311172.00*39.50mmSTN/COG,6:00/3.3V,5VST7565R75.80*47.80*6.00mm
GH12864-311272.00*39.50mmSTN/COG,6:00/3.3V,5VST7565R75.80*47.80*6.00mm
GH12864-311376.00*39.00mmSTN/COG,6:00/3.3V,5VNT7538+FPC79.00*50.00*2.80mm

Part NumberV.A Size(L*Wmm)DescriptionControllerOutline Dimension
GH12864-270160.50*33.00mmSTN/COG,LED,Y-G,WHITE/6:00/3.3V,5VST7565R82.20*60.42*11.35mm
GH12864-270360.50*33.00mmSTN/COG,LED,Y-G,WHITE/6:00/3.3V,5VST7565R65.10*61.50*6.60mm
GH12864-270436.20*22.50mmSTN/COG,6:00/3.3V,5VUC1701+FPC39.00*31.00*3.40mm

Part NumberV.A Size(L*Wmm)DescriptionControllerOutline Dimension
GH12864-300162.00*44.00mmSTN/COB,LED,Y-G,WHITE/6:00/3.3V,5VKS0107 or Compatible IC78.00*70.00*12.50mm
GH12864-300262.00*44.00mmSTN/COB,LED,Y-G,WHITE/6:00/3.3V,5VT6963 or Compatible IC78.00*70.00*12.50mm
GH12864-300344.00*29.00mmSTN/COB,LED,Y-G,WHITE/6:00/3.3V,5VKS0107 or Compatible IC54.00*50.00*7.60mm
GH12864-300462.00*44.00mmSTN/COB,LED,Y-G,WHITE/6:00/3.3V,5VST792078.00*70.00*12.50mm



3"  64X128 transparent lcd,KS0107 Controller lcd module 3.3V Monitor lcd display

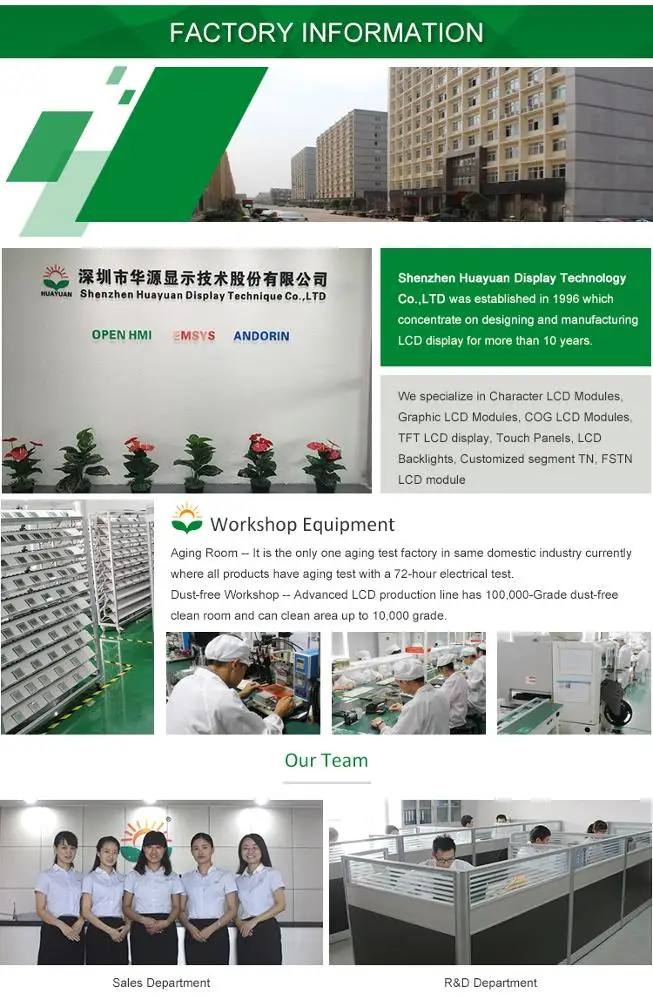

Company Information



Related Products



Packaging & Shipping



How to running the orders with old customers?



Step1.Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.

Step2.According to your details, we give you some advise and good price.

Step3.Negotiate the technical dates after that we will send you the exact quotation

Step4.You arrange the tooling charge payment.

Step5.We make design paper and waiting for your confirmation in two days.

Step6.We make new samples for your testing with in two weeks

Step7.After samples confirmed, we are running the production.

Step8.You arrange the last payment, we sending goods to the ports.



If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of my other items. We are glad to help you!
