25 портов RJ11 cat3 Голосовая телефонная коммутационная панель/25 портов Голосовая коммутационная панель (6P4C)

Описание и отзывы

Характеристики

Product range:
Patch Panel, Patch Cord, Pcb Jack, Keystone Jack, Coupler, Surface Mount Box, Face Plate, IDC Termination Block, Fibre Optic

Specifications

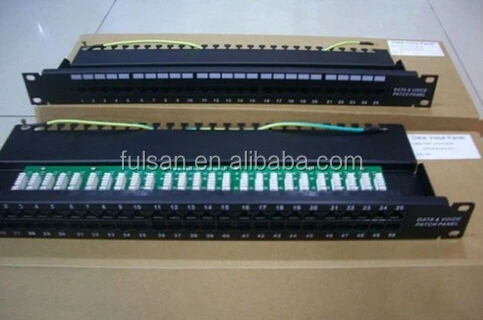

CAT3 voice 25 ports and 50 ports patch panel.
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 90 Degree
Termination: 110 IDC Type

Electrical:
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50 u" Gold plating on contact area

25ports cat3 STP patch

Product description

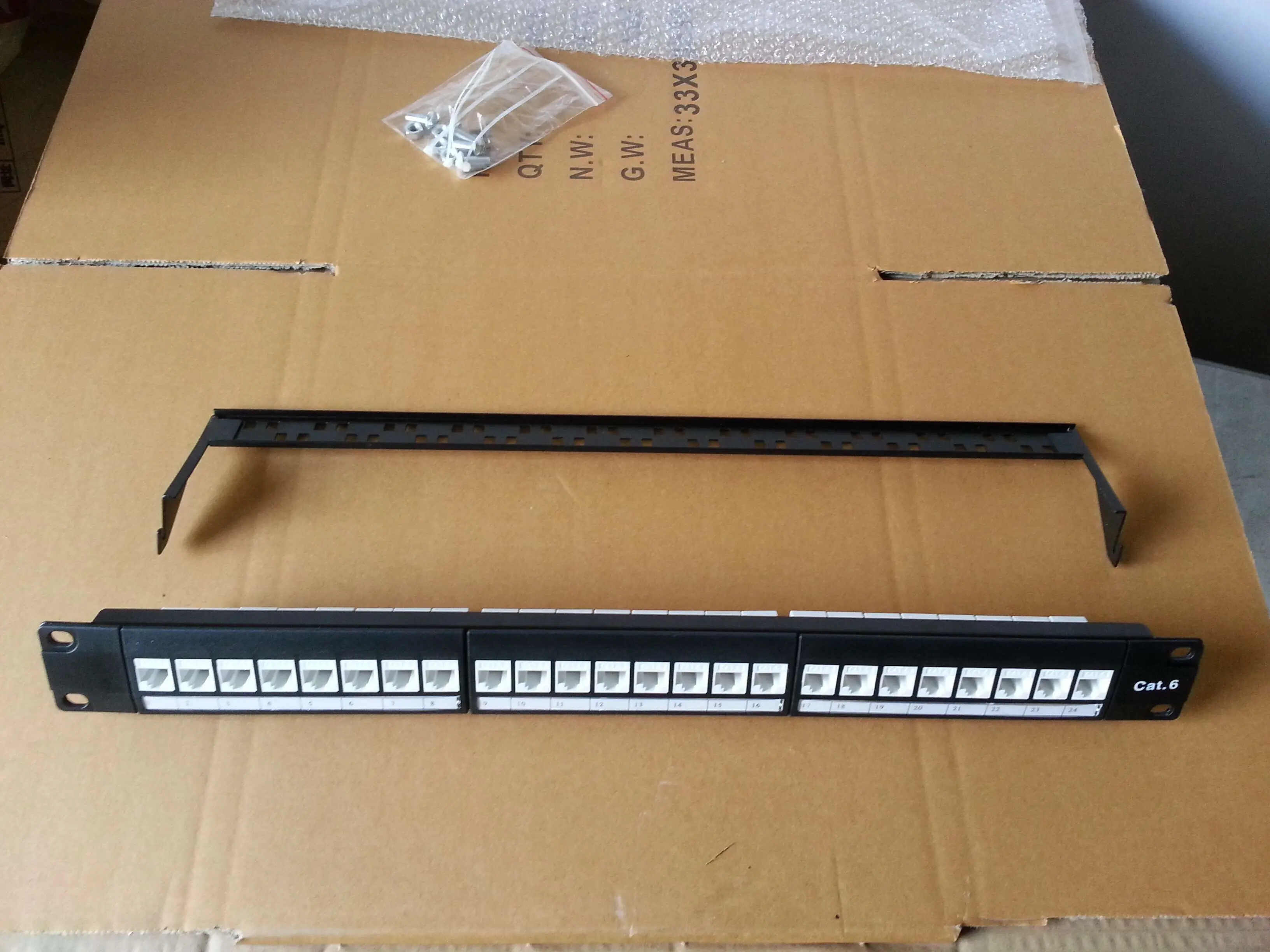

The back of the patch panel is fitted with cable manager for convenience of cable management
1)Highly resistance and inflaming retarding material, Grade UL94-0
2)Connection strap to adopt gold plate, alloy of Cu and Be, IDC to use the alloy of Cu and P
3) Firm and easy installation reducing the installation and operation cost.
4) Transmission stability.
5)Meet or exceed the current T568A and T568B standard

Mechanical property

Times of repetitive use: ≥ 800
Termipoint life≥ 200
Insulation diameter0.7mm-1.4mm(1.6mm)
Temperature interval-40° C-70° C(storing)
-10° C-60° C(installation)
-10° C-60° C(working)

Application standard:
ISO/IEC11801: 2002
IEC 60603-7-4(edition: 1.02003-01-10)
IEC 60603-7-2(edition: 1.02003-01-10)
EIA/TIA568B. 2-1(2002de-embedded)
