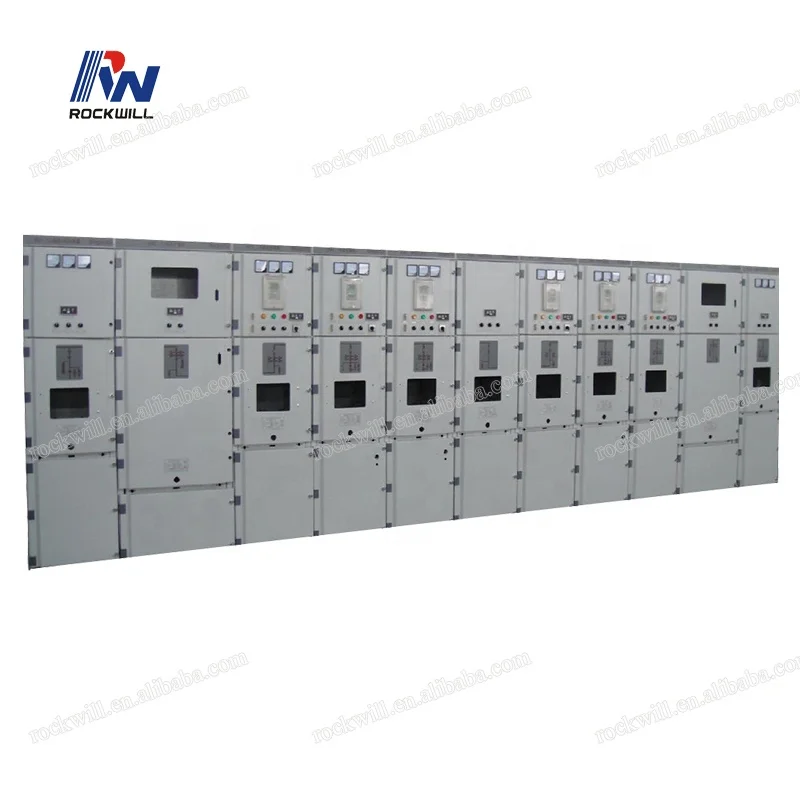

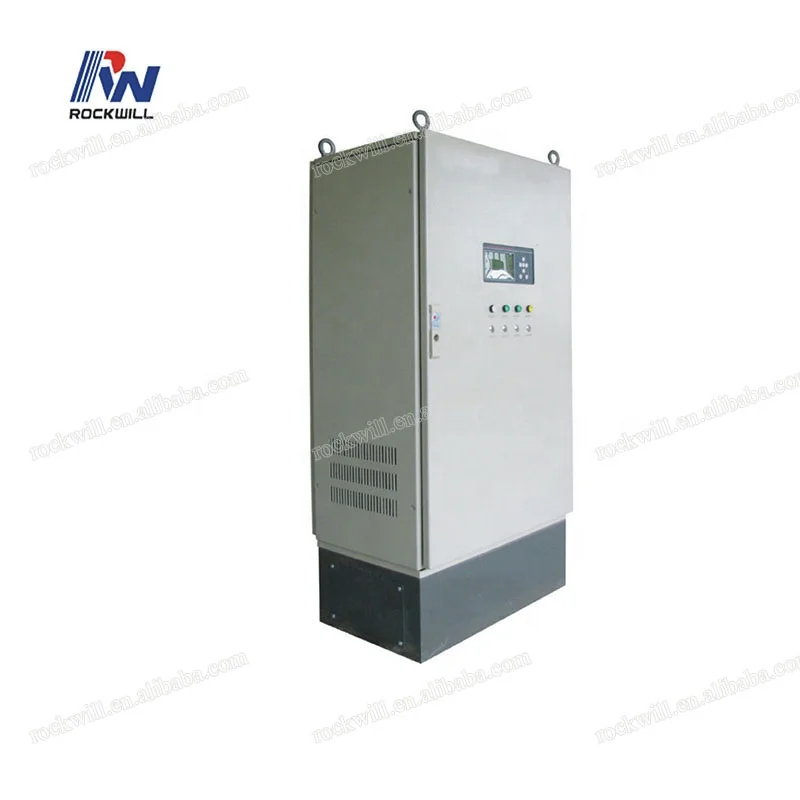

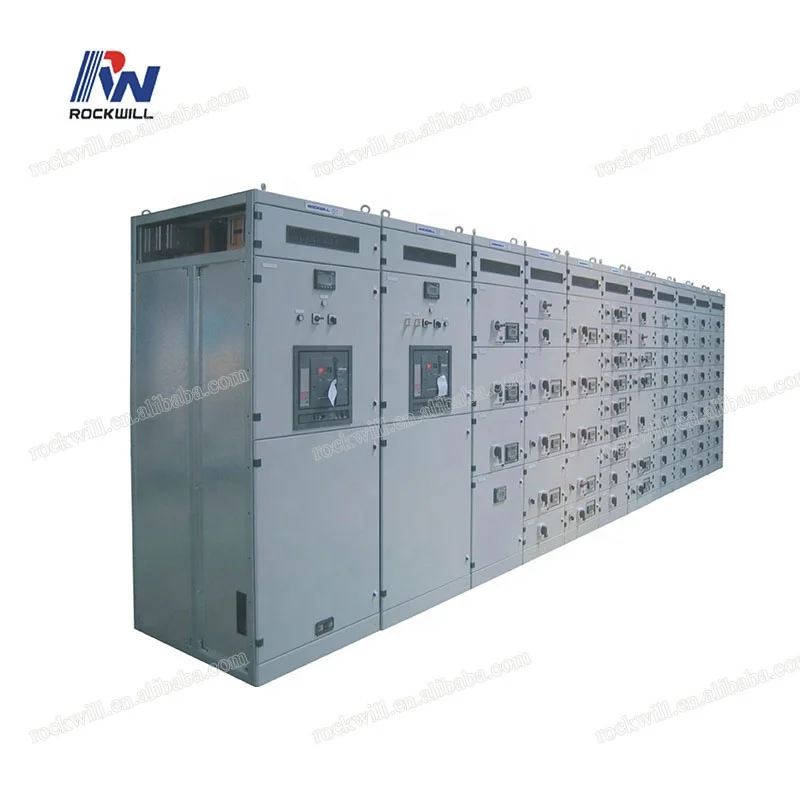

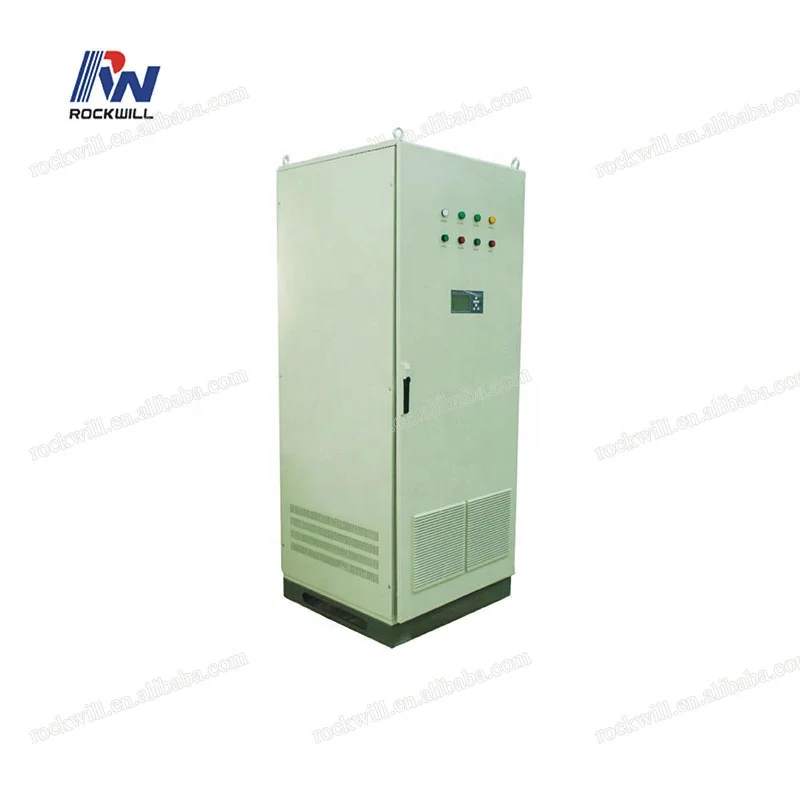

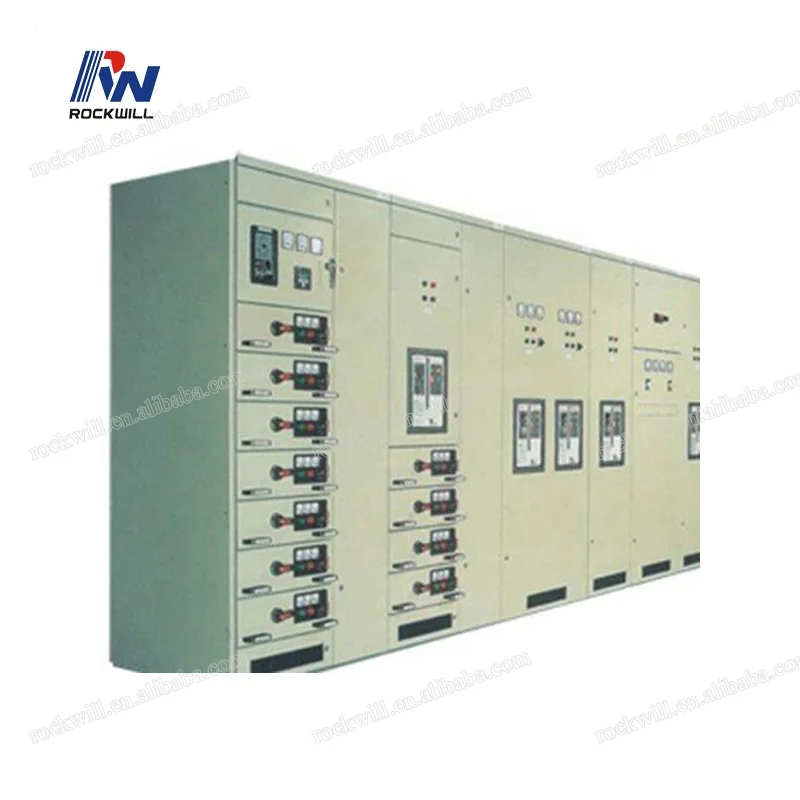

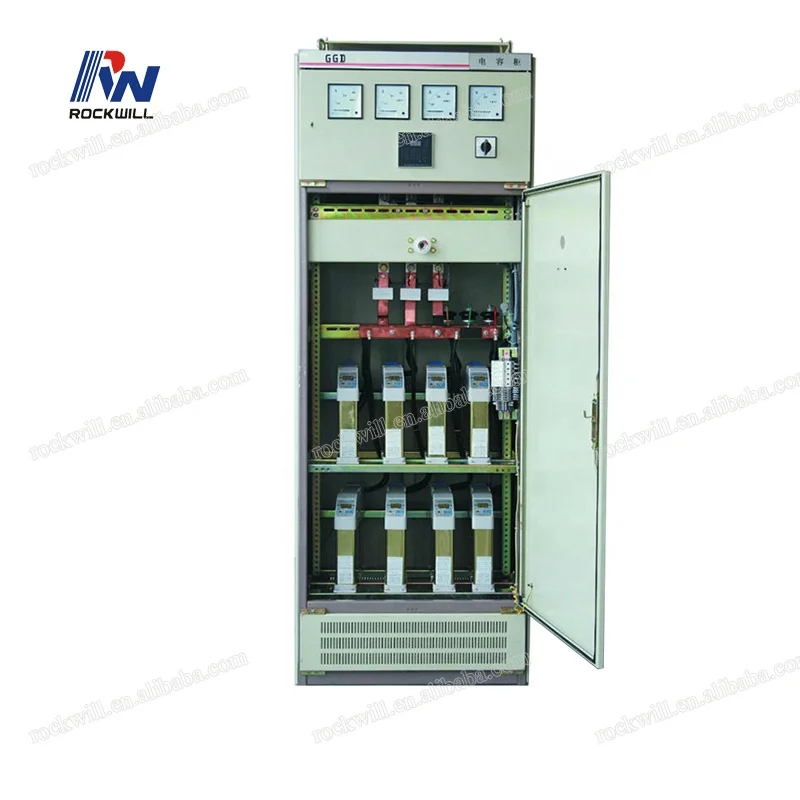

Распределительное устройство низкого напряжения серии GCK
- Категория товара: Power Distribution Equipment >>>
- Поставщик (Оптовый магазин): Wenzhou,Rockwill,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
General
GCK series Low voltage switchgear(hereinafter short as switchgear)is a complete power distribution device for 3.6~24kV,3-phase AC 50Hz,single-bus and single-bus sectionalized system. It is mainly used for power transmission of middle/small generators in power plants; power receiving, transmission for substations in power distribution and power system of factories, mines and enterprises, and starting of large high-voltage motor, etc.,so as to control, protect and monitor the system.
The switchgear meets IEC298,GB3906-91.In addition to be used with domestic VS1 vacuum circuit breaker, it can also be used with3AH5 from Siemens domestic ZN65A,and VB2 from GE, etc.,it is truly a power distribution device with good performance. In order to meet the requirement for wall mounting and front-end maintenance, the switchgear is equipped with a special current transformer, so that the operator can maintain and inspect it in front of the cubicle.
Standard Characteristics:
a) Air temperature: Maximum temperature: +40°C; Minimum temperature:-15°C
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 1000M.
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake
No. | Item | Description |
1 | Production Grade | 1P40 |
2 | Rated Working Voltage | AC 380V |
3 | Frequency | 50Hz |
4 | Rated Insulation Voltage | 660V |
5 | Working Conditions | |
6 | Environment | Indoors |
7 | Altitude | ≤2000m |
8 | Ambient Temperature | -5~40℃ |
9 | The min temperature under store and transportation | -30℃ |
10 | Relative Humidity | ≤90% |
11 | Compacity of Control Motor(kW) | 0.4~155 |
