Крупнейший резервуар для хранения сжиженного нефтяного газа объемом 200 куб. М продажа напрямую с
- Категория товара: Pressure Vessels >>>
- Поставщик (Оптовый магазин): Hubei,Runli,Special,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Biggest 200cbm LPG Gas Storage Tanker Liquified Petroleum Gas Tank Factory Directly Sales Call Ms.Pinky 0086 15897603919
Brief of LPG Tanker
We can Provide you the following LPG Gas Storage Tanks:
Our factory is a professional manufacturer for LPG tank truck, LPG trailer, LPG storage tank in China.
1. Our biggest capacity of LPG tank truck is 35.5cbm;
2. Our biggest capacity of LPG trailer is 58.16cbm;
3. the LPG storage tank is from 5cbm to 200cbm.
Our producing factory:
20cbm LPG TANK:
50-200CBM LPG tank:
56.14Cbm LPG tanker semitrailer:
23.7CBM LPG TANKER SEMITRAILER:
Double axles 47cbm LPG tanker semitrailer
we manufacture equipments for LPG STORAGE TANK FROM 20CBM T0 200cbm , LPG SEMITRIALER, LPG ROAD TANKER, LPG SEMITRAILER TRANSPORT TANKS AND SO ON.
More information, please contact with me.
0086 15897603919 Ms. Pinky
Tank Specification
The Specification of 50m3 LPG Storage Tanks:
| Main specification | ||||
| Tanker body | Item | data | Item | Data |
| Filling medium | LPG | Kerb weight | 39580kgs | |
| capacity | 200m3 | Loading weight | 84000kgs | |
| Design pressure | 1.71Mpa | Outside dimension(inner | 3600*20*20300mm | |
| Thickness of body | 17.72mm | diameter*thickness*length | ||
| Thickness of head | 17.68mm | Filling ratio | 0.92 | |
| Material | Q345 | Hydraulic test pressure | 2.14Mpa | |
| Corrosion allowance | 1mm | Service year | 15 | |
| Hot treatment type | Stress relieved hot treatment | Filling ratio | 420(50℃) | |
| 120m3 LPG STORAGE TANKER | ||||
Detailed Images
Characteristic

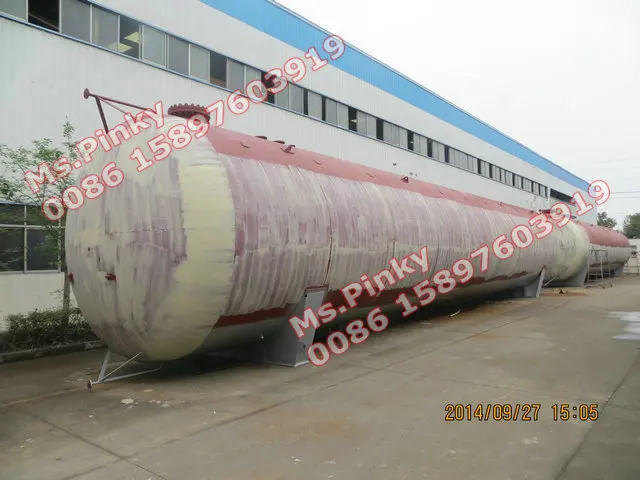

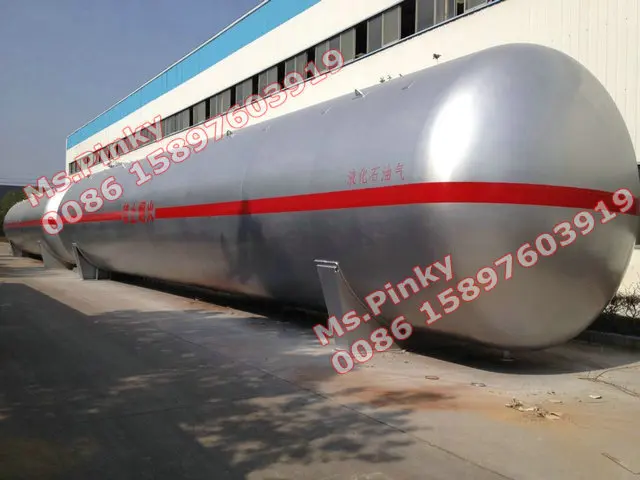

The tank consist of the cylinder shell and standard ellipsoidal head. The tank’s material is high intension steel plate Q345R that is specially used in pressure vessel.
The double side auto-welding is adopted in tank’s main welding joints. The 100% x-ray checking shall be done to A and B kinds welding joints and shall accord with 2 grade requirements of JB4730 ‘Non-destruction testing for Pressure vessels’.
The fully magnetism checking or penetrate checking shall be done to C and D kinds welding joints and shall accord with Ⅰ grade requirements of JB4730. PWHT shall be done after the welding of tank .
The hydraulic test shall be done after the postweld heat treatment. The manhole of the tank is used for cleaning and maintenance of the tank’s inside. The baffles are mounted on the tank’s inside to prevent wave. The seat is welded on the tank’s bottom
Related Products
More LPG STORAGE TANK at our factory for you Choice:
Paymen Terms
Our Payment terms and delivery time:
1. TT or LC AT SIGHT 30% down payment, 70% balance paid before shipment,all by T/T or by 100% LC at sight. Min order: 1 units
Delivery time: 15-20days after get the deposit or LC
Packing: nacked package, waxed before delivery by sea.
Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc
BENEFICIARY: HUBEI RUNLI SPECIAL AUTOMOBILE CO., LTD
Address: NO.77, century ave, suizhou city, hubei province
BANK OF BENEFICIARY: BANK OF CHINA, HUBEI BRANCH, SUIZHOU SUB BRANCH
ADDRESS OF BANK: NO.69 LIESHAN ROAD, SUIZHOU, HUBEI, CHINA
ACCOUNT NO.: 20310608092001
SWIFT NO.: BKCHCNBJ600
Company Information
The main products are
1. Water truck
2. Fuel tanker truck, Oil Truck, Tanker Truck
3.Fire engine truck
4.Truck mounted with crane
5.Dump truck,tipper,heavy duty truck
6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
6. Bulk cement truck
7. Concrete mixer truck, mixer truck, cement mixer truck
8. Garbage truck, Self-loading garbage truck,garbage compactor truck,sealed garbage truck
9.Fecal suction truck,sewage suction truck
10. High altitude working truck
11. Chemical liquid truck
12. Van truck,insulated truck,refrigeration truck
13. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer,etc more than 300 types in total.
Our company covers an area of 155,000square metres, factory area of 25000m3, manufacturing capability 5000 sets every year, include sales branch, producing manage centre and more than thirty branches in China.
Our company has D grade spressure vessel manufacturing ability, and war industry manufacturing ability and got the certification in 2005, is the producing basic of Chinese Sinopec.
our products not only gains the good reputations in domestic, but also be sold to oversea market, such as Qatar, Algeria, Bolivia, Burundi, Cameroon, Nigeria, Congo, East Timor, Ghana, Libya, Angola, O'zbekiston, South Africa, Afghanistan, vietnam, kazakhtan, Thailand, Mongolia, etc.
Contact Information
Our company contact infomration and offical website: www.runlitruck.com
More specs , photos, price, delivery time and other need,
please contact with Ms Pinky. Hotline: 0086 15897603919
Welcome to visit our company! suizhou city, Hubei Province.
