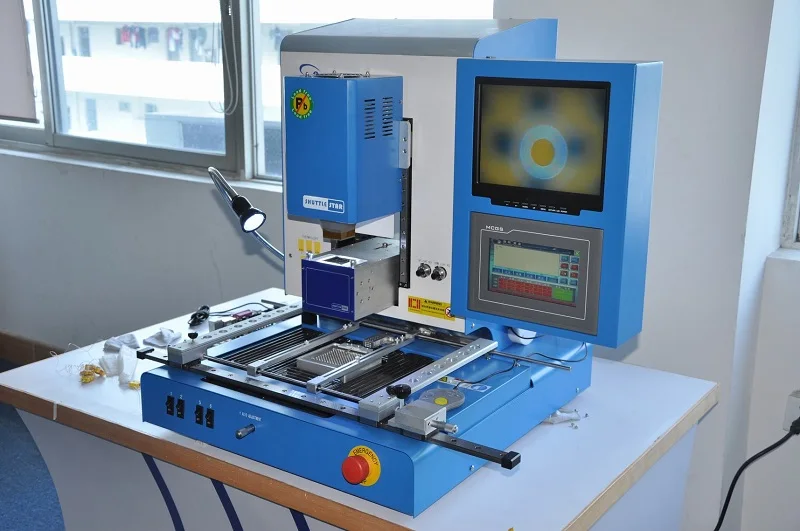

Полностью автоматическая ремонтная станция BGA PS400 система ремонта bga для мобильных телефонов
- Категория товара: Welding Equipment >>>
- Поставщик (Оптовый магазин): Shenzhen,Liyang,Welding,Equipment,Co.,Ltd.Shenzhen,Ltd.
Поделиться:
Описание и отзывы
Характеристики

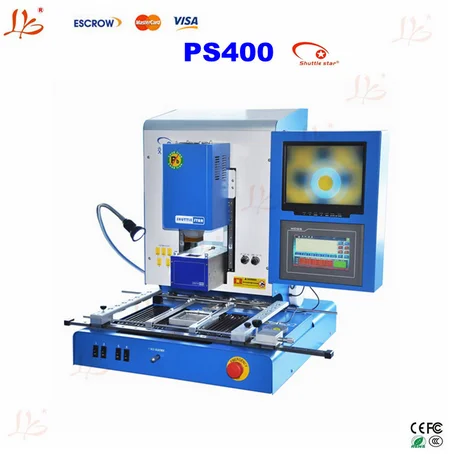

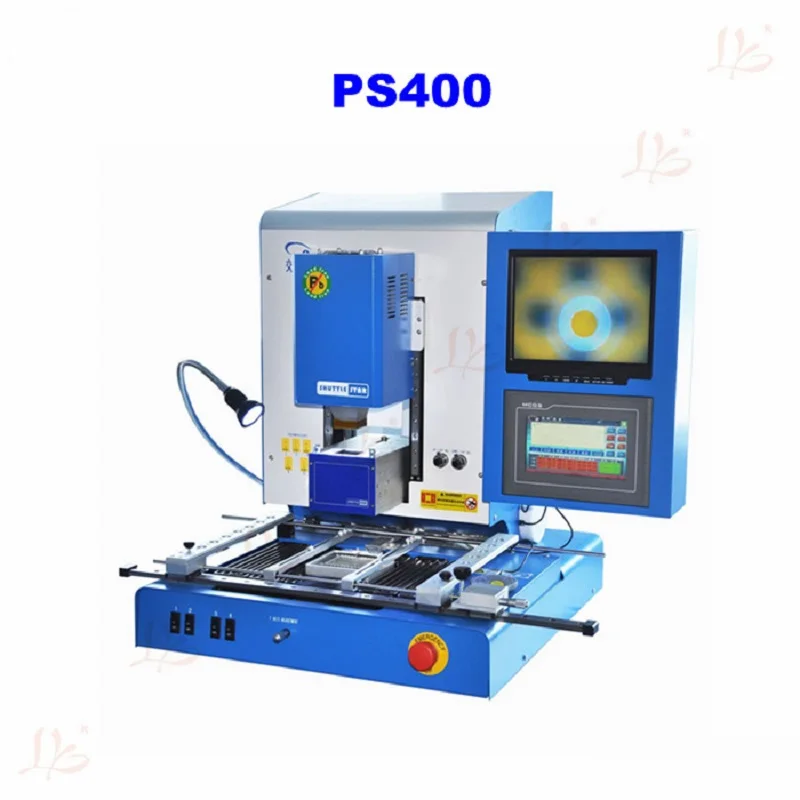

PS400 Full automatic BGA rework station, bga repair system,for mobile phone repair
Specification
Applicable PCB: | W20*D20~W350*D350mm |
PCB thickness: | 0.5~4mm |
Working table adjustment: | ±10mm forward/backward, ±10mm left/right |
Temperature control: | K-type thermocouple, close cycle controlled |
Upper heater(hot air): | 800W |
Lower heater(hot air): | 800W |
Bottom IR heater: | 2700W |
Power supply: | AC singal-phase 220V 50/60Hz |
Applicable BGA: | 1*1~70*70mm |
Placement precision: | 0.01mm |
Max BGA weight: | 80g |
Machine Weight: | 80KG |
Machine Dimension: | L600*W600*H750mm |
-----------------------------------------------------------------------------------------------------------------------------
Description
* The streamline design is gorgeous and room-saving.
* Hot air head and mounting head are designed 2 in 1, and have both the auto soldering and
mounting function.
* Upper/lower hot-air heating,bottom infrared,three independent heating areas, temperature
and time can be displayed digitally on the touch screen.
* Powerful cross flow fans cool the bottom heating zone rapidly and constantly.

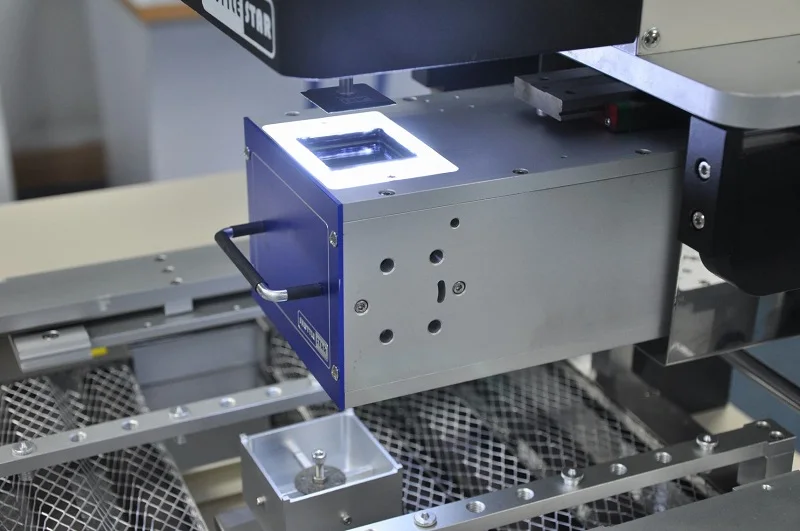

* Color optical system with functions of spilt vision, zoom-in and micro-adjust, equipped with
aberration detection device; with auto focus and software operation function, 22X optical
zoom.
* Embeded industrial computer can ananlyze the two proctically-tested profiles, and compare them with the history saved profiles;profile saving no limit for the industrial computer

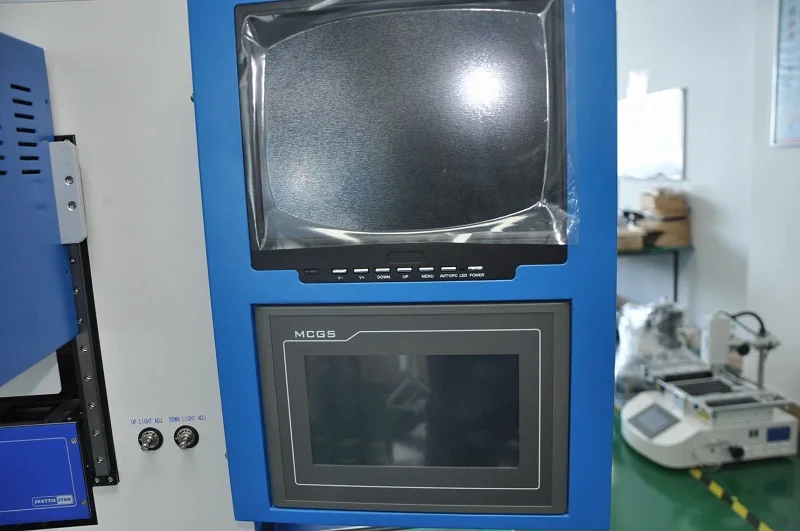

* Color LCD monitor, touch screen interface;
* Built-in vacuum pump;60 rotating in angle mounting nozzle is micro-adjustable.
* 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unlimited in the industrial computer;
* Suction nozzle can identify material and mounting height automatically, and can control the
air pressure within a small range.
* Equipped with different hot air nozzles, easy to replace and able to locate in any angle.

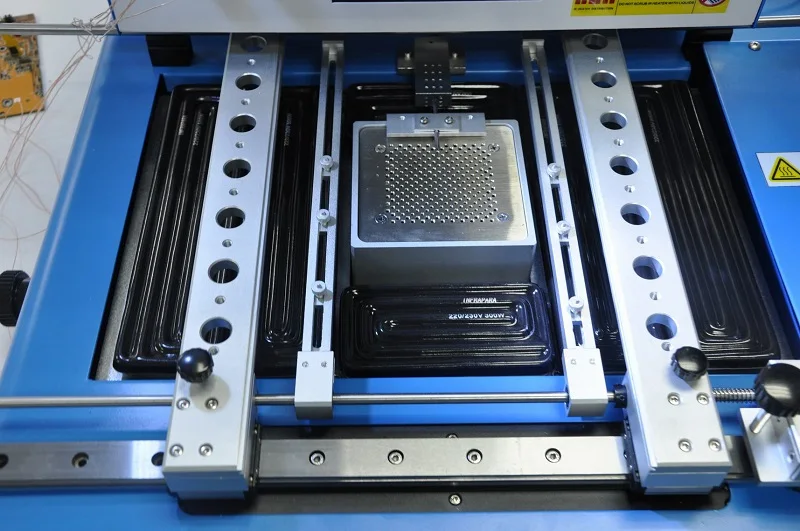

* Big size splint, equipped with deformation-proof supporting device,suitable for the accurate
rework of all kinds of PCB.
* Can handle 775 socket, 478 socket,XBOX360, PS2/3, PSP,etc
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Company Information
LyBGA factory is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer.
We has 10 years experiences in manufacturing and exporting BGA rework stations.
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
