Неоновые цветные светодиодные фигурки
US $1.00-$2.30
3D стереоскопический электролюминесцентный (el) краски или материалов
- Категория товара: EL Products >>>
- Поставщик (Оптовый магазин): Shanghai,Keyan,Phosphor,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

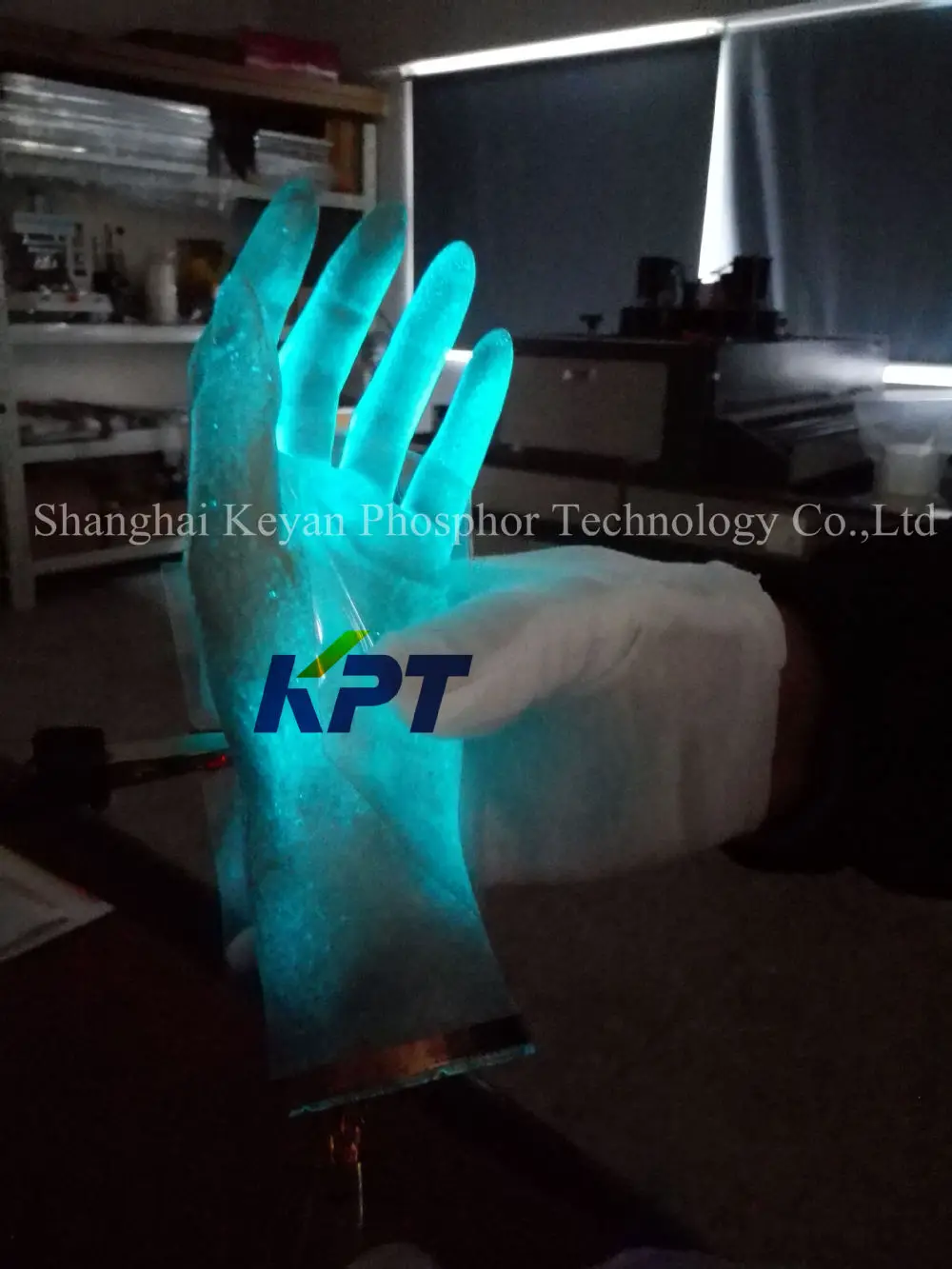

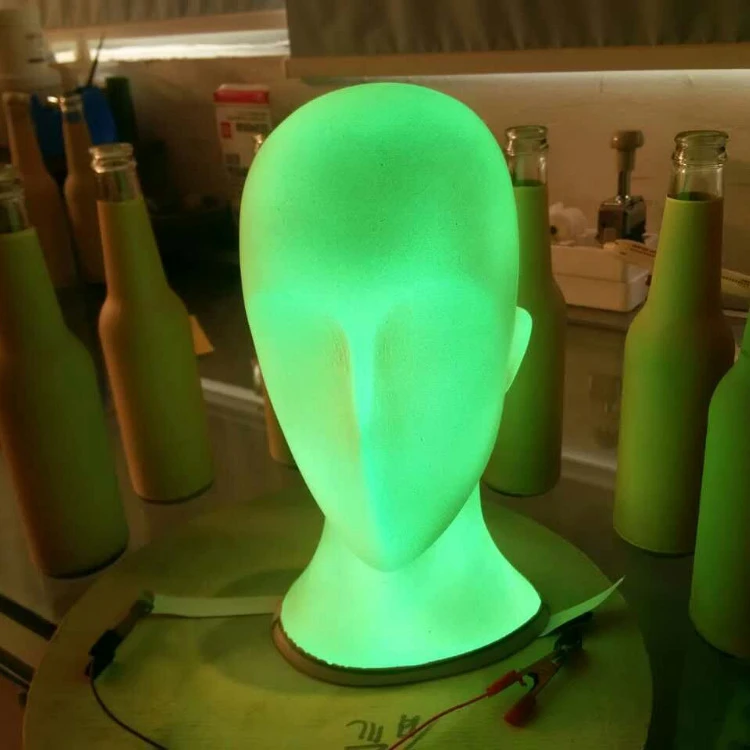

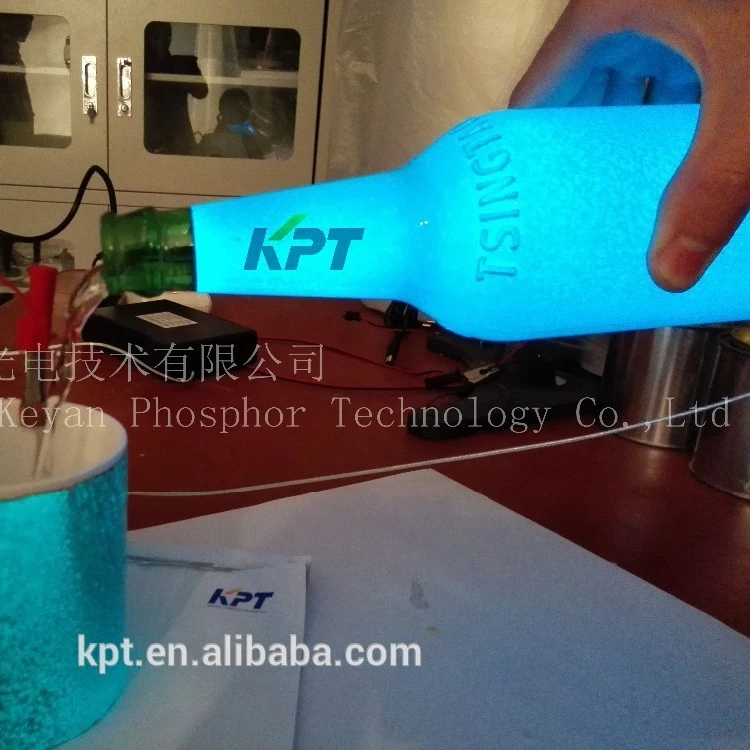

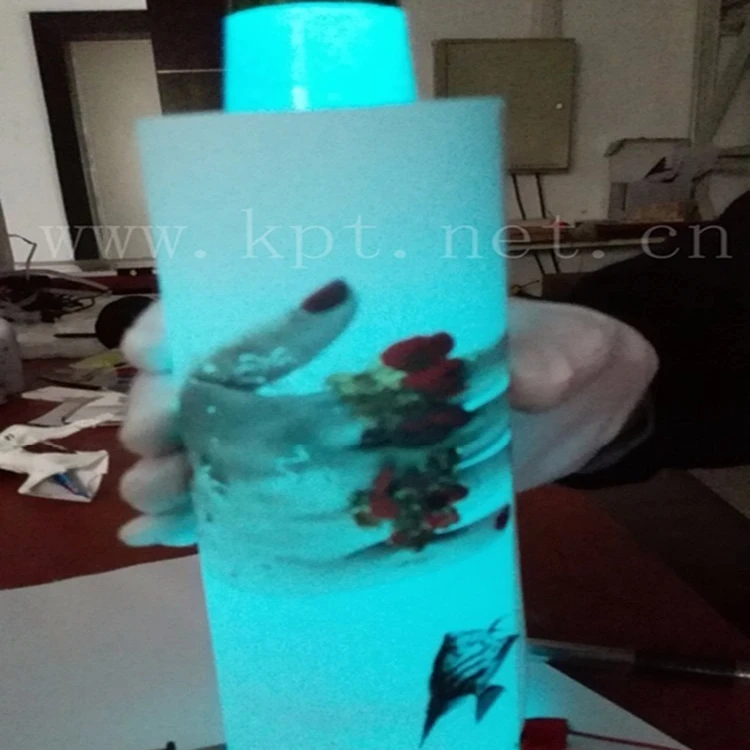

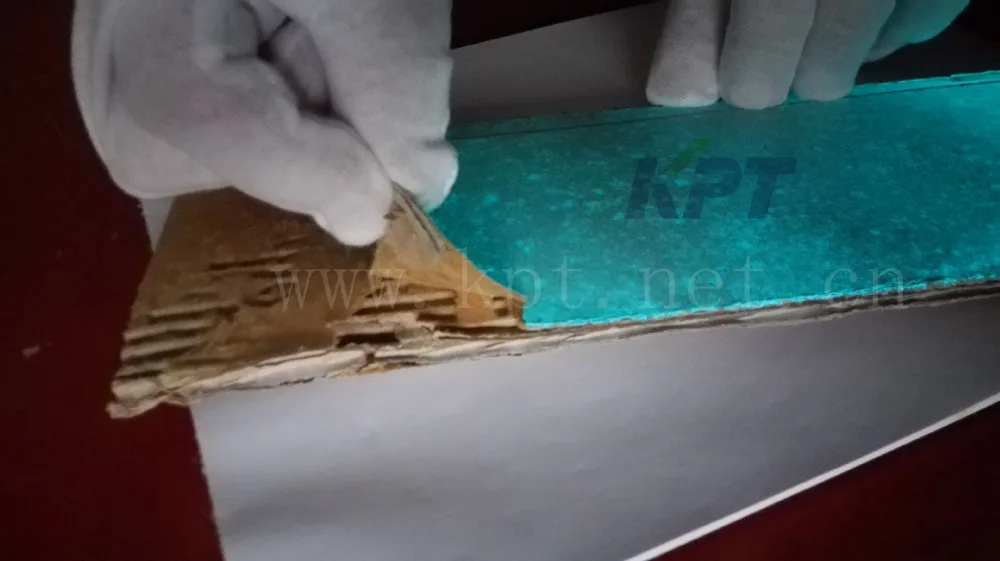

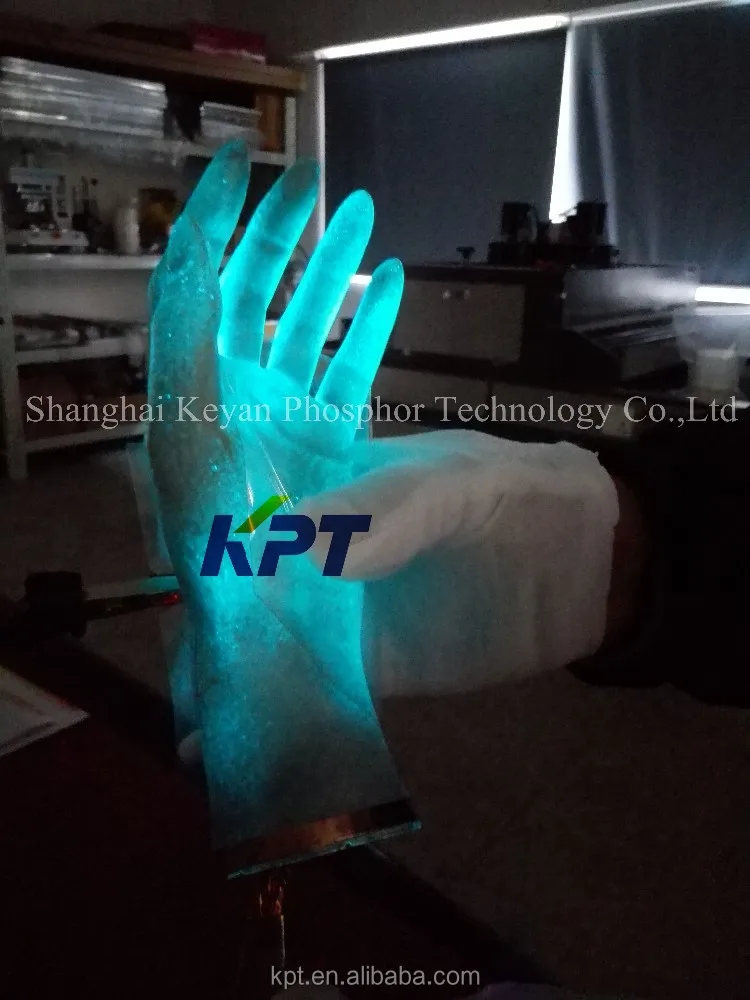

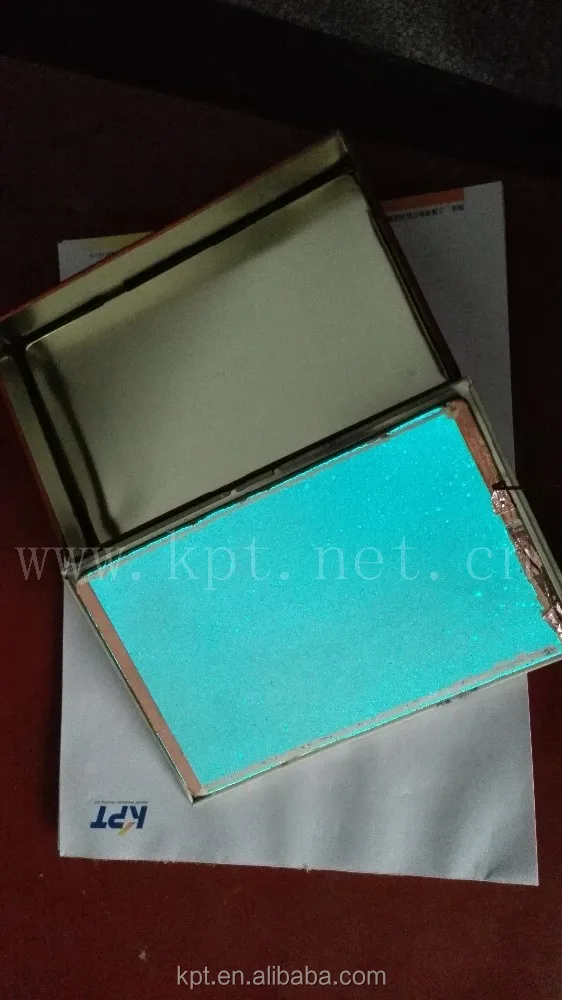

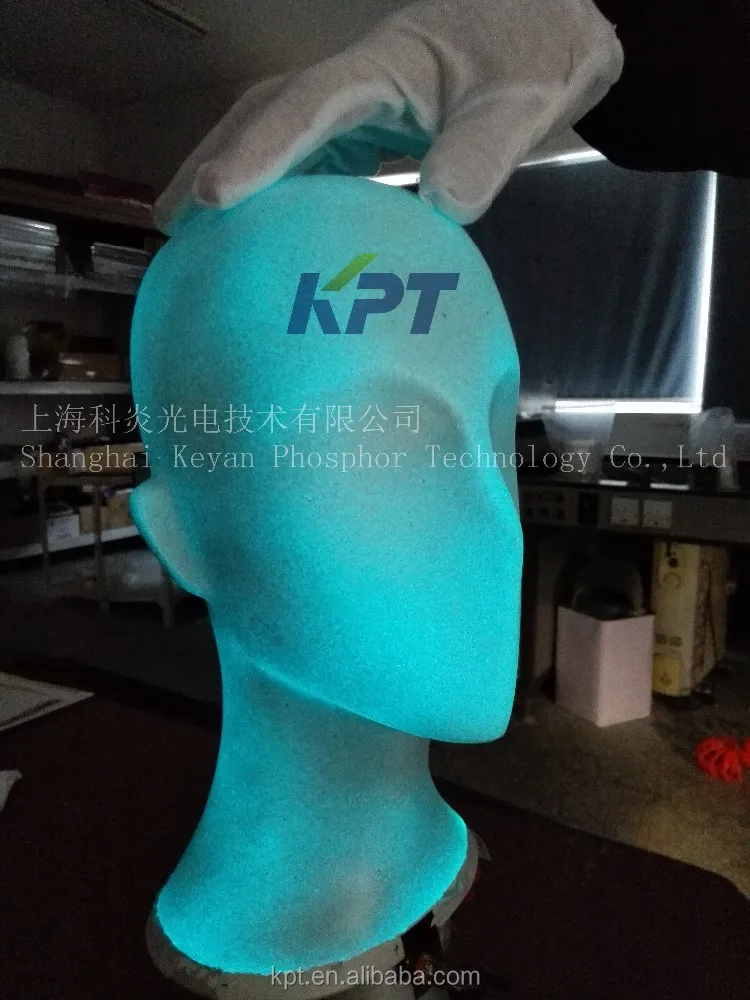

3D stereoscopic electroluminescent devices materials
1. APPLICAITON :
Lighting advertising , Lighting building, Safety Sign, Lighting Model , Lighting clothing ,
Car advertisement, Lighting Paper.
2. APPLICATION BASE MATERIAL :
Plastic, wood , metal, glass , ceramics , cardboard, paper , fabric , film , walls, stone etc .
3. PRODUCTS SUPPLY:
KPT make and supply raw materials kits as well as technology, customes design and make it by themselves.
4. RAW MATERIAL:
1)Basic Materials ( The complete Set of raw materials can make about 10m*2
or so Lighting size )
ITEM No. | DESCRIPTION | WEIGHT (Plastic Bottle Package) | MAKING SIZE (m2) | FUNCTION |
KPT-EL1. | Substrate Paint
| Liquid 1000ml | 5-10 | Basic substrate paint |
KPT-EL2. | Substrate Conductive Paint A
| Liquid 1000ml | 6-15 | Electrode A |
KPT-EL3. | White Insulating Paint
| Liquid 1000ml | 6-11 | White insulation |
KPT-EL4. | Lighting Paint | Liquid 1000ml | 6-10 | Luminescence |
KPT-EL5. | Conductive paint B
| Liquid 300ml | 10-12 | Electrode B |
KPT-EL6. | Protective Layer Coating | Liquid 1000ml | 5-10 | Seal protection |
KPT-EL7. | Modifing Agent | Liquid 10ml | ---- | Solidify |
KPT-EL | Making Technology CD | 1 pc | ----- | Free Charge supply based on purchasing raw materials |
|
|
|
|
|
Remarks: 1 m2 = 16.4 x A4=16.4x(29x21) cm=16.4 times for a big beer bottle’s surface size
2. ) Supporting Materials and Tools (Option):
No. | DESCRIPTION | FUNCTION | INDEX |
1 | Electrode-connected copper Tape | To stick electrode leading cable simplely | 1 roll |
2 | Driver/inverter DC 3V | Driving area A6 (105x148mm) | 3 V |
3 | Driver/Inverter DC12V | Driving area A4 (210x297mm) | 12 V |
4 | Driver/Inverer DC12V | Driving area A3 (297x420mm) | 12 V |
5 | Driver/Inverter AC220 | Driving area A2 (420x594mm) | 220 V |
6 | Driver/Inverter AC220 | Driving area A1 (594x841mm) | 220 V |
7 | Tools | Tools |
|
8 | Diluent | To adjust the viscosity | 500ml |
9 | Fluorescent dyes | To add color | Red,blue,green 3KG |
10 | Infrared Lamp unit | Simple heating | AC220V |
11 | UV Lamp | To observe Light Uniformity | DC12V |
12 | Infrared Drying Box | To heat and dry | 220V |
13 | Electronic Scale | To weight the qty for dosing | 12V |
14 | Multimeter | Measure resistance |
|
15 | Moble phone microscope | To observe spraying surfacs | 100 times |
16 | Special Test equipment | Test the rightness | 220V PC |
17 | Test Clip | Facilitate to connect and detect | 5 Pairs |
