Миниатюрная цифровая система EVAC оборудование для пожарной сигнализации обнаружение
- Категория товара: Fire Alarms >>>
- Поставщик (Оптовый магазин): Guangzhou,Baolun,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

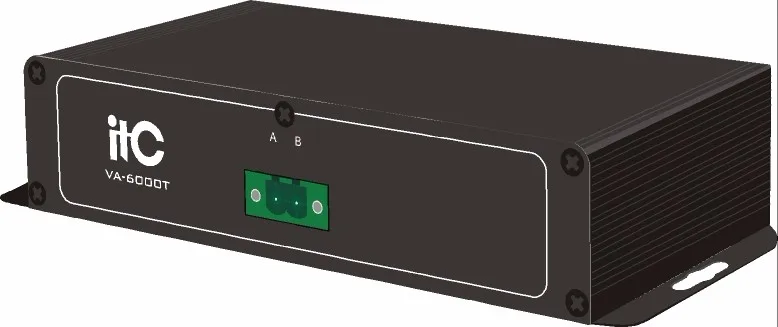

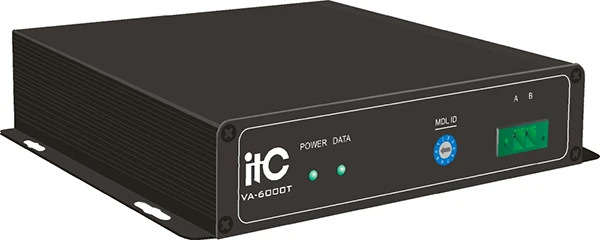

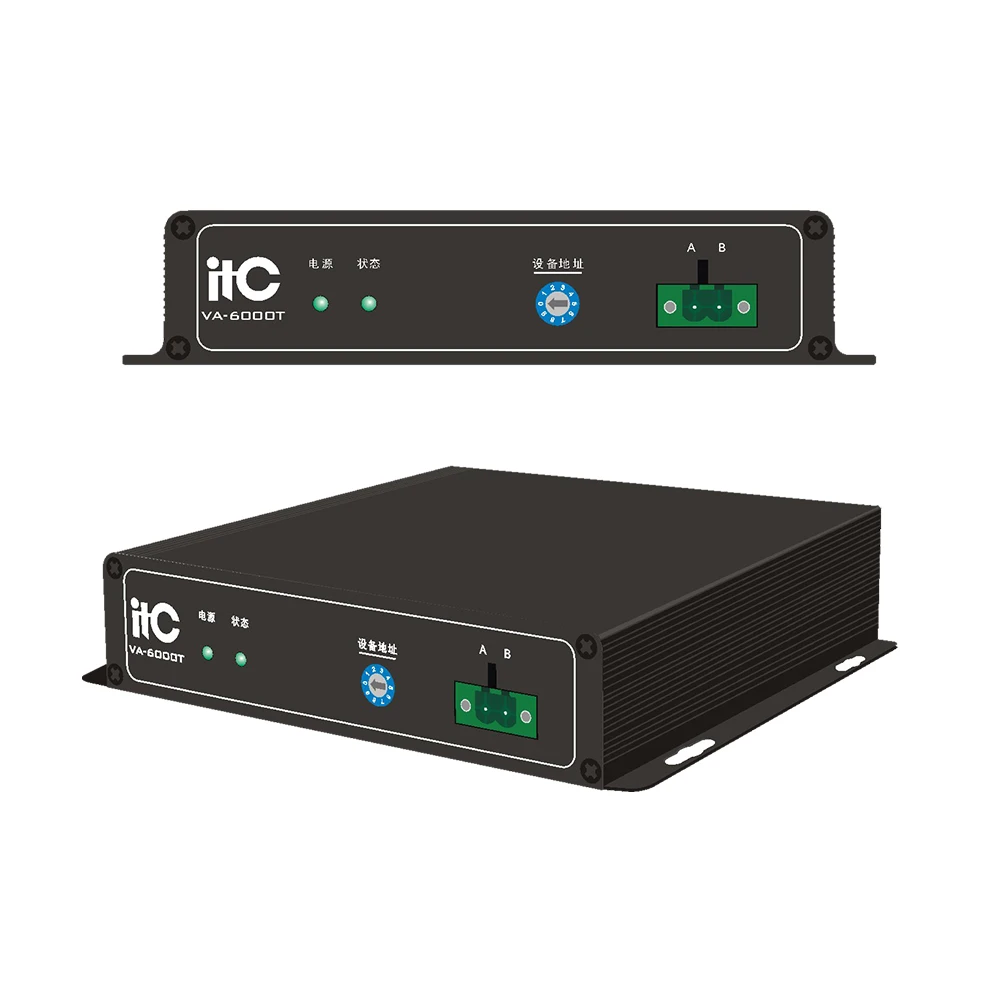

VA-6000T Digital EVAC System fire alarm equipment-Terminal detector
Product Description
VA-6000T is to work with VA-6000MS and detect the speaker loop working status, not to be influenced by the BGM signal, no need outer power supply, easy installation.
- Integrated aluminum body, elegant appearance
- No need outer power supply, easy installation and wiring.
To be installed at the end of each speaker loop, work with VA-6000MS to detect the status of the speaker loop.
1 unit for each loop, with rotary address switch to avoid operation mistakes.
Specification
AC POWER | |
Voltage | 12 DC, ±3% |
MAX Current | < 0.1A |
Power consumation | < 1W |
Machine Index | |
Dimension | 156×32×93mm |
N.W | About 1.0 kg. |
Installation | Desktop or Wall mounted |
Color | Black |
Enviroment Requirements | |
Operation Temp. | +5°C ~ +40°C |
Storage Temp. | -20°C ~ +70°C |
Relative Temp. | <95%(No condensation) |
Guarantee & Warranty
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
Technical Support
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website www.itc-pa.com.cn
Packaging & Shipping
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
