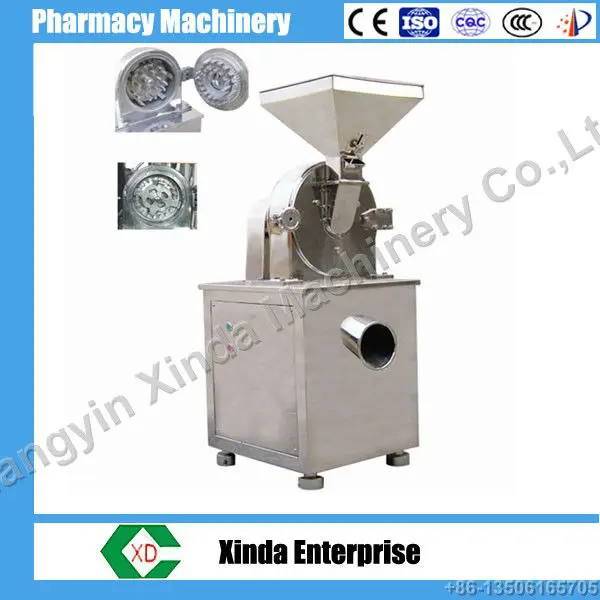

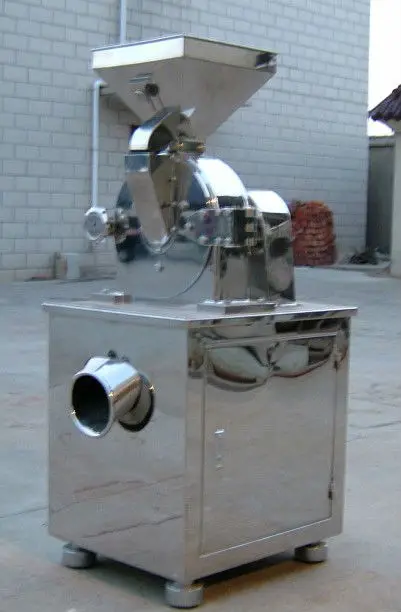

              Small Stainless Steel Ice Sugar Grinding Machine
















Main Application.jpg

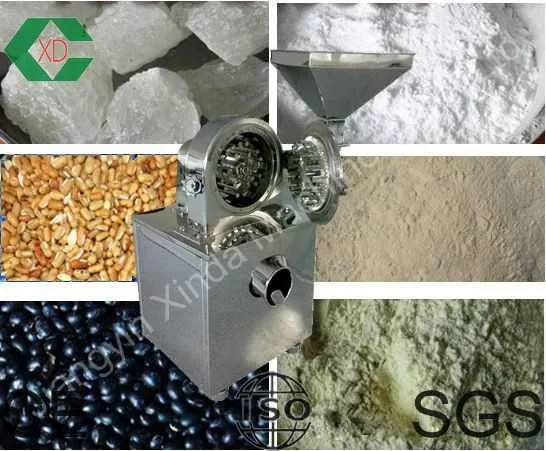

The machine is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc.













The crushing chamber is equipped with the wind wheel type high-speed rotary cutters so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.





Working Method.jpg





The machine uses the wind wheel type high-speed rotary cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen. The dust will be collected and recycled via cloth bag or filter of the dust box.





Technical Data.jpg








































































MODEL



MODEL 18



MODEL 20



MODEL 30



MODEL 40



Capacity (kg/h)



20-80



30-200



50-300



80-500



Size of input granules (mm)



< 10



< 10



< 12



< 15



 Size of output granules



12-120



12-120



12-120



12-120



crushing power (kw)



2.2



5.5



7.5



11



 Dust absorption power (kw)



1.5



1.5



1.5



1.5



Speed of principal axis (r/min)



3000



2900



2900



2800



Weight (kg)



250



350



420



580



Overall size (L×W×H) (mm)






1280×600


×1450



1280×600


×1550



1300×600


×1650



1450×600


×1780
