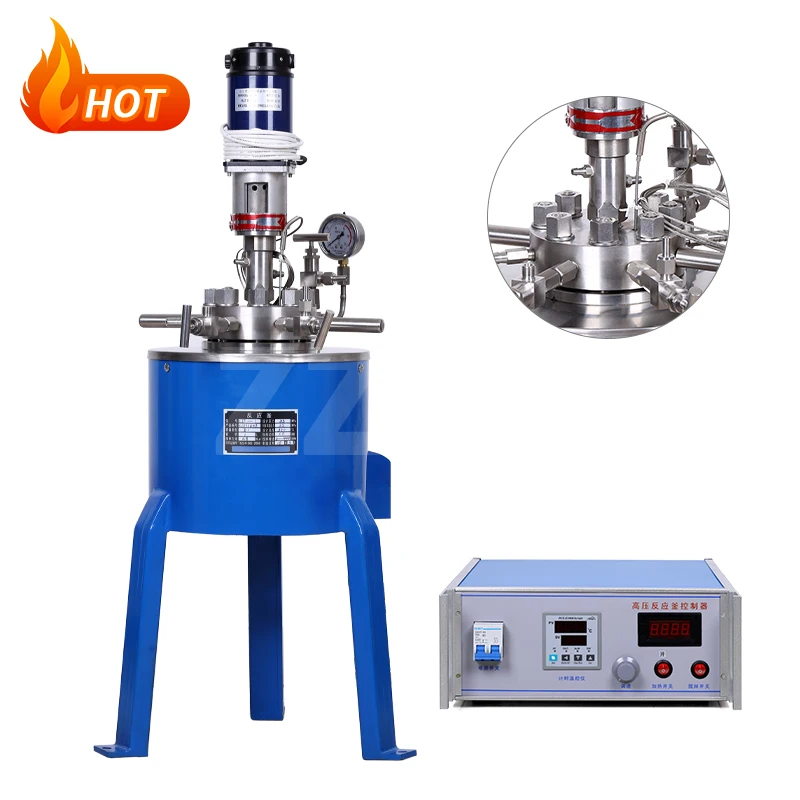

Stainless Steel High Pressure Vessel Manufacturers
Product Introduction
Description:

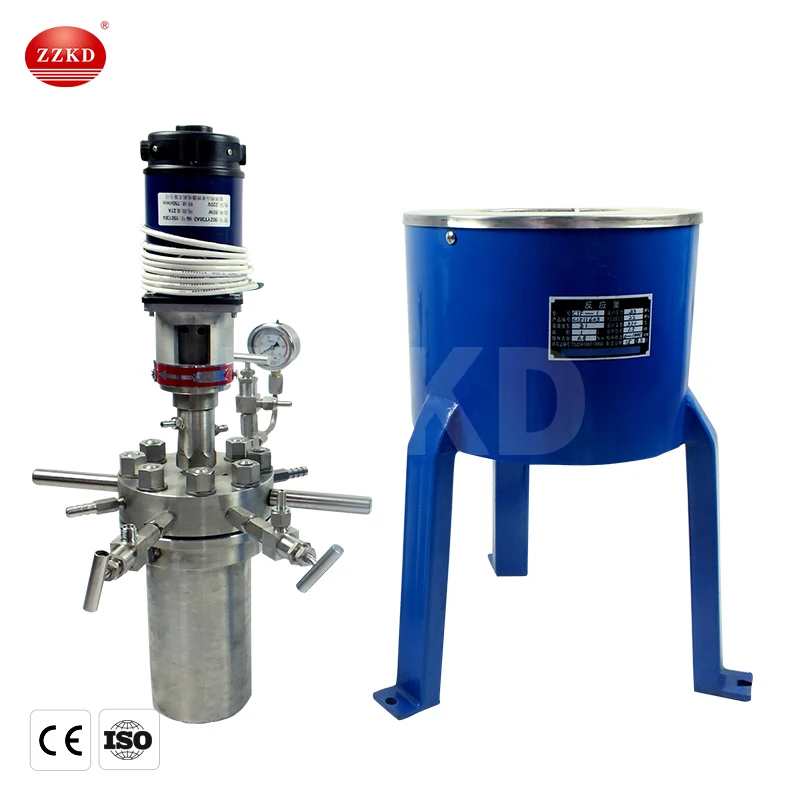

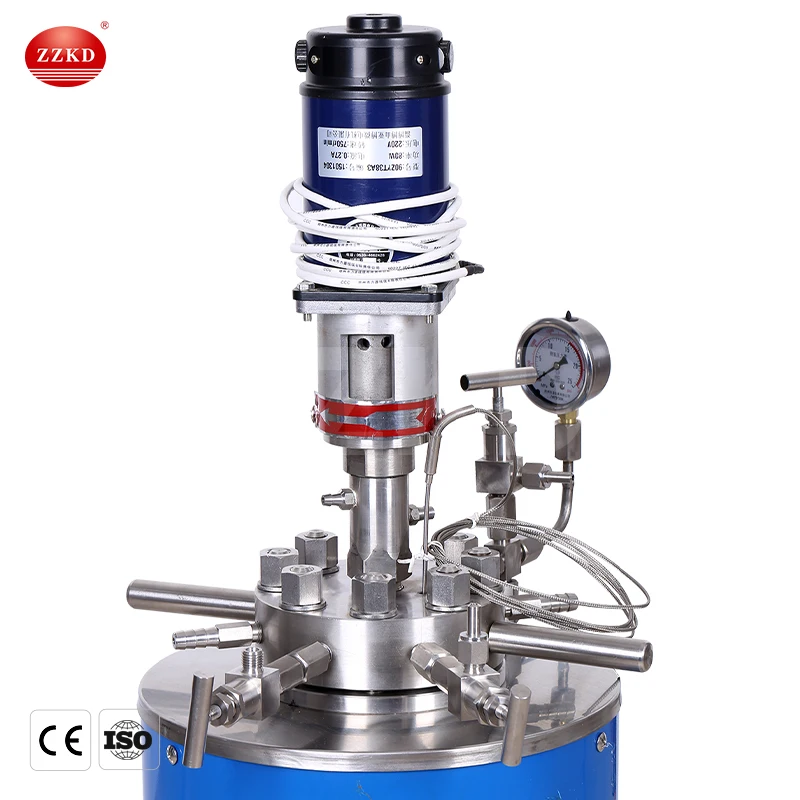

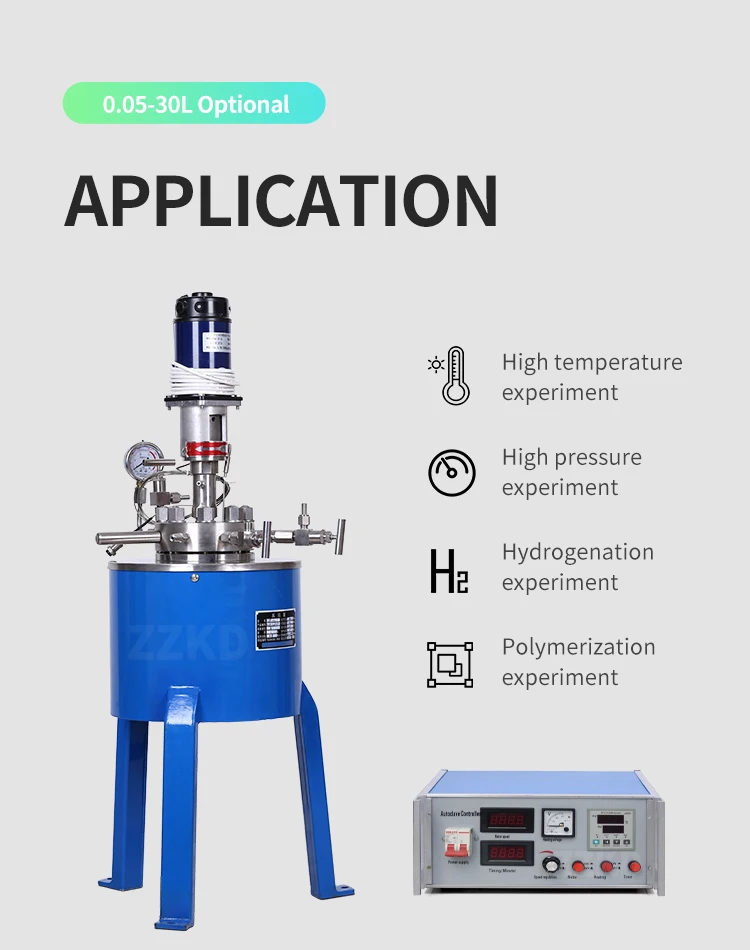

FCF series lab magnetic stirred autoclave is a stirring and reacting device, which is used for kinds of chemical materials which are Gas-liquid, liquid-liquid, liquid -solid or gas-liquid-solid three-phase to reactand stir fully under the high pressure, vacuum, high temperature, up to strength mass and heat transfer process. Static sealing structure, Magnetic coupling connection between the agitator and motor drive. Static seal instead of dynamic seals, and thoroughly mixing exchange leakage, the entire media and mixing the components to work completely in the state of absolute seal.

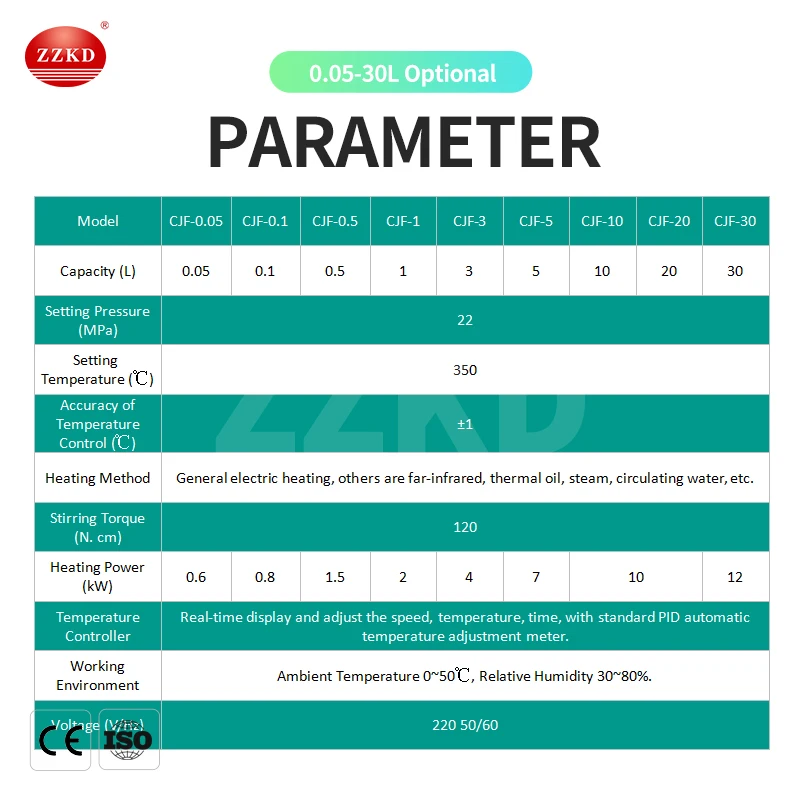

Model | CJF-0.05 | CJF-0.1 | CJF-0.5 | CJF-1 | CJF-3 | CJF-5 | CJF-10 | CJF-20 | CJF-30 |
Capacity (L) | 0.05 | 0.1 | 0.5 | 1 | 3 | 5 | 10 | 20 | 30 |
Setting Pressure (MPa) | 22 | ||||||||
Setting Temperature (℃) | 350 | ||||||||
Accuracy of Temperature Control (℃) | ±1 | ||||||||
Heating Method | General electric heating, others are far-infrared, thermal oil, steam, circulating water, etc. | ||||||||
Stirring Torque (N. cm) | 120 | ||||||||
Heating Power (kW) | 0.6 | 0.8 | 1.5 | 2 | 4 | 7 | 10 | 12 | |
Temperature Controller | Real-time display and adjust the speed, temperature, time, with standard PID automatic temperature adjustment meter. | ||||||||
Working Environment | Ambient Temperature 0~50℃, Relative Humidity 30~80%. | ||||||||
Voltage (V/Hz) | 220 50/60 | ||||||||
warehouse display
Company Information
Company introduction:
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil,Egypt etc. countries and our customers have been fully affirmation.
Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue : US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America
Please click on the picture:
Q&A
1. Can the capacity be customized?
Yes.
2. What’s the largest volume you can manufacture?
3000L.

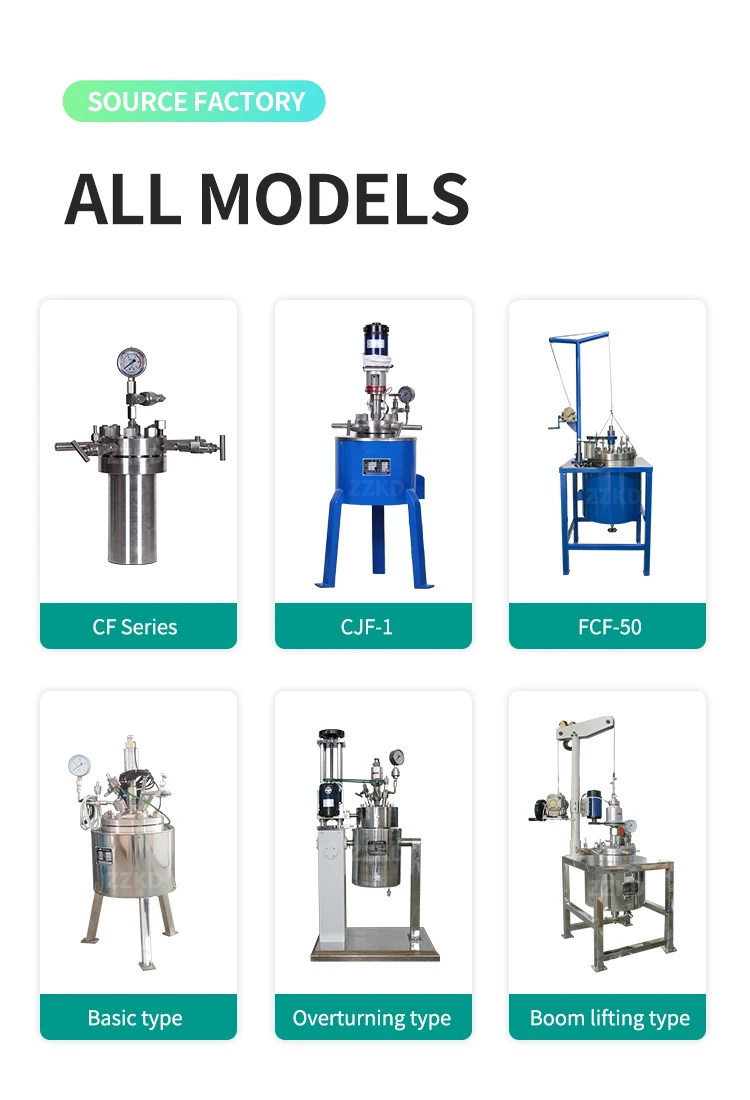

3. What kinds of reactors do you have?
Lifting-FCF series; Non lifting-CJF series.
4. Can you match liner?
Yes, we can supply suitable PTFE and ceramic liners for your models.
5. The maximum pressure and temperature can reach?
Usually 22Mpa, 350 degree C.
6. What’s reactor made from?
Usually SS304 and SS316.
7. What’s your delivery time?
Common model: 3-5 working days
Customized model: 7-15 working days
8. Can you supply cooling function?
Yes.
9. What’s your sealing mode?
Static sealing, no “O” ring.
10. Is there safety valve on your device?
Yes.
For more details about lab instruments, please feel free to contact us~
We have confidence to supply high quality products and professional solutions!
