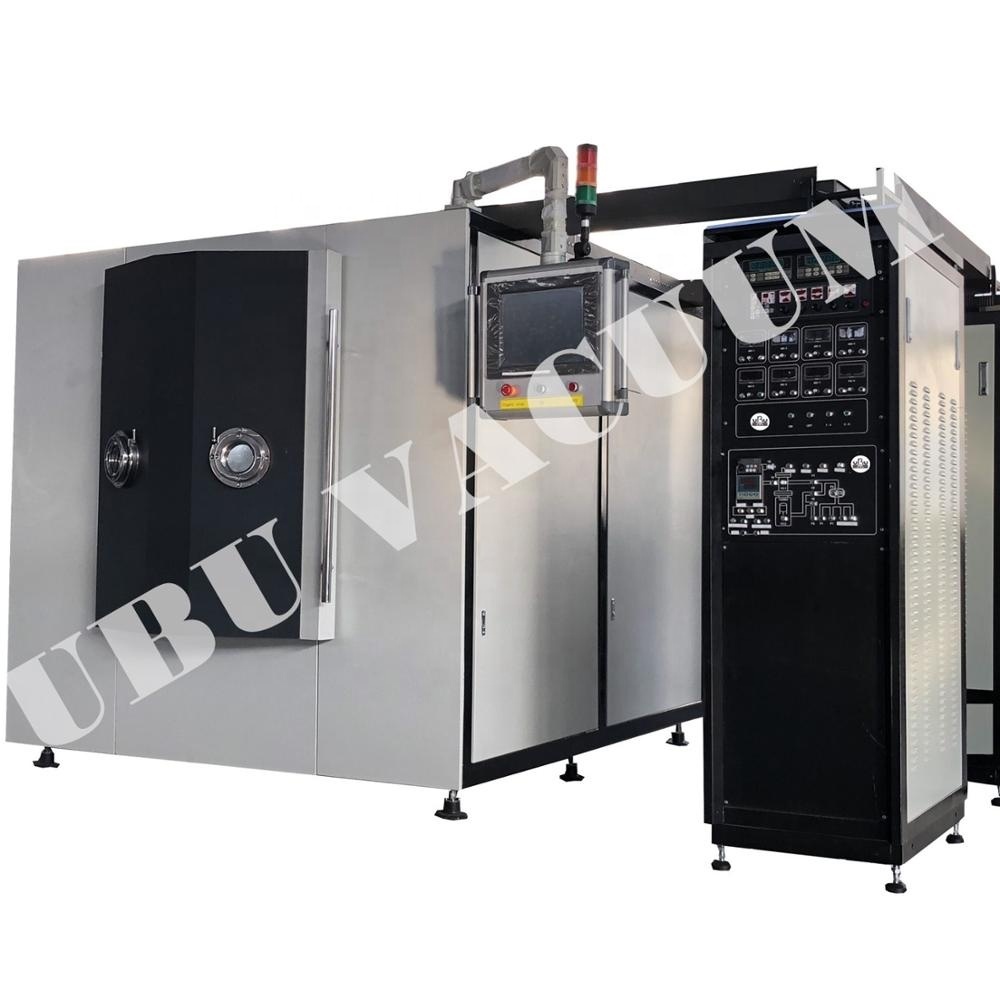

New Condition and Vacuum Coating Ceramic Tiles Coating Machine / vacuum coating equipment
New Condition and Vacuum Coating Ceramic Tiles Coating Machine / vacuum coating equipment which is applied to coating metal,glass,jewellery,and ceramic products, is mainly used for coating stainless steel or metal plates. By using the PVD technology ,the stainless steel plates can be much efficiently and stably.
Coating: TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN
Color: gold, rose gold, black gold, silver, champagne gold,sapphire blue, black, etc.
Product Description
LZ-1000 | LZ-1200 | LZ-1300 | LZ-1600 | LZ-2100 | LZ-2300 | ||||||
Vacuum chamber size | D1000×H 1000mm | D1200×H 1300mm | D1300×H 1300mm | D1600×H 1800mm | D2100×H 3600mm | D2300×H 4500mm | |||||
Power supply | Pulse bias power supply; arc power supply (can be equipped with different power supply according to customer requirements) | ||||||||||

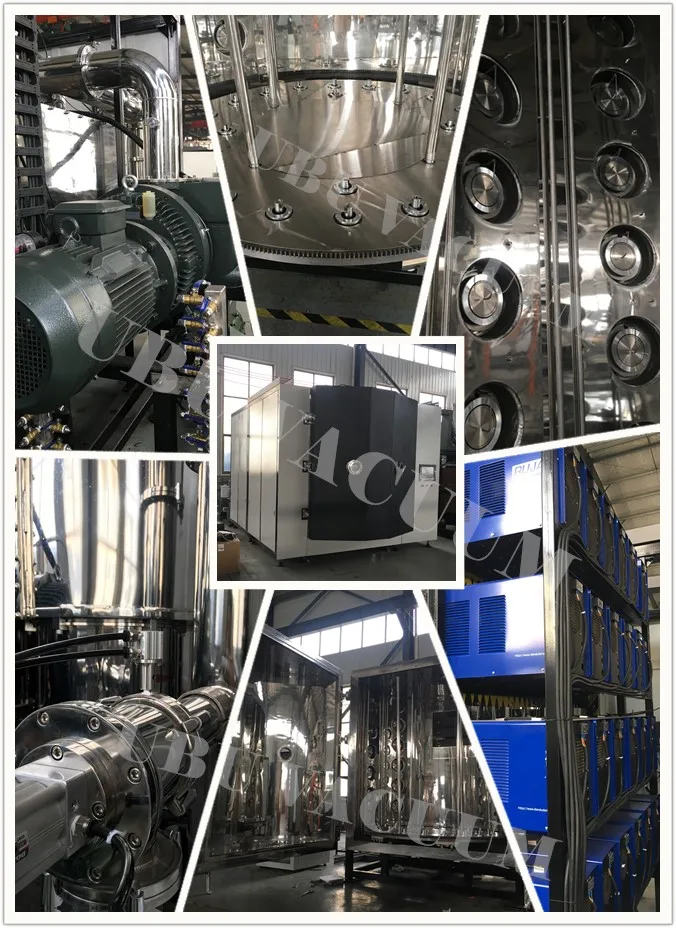

Vacuum chamber structure | Vertical single/double door, back vacuum acquisition system | ||||||||||
Vacuum chamber material | SS304 superior stainless steel | ||||||||||
Ultimate vacuum | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | |||||
Pumping speed | From atmosphere to 6.7×10-3Pa spend 8~15min (no-load) | ||||||||||
Vacuum system | Diffusion pump + roots pump + rotary vane pump + holding pump (can be adjusted) | ||||||||||
Number of multi-arc | 4 | 8 | 8 | 16 | 36 | 45 | |||||
Rotation mode | Planetary revolution and rotation and frequency conversion speed regulation (controlled and adjustable, up-down rotation shelves, axes number is determined by actual situation) | ||||||||||
Process gas | Mass flow controller (3-4 road), manual or automatic filling system | ||||||||||
Cooling system | Water-cooling circulatory system,cooling water tower or industrial cooling water machine is also needed (supplied by customer) | ||||||||||
Control mode | Manual or PLC + touch screen | ||||||||||
Alarm and protection | Water pressure alarm, atmosphere pressure alarm, over current protection, related protective measures and electrical interlock functions. | ||||||||||
Cover area | W3m× L3.5m | W3.5m× L5m | W3.5m× L5m | W4.5m× L5.5m | W4.5m× L11m | W5m× L12m | |||||
Other data | Water pressure≥0.2MPa, water temperature≤25℃, atmosphere pressure 0.5-0.8MPa | ||||||||||
Remark | Specific configuration size can be designed according to customer requirements. Another power supply can be equipped such as DC magnetron power supply and IF power supply to meet the different requirements. Customizable vacuum chamber size range is D500-3000mm, H: 500-7000mm. | ||||||||||
PVD coating technology
PVD coating is a plasma coating deposition technology which the materials are vaporized under vacuum conditions ,so as to avoid the reaction between the vaporized material and air. PVD coating is used to add new features as improve the workpieces' hardness,wear resisitance,corrosion resisitance ect..
coating thickness 0.5-10μm
hardness 1000-4000 HV
temperature resisitance 300-1150°c
deposition temperature 200-600°c

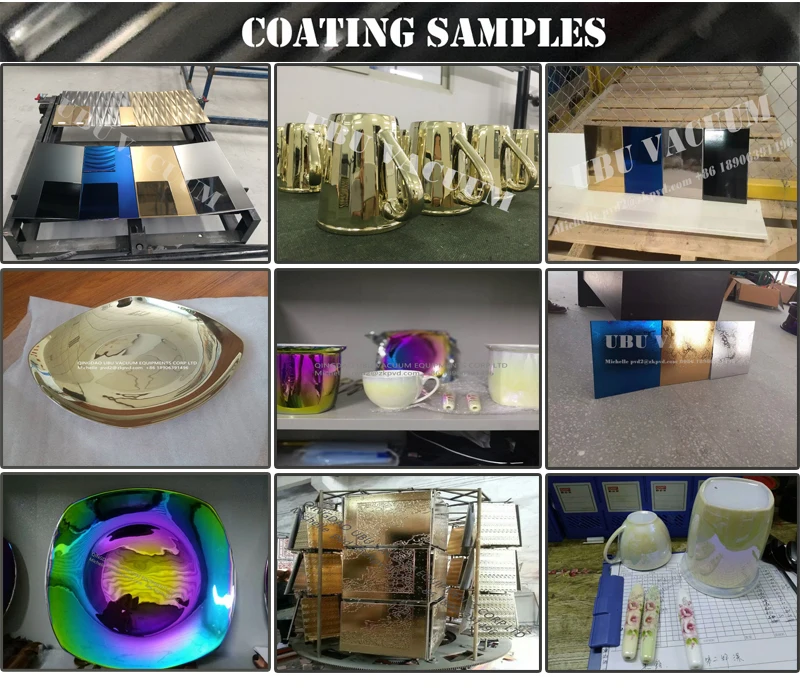

Application industry
Watch industry (strap, case, dial)
Automotive industry (piston, piston rings, alloy wheels)
Hardware industry (sanitary ware, door knobs, locks)

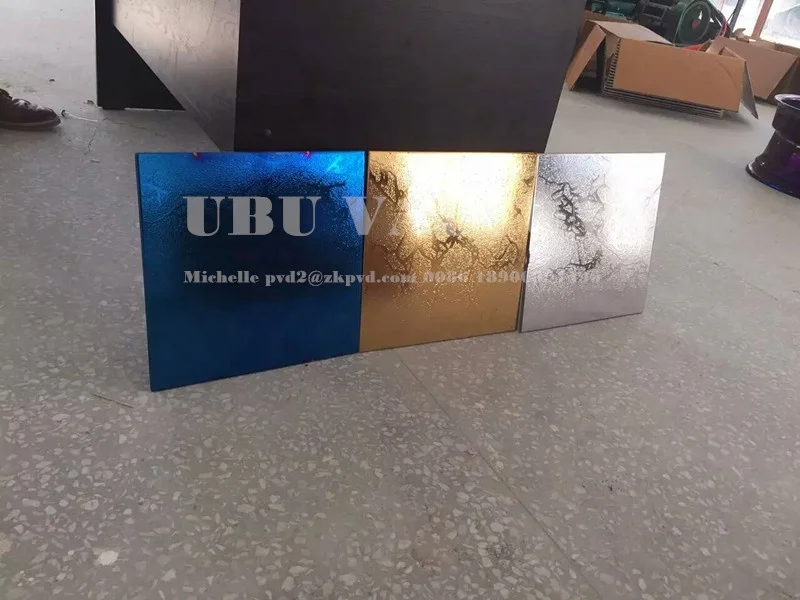

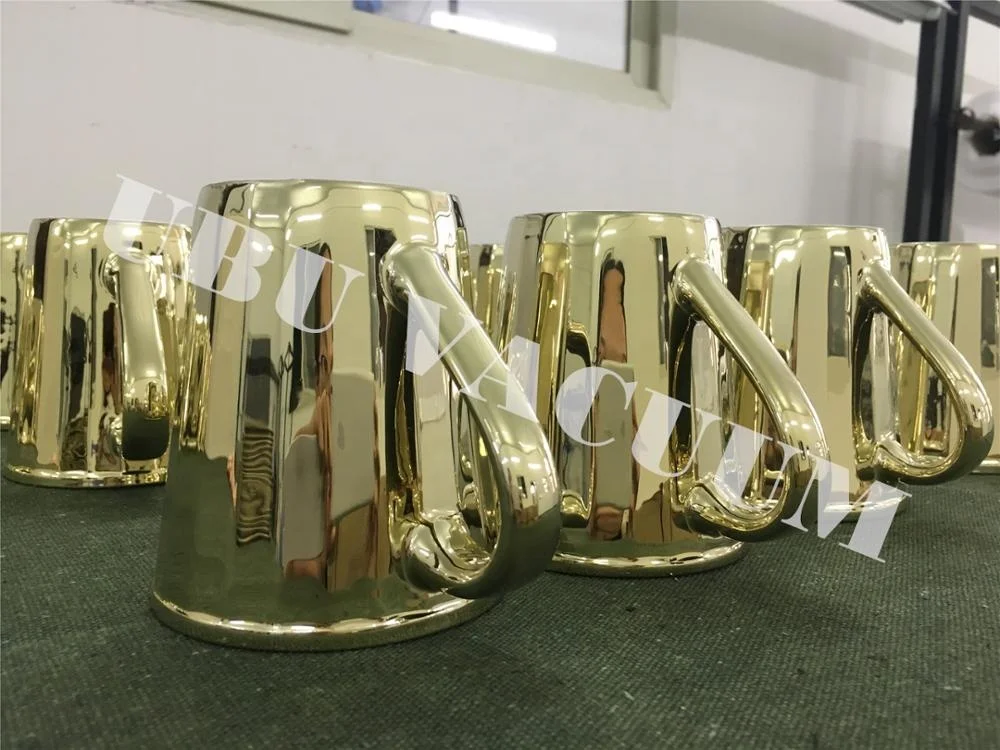

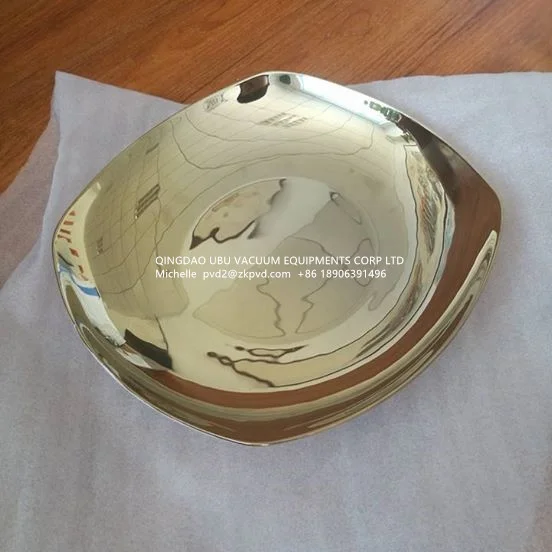

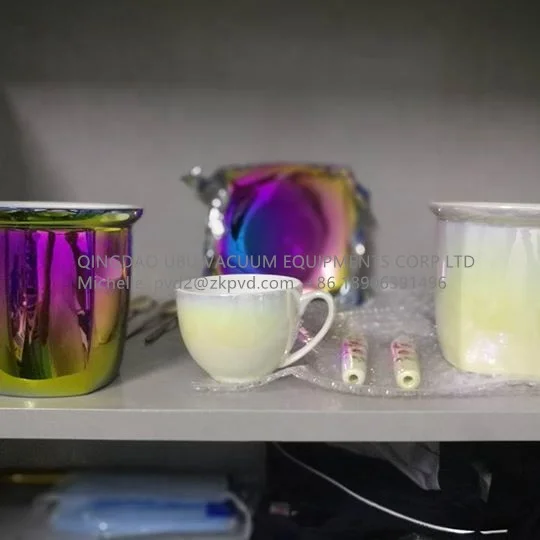

Glass ceramics industry (glass tableware, ceramic crafts)
Architecture industry (stainless steel plate, stair railings, columns)
Tools industry (drill bits, carbide cutters, broaches, shaving heads)
Precision mold industry (standard punch mold, forming mold)
As well as pens and glasses etc..
Packaging & Shipping
1 common package : standard wooden case
2 under customer's request
3 Warranty: 1 year
4 Engineers available to service machinery overseas
