TB-2512 25A 12 Way M4 Insulated Electrical Terminal BoardTB-2512 25A 12-Way Insulation Electrical Terminal Block Connector

Gerneral Product Information
Item number:	TB-2512
Rating:	600V, 25A, 12 Poles
Size:	*147.028.019.0mm (LWH)*
Wire Size:	6.0 mm² / AWG 10
Screw Size:	M4

Dimensions [mm]
Item No.	Poles (P)	Length (L)	Width (W)	Height (H)
TB-2503	3	50.5 mm	28.0 mm	19.0 mm
TB-2504	4	61.5 mm
TB-2506	6	82.5 mm
TB-2512	12	147.0 mm

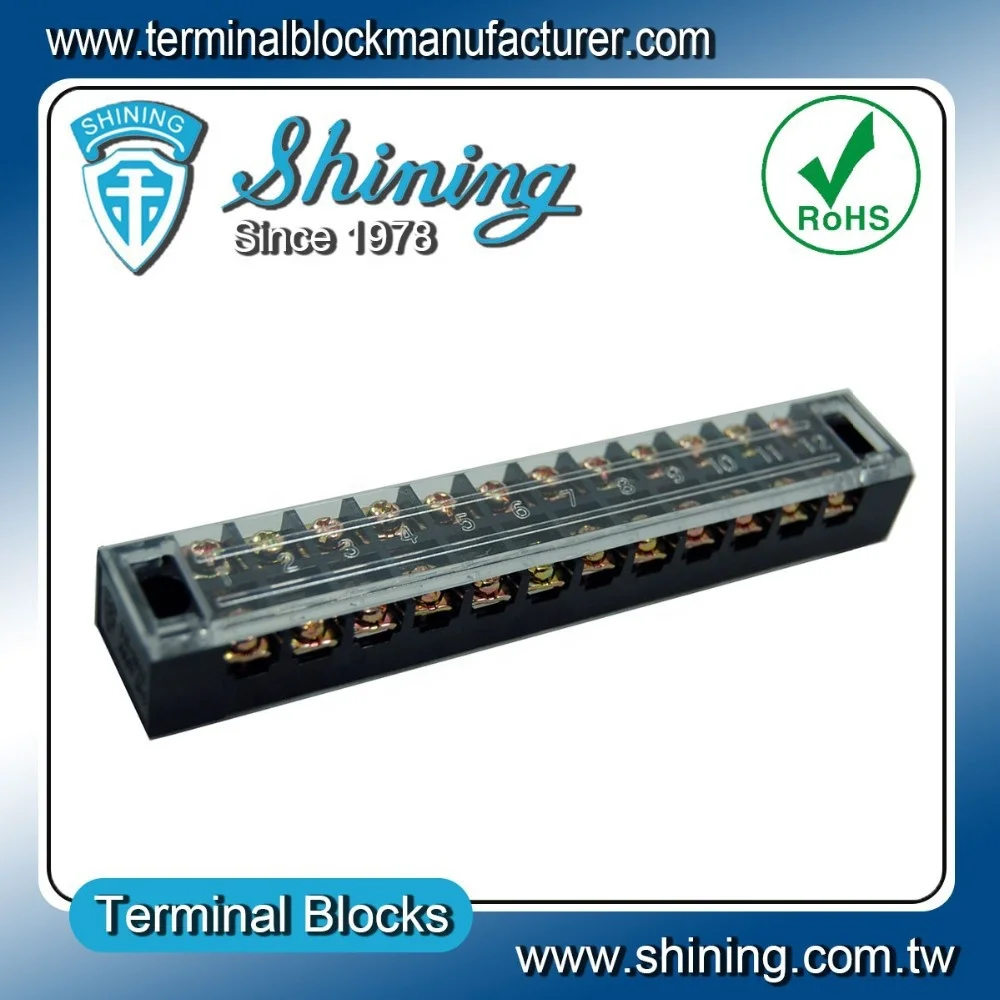

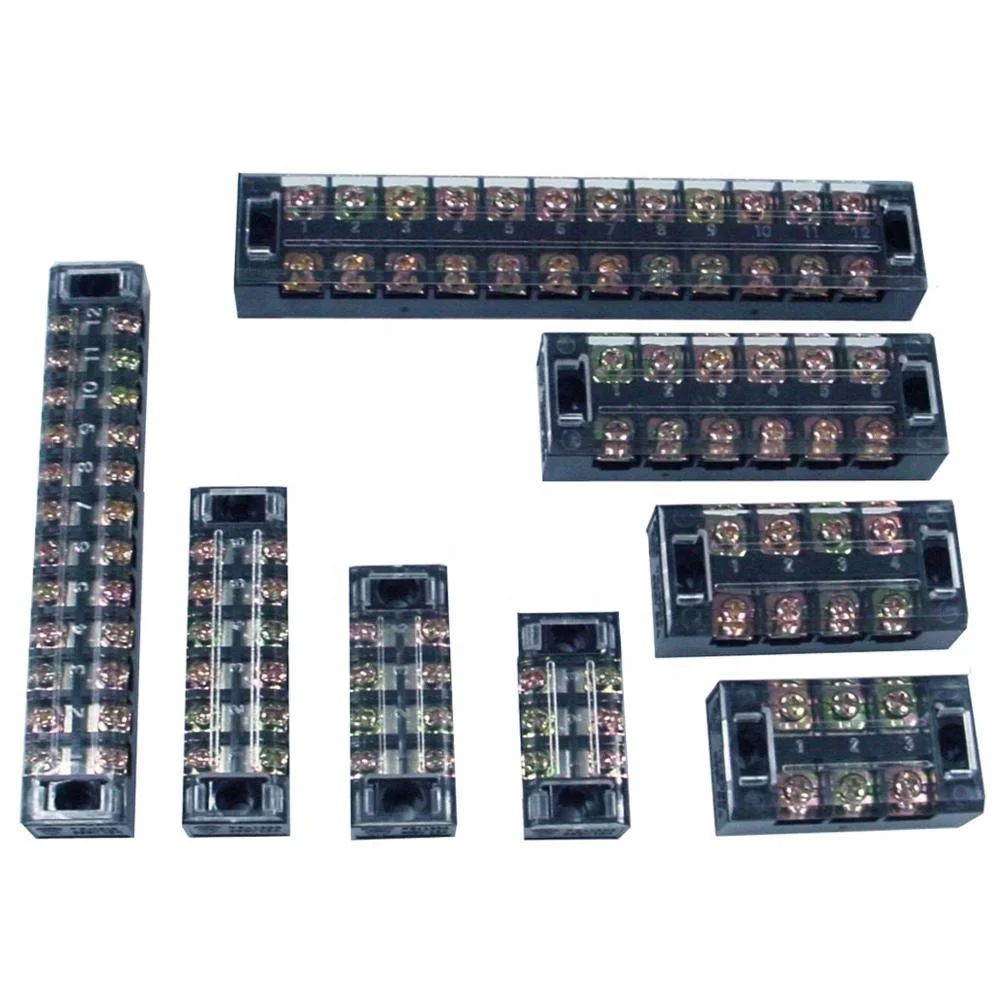

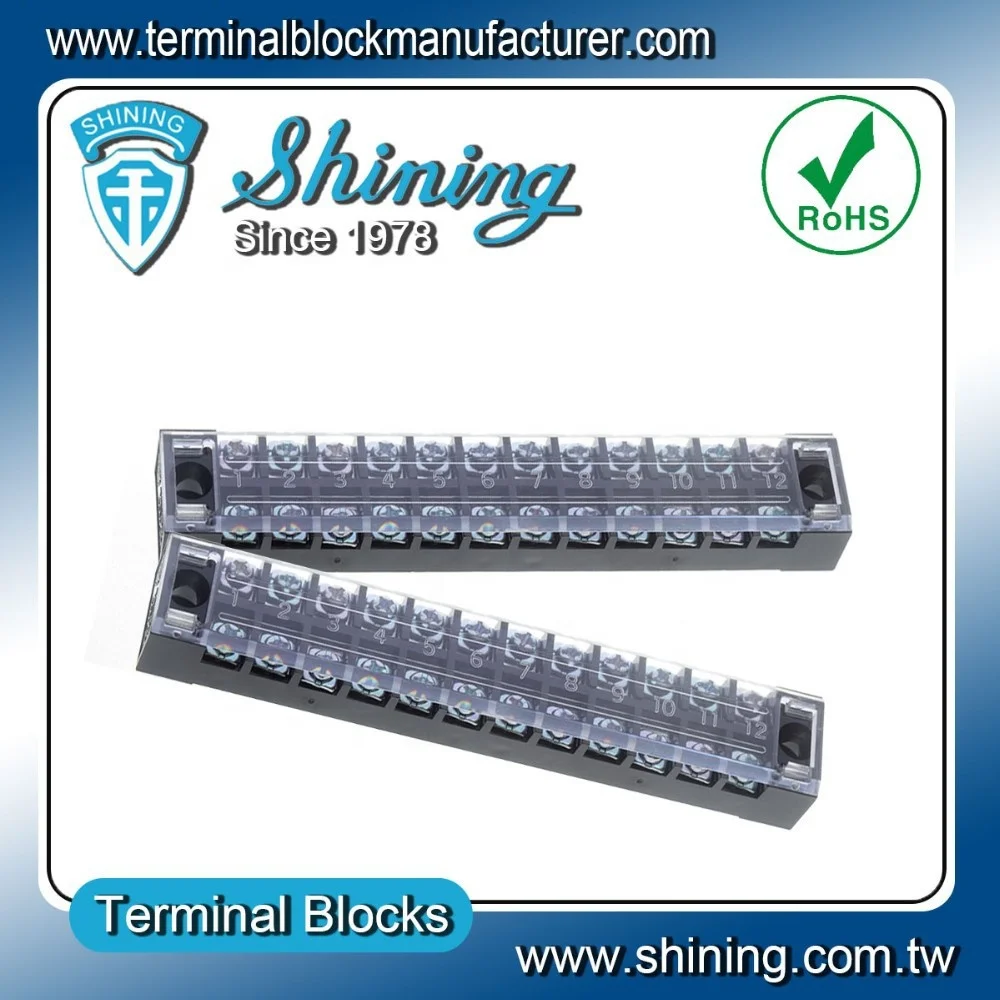

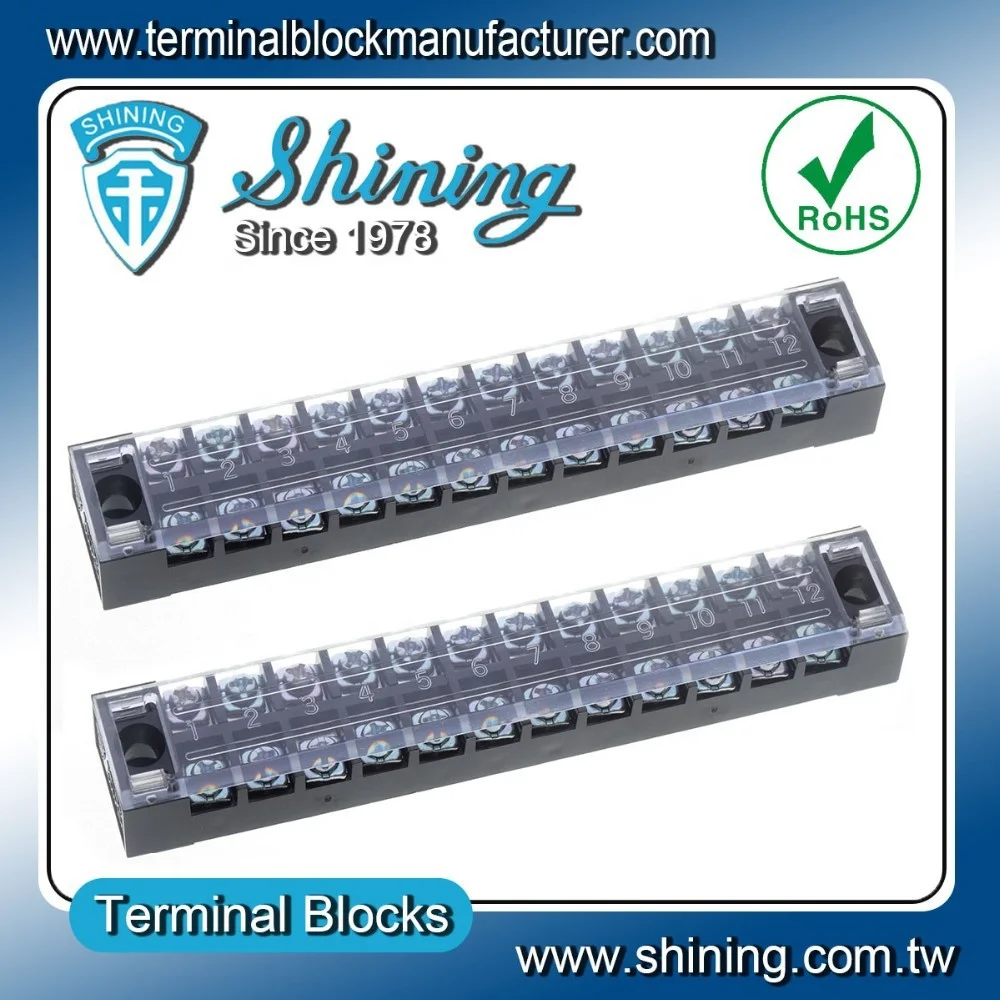

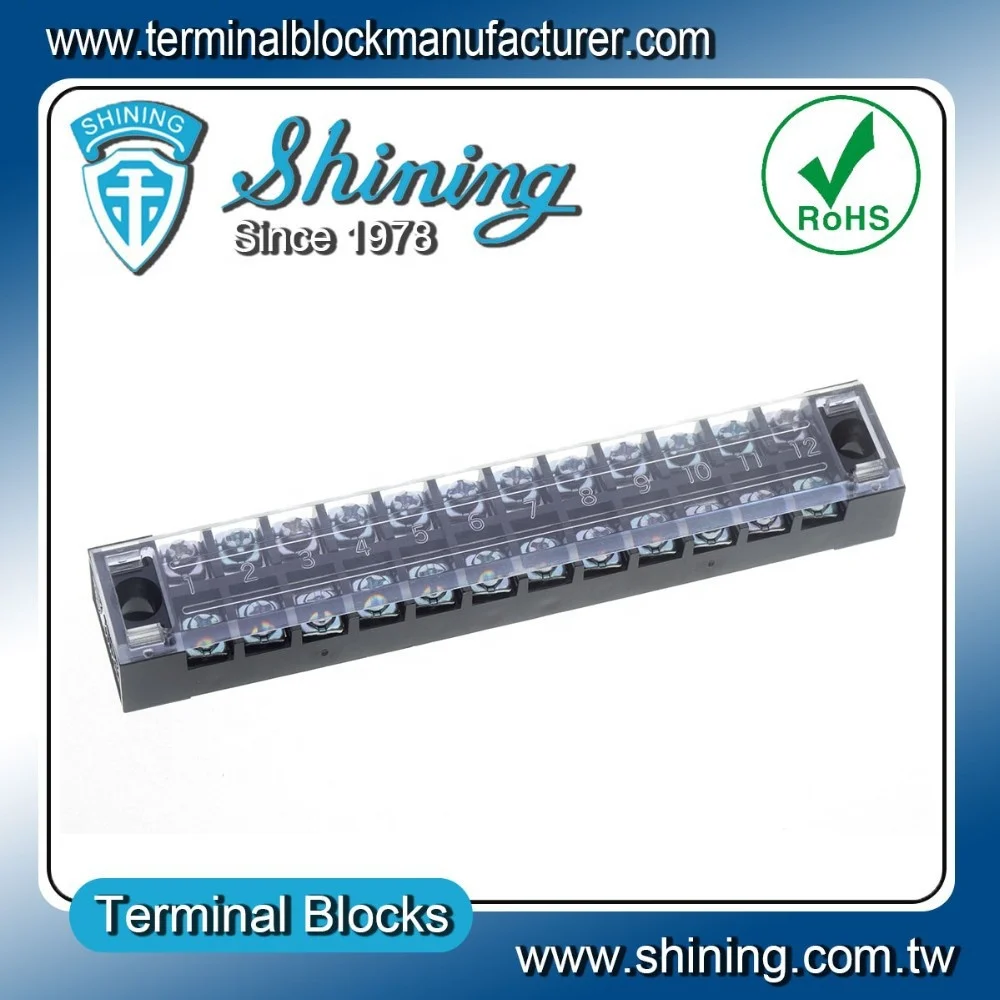

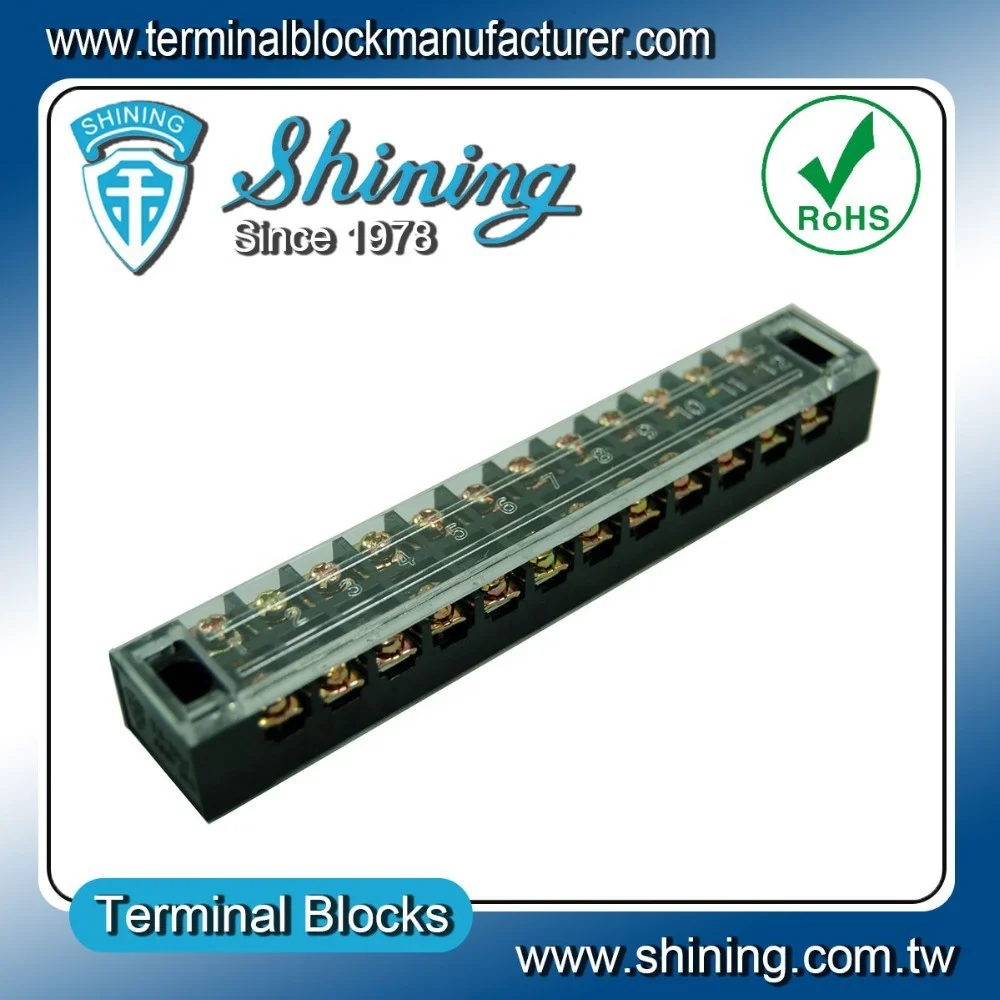

Product Photos


Product Description

Product Features

Item Number: TB-2512

Rated Voltage: 600V

Rated Current: 25A

Install Type: By Panel Mounted. Din Rail is not Required.

Pole: 12 Pole

Certificate: RoHS

Molded from UL94-V2 material with excellent flame- and shock-resistance

Sectional or one-piece construction. Easy and Flexible to form multipole assembly.

Panel Mounting is available.

Protective Cover come with Terminal Blocks for Free. No Marker Strip needed. (Molded Printed).

Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.

TB Series Terminal Block are Panel Mounted Terminal Block , the basic color is black. The product color can be changed according to the customer requirements. There are reserved install holes on both sides. Load current can be 15A, 25A, 35A. The products are with a Protective Cover, whose materials are PS, this makes the products are durable. Marker Strip is not required, it is mold printed.Please see the specification sheet of our TB Series Panel Mounted Terminal Blocks Below:

Specification Sheet
TB Series Drawing
Item No.	TB-1503	TB-1504	TB-1506	TB-1512	TB-2503	TB-2504	TB-2506	TB-2512
	Electrical Specifications
Rated Volt [V]	600V
Rated Current [A]	15A				25A
Wire Size [mm²]	2.0 mm²				6.0 mm²
Wire Size [AWG]	AWG 14				AWG 10
	Materials
Insulator Materials	PC
Color	Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade	UL94V-2 (UL94V-0)
Operating Temperature [℃]	-40℃+110℃ (Max: +220℃)
Conductor	Brass, Nickel Plated (Copper, Tin Plated)
Dimensions	Protective Cover come with terminal blocks for free. No Marker Strip needed. (Molded Printed.)
Total Length L [mm]	46.5	55.5	73.5	128.5	50.5	61.5	82.5	147.5
Ref. Length L1 [mm]	36.5	45.5	63.5	118.0	40.0	51.0	72.0	136.0
Gap A [mm]	7.0				8.0
Pitch B [mm]	9.0				10.5
Width W [mm]	22.0				28.0
Height H [mm]	17.5				19.0
Screw (C) (Steel, Zinc Plated)	M3				M4
Rated Torque [N-m]	0.5				1.2
Rated Torque [in-lb]	4.4				10.6
Poles	3	4	6	12	3	4	6	12

Specification Sheet
TB Series Drawing
Item No.	TB-2503L	TB-2504L	TB-2506L	TB-2512L	TB-3503	TB-3504	TB-3506	TB-3512
	Electrical Specifications
Rated Volt [V]	600V
Rated Current [A]	25A				35A
Wire Size [mm²]	6.0 mm²				10.0 mm²
Wire Size [AWG]	AWG 10				AWG 8
	Materials
Insulator Materials	PC
Color	Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade	UL94V-2 (UL94V-0)
Operating Temperature [℃]	-40℃~+110℃ (Max: +220℃)
Conductor	Brass, Nickel Plated (Copper, Tin Plated)
Dimensions	Protective Cover come with terminal blocks for free. No Marker Strip needed. (Molded Printed.)
Total Length L [mm]	56.0	68.0	92.0	164.0	56.0	68.0	92.0	164.0
Ref. Length L1 [mm]	45.0	57.0	81.0	153.0	45.0	57.0	81.0	153.0
Gap A [mm]	10.0
Pitch B [mm]	12.0
Width W [mm]	30.0
Height H [mm]	19.5
Screw (C) (Steel, Zinc Plated)	M4
Rated Torque [N-m]	1.2
Rated Torque [in-lb]	10.6
Poles	3	4	6	12	3	4	6	12

Packaging & Shipping

Packaging

50pcs/box, 200pcs/4boxes/N.W. :19.0kgs /carton

Shipping Method

1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis.

2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.
