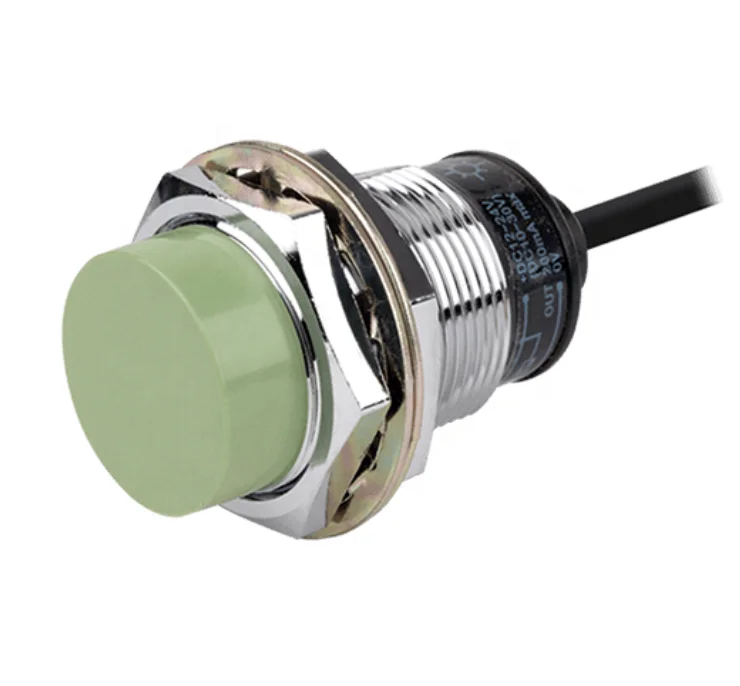

PR30-15DN Корея M30 Индуктивный бесконтактный датчик PR30-15Dp Autonics цилиндрический датчик приближения
- Категория товара: Sensors >>>
- Поставщик (Оптовый магазин): Beijing,Shuntu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PR30-15DN
- Wire type and power : DC 3-wire type 12-24VDC
- Sensing side diameter : M30
- Sensing distance : 15mm
- Installation : Non-shield(non-flush)
- Standard sensing target : 45×45×1mm(iron)
Data sheet Print
| Wire type and power | DC 3-wire type 12-24VDC |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Installation | Non-shield(non-flush) |
| Standard sensing target | 45×45×1mm(iron) |
| Response frequency | 200Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67 |
| Approval | |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 1.5V |
| Weight | Approx. 207g(approx. 170g) |
