Product Description

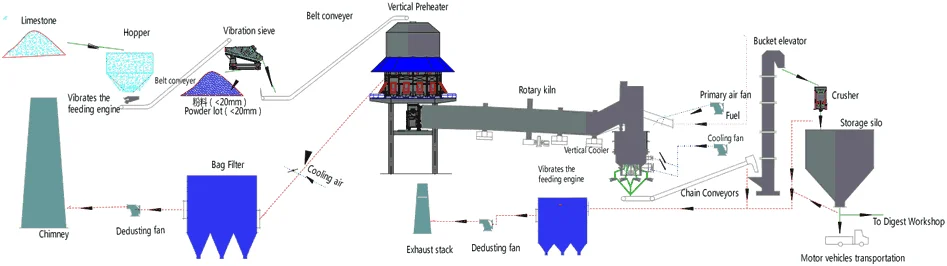

Flow Chart of Lime Production Lime
Our Service and Solution
We can provide technological solutions and complete production equipment for quicklime (active lime) production line.
-Design capacity:50-2000TPD
-We have professional engineer team.
-We have mature experience, and project cases more than 100 till 2015.
-We use the new type, energy saving and environmental system, through which fuel consumption can be reduced by 40%, output capacity increased 30%.

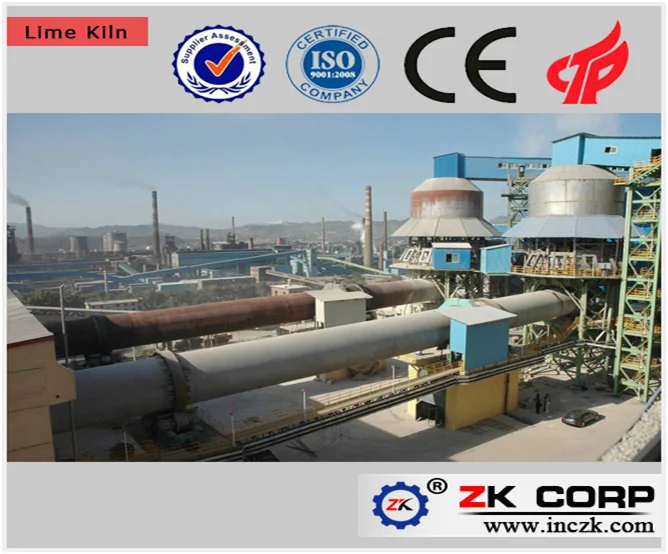

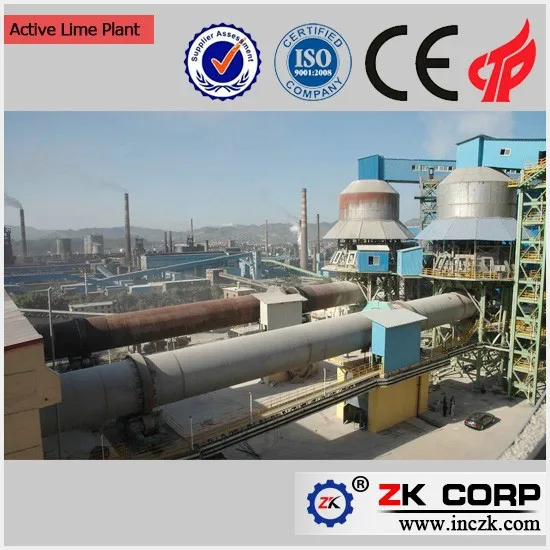

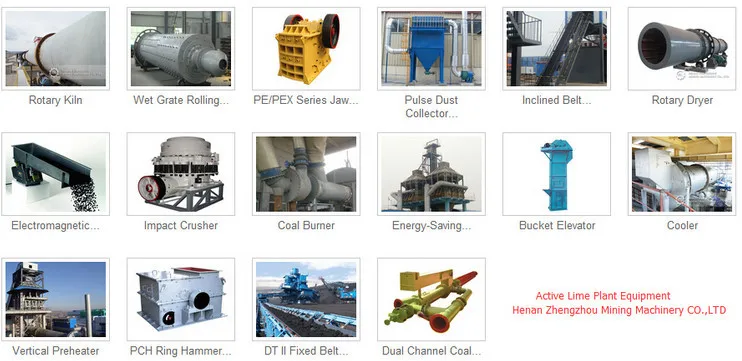

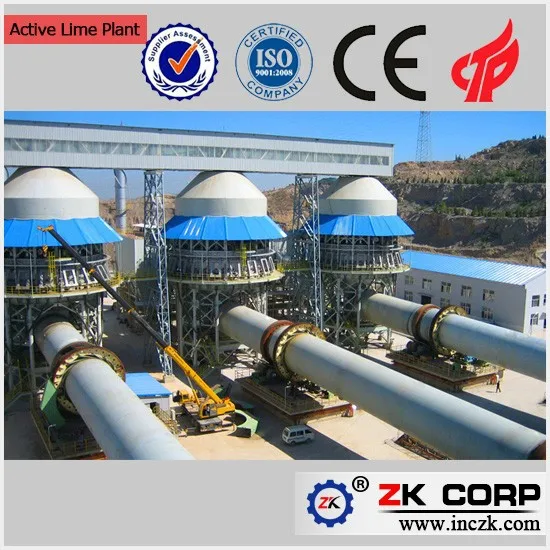

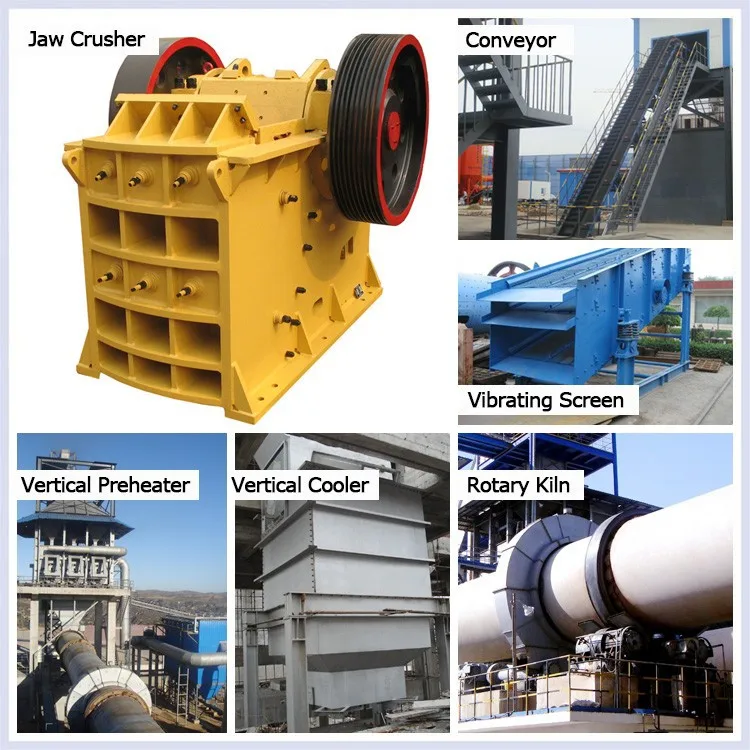

Active Lime Production Plant Equipment
Production Process Description
1.Raw material feeding

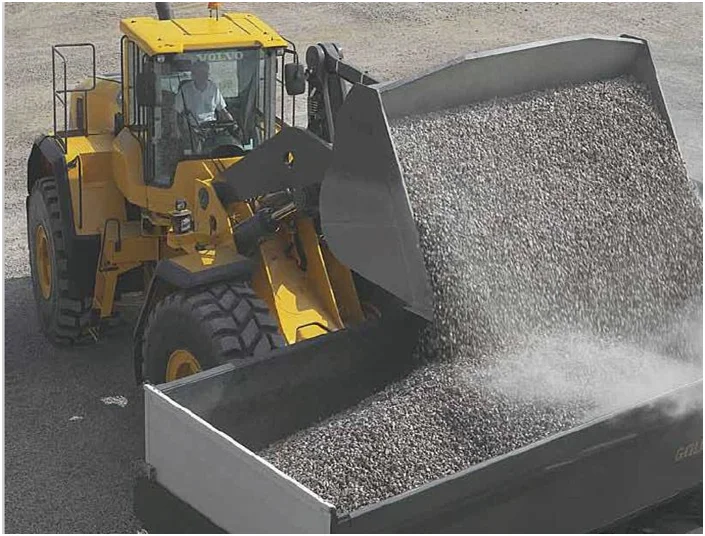

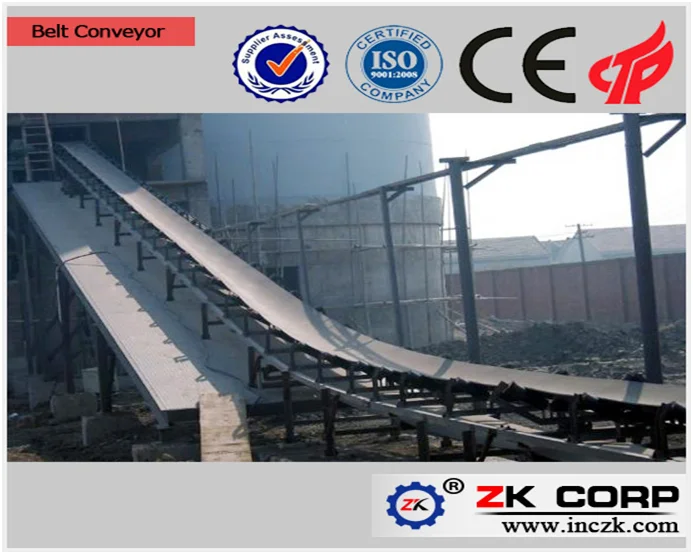

Limestone in the plant yard will be carried by tractor shovel and fed to hopper, it will be discharged from hopper to vibrating feeder and sent to vibrating screen for screening through belt conveyor. The size ≥20mm will be sent to pre-heater by conveyor. And size less than 20mm will be carried away.
2.Calcination

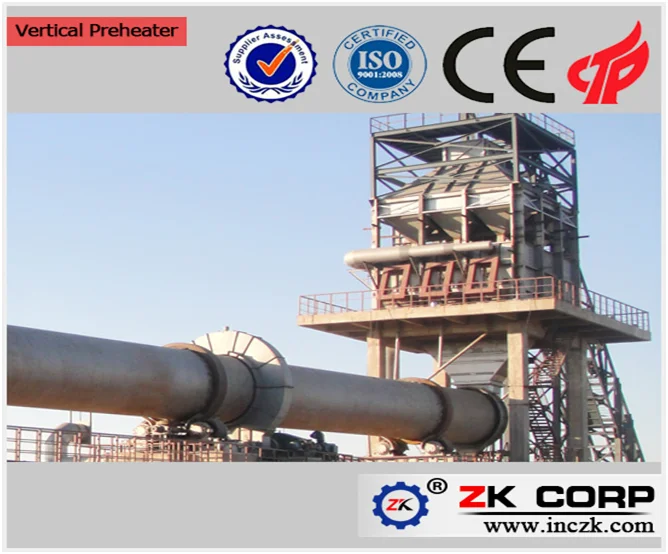

Limestone in the pre-heater will be preheated by the hot air, then it will be discharged to rotary kiln through the chute that connects pre-heater and kiln, it will stay in the kiln for 1.5-2 hours for calcination, during the process, it will be calcinated with temperature around 1300 ℃, after which comes limestone decomposition, release of CO2, then the formation of quick lime will be completed. And lime will be moved to vertical cooler for cooling.
3.Lime conveying

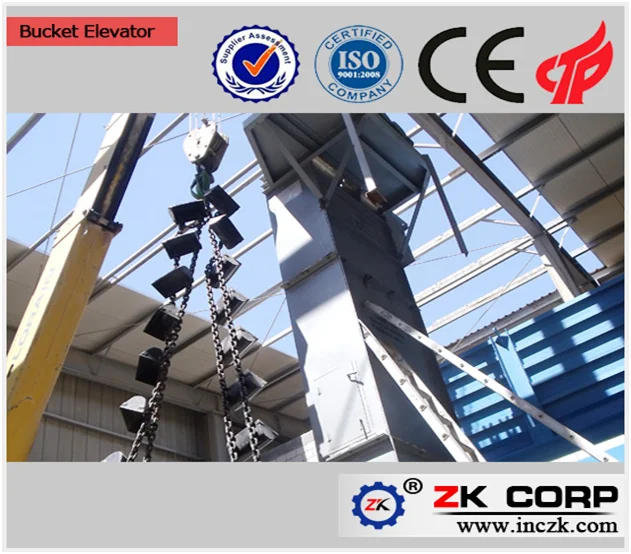

Lime will be discharged to a chain conveyor by vibrating feeders at the bottom of vertical cooler, it will be lifted to storage hopper by bucket elevator.lime in the storage hopper can be used for dispatch or transported to hydration workshop.
4.Dust filtering

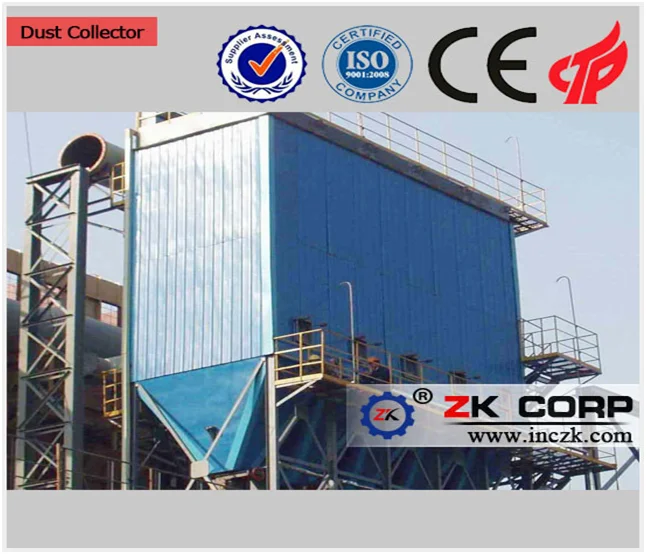

There are two dust filtering systems, one is in the kiln inlet, dust will be filtered by bag filter then the clean gas will be released to air. The other is dust from lime storage hopper and feeding part of bucket elevator, dust will be filtered by bag filter then released to air.

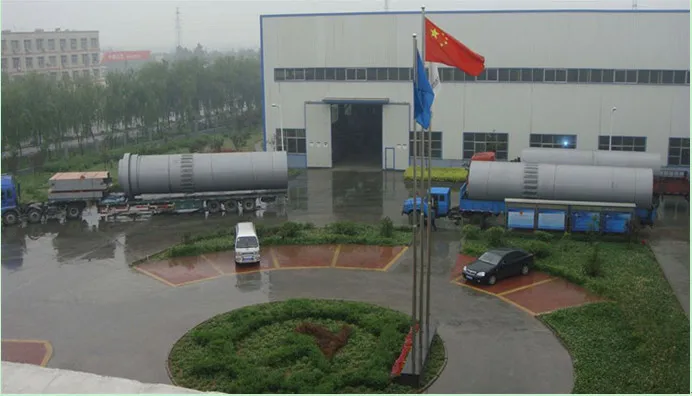

Packaging & Shipping
Optimum Service of ZK CORP:
We have advancedproduction technology and management. Our professional engineers and after-sales groups can offer optimum service for our customers.
Pre-sales: Enthusiasm
We provide you with the prophase plan, process flow design and manufactureequipment
according to your special demand.
On-sales: Responsibility
We can send technicians to the jobsite for guidance on installation, adjustment and personnel training.
After-sales: Faithfulness
To establish long term friendship, we will regularly pay return visit to our customers.
In addition, we provide one-year warrantee to make sure your machine runconsistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.If any problemoccurrs,we would give you the right solution ASAP.

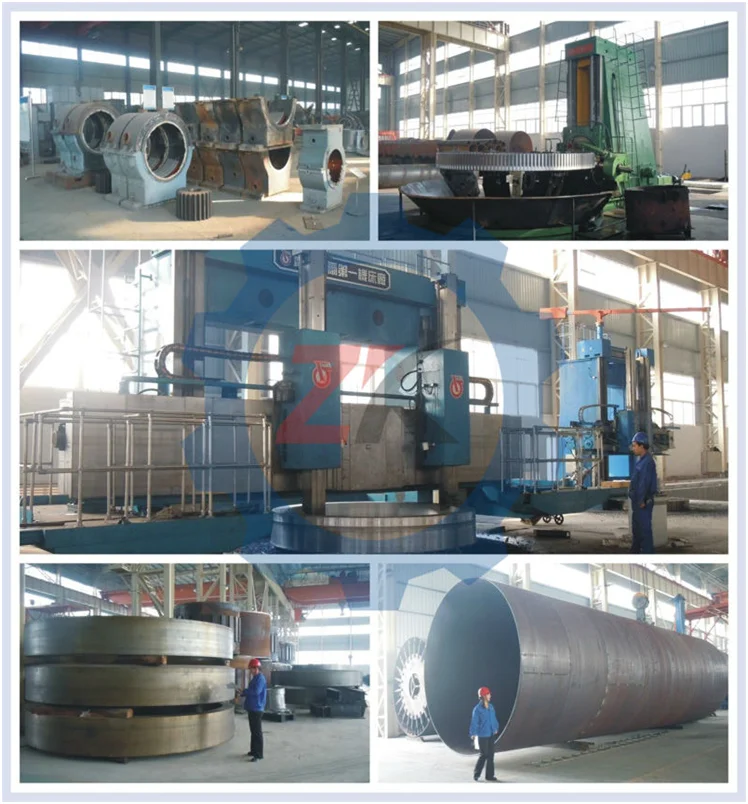

Company Information

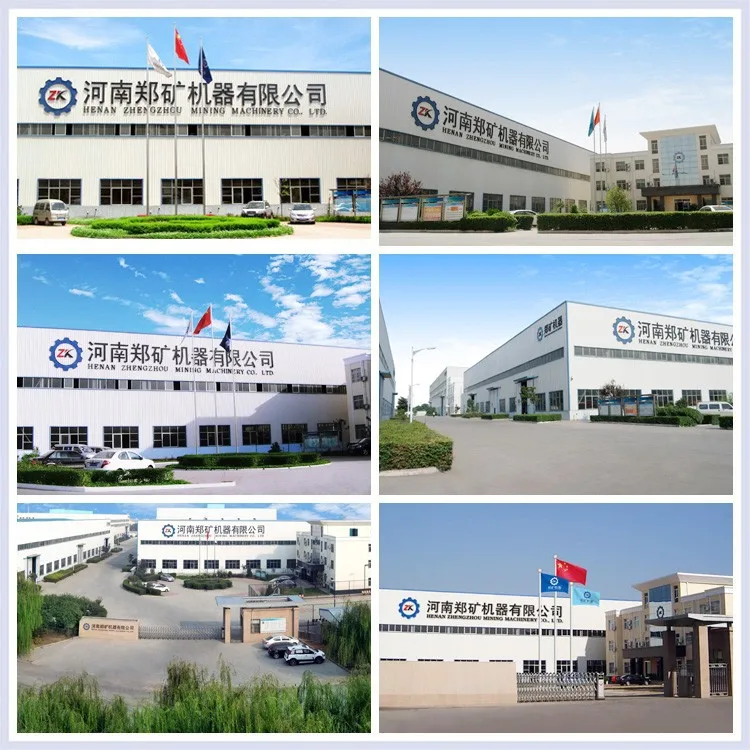

Established in 1956, Henan Zhengzhou Ming Machinery Co. Ltd. is an entrenched factory appointed by Ministry of Machine-Building Industry and department of electrical machinery industry of Henan province. After development of over half a century, it has become a comprehensive modernized enterprise which integrates research, design, exploring, manufacturing, selling, installing, debugging and training. Our factory owns fixed assets of more than RMB800000,000.

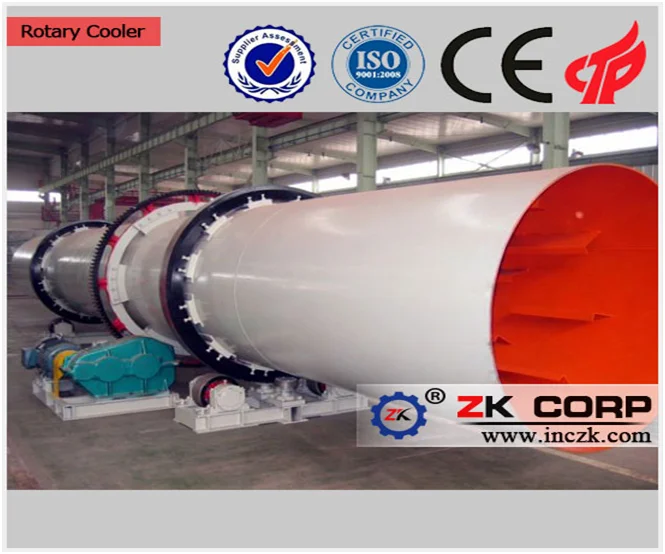

Our main productsinclude:rotary kiln, rotary dryer, cooler, ball mill, preheater, conveyor, etc. and complete sets of machinery for cement production line, active lime production line, magnesium production line and ceramic sand production line. We have project cases through every province of China our products have been exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and achieved great popularity.
Certifications
We have got
ISO9001:2008 Quality Management System Certification

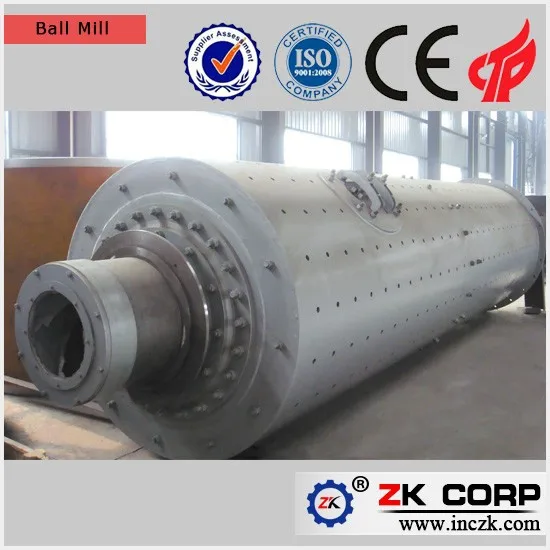

CE Certification (Ball Mill)
ISO14001:2004 Environmental Management System Certification
OHSAS 18001:2007 Occupational Health&safety Management System Certification
FAQ
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide mineral processing flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.
