Машина для прокатки листового металла
US $10000

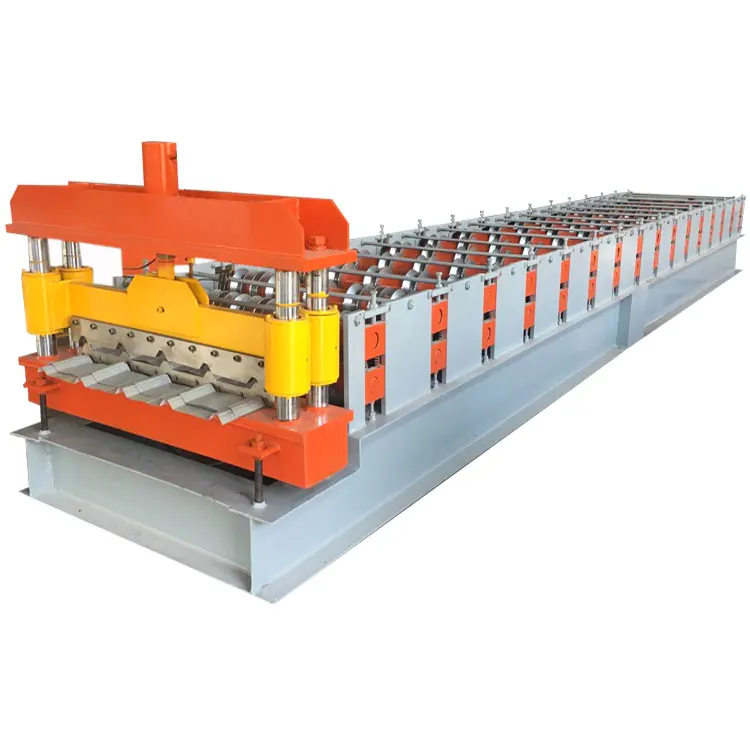

Кровельный лист трапециевидная машина для изготовления листового железа/машина металлических кровельных листов из оцинкованной алюминия и
- Категория товара: Tile Making Machinery >>>
- Поставщик (Оптовый магазин): Botou,Huikeyuan,Engineering,Control,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
The raw material of the tile forming machine is galvanized steel, different color steel or aluminum plate, roll forming die.
Glazed tile molding machine produces the rich color glazed tile, strong corrosion resistance, for the new building materials, with special paint, rich colors, classical and elegant, finishing touch for your building. Its light weight, high strength, good waterproof, easy to install.
Manual Un-coiler | ◊ Max Capacity: 5000kgs ◊ Inner diameter of coil: 400-600mm ◊ Manual with brake |
Leveling Device | ◊ Ensure the material level and straight ◊ The width can be adjusted |
Main Forming System | ◊ Width & Height & Thickness of sheet: According to Drawings ◊ Material: GI sheet coil or Colored sheet coil ◊ Motor Power: 5.5 kw forming system ◊ Roller material:Cr12 ◊ Surface of Roller: Heat treatment HRC58-60 ◊ Measuring accuracy: +/- 0.5 mm/M ◊ Safety Hood: Cage ◊Arch middle plate: 30mm thickness ◊Output: 8-10 Tons per shift (8 hrs.) ◊The machine base is assembled and welded by high quality steel |
Hydraulic Cutting Device | ◊ Cutting way: Tracking (Flying). ◊ Oil pump station 1set. ◊ Motor power of Oil pump station: 7.5kw with cooling system ◊ Forced air cooling device available ◊Material of blade: CR12 with heat treatment HRC60-62 |
Electrical System | ◊ Control system: HMI & PLC control panel. ◊ Power: 440V 50Hz (as per local requirement) |
Run-out Table | ◊ Frame: 8# steel groove welded ◊ Roller type. ◊ Quantity: 1 pc |

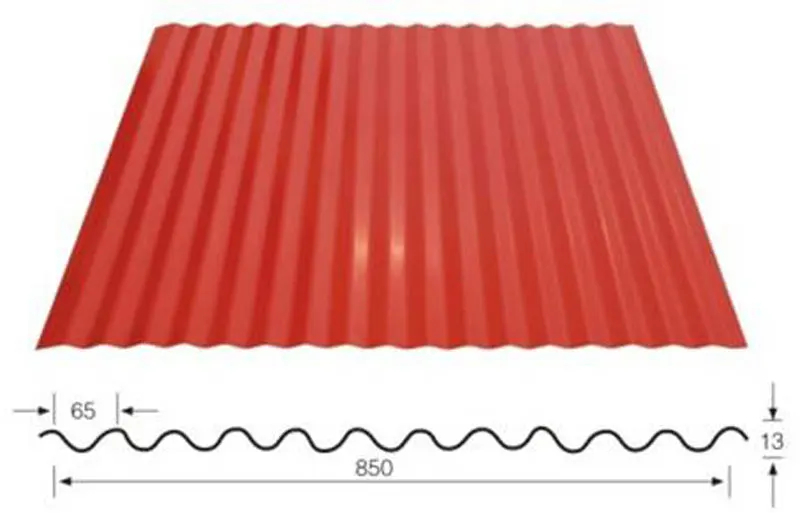

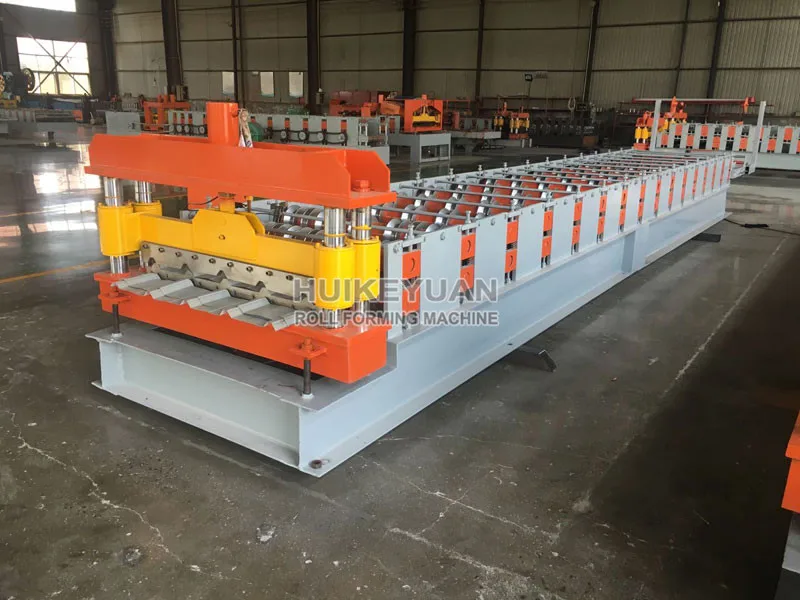

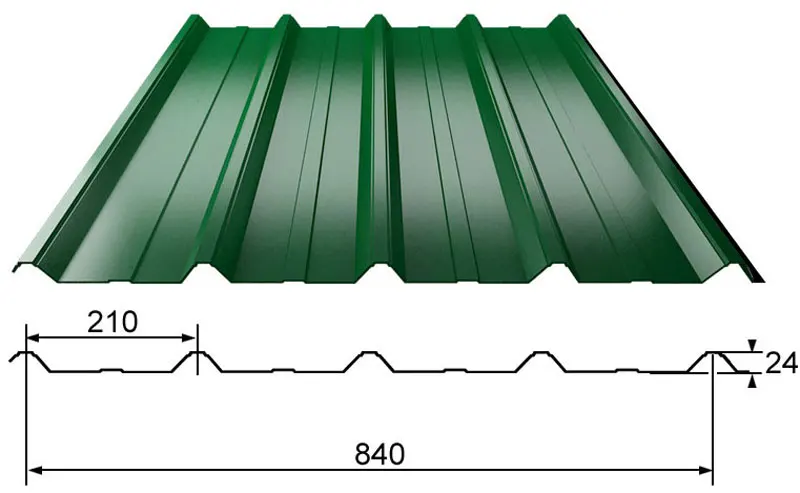

Products Show

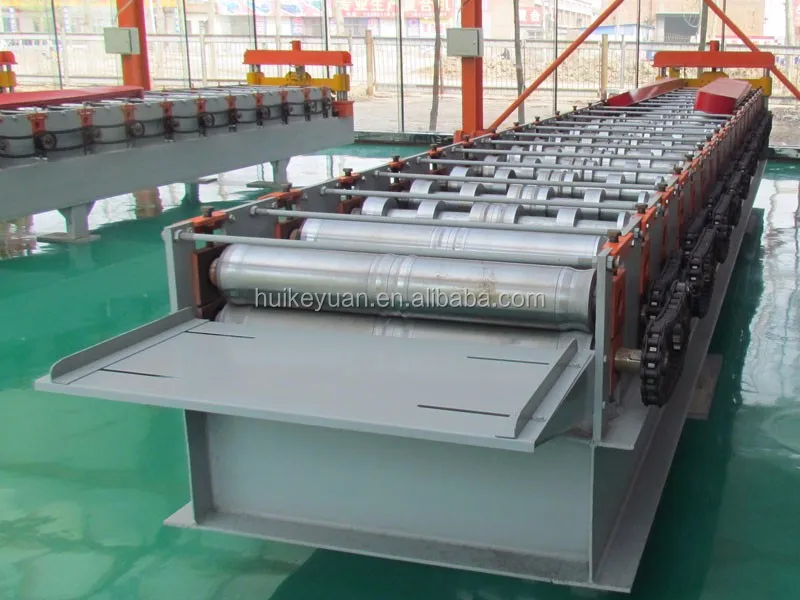

Detailed Images

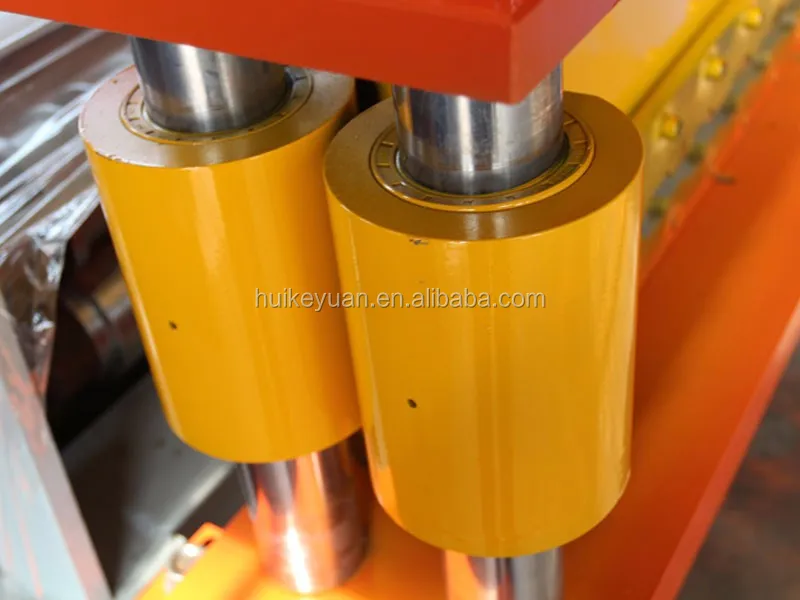

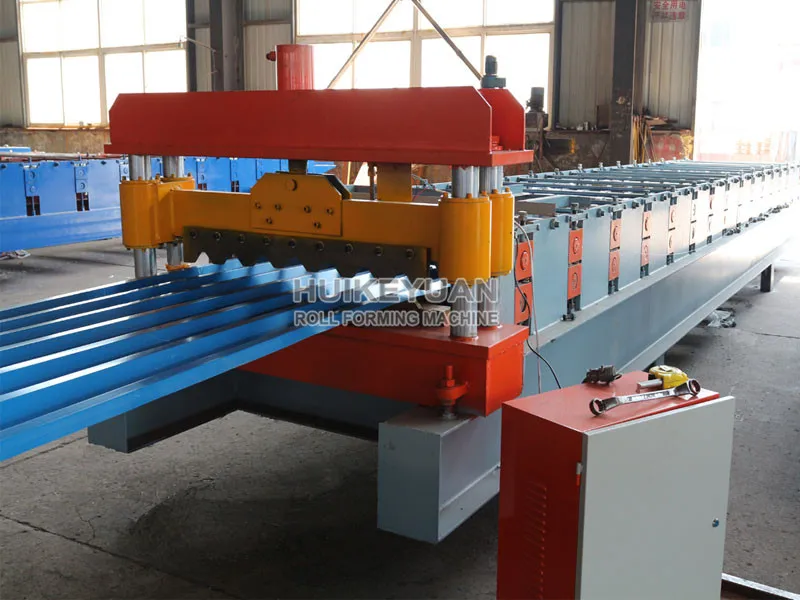

Guide four column type
The guide four column type high speed fine structure, pressure cylinder and die by the guide sleeve binding in 120 mm four solid oriented hydraulic prop, the mold under the vertical operation, will not produce the vertical deviation, especially on the tile die vulnerability, to absolute protection, but also greatly prolong the service life of the die

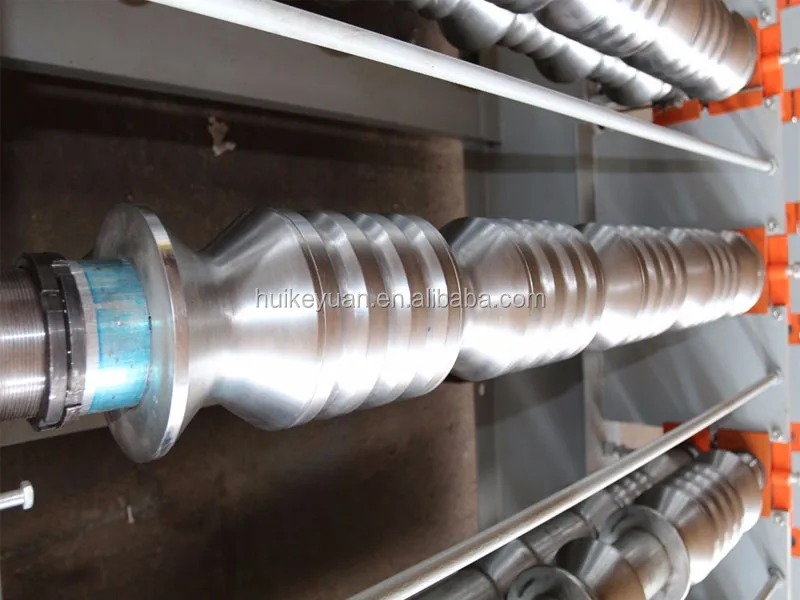

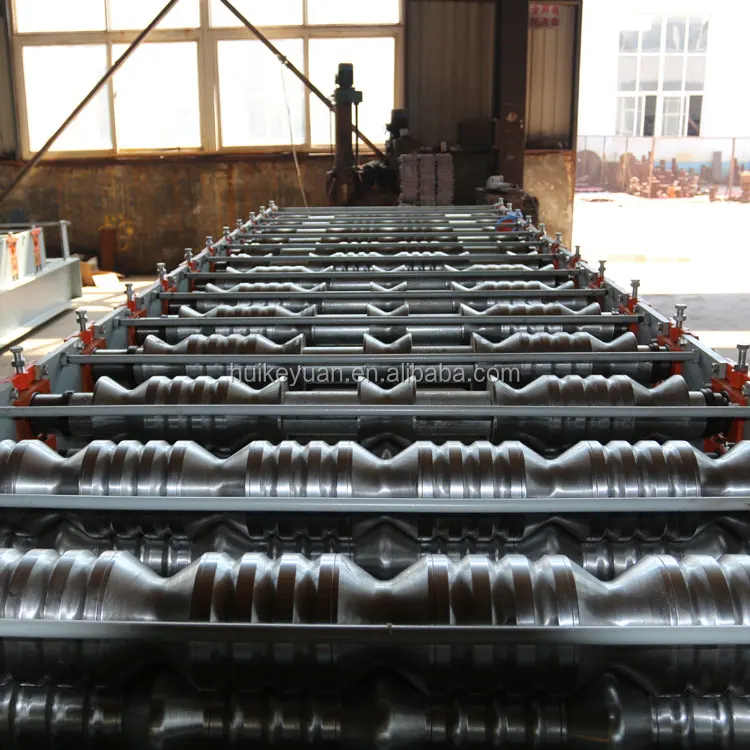

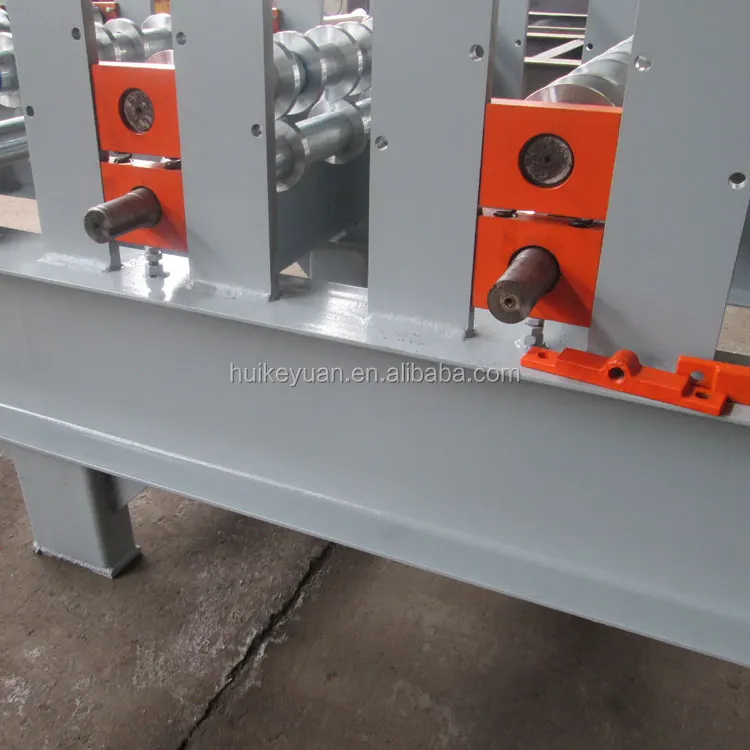

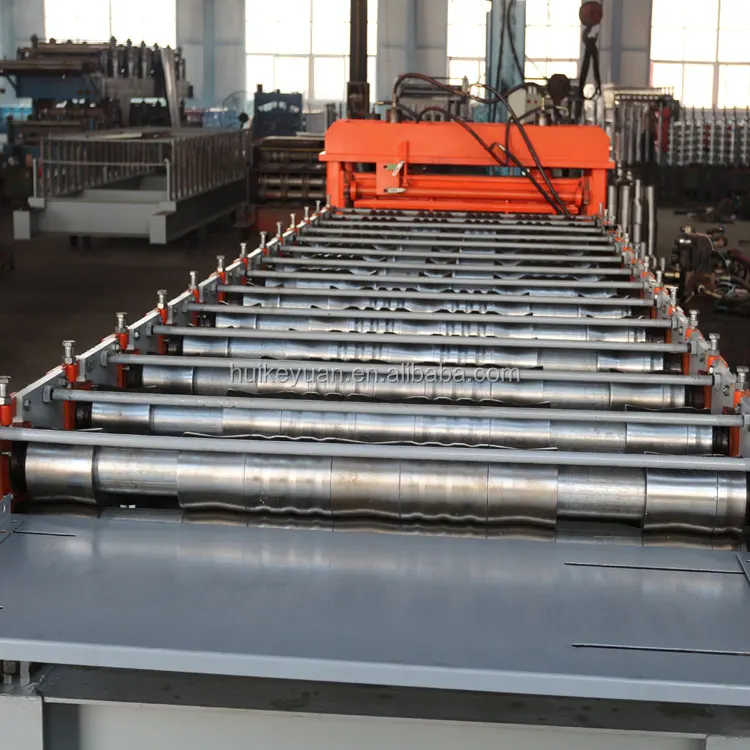

Rollers
High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.
Using high quality 95mm thick shaft, the strength is more durable.

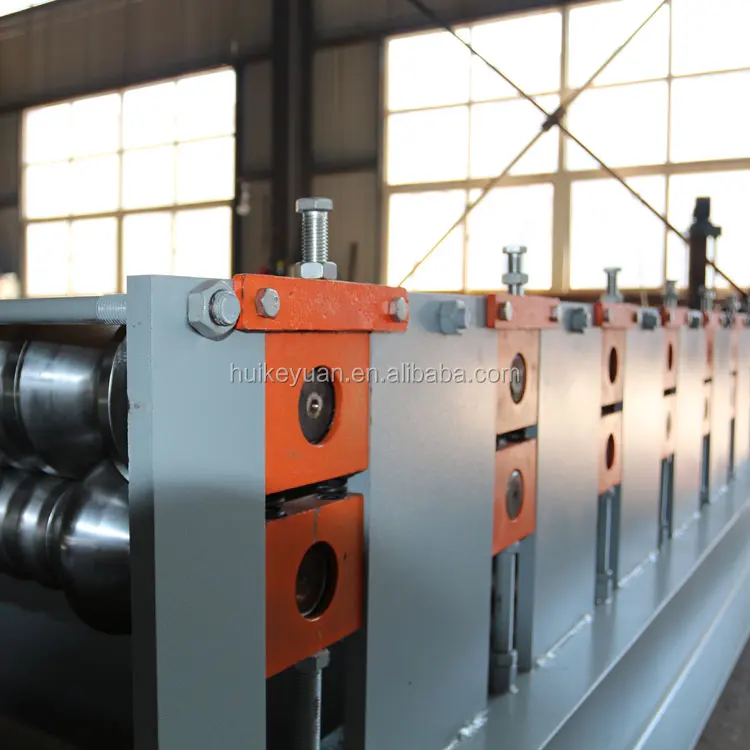

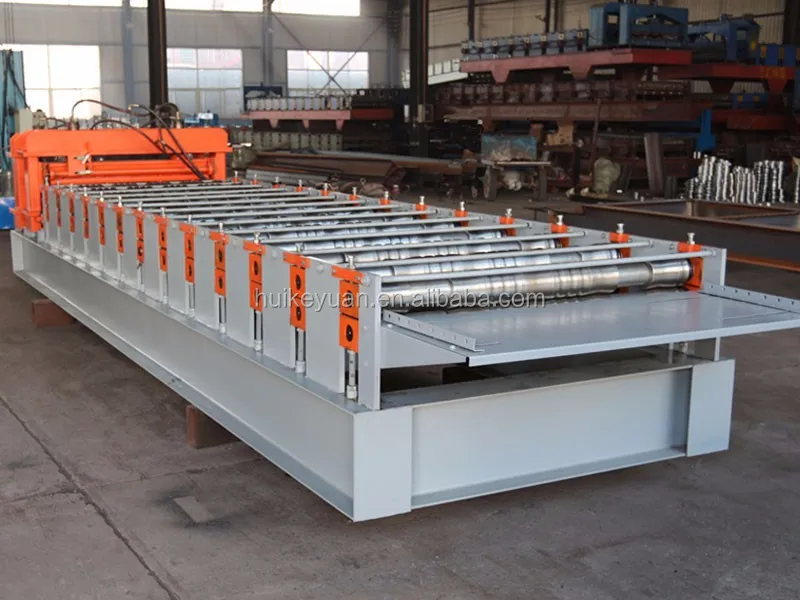

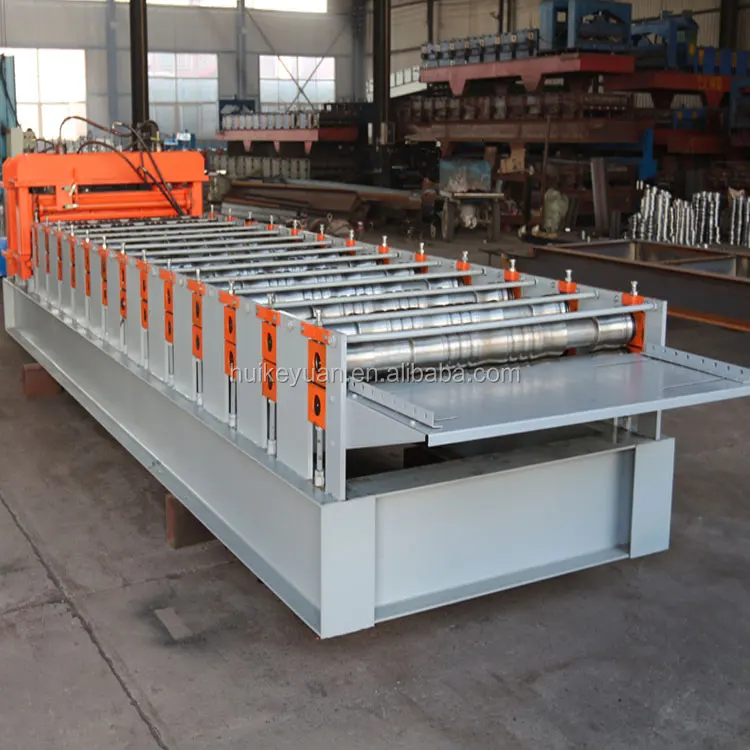

Machine body
The main body of the body without welding, all the use of cast steel, the whole machine will not produce stress and lead to the host body deformation.

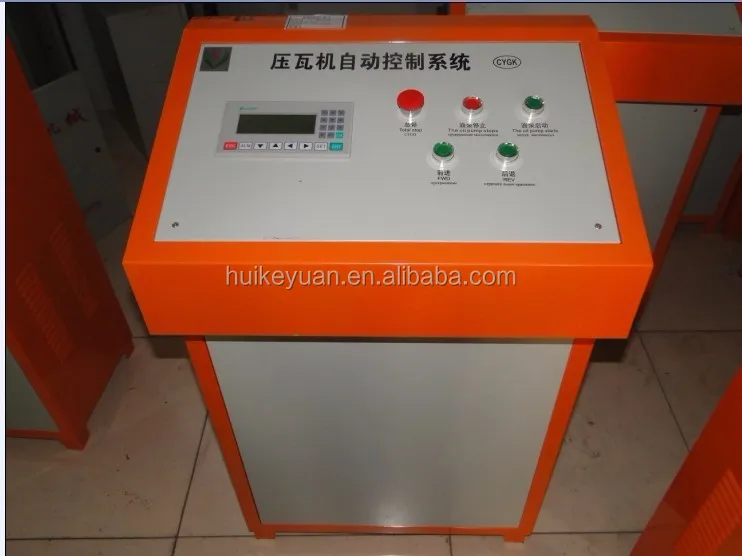

PLC Control System
Usually we prodvide the Delta PLC control system, but we can make that according to your need. You need which brand, then we send to you which brand.But the long life of that will bring you great benefit .

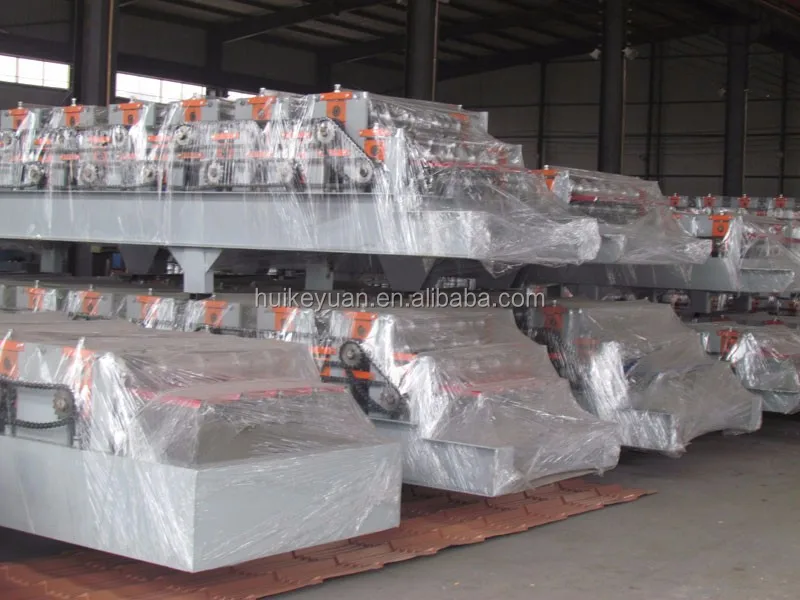

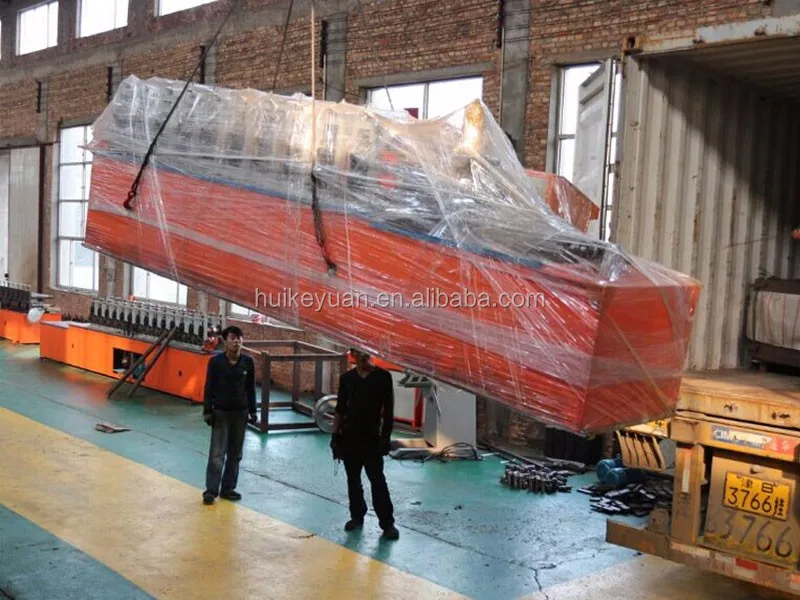

Packing & Delivery
1. Shock bubble film
2. Suitable carton size
3. Shock bubble film
> Plastic Packing / Common Packing. Water-proof, Rust Prevention and Dust Prevention.

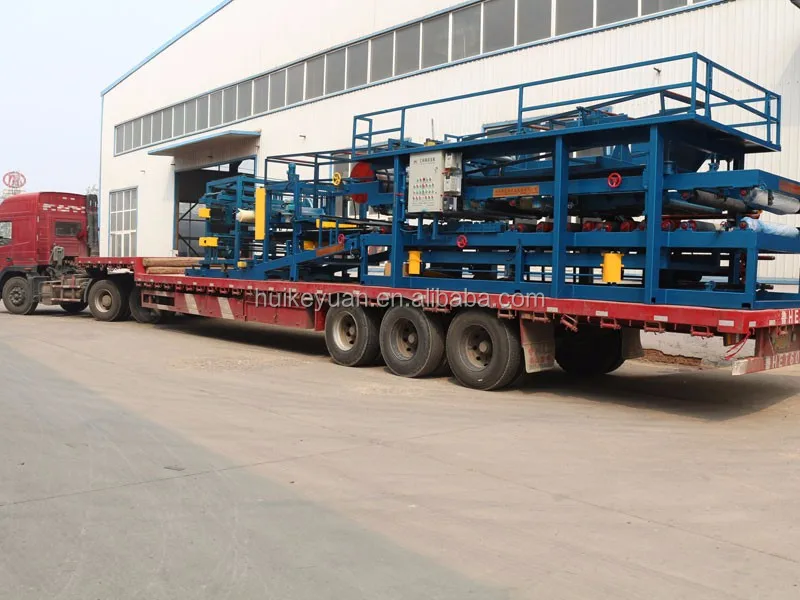

>By sea or other ways. In general, by sea, the port of loading is XINGANG PORT. It is only need 2 hours from our Company and Factory to Xingang Port, Tianjin City.
Our Company
Our Factory
Our Exhibition Hall
Our Reception
Our Workshop
Botou Huikeyuan Engineering Control Co.,Ltd was founded in 1989 and has become a recognized leader in the manufacture of Cold Roll forming machines and equipments
Our excellent reputation for sound and innovative engineering and 20 years of experience have brought us recognition for offering our customers the ultimate in efficiency for roll forming equipments and toolings
Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
Our customers
HKY, as a well known brand name of a roll forming equipments manufacturer in China, has exported its equipments and machines to more than 60 countries and areas over the world, such as Russia, India, UK, Australia, USA, KZ, TJK, Malaysia, Nigeria, Romania, Albania and it has received excellent reputation. In the future, we are committed to better equipments and sales service and meeting customers’ requirements when and where they need.
FAQ
Q: How can I contact you?
A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you
Q: What is the status of After-sale Services for customers and machineries?
A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.
Q: How to visit our company?
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Q: How many years since you have been in this field?
A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.
\t\t\t\t\t\t\t\t\tContact me \t\t\t\t\t\t\t
> Warranty: 2 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it's not free.
> We will provide the technical support for the whole life of the equipment.
