SMC1602C metal pin connection yellow green 16 by 2 1602 16x2 character lcd display module
Product Description
MAIN TECHNICAL DATAS:
Number of Dots: | 16 CharacterX2Line | Color of LCD Unit: | Yellow-Green(STN) |
Operating Voltage: | 4.8~5.2V | Character Size: | 4.95X7.95(WXH)mm |
Operating Current of LCD: | 2.0mA(5.0V) | Operating Temperature: | 0~50℃ |
Color of LED Unit: | Yellow-Green | Storage Temperature: | -20~70℃ |
Current of LED Unit: | <150mA |
|

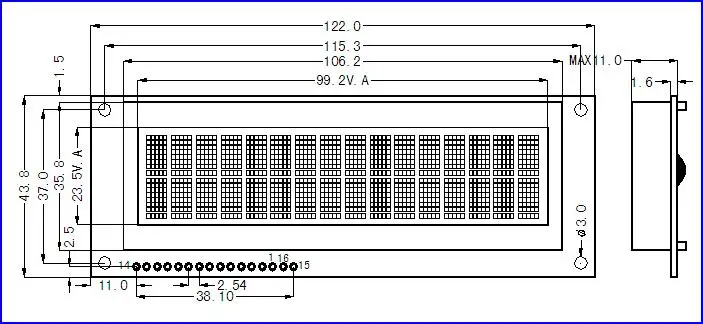

DEMSION:
INTERFACE ASSIGNMENT:
PIN | SYMBOL | SIGNAL DESCRIPTION |
1 | VSS | GND |
2 | VDD | Power Supply |
3 | V0 | Power Supply for LCD Driving |
4 | RS | Register Select-LOW=Instruction,HIGH=Data |
5 | R/W | Read/Write,LOW=MPU to LCM,HIGH=LCM to MPU |
6 | E | Enable,R/W=LOW:Data are talking over at falling edge R/W=HIGH:Data can be read at E=1 |
7 to 14 | DB0 to DB7 | Data Bus-Software Selectable 4 or 8 bit mode |
15 | BLA | Anode of LED Unit |
16 | BLK | Cathode of LED Unit |

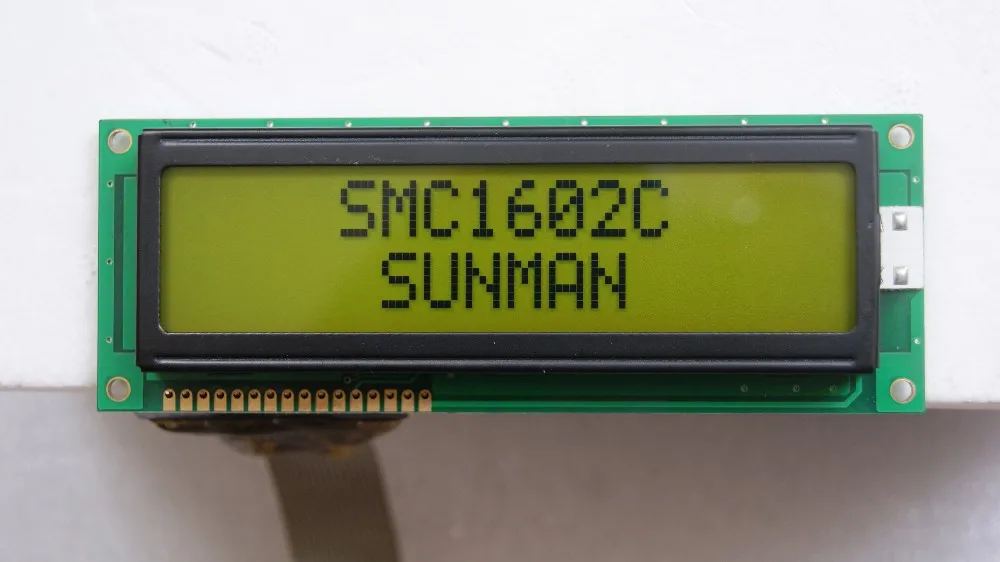

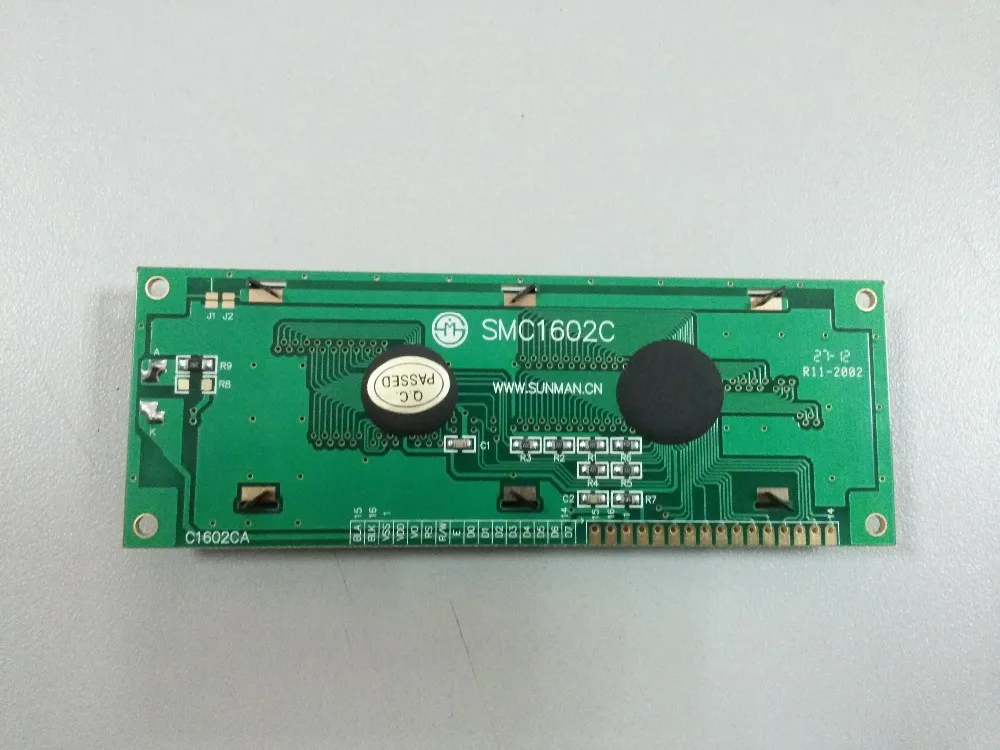

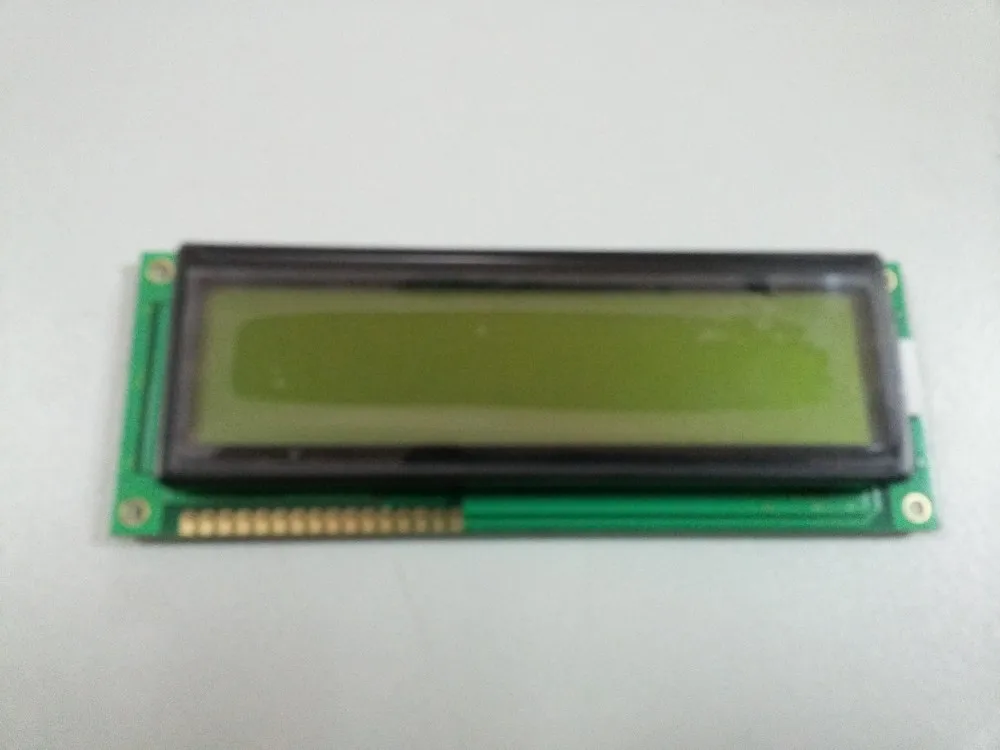

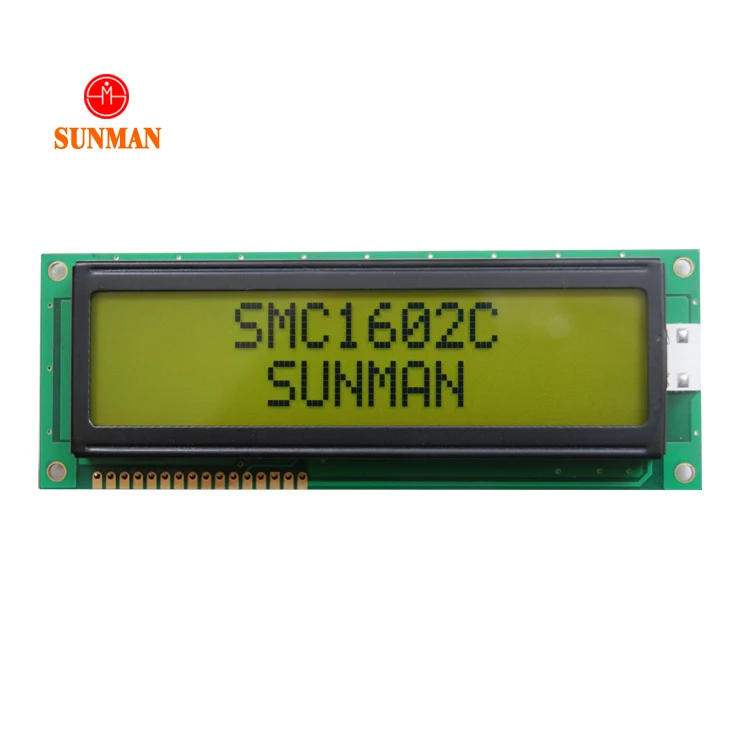

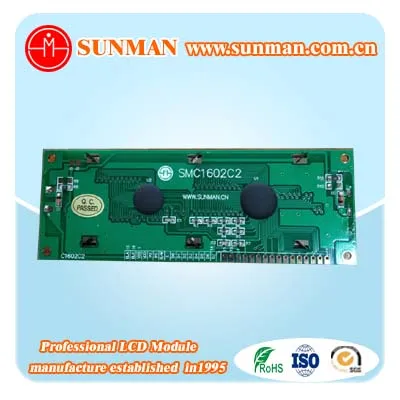

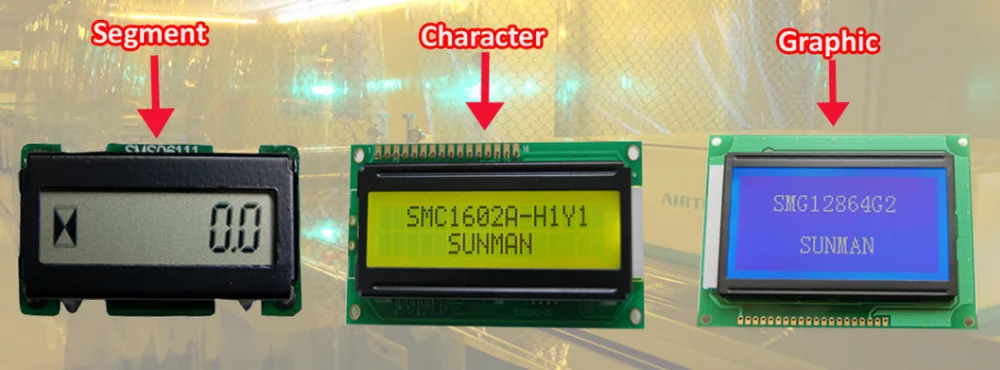

PICTURE SHOW OF 1602 YELLOW GREEN CHARACTER LCD DISPLAY:
