Машина для прокатки листового металла
US $10000

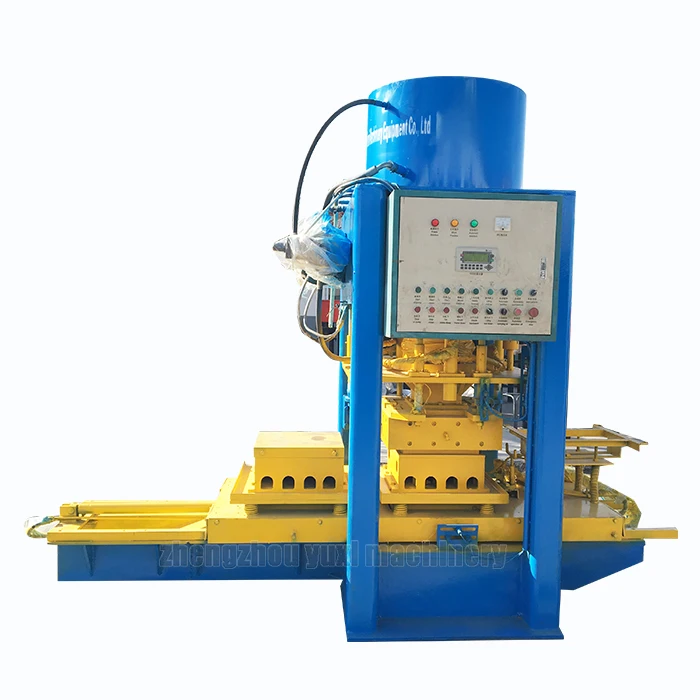

Гидравлическая пресс-машина для керамической плитки, терраццо, машина для изготовления напольной плитки, цена
- Категория товара: Tile Making Machinery >>>
- Поставщик (Оптовый магазин): Zhengzhou,Yuxi,Machinery,Equipment,Co.,Ltd.Zhengzhou,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Introduction
This series of equipment adopts Italian terrazzo brick machine technology, using sand and cement concrete as raw materials, using special steel molds, PLC programming, high-frequency vibration, flattening, vacuum drainage and hydraulic pressure filtration molding.
The full-automatic terrazzo tile Machinery is the most advanced innovative, cost-effective and eco-friendly professional tile forming equipment.
Specification | YX-400 | YX-500 | YX-600 | YX1000 |
Rated pressure | 128 Tons | 200 Tons | 500 Tons | 1000 Tons |
Production capacity | 6-8 pcs/min | 5-7 pcs/min | 4-6 pcs/min | 2-3 pcs/min |
Power | 7.5KW | 7.5KW | 15KW | 33 KW |
Weight | 4.8 Tons | 5.2 Tons | 5.8 Tons | 28 Tons |
Dimension（mm） | 2900*1450*2550 | 2900*1530*2550 | 3300*3150*3200 | 6700*2900*2600 |
Product specification | Max 400*400mm | Max 500*500mm | Max 600*600mm | Max 1500*1000 |
If the tile size is not big enough for you, we could also supply other models to produce tiles at sizes such as 800*800mm, 900*600mm, 900*900mm, 1200mm*600mm, etc.
Raw Material
Raw material like cement, sand, concrete, stone powder, marble, quartz stone, crushed stone, Broken ceramics or broken glass, etc
Machine Structure

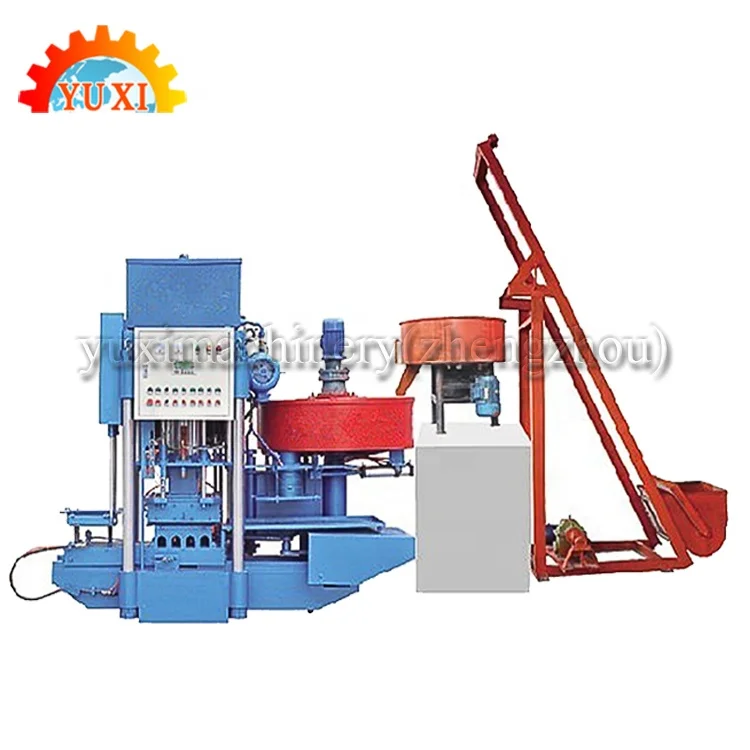

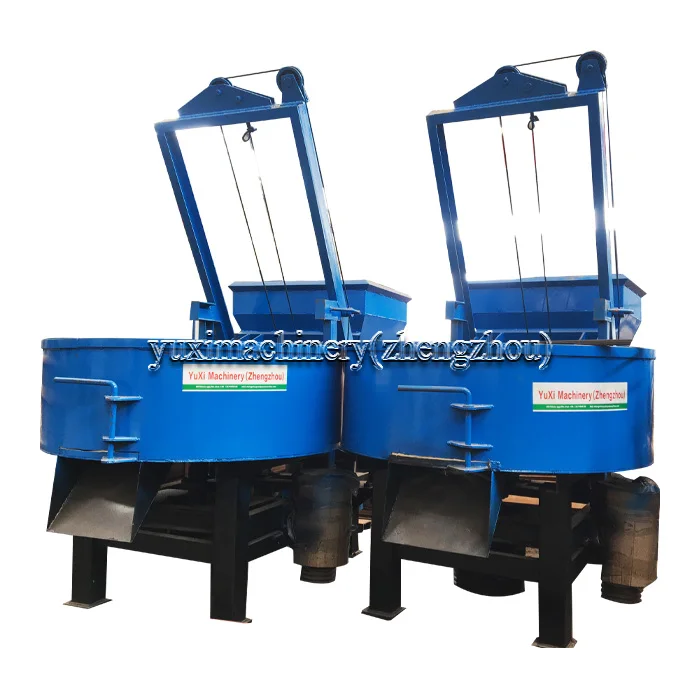

The terrazzo tile making machine is consists of a bucket elevator, mixer, doser, tile press machine, and concrete base.
Mix water, raw material such as cement, sand and stone powder and stone particles(crushed stone, marble, granite, pebbles, mica rock, gravel, quartz rock, etc.) up in proportion and feed the mixture evenly to the main machine of the CNC concrete terrazzo producing machines. If different molds such as roof tile molds are applied, roof tiles can be obtained.
We can get different patterns by changing the upper molds (Pressure heads). The machine can also produce roofing tiles by changing molds.
Details Images
Operating steps
♣ . At first, the raw materials are put into the floor tile making machine bucket elevator, then deliver to the rolling mixer, at this time, you must add some water into it.
♣ . After mixing, the mixture comes into the dosing feeder, then,
the measurable mixture that one tile need will put down on the mold below through a small hole.
the measurable mixture that one tile need will put down on the mold below through a small hole.
♣ . Then, a tile can be formed by high pressure, the pressure is about 125 tons. So the produced tile is very stable and dense. I think the constructor can boldly walk on the paved roof.
♣ . The tile needs to dry out for about 10 days. Then you can paint.
Working Site
Model YX-600 terrazzo tile making machine Customer working site in Thailand

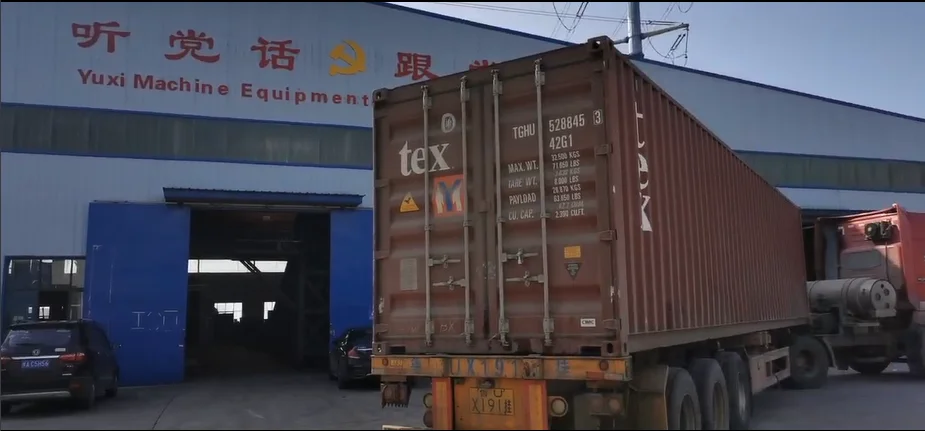

Packaging & Shipping
Packaging and shipping
1. Packaging: 1)Wrapped by the protective film; 2)Packed by standard import & export wooden cases or carton boxes. 2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.

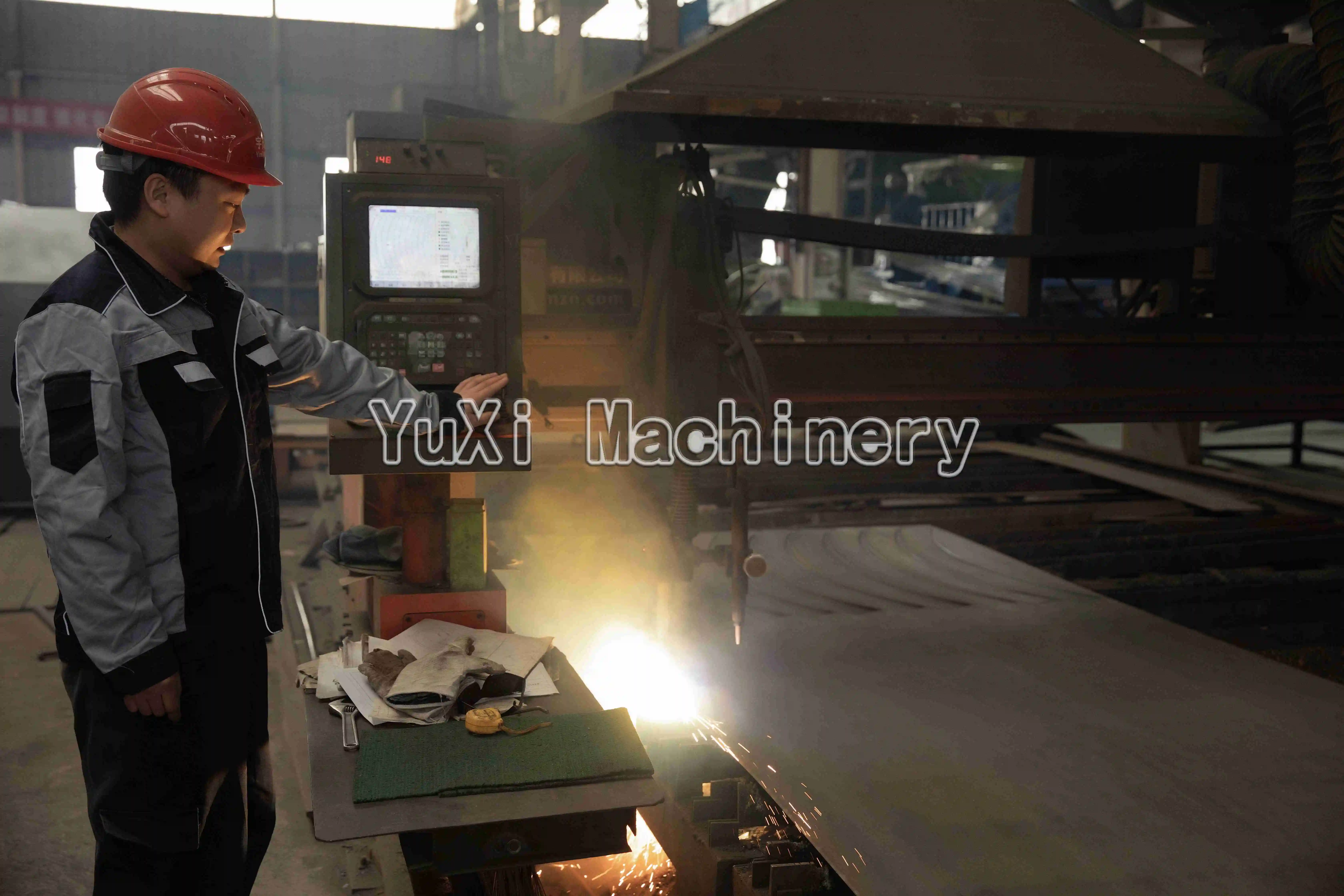

Our Factory
Q: Why choose us?
A: Several year's experiences We have rich experience in equipment. Our machines have a high reputation in our country and abroad(such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
Manufacturer
Manufacturer
not dealer Factory direct sale makes the price more competitive. The customer is always welcome to our factory.
Professional after-sale service
Professional after-sale service
If necessary, oversea installation and provide a technical exchange, train client to operate the
machine. Any other reasonable assistance that you needed, please contact us.
Q: Will you dispatch the engineer to guide the installation of terrazzo tile making machine?
A: Yes, according to the customer's requirement, we will dispatch the engineer to guide the installation of the high output
shredder equipment.
Q: How about you to ensure the machine normal running?
A: Except for the installation engineer, we also provide the production engineer to guide how to keep a good production.
machine. Any other reasonable assistance that you needed, please contact us.
Q: Will you dispatch the engineer to guide the installation of terrazzo tile making machine?
A: Yes, according to the customer's requirement, we will dispatch the engineer to guide the installation of the high output
shredder equipment.
Q: How about you to ensure the machine normal running?
A: Except for the installation engineer, we also provide the production engineer to guide how to keep a good production.
