Лучшая цена 2019, мельница для муки, промышленный шлифовальный станок для соли, машина для измельчения пшеничной муки, сахарной пудры с пылесборником

Лучшая цена 2019, мельница для муки, промышленный шлифовальный станок для соли, машина для измельчения пшеничной муки, сахарной пудры с пылесборником

Категория товара: Other Food Processing Machinery >>>
Поставщик (Оптовый магазин): Shanghai,Tops,Group,Co.,Ltd.

Цена:2 600,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

2019 Best price flour mill industrial salt grinding machine wheat flour sugar powder grinding machine with dust collector

General Description:

1.This grinding/milling machine is a high efficient machine. It is widely applied in food processing, chemical and industrial areas. It is a good equipment to help you in supermarkets,factories and home.

2.It's suitable to mill food such as rice,wheat,sesame,corn,oat,spice,cocoa,almond,beans, grain, and chemical such as herb, polyethylene, PVC, polystyrene, polyvinyl alcohol, limestone, gypsum, paints, pigments, especially for oily, viscous material. The materials wil be milled into powder,flour or starch in 20 minutes.The fineness is adjustable,from 10-120 mesh.

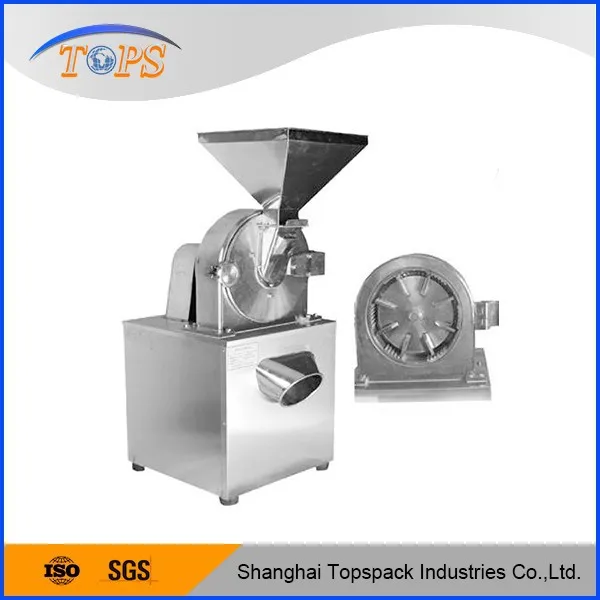

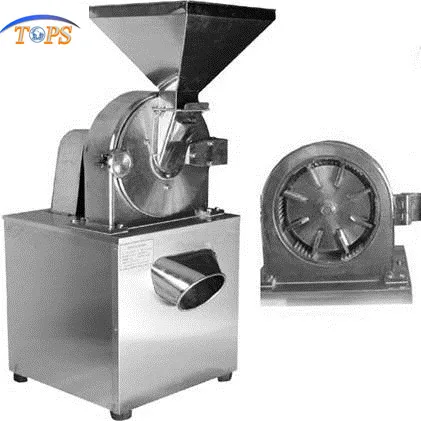

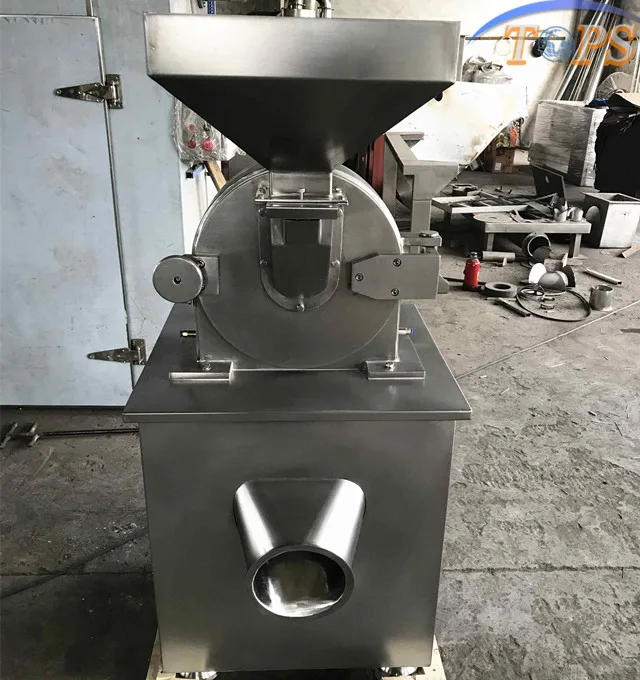

TP-GM series

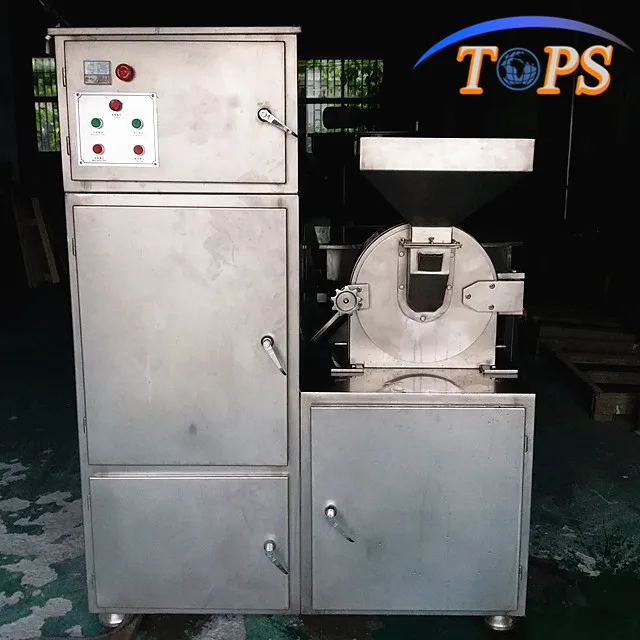

Milling machine Milling machine with dust-collector

Main Features:

1.Whole machine SUS 304 material,simple and strong, easy for washing.

2.Not easy to get heat, for there is a large cooling space inside.

3.easy disassembly and cleaning.

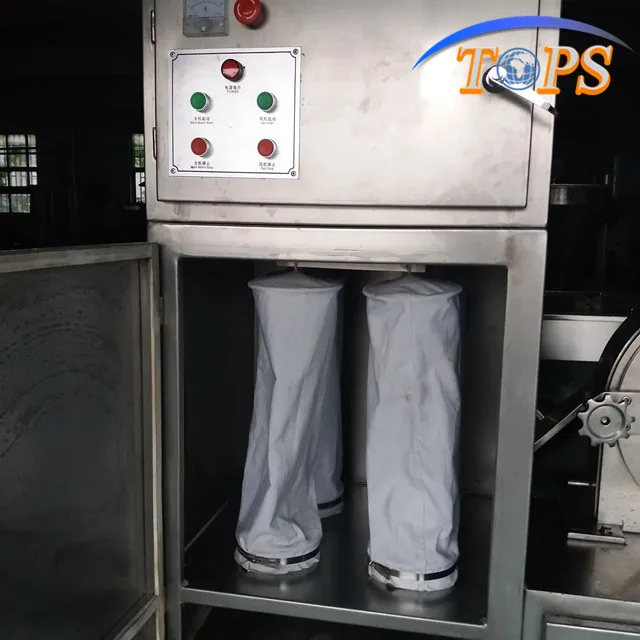

4.with dust collecting,no waste and low noise.

Working Principle:

1. The raw material is sent into the machine hopper by the feeder conveyor, then leaks into the crashing cabin.

2. The leather belt driven by motor spurs the motional hammers whirling in a high speed, the hammers chafe, collide with the immovable fluted disc in a high speed, then the raw material is ground.

3. The ground powder will leaks from the screen stencil, gets out from the discharge hole, stored inside the bag.

Technical Parameters:

Model	TP-GM-20B	TP-GM-30B	TP-GM-40B	TP-GM-60B
Capacity (kg / h)	60-100	100-300	160-800	500-1500
Feed size (mm)	<6	<10	<12	<15
Grinding fineness (mesh)	10-120
Spindle speed (r / min)	4500	3800	3400	2800
Motor Power (k w)	4	5.5	7.5	11
Weight (kg)	150	250	380	550
Dimensions(mm)	9606501550	1000×650×1550	1200×750×1680	1350×750×1680

Screen hole size	Standard mesh	Screen hole size	Standard mesh
1.70mm	12mesh	0.425mm	40mesh
1.40mm	14mesh	0.355mm	45mesh
1.18mm	16mesh	0.300mm	50mesh
1.00mm	18mesh	0.250mm	60mesh
0.850mm	20mesh	0.212mm	70mesh
0.710mm	25mesh	0.180mm	80mesh
0.600mm	30mesh	0.150mm	100mesh
0.500mm	35mesh	0.125mm	120mesh
