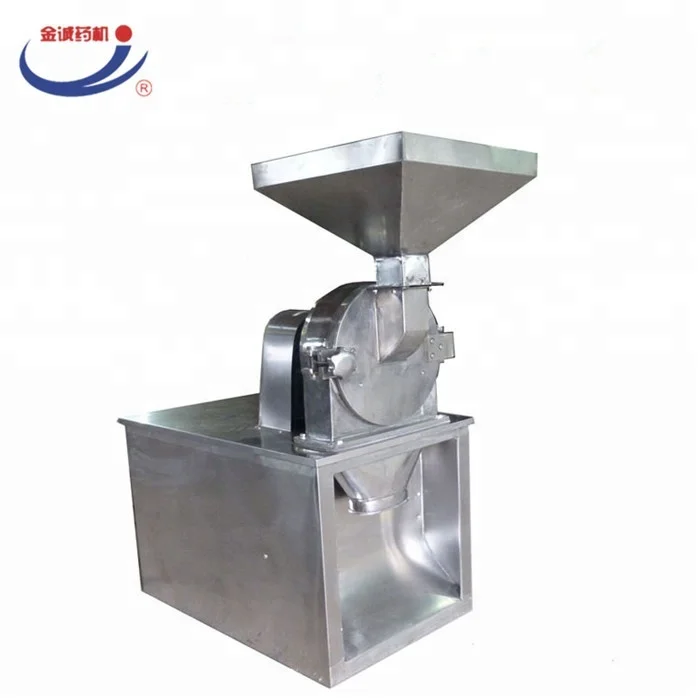

Powder making machine SF series pulverizer machine SF130 China manufacturer







Introduction and Features

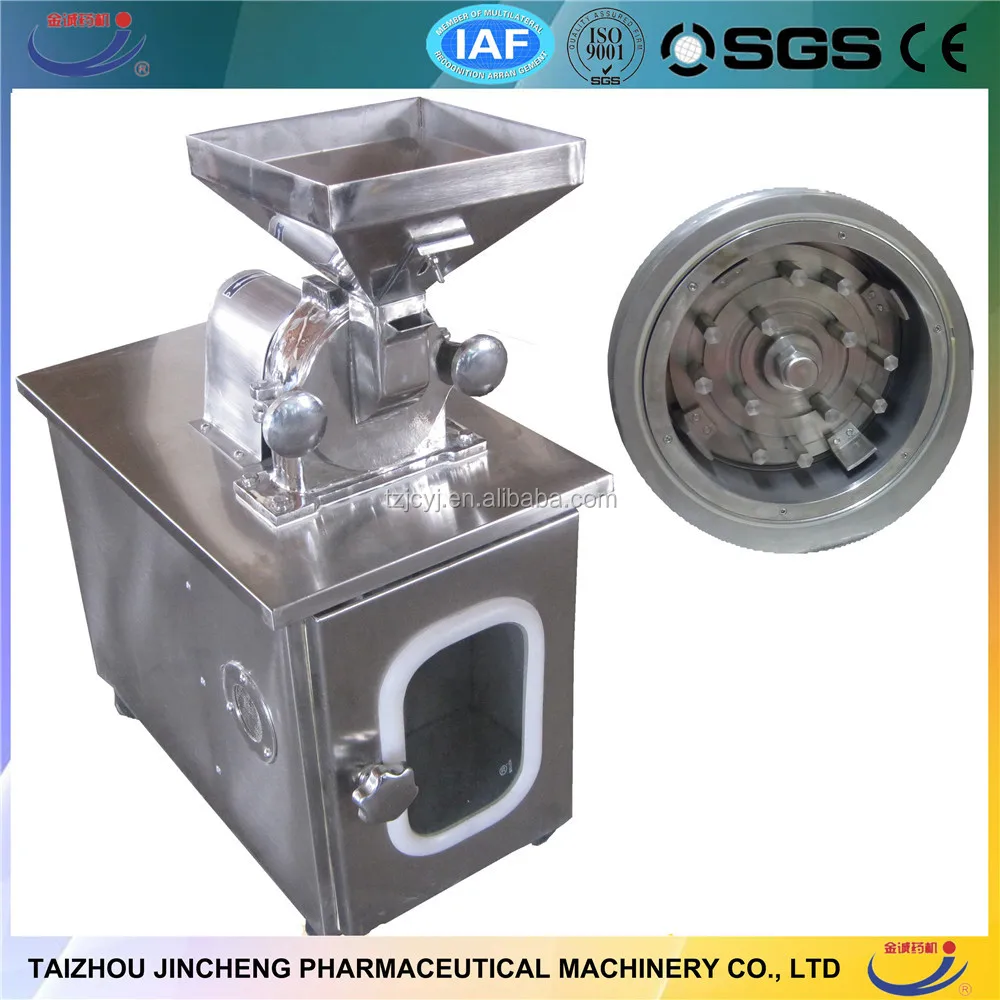

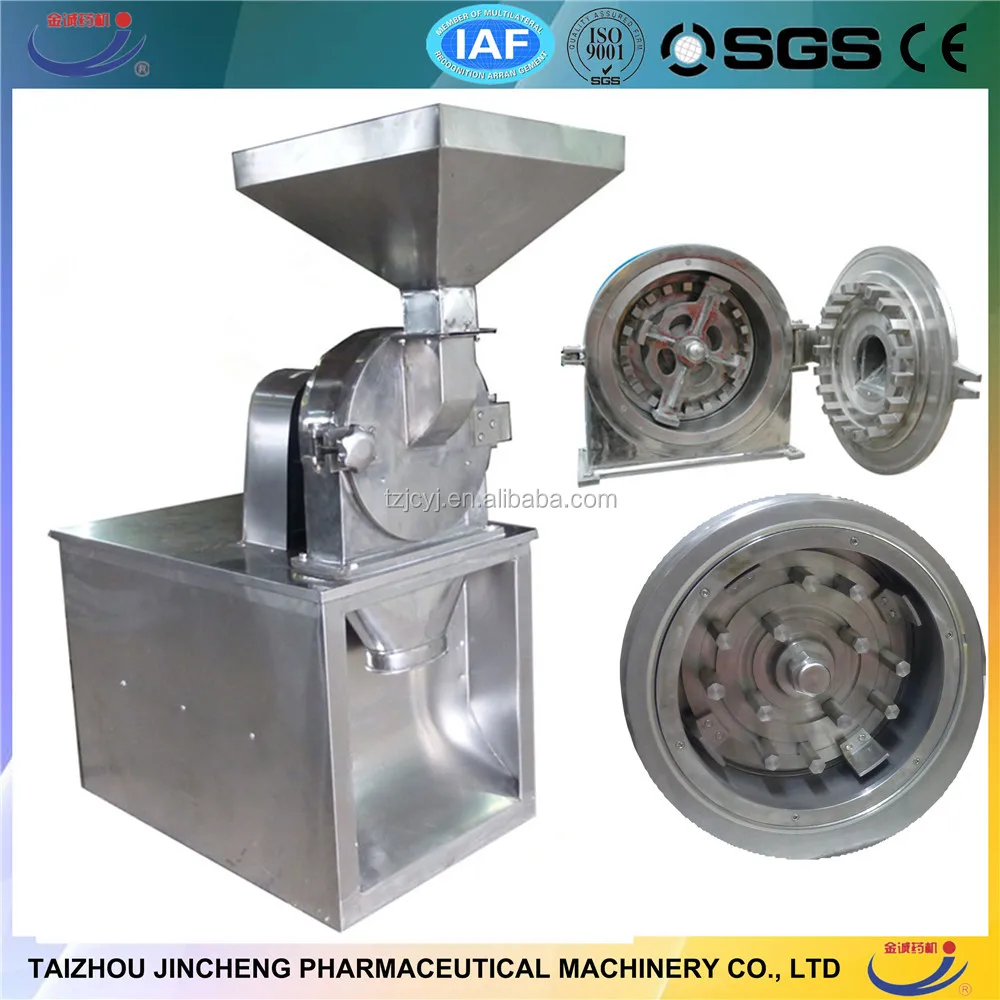

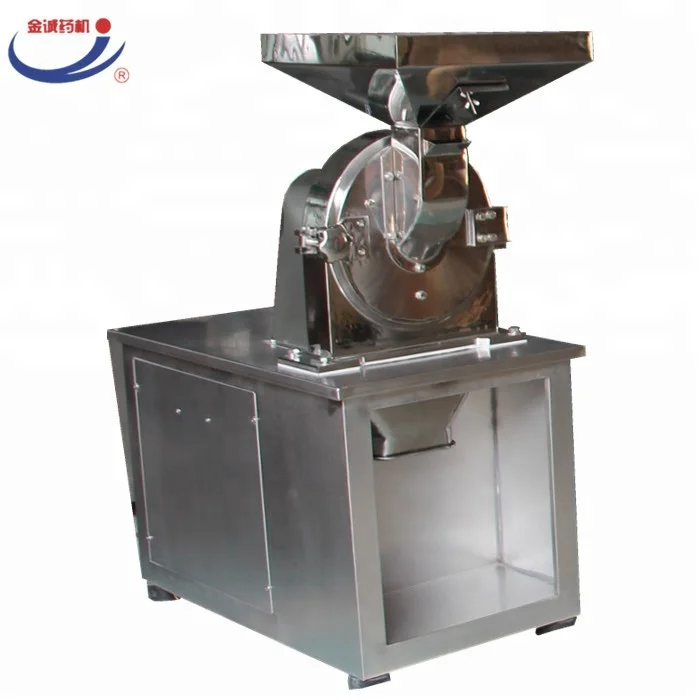

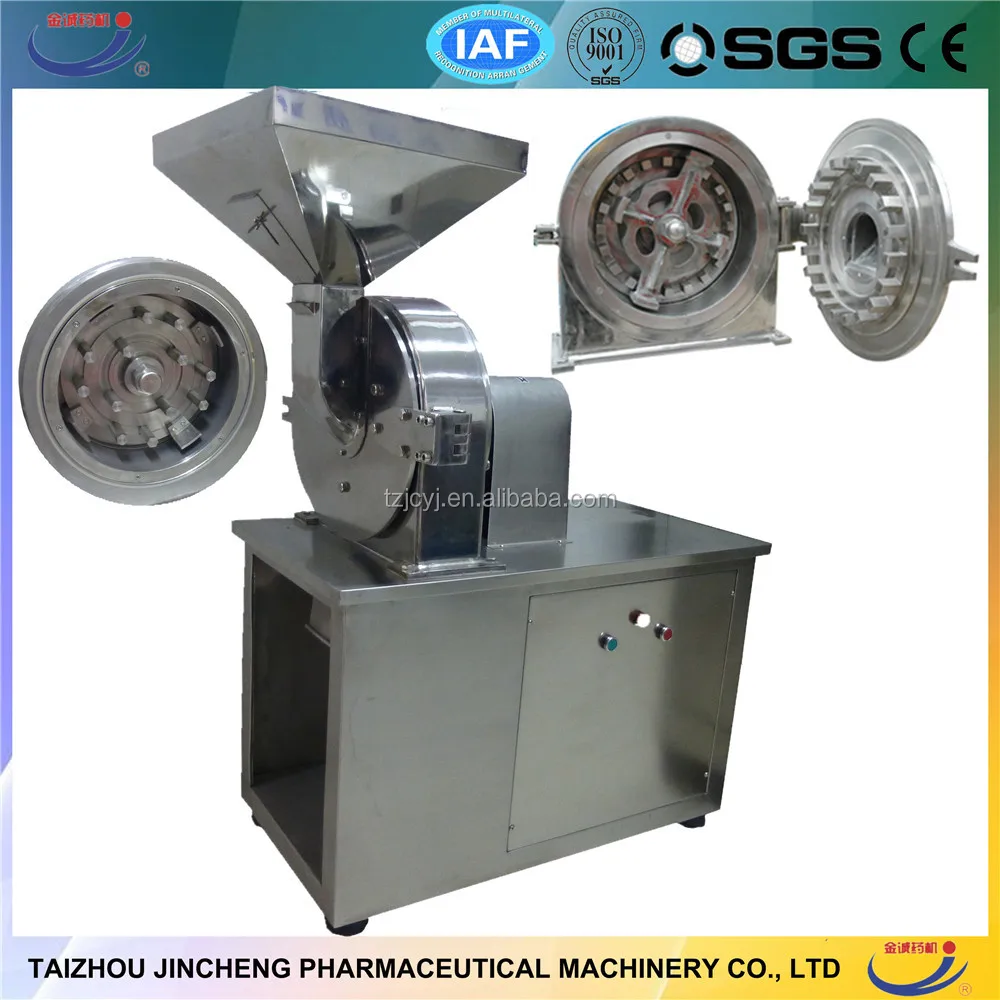

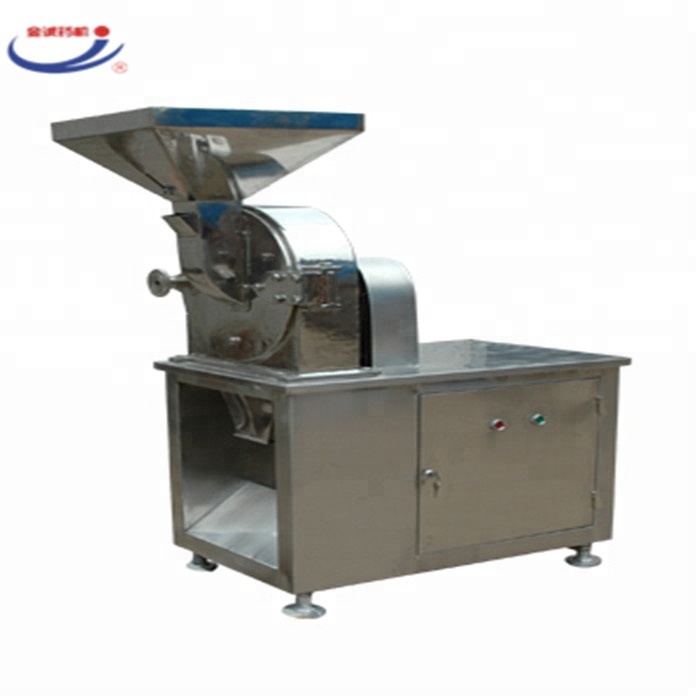

Bean grinder machine utilizes the high--speed relative motion between the moving and regular tooth set, which makes the material crushed through concussion, rub and crush. The structure of machine is simple and firm, the operation is steadily and the result of crushing is well. The materials are discharged directly from mainframe, the size of the granularity is gained through changing different pore size sieve

Labortory Series



Model	Rotary speed of main shaft(r/min)	Production capacity(kg/h)	Using electric distribution(KW)	Material Limit(mm)	Fineness (mesh)	Machine Dimensions(mm)	Net Weight(kg)
SF-130	7000	2-5	1.5	5×5×5	10-140	630×380×820	75
SF-180	4000	10-30	2.2	8×8×8	10-140	710×420×870	85

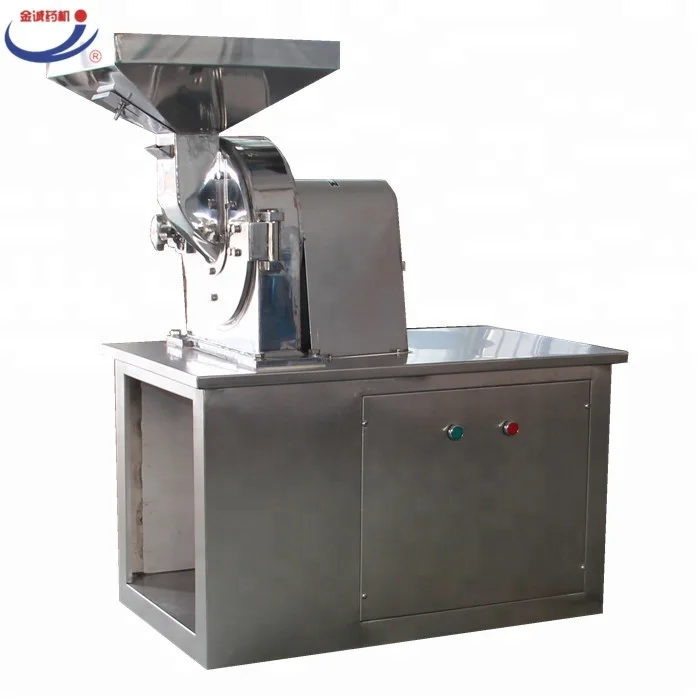

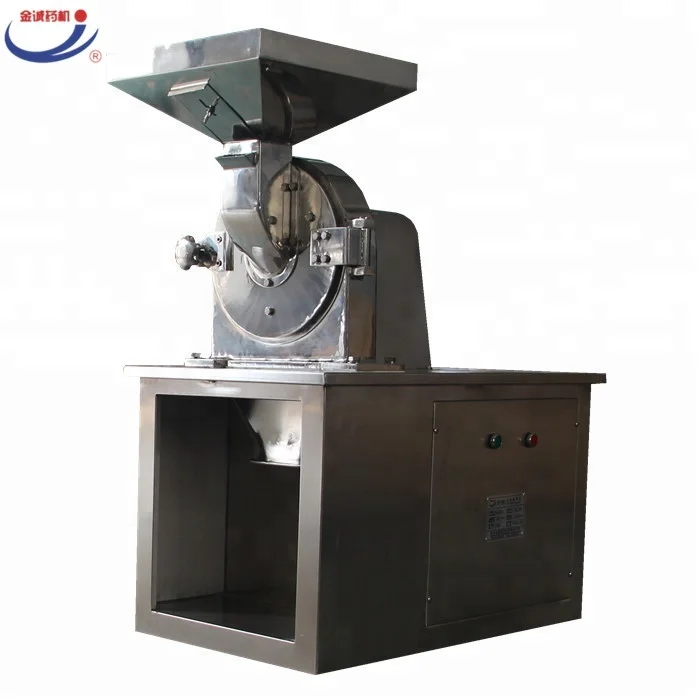

Jincheng Bean grinder machine



Model	Rotary speed of main shaft(r/min)	Production capacity(kg/h)	Using electric distribution(KW)	Material Limit(mm)	Fineness (mesh)	Machine Dimensions(mm)	Net Weight(kg)
SF-130	7000	2-5	1.1	5×5×5	10-140	560×350×820	75
SF-180	4500	10-30	2.2	8×8×8	10-140	710×420×870	85
SF-250	4200	50-250	5.5	10×10×10	10-140	880×520×1360	150
SF-320	4200	80-300	7.5	10×10×10	10-140	950×520×1450	210
SF-420	3600	200-400	11	10×10×10	10-140	700×520×1500	250
SF-520	3000	300-800	18	10×10×10	10-140	1000×900×1600	490

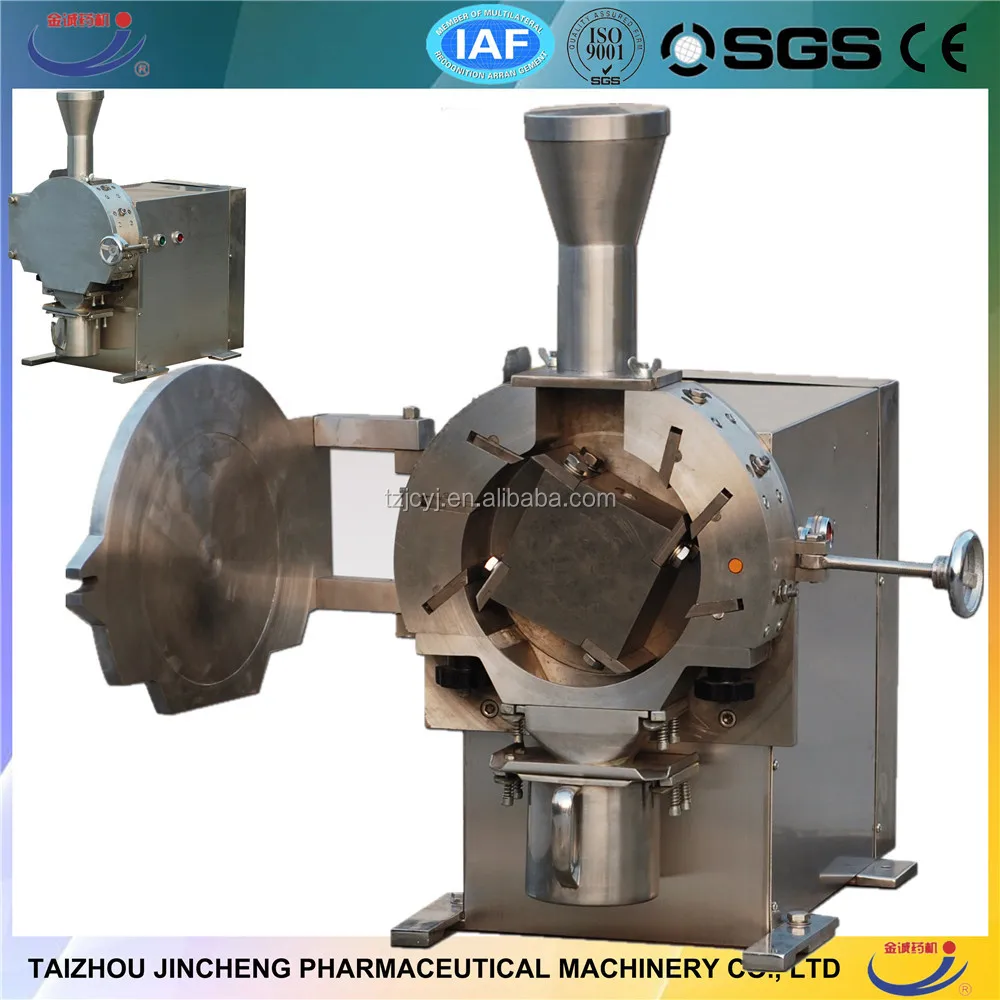

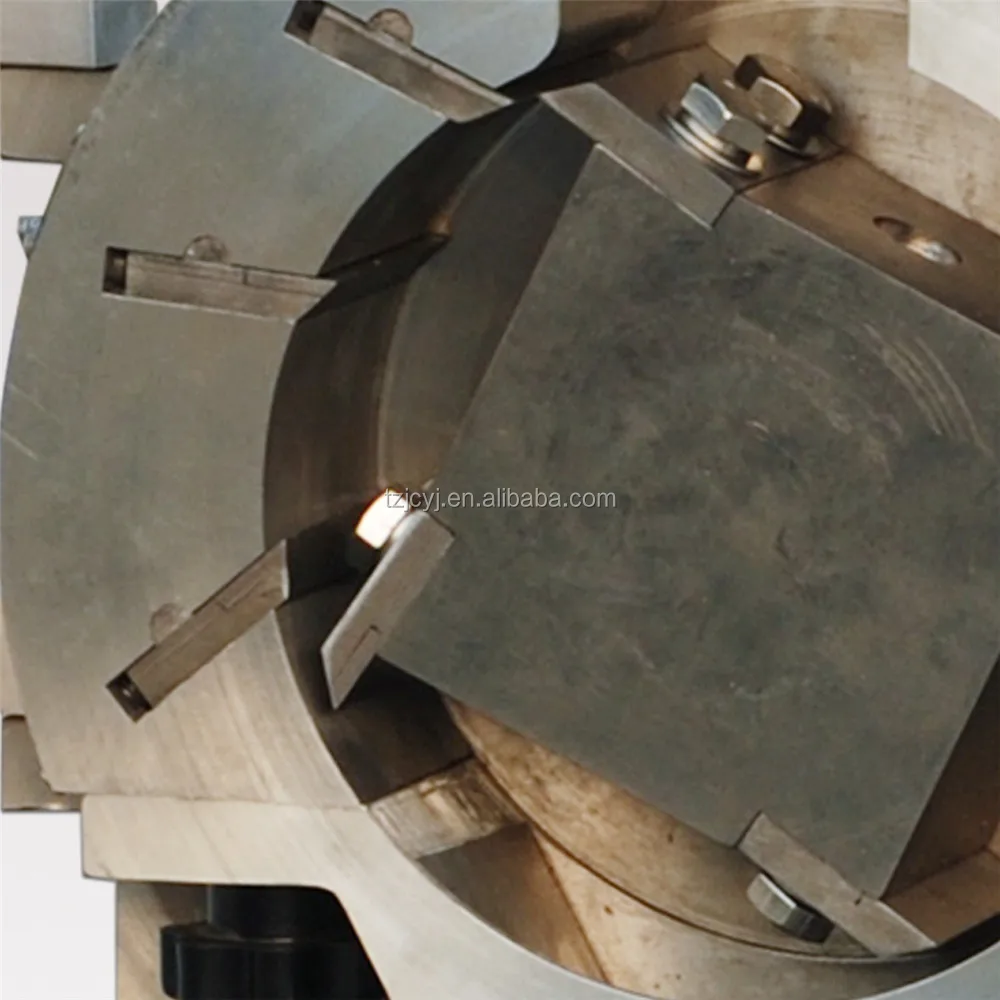

 Cutting Grinder Technical Parameter



Model	Prodution Capacity(kg/h)	Size of Input Granules(mm)	Motor Power	Voltage	Grinding Fineness(Fineness)	Noise(Decibel)	Machine Dimensions(mm)		Net Weight(kg)
DQF-200	10-30	≤25	750W	380 V	20-100	≤60	590×380×670		110





In addition, this machine is made of the stainless steel, surface of the inside of the machine is smooth, which changes the phenomenon of inboard wall coarse and accumulating of powder in the past. It is more in line with the national standard in the fields of pharmaceutical, chemical production and food. It meets the requirements of GMP.

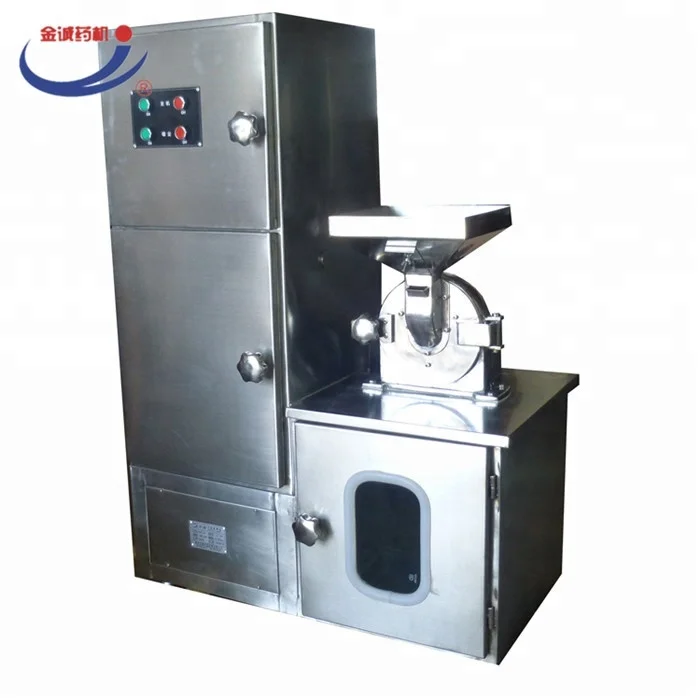

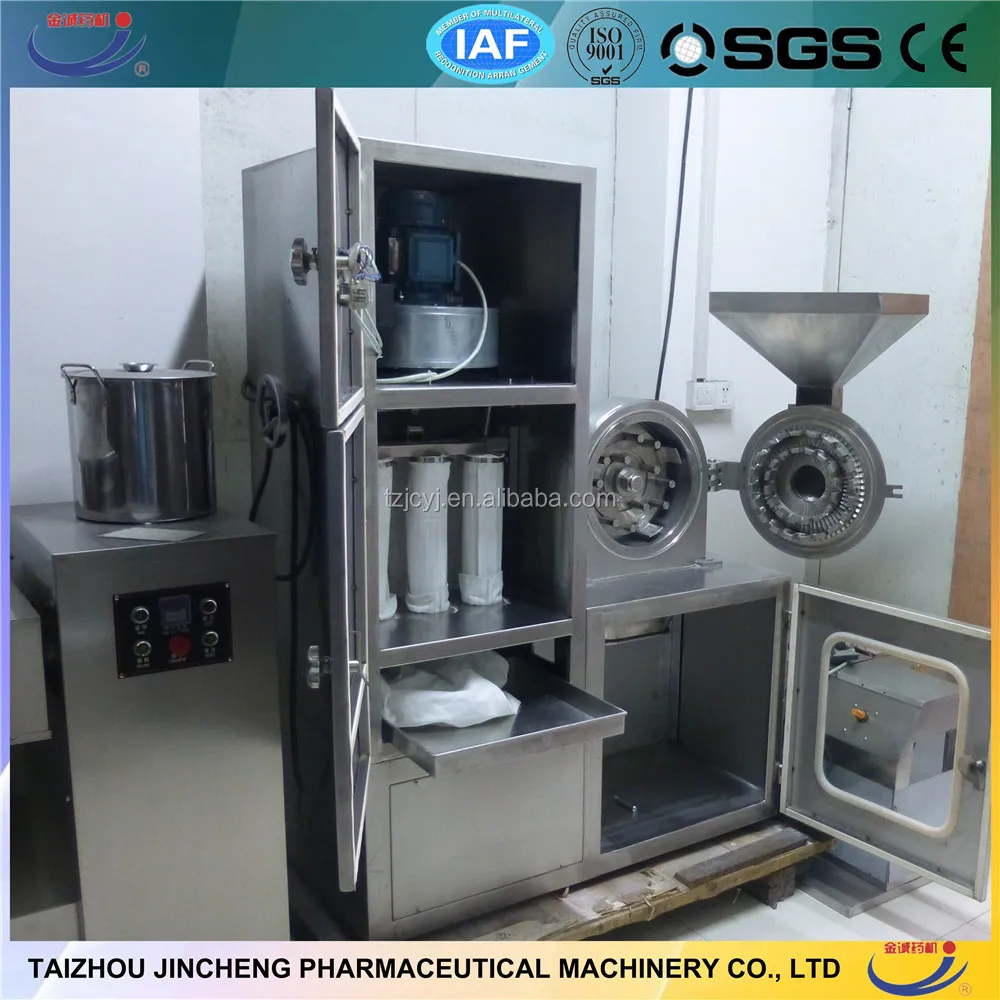

B series High effective and universal grinder



Model	Prodution Capacity(kg/h)	Spindle Speed(r/min)	Size of Input Granules(mm)	Grinding Fineness(Fineness)	Grinding Motor Power(KW)	Vacuum Motor Power(KW)	Machine Dimensions(mm)
20B	60-150	4500	6	60-120	5.5	1.5	1100×600×1650
30B	100-300	3800	10	60-120	7.5	1.5	1200×650×1650
40B	160-800	3400	12	60-120	11	1.5	1400×700×2310



















 Taizhou Jincheng Pharmaceutical Machinery Co.,Ltd is a member of China Association for Pharmaceutical Equipment. Our factory is located in Taizhou, Jiangsu Province, near by the China Medecine City on the verge of Yangtze River



We adhere to "People-Oriented" "Scientific Management" principles and actively engaged in the research and development of new products since founded. After years of experience, we have successfully developed many kinds’ pharmaceutical machines, such as Universal Grinder, Rotary Granulators, Groove mixer, Dimensional Mixer, V-Type Mixer, Hot Air Circulation Oven, Rotating Tablet Pressing Machine, Single Punch Tablet Pressing Machine, Pill Making Machine, Sugar Coating Machine, High Efficiency Coating Machine, which are wildly used in Pharmaceutical, Chemical, Food, and Scientific Research.  We won the trust and high praise from our customers due to our outstanding quality and perfect service.



"Quality best, Customers first" is our principle, "Honest and Innovation" is our goal, we wholeheartedly service for every customer from home and abroad with high-quality and efficient products and would like to cooperate with you to create a better future.







We pack our pulverizers in export standard polywooden box. And export machine from shanghai ,qingdao or ningbo port.









1 How to Order

1. Customer send us an inquiry.

2. Confirmmachine type, order quantity, price, lead time, payment term etc.

3.Our sales send the Proforma Invoice with company seal.

4. Customer make the payment for deposit and send us Bank receipt.

5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time

6. Production products photos will send to you for approval.

7. Clients make payment for balance and Ship the goods .

8. Order is finished when you receive the goods and satisfy with them .

9. Feedback to us boutQuality , Service, Market Feedback & Suggestion.And we can do better

2 About after sell service

Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .

3 About goods shipping

We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service

24 hours online to solve any problem .

Your email will be reply within 12 hours .

Your satisfy is our pursuit .sincerely hope our cooperation





 Sincere thanks for scanning our products, and your satisfaction will be our greatest pleasure.







What We also Provide

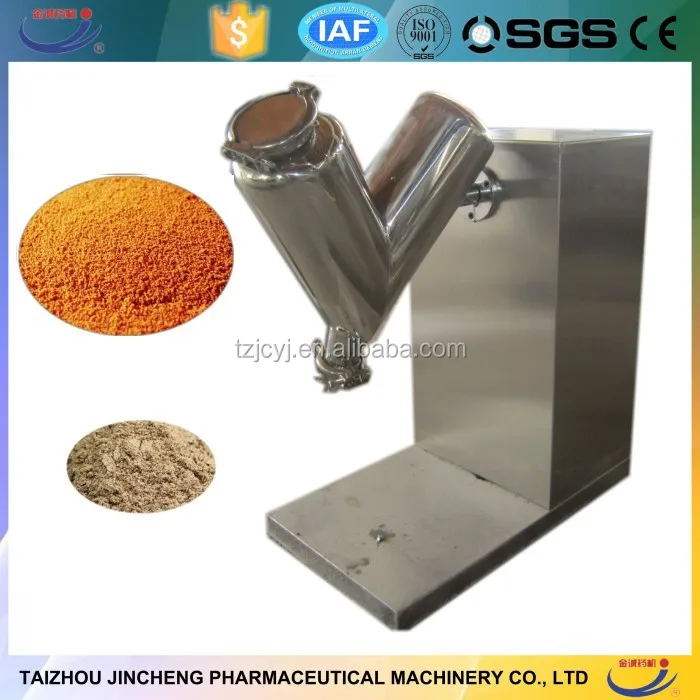

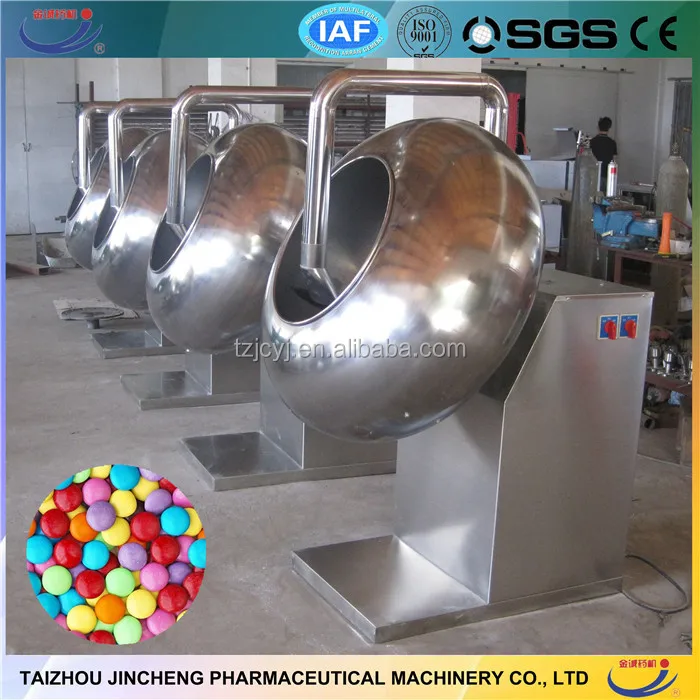

               V-Type Mixer                                                     Sugar coating machine
