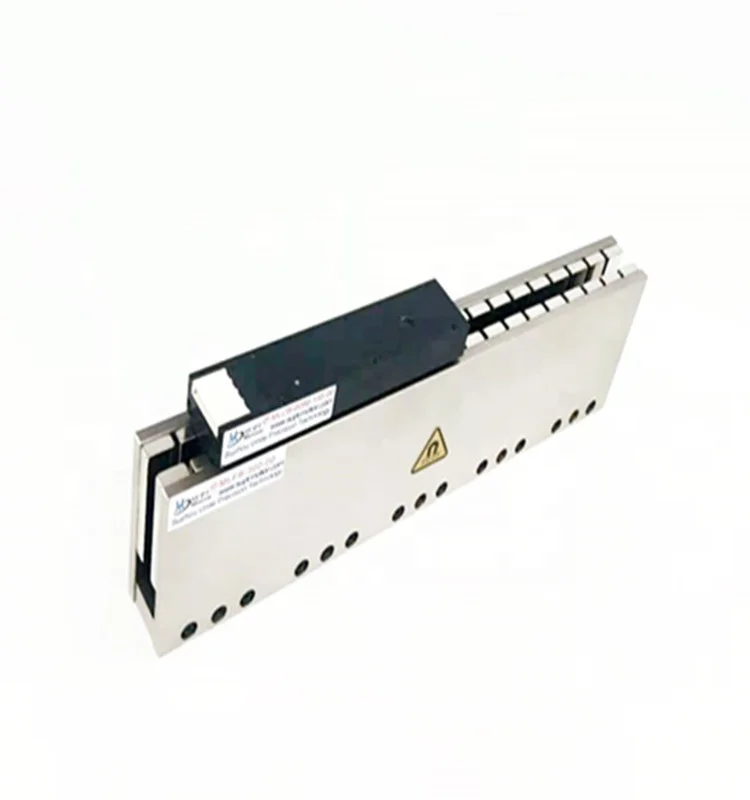

Высокоточный линейный электродвигатель u-типа без

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики


linear motor:





1





review






Our Services





 Almost any requirement can be successfully fulfilled


 Satisfactory after-sales service


 Product range





custom














U-type linear motor -A series

Linear motor are untilized in wide variety of products,Markets serviced by SUPT MOTION include:Semiconductor manufacturing equipment, including wafer fabrication and chip packaging equipment ;Flat panel display industry precision test equipment, hard disk manufacturing, manufacturing,printing plate making equipment; Life science, medical equipment, machine vision inspection equipment, a variety of fetching device; Electronic element surface mount, PCB testing equipment, logistics equipment etc.


The main application of the linear motor:


1.semiconductor manufacturing equipment,including wafer fabrication and chip packaging equipment,etc.


2.The flat panel display(FPD)industry,precision test equipment/hard disk manufacturing/connector manufacturing/printing plate-making equipment,etc.


3.Life sciences,medical devices,machine vision inspection equipment,all kinds of devices to take place.


4.Electronic components SMT,PCB testing equipment.


5.Logistics equipment devices.




























































































































Linear motor performance parameters

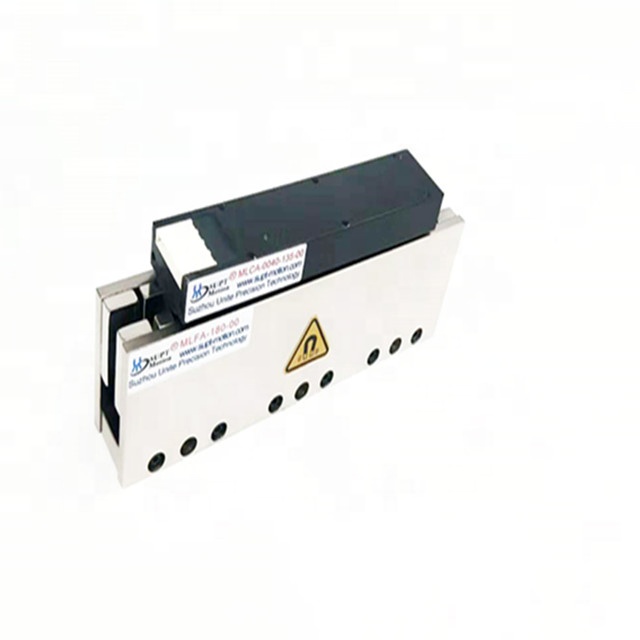

A Series--MLCA(Dynamic) MLFA(Stator)
Model/ParMLCA-0020-075-00MLCA-0040-135-00MLCA-0080-255-00
Peak force(Fp)N60120240
Peak current(lp)Amps4.84.24.2
Continuous force(Fc)N204080
Continuous current(lc)Amps1.61.41.4
Actuator constants(DC motor conversion/3p)(Ka)N/W5.657.911.2
Constant Thrust(L-L)(Kf)N/Amps15.330.460.3
Back EMF constant(L-L)(Kb)V/m/sec8.817.634.8
Electrical constant(Te)ms0.30.30.3
Resistance(L-L)(R)@25℃Ω4.89.419.2
Inductance(L-L)(l)mh1.5136
Heat transfer coefficient(Rth)℃/W*3.9*1.9**1.3
Coil maximum temperature(Tmax)120120120
Magnet Pole pitch(2T)mm303030
Mover weight Kg0.240.420.82




Packaging & Shipping


 Main port:Shanghai/Shenzhen/Guangzhou or as require.


 Leading time:Normally goods can be ready within in 7days.


 Express company:DHL,TNT,UPS,FEDEX,etc.
