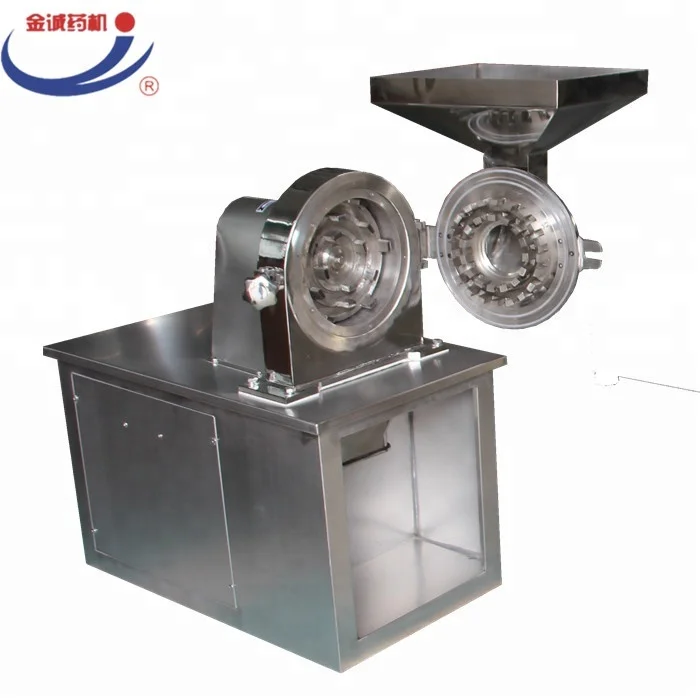

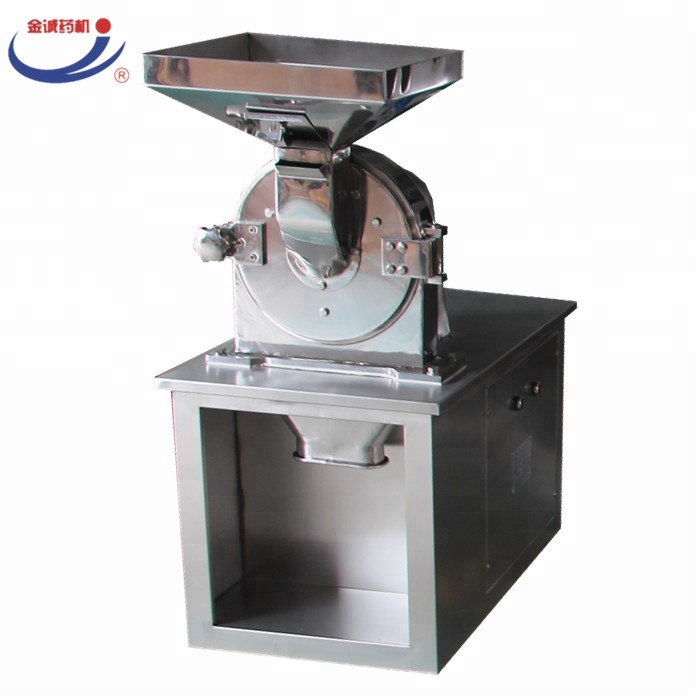

Высокоэффективная сверхтонкая мельница из нержавеющей стали 200 300 400 от китайского производителя

Описание и отзывы

Характеристики

High efficiency China directly manufacturer stainless 200 300 400 mesh superfine grinder





Introduction and Features

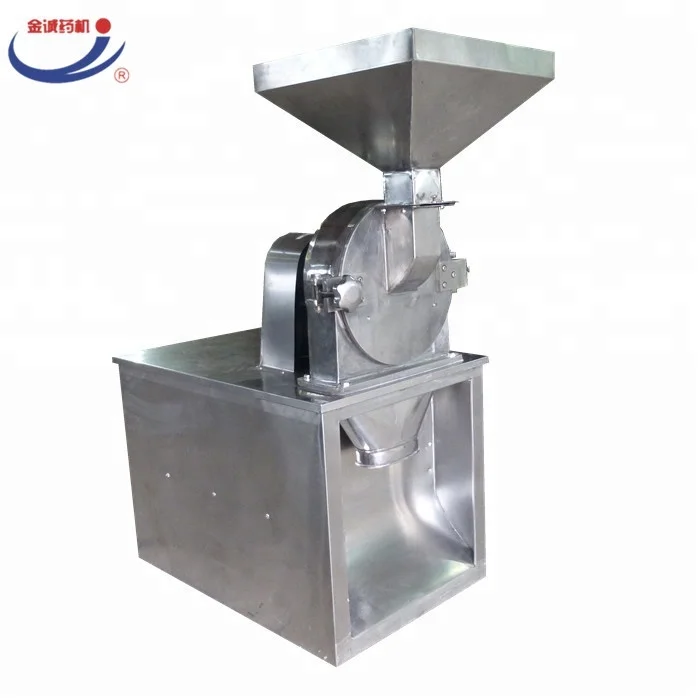

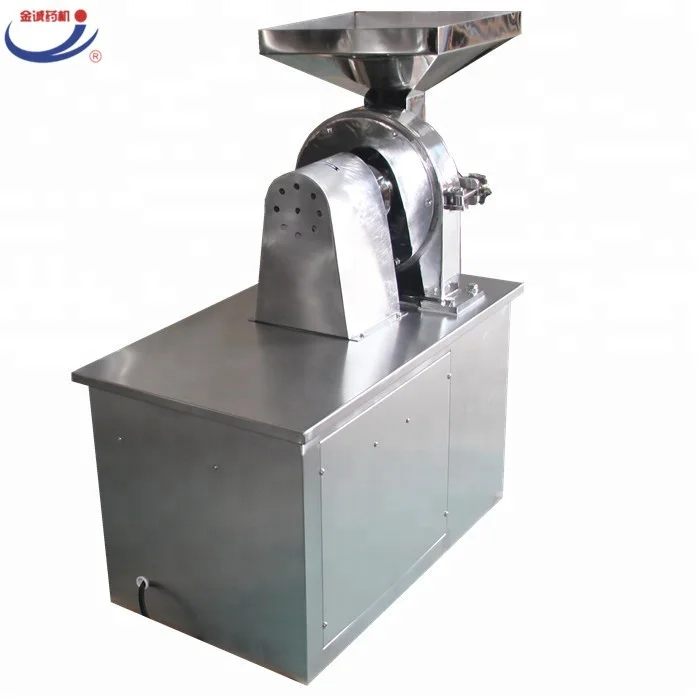

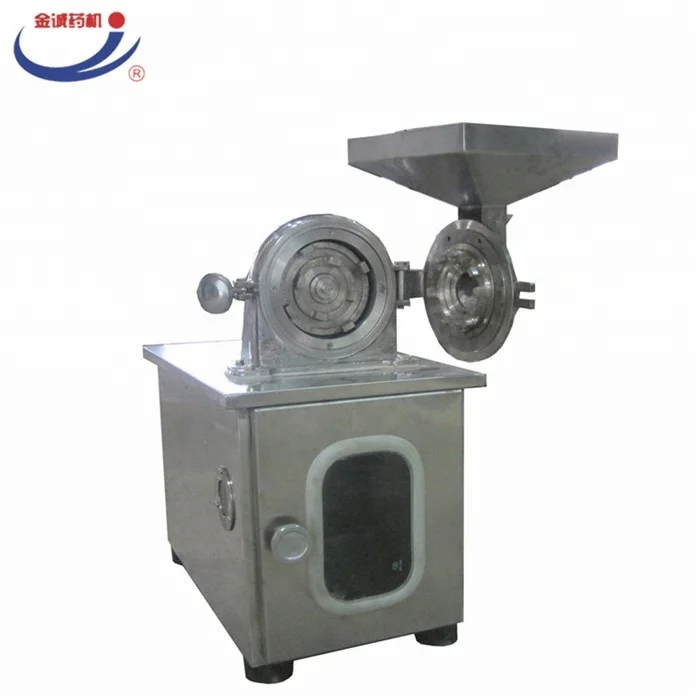

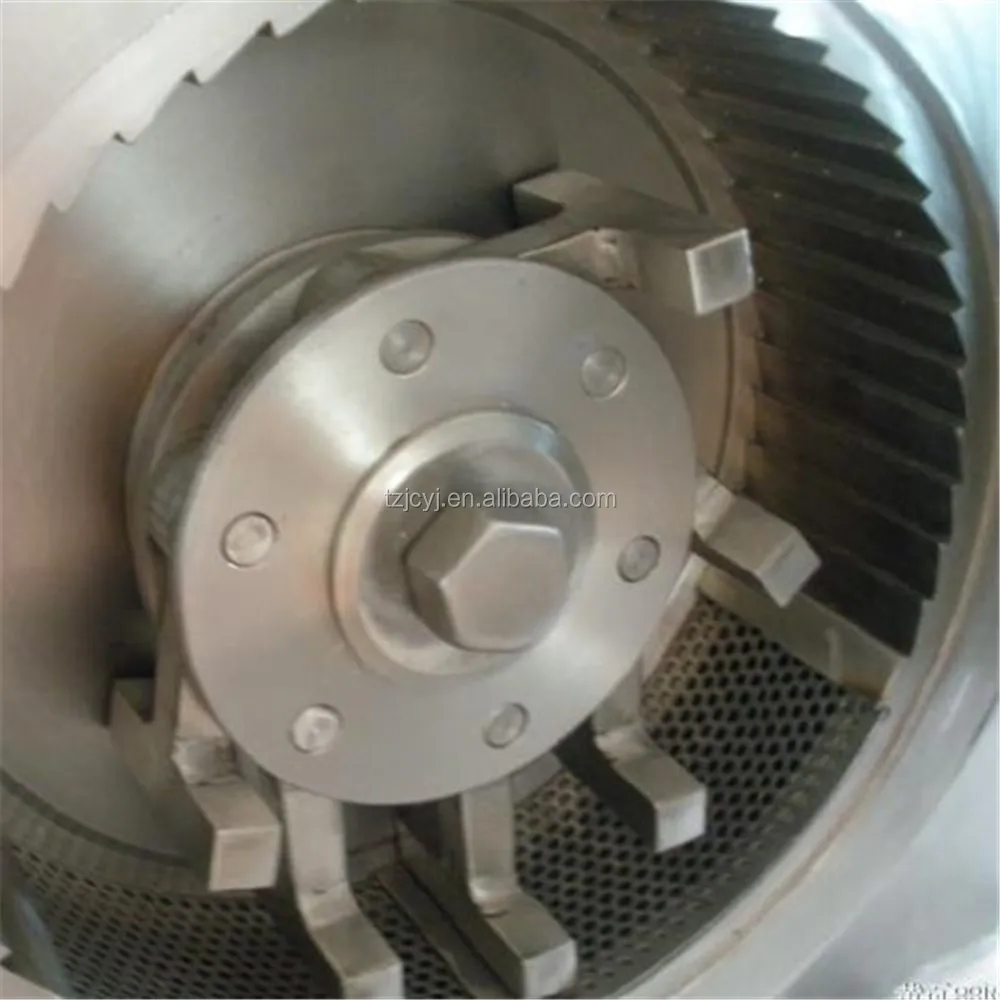

Universal grinder utilizes the high--speed relative motion between the moving and regular tooth set, which makes the material crushed through concussion, rub and crush. The structure of machine is simple and firm, the operation is steadily and the result of crushing is well. The materials are discharged directly from mainframe, the size of the granularity is gained through changing different pore size sieve



Usages

The Universal Grinders are widely used in animal and plant feeds making, pharmaceutical, chemical and food  industry. can be used for the grinding of  nuts/cinnamon/grain/coffee bean/cocoa/medecinal materials/granulated sugar/Plastic powder/ non-metallic mineral and so on.



Labortory Series



Model	Rotary speed of main shaft(r/min)	Production capacity(kg/h)	Using electric distribution(KW)	Material Limit(mm)	Fineness (mesh)	Machine Dimensions(mm)	Net Weight(kg)
SF-130	7000	2-5	1.5	5×5×5	10-140	630×380×820	75
SF-180	4000	10-30	2.2	8×8×8	10-140	710×420×870	85

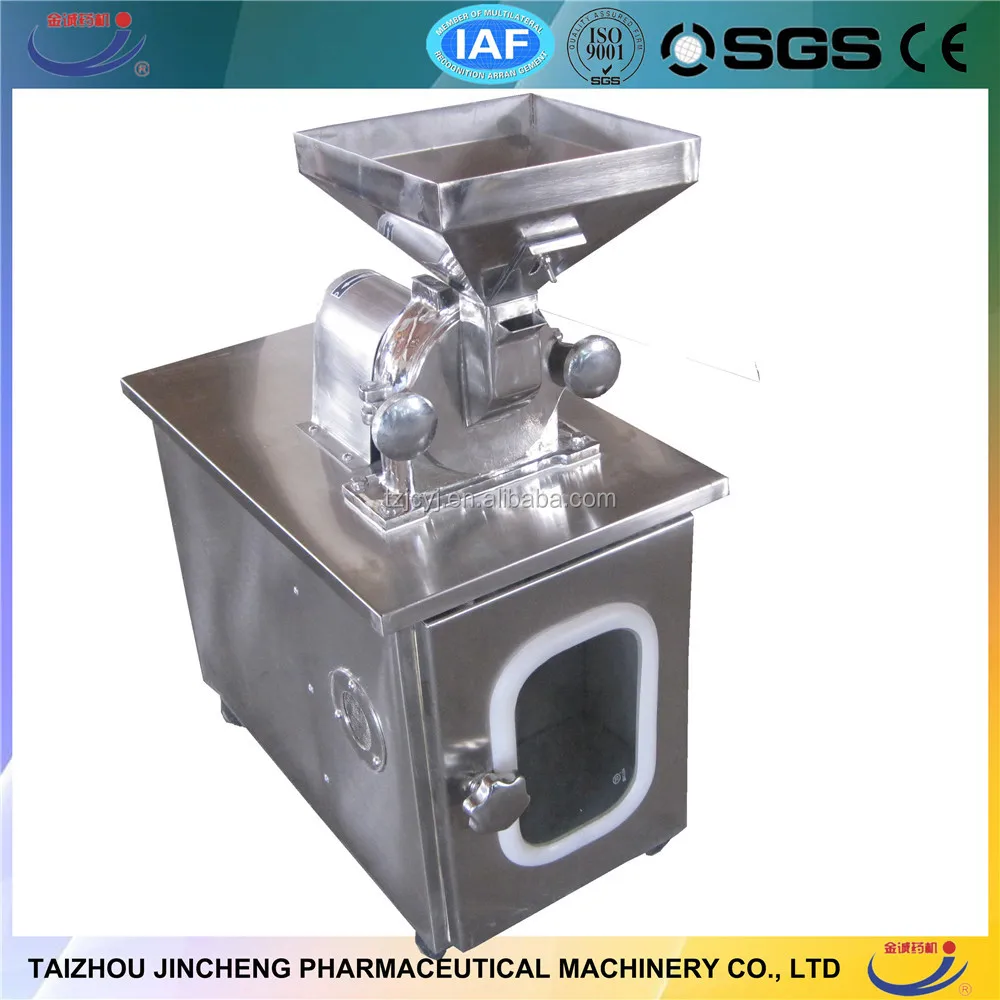

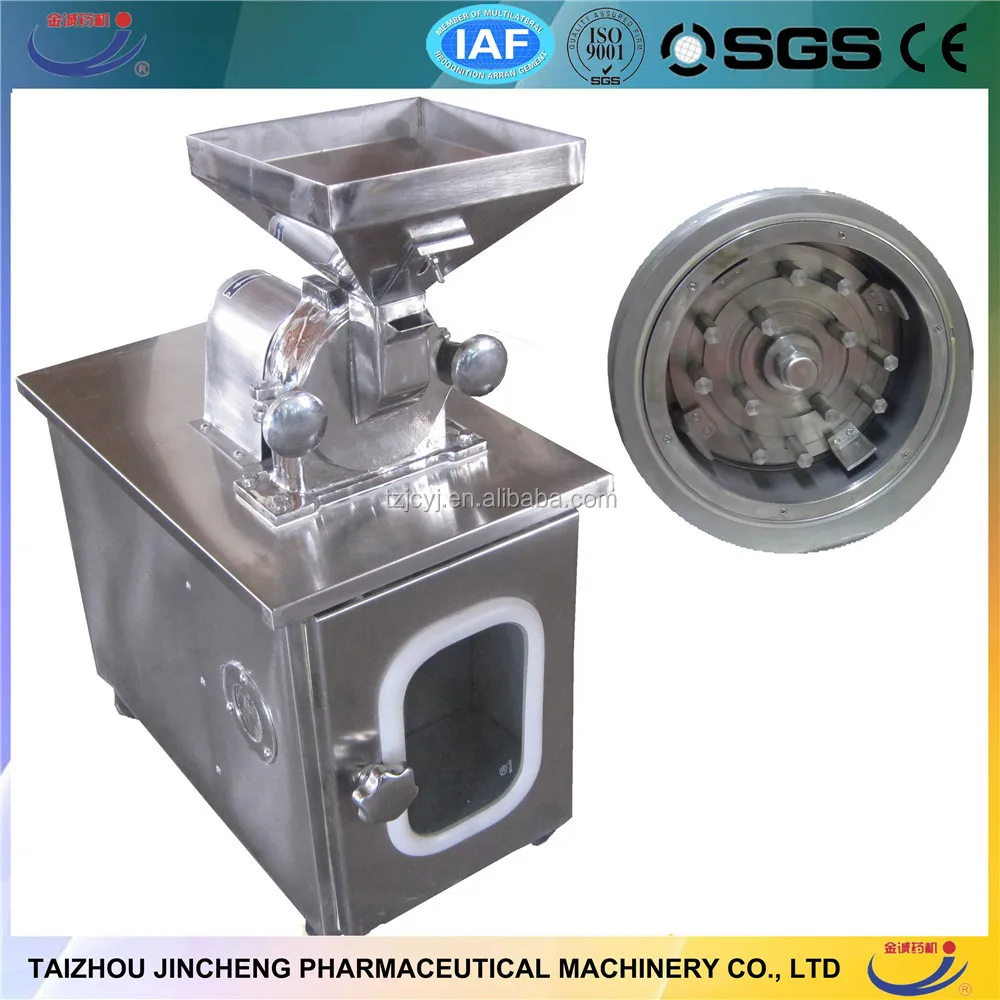

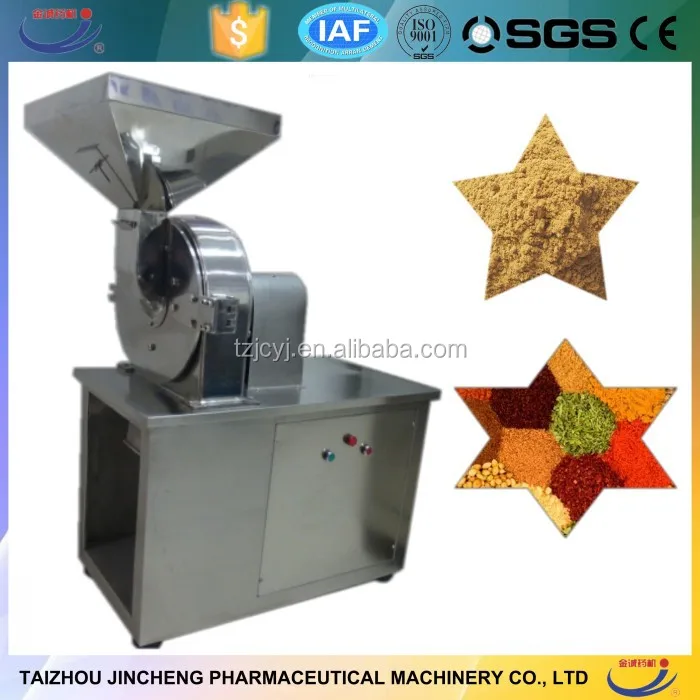

Jincheng SF Universal Grinder



Model	Rotary speed of main shaft(r/min)	Production capacity(kg/h)	Using electric distribution(KW)	Material Limit(mm)	Fineness (mesh)	Machine Dimensions(mm)	Net Weight(kg)
SF-130	7000	2-5	1.1	5×5×5	10-140	560×350×820	75
SF-180	4500	10-30	2.2	8×8×8	10-140	710×420×870	85
SF-250	4200	50-250	5.5	10×10×10	10-140	880×520×1360	150
SF-320	4200	80-300	7.5	10×10×10	10-140	950×520×1450	210
SF-420	3600	200-400	11	10×10×10	10-140	700×520×1500	250
SF-520	3000	300-800	18	10×10×10	10-140	1000×900×1600	490

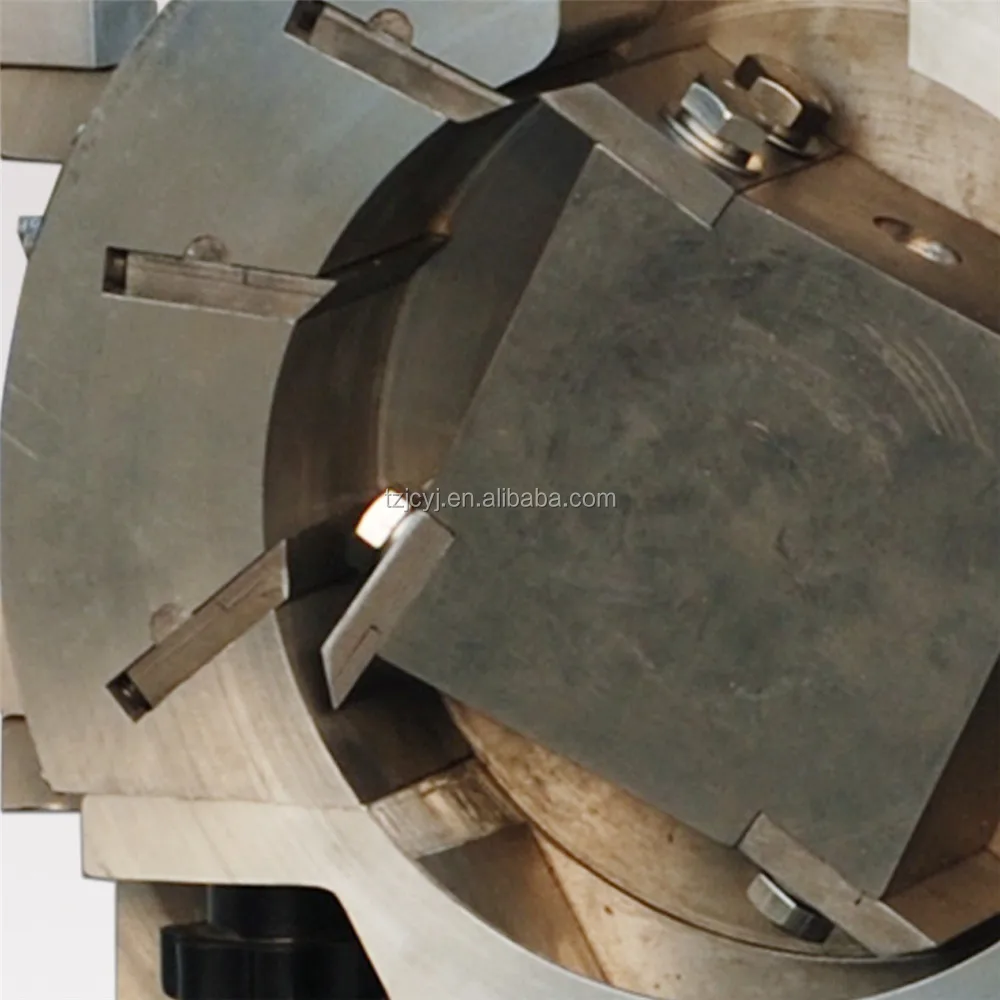

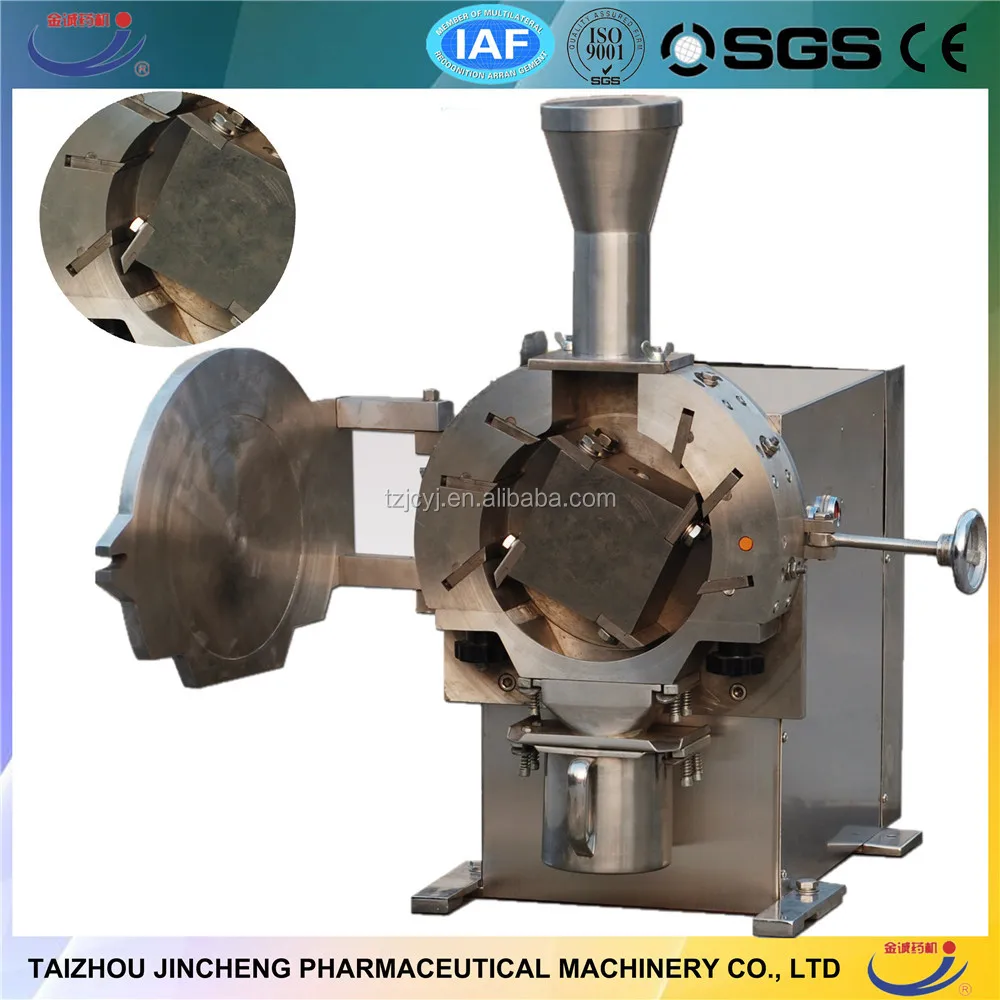

Jincheng Cutting Grinder

Cutting Grinder is design for the grinding of herbs, stems roots, vines, stems, tobacco leaf and other high fiber content materials. It is widely used in pharmacy, food, tobacco and other industries.





Cutting Grinder Technical Parameter



Model	Prodution Capacity(kg/h)	Size of Input Granules(mm)	Motor Power	Voltage	Grinding Fineness(Fineness)	Noise(Decibel)	Machine Dimensions(mm)		Net Weight(kg)
DQF-200	10-30	≤25	750W	380 V	20-100	≤60	590×380×670		110





In addition, this machine is made of the stainless steel, surface of the inside of the machine is smooth, which changes the phenomenon of inboard wall coarse and accumulating of powder in the past. It is more in line with the national standard in the fields of pharmaceutical, chemical production and food. It meets the requirements of GMP.

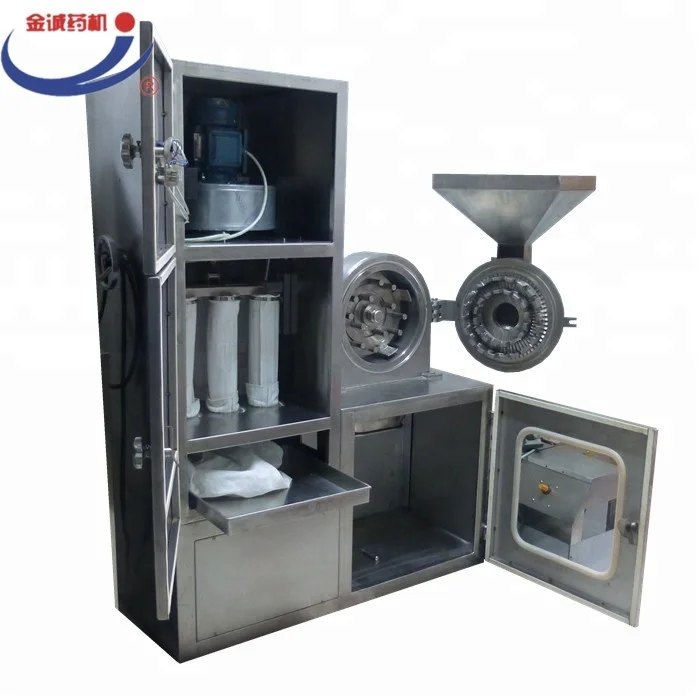

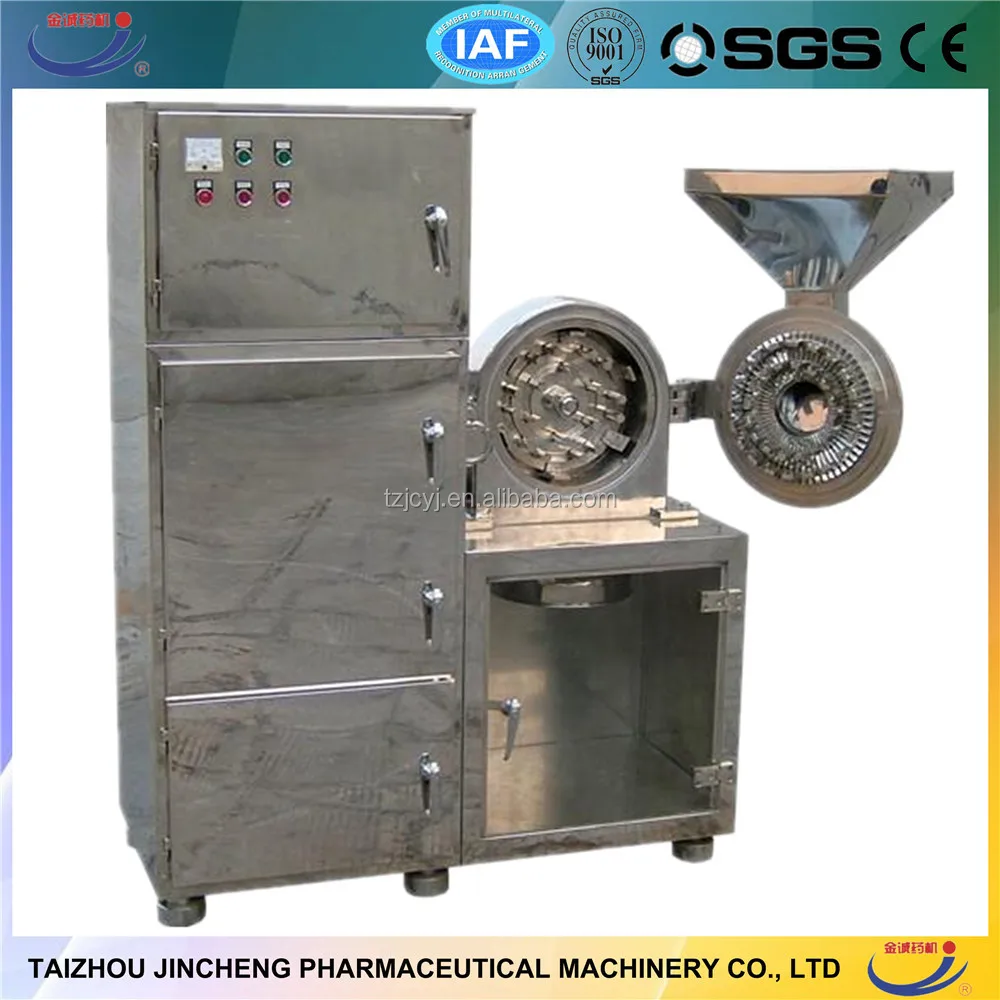

B series High effective and universal grinder



Model	Prodution Capacity(kg/h)	Spindle Speed(r/min)	Size of Input Granules(mm)	Grinding Fineness(Fineness)	Grinding Motor Power(KW)	Vacuum Motor Power(KW)	Machine Dimensions(mm)
20B	60-150	4500	6	60-120	5.5	1.5	1100×600×1650
30B	100-300	3800	10	60-120	7.5	1.5	1200×650×1650
40B	160-800	3400	12	60-120	11	1.5	1400×700×2310













Main Technical Parameters



Model	Rotary speed of main shaft(r/min)	Production capacity(kg/h)	Using electric distribution(KW)	Material Limit(mm)	Fineness (mesh)	Machine Dimensions(mm)	Net Weight(kg)
SF-130	7000	2-5	1.1	5×5×5	10-140	560×350×820	75
SF-180	4500	10-30	2.2	8×8×8	10-140	690×250×1000	85
SF-250	4200	50-250	5.5	10×10×10	10-140	880×520×1360	150
SF-320	4200	80-300	7.5	10×10×10	10-140	950×520×1450	210
SF-420	3600	200-400	11	10×10×10	10-140	700×520×1500	250
SF-520	3000	300-800	18	10×10×10	10-140	1000×900×1600	490











 Taizhou Jincheng Pharmaceutical Machinery Co.,Ltd is a member of China Association for Pharmaceutical Equipment. Our factory is located in Taizhou, Jiangsu Province, near by the China Medecine City on the verge of Yangtze River



We adhere to "People-Oriented" "Scientific Management" principles and actively engaged in the research and development of new products since founded. After years of experience, we have successfully developed many kinds’ pharmaceutical machines, such as Universal Grinder, Rotary Granulators, Groove mixer, Dimensional Mixer, V-Type Mixer, Hot Air Circulation Oven, Rotating Tablet Pressing Machine, Single Punch Tablet Pressing Machine, Pill Making Machine, Sugar Coating Machine, High Efficiency Coating Machine, which are wildly used in Pharmaceutical, Chemical, Food, and Scientific Research.  We won the trust and high praise from our customers due to our outstanding quality and perfect service.



"Quality best, Customers first" is our principle, "Honest and Innovation" is our goal, we wholeheartedly service for every customer from home and abroad with high-quality and efficient products and would like to cooperate with you to create a better future.







We pack our pulverizers in export standard polywooden box. And export machine from shanghai ,qingdao or ningbo port.







  1. How about your quality?
(1) We have been specialized in pharmaceutical machines for more than 5 years. We are young but we Professional
(2) We have strict quality inspection department to inspect 12 hours' working status of all machines before delivery so as to make sure of the quality.
(3) We have after-sale service system with quick response to solve clients' problems within 48 hours.

2, How about your after-sale service and warranty period?

(1) We provide overseas installation.

All fees including visa, transportation, accommodation will be afforded by buyer, and 80 USD per day installation fee should also be paid by buyer.

(2) Warranty period: 12 months after delivery

(3) We provide the replacement parts for free due to quality problems under proper operation within warranty period.

(4) After warranty period, we will charge the replacement parts at cost price.

(5) We provide lifetime technical support for all the machines.

3. What are your main markets?

After more than 5 years' development, our pharmaceutical machine have been exported to over 100 countries worldwide, such as Russia, Ukraine, Uzbekistan, America, India, Spain, Egypt, Poland, Indonesia, Thailand, Bangladesh, Estonia, Armenia, Belgium, etc.





 Sincere thanks for scanning our products, and your satisfaction will be our greatest pleasure.
