Машина для прокатки листового металла
US $10000
Дешевый стопорный шов с
- Категория товара: Tile Making Machinery >>>
- Поставщик (Оптовый магазин): Xiamen,Xinhonghua,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. ONE-YEAR Guarantee Period:we could supply you the replacement parts free of charge for
any damaged parts caused by quality problems.
any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
Products Description
Main Technical Data: | ||
Size | YX65-425-500 | |
Dimension | 5800*1300*1550mm | |
Motor Power | 5.5KW*2 | |
Hydraulic Power | 2.2KW | |
Forming Steps | 13Steps | |
Forming Speed | 8-14m/min | |
Voltage | 380V/50HZ/3PH | |
Effective Width | 400mm,425mm | |
Material Width | 600-603 for 65/425 675-678 for 65/500 | |
Height of Roofing | 65mm | |
Aluminum Thickness | 0.8-1.2mm | |
Galvanized Steel Thickness | 0.7-0.9mm | |
Control System | PLC Control | |

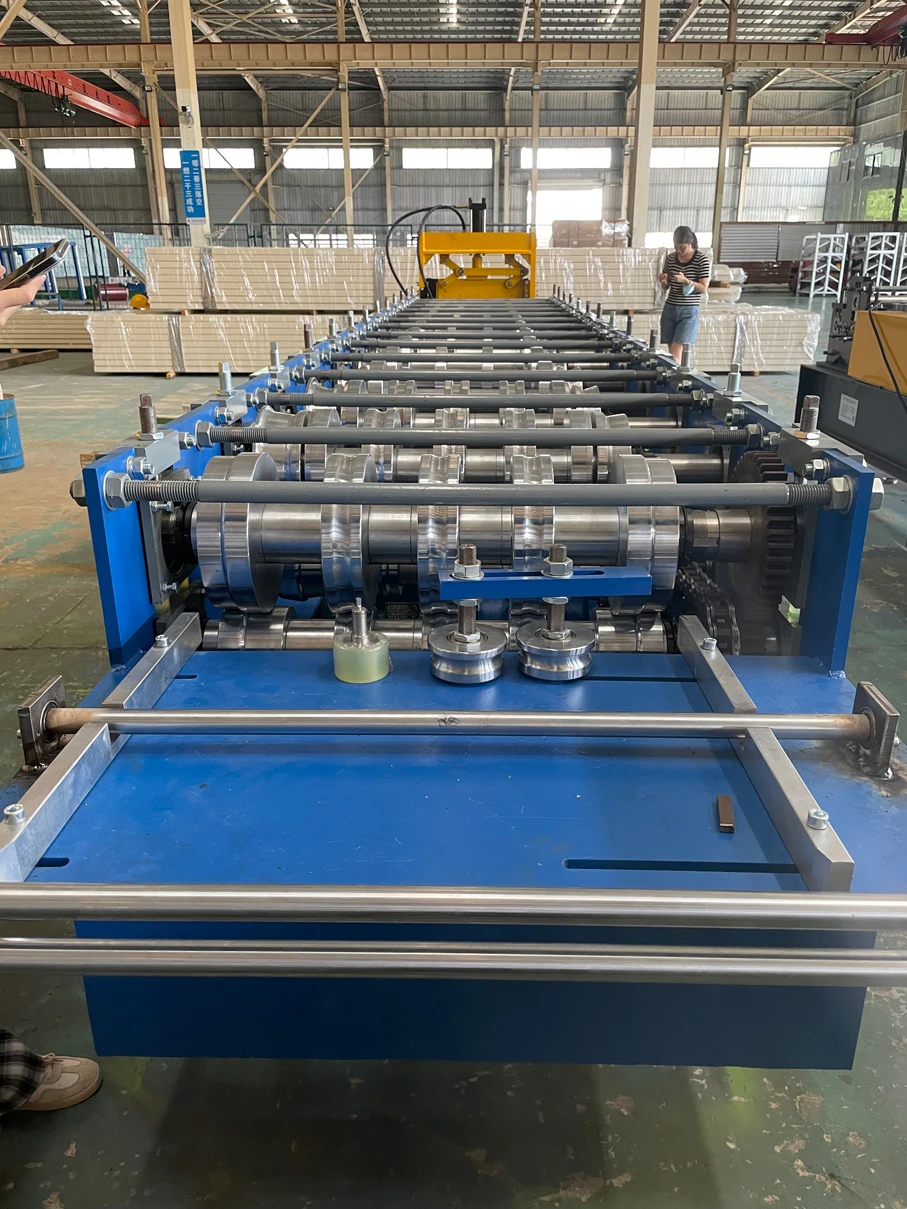

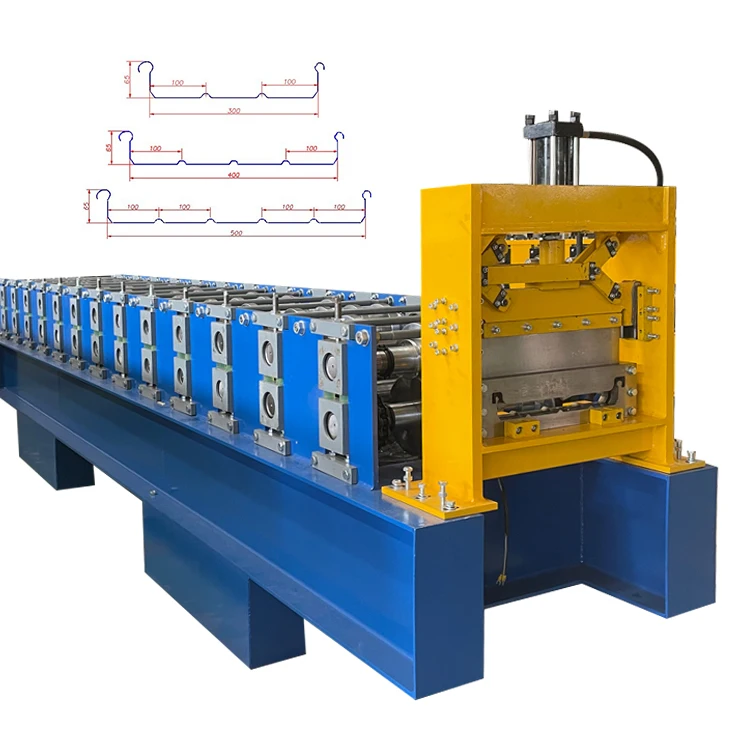

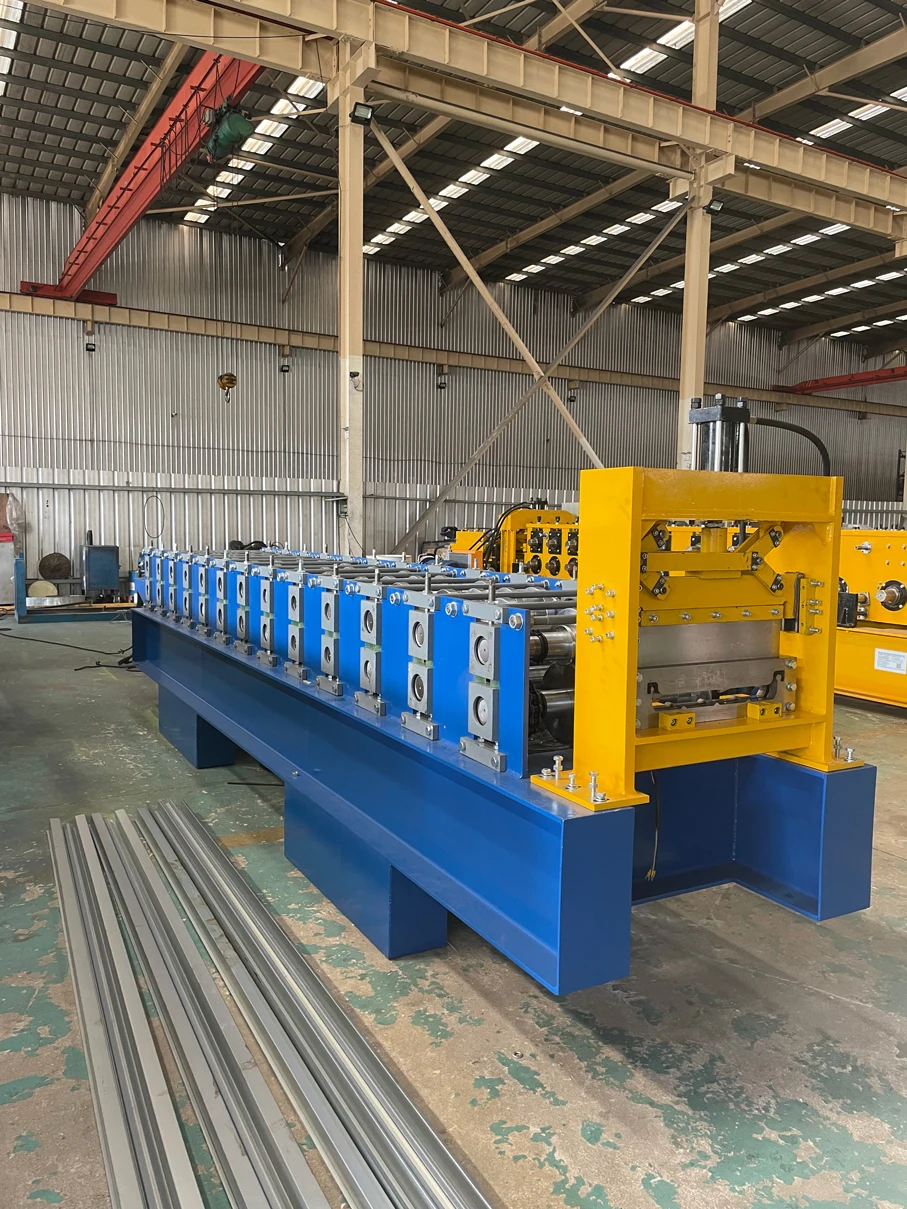

Roll Forming Machine
(1) No.of Roller Stations:13 steps
(2) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(3) Material for Shaft:40Cr
(2) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(3) Material for Shaft:40Cr

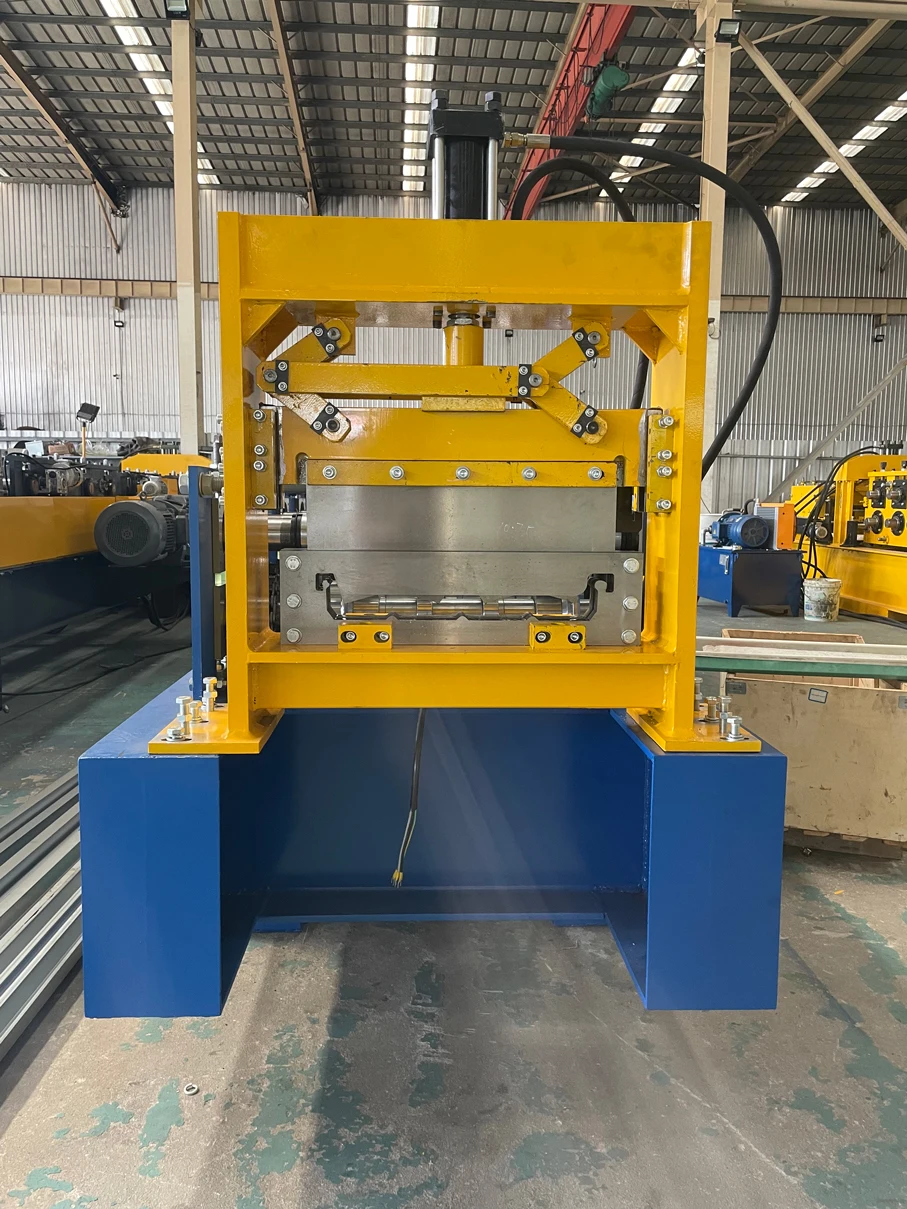

Cut-Off Device
(1) Material for Cut-off Modular:Cr12mov after treatment
(2) Hardness for Heat Treatment:HRC60-62°
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW
PLC Control Box
(1) Type:PLC Frequency Control System with touch screen
(2) PLC Brand:Schneider
(2) PLC Brand:Schneider

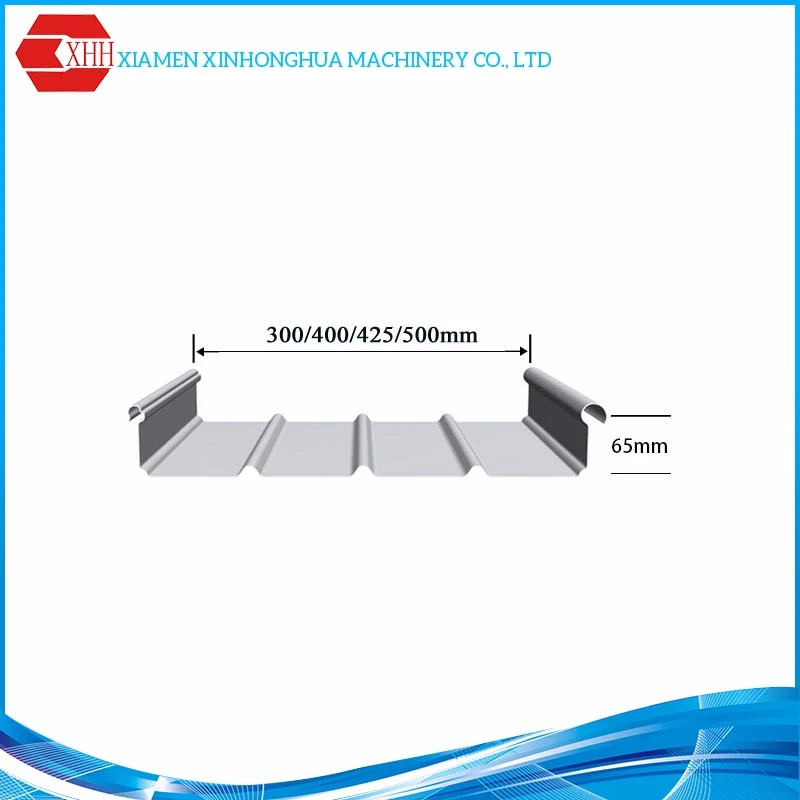

Profile Drawing
for YX65-425-500 standing seam roofing 300/400/425/500mm 65mm
Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
We are the roofing sheet roll forming machine manufacturer, and we can give you the most favorable price.
Welcome to consult price！
Company Profile
XIAMEN XINHONGHUA MACHINERY CO. LTD.(FUJIAN XINHONGHUA MACHINERY CO. LTD) was founded in 2004.as the earlier company which engaged in the manufacture of cold roll forming machines,after the reform and innovation of more than 19 years,and on basis of manufacture of modern management concepts,strong technology,advanced production technology,perfect service system,we have been currently in the domestic leading position,and as good competitor among the same industry of world.
Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.And our products are mainly covered the railway station,city curtain wall,stadium,etc.field and have widely used in national key construction project. High quality products, good service to our products not only sell well all over China,and exported to Southeast Asia,Europe, Africa and Australia more than 40 countries and regions.
Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.And our products are mainly covered the railway station,city curtain wall,stadium,etc.field and have widely used in national key construction project. High quality products, good service to our products not only sell well all over China,and exported to Southeast Asia,Europe, Africa and Australia more than 40 countries and regions.
