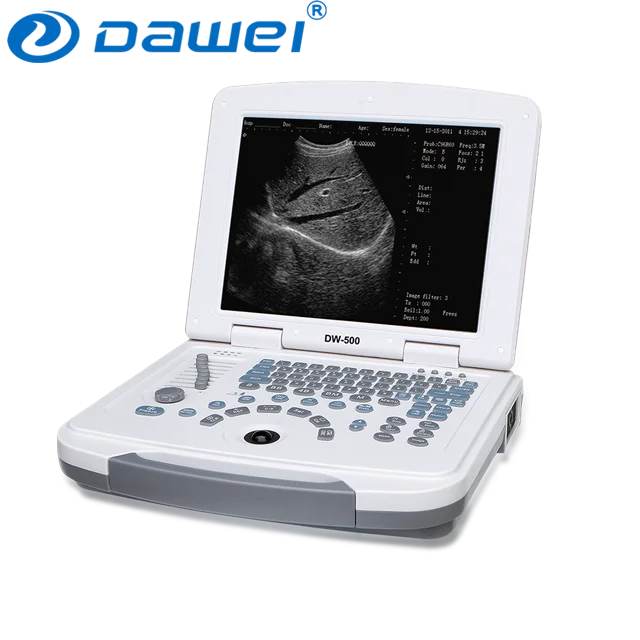

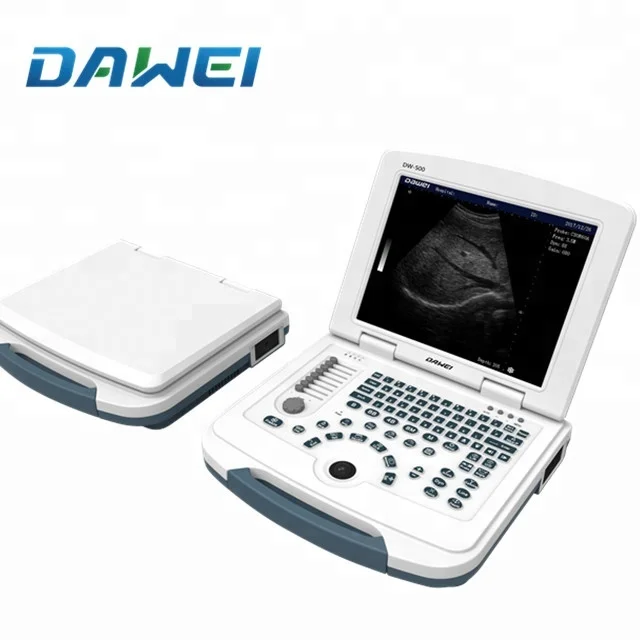

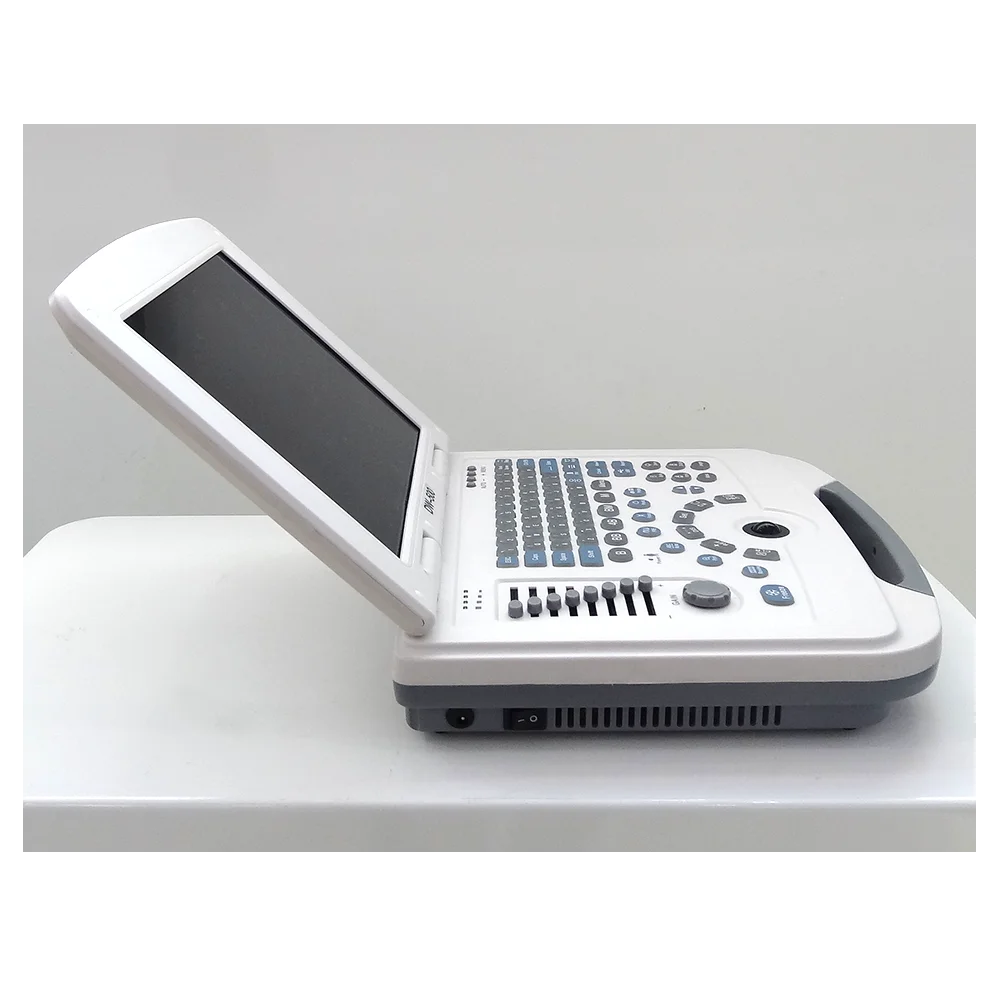

DW500    Full-digital Laptop Ultrasound Scanner

Flexible and convenient operating system

A type of high array, high definition, multi-function full-digital real 96elements laptop ultrasonic diagnostic apparatus.

Light and portable, more clearer,delicate and smooth image, convenient to operate, and powerful electrical power ability supports the machine for consultation in various environment of cities, towns, outdoor.

A variety of charging to ensure the examination consultation under different environments.

Supernormal battery life 5-8 hours

12.1 inch LED shows the images with more flexible ways.

USB port: storable and readable

First-class digital imaging technology, more clearer image:

Full-digital beam imaging technology

Real-time dynamic receiving focus point by point

Real-time dynamic sound velocity changed

High-accuracy DSC Digital image formation technology

Intelligentized 8-segment TGC adjustment

Progressive SMT components technology to ensure machine reliability

Technical Specification

Scanning mode: convex / linear / micro-convex

Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe, visual artificial abortion probe

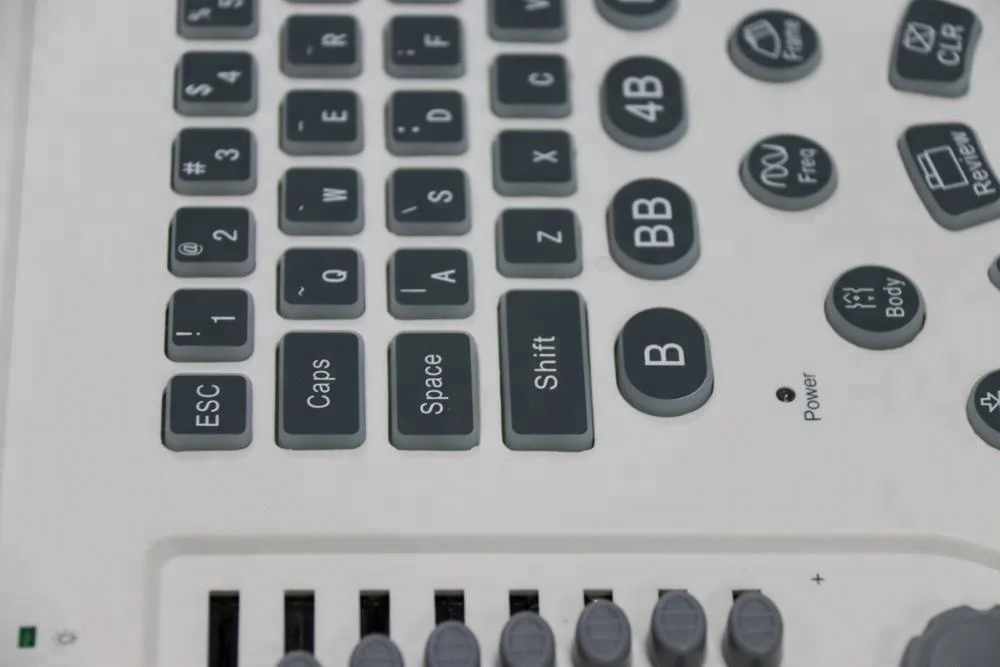

Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation

Monitor: 12 inch high resolution LED

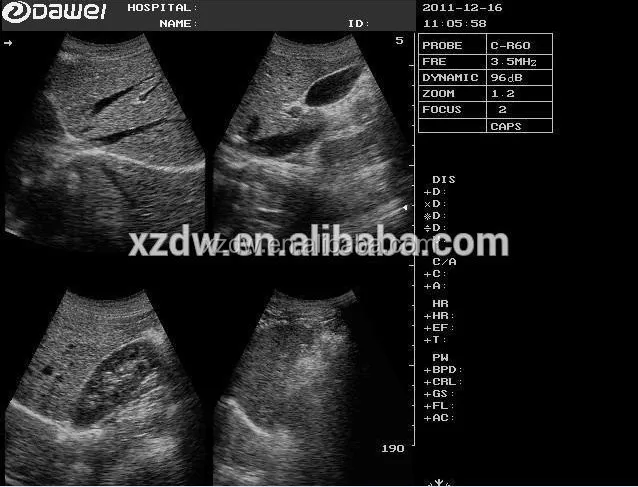

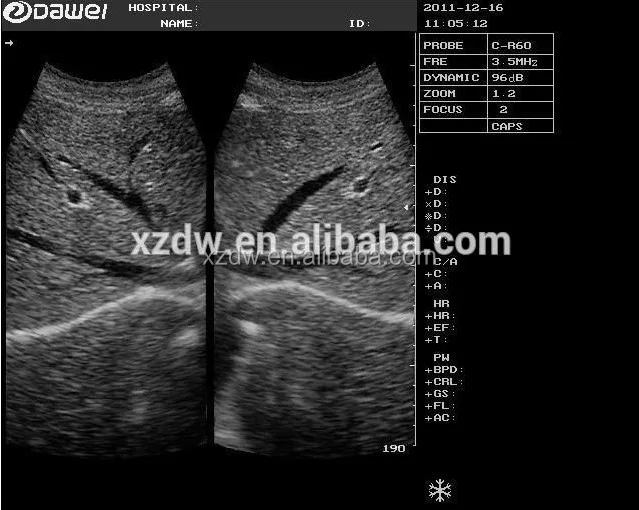

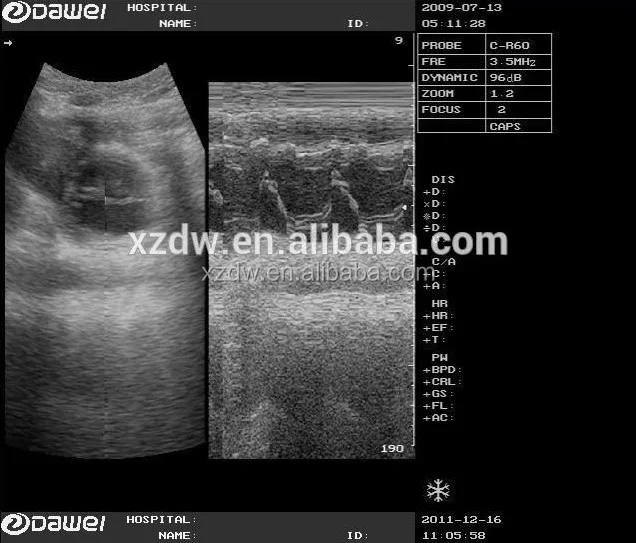

Display mode: B, B+B, B+M, M, 4B

Detecting depth: ≥242mm

Resolution: lateral≤2mm, axial≤1mm

Blind Zone: ≤3mm

Geometry precision: lateral≤5%, axial≤5%

Gray scale: 256

Electronical focusing: 2 focuses combination randomly

USB port: storable and readable

Image storage: 8

Local zoom can be used at real time.

Body marks: 30

Pseudo color: 7

Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)

: 256 frames, realized in automatic successive playback and manual single step forward, backward playback

Image processing: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).

Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table,  heart package etc.

Note: datCine loope, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.

Output interface: PAL-D, SVGA (SVGA color monitor), USB port .

With the puncture guiding function, line position can be adjusted,With gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V , 50/60Hz

Standard Configuration

12 inch LED display

3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)
Aluminum plastic multi-layer package

Options

Ultrasound image workstation

6.5MHz High frequency Trans-vaginal probe (5.5MHz-7.5MHz)

7.5MHz High frequency Liner probe(6.5MHz-8.5MHz)

Trolley
