3 оси 4-осевой 5-осевой фрезерный станок с ЧПУ, фрезерный станок с ЧПУ машина 1224 1325 1530 1920 1942
- Категория товара: Woodworking Machinery >>>
- Поставщик (Оптовый магазин): Jinan,Extra,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
3 axis 4 axis 5 axis cnc machine cnc milling machine cnc router machine 1224 1325 1530 1920 1942
Furniture industry: the cabinet door, wooden door, solid wood, plate, doors and Windows, tables and chairs. Decoration industry: screen, wave plates, large wall hanging, advertising board, logo production.

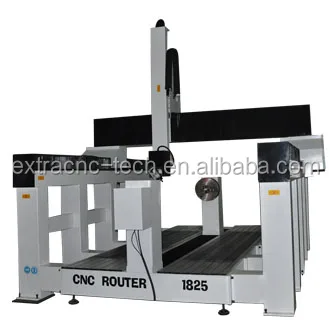

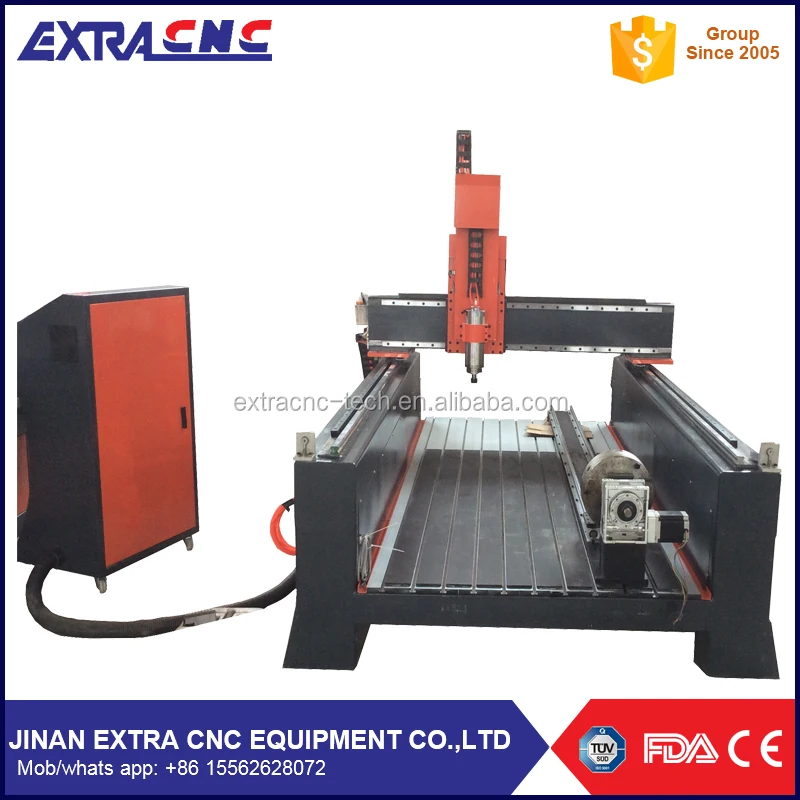

Rotary attachment is special for furniture legs ,stair-railing, or other cylinders carving which enable the machine to engrave on column work pieces.
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum or T-slot Table |
Frame | Welded Structure |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Guide |
Z Structure | Hiwin Rail Linear Guide and TBI Ball Screw |
Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
Max. Rapid Travel Rate | 25000mm/min |
Max. Working Speed | 18000mm/min |
Spindle Power | 3KW water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Stepper Motor |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Inverter | Delta/Fuling |
Electrical components | Schneider |
Limit switch | OMRON |
Driver | Leadshine or Yako |
1)Welded steel pipe lathe bed, strong and never out of shape
2)Double motors and drivers of Y axis which can ensure steady movement
3)Rack gear transmission ensures fast speed and high accuracy
4)Imported square rail ensures high accuracy and heavy workload
5)Adopt vacuum system. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials
6)Vacuum table with 6 vacuum zones, which can absorb different size materials.
With 5.5kw vacuum pump, high suction, more convenient, stable capability.
7)Imported square rail ensures high accuracy and heavy workload
8)Humanistic design,the machine can be disassembled,so it is easily transported.
