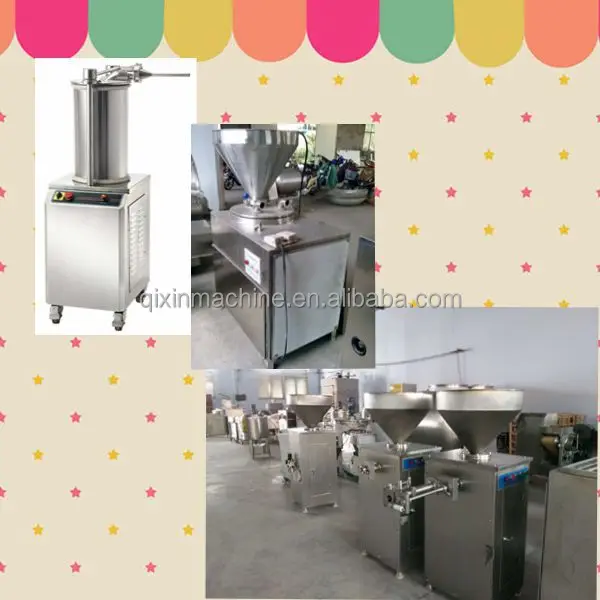

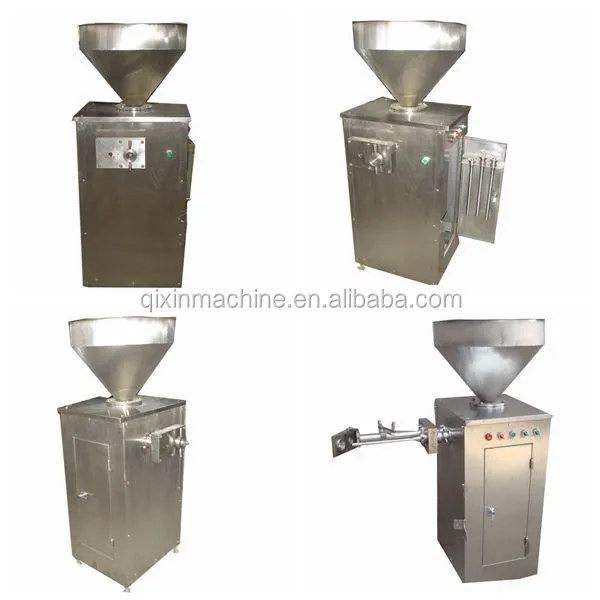

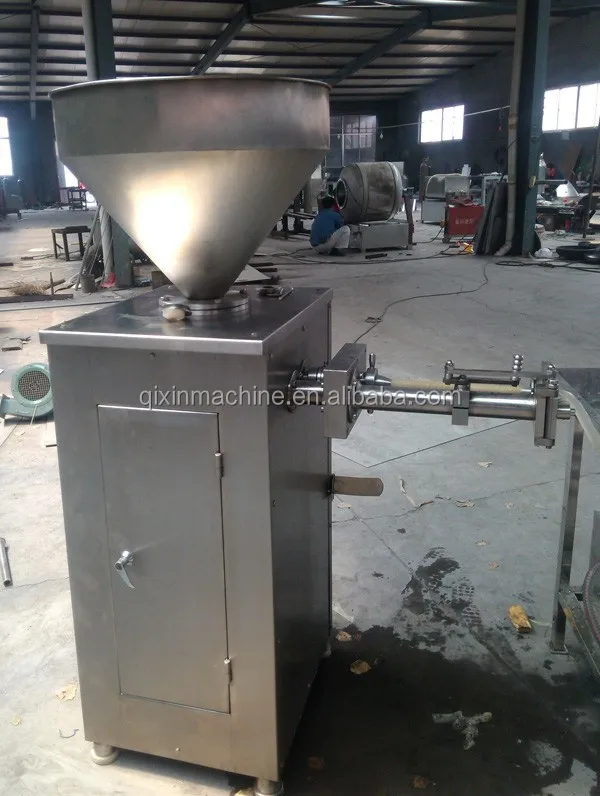

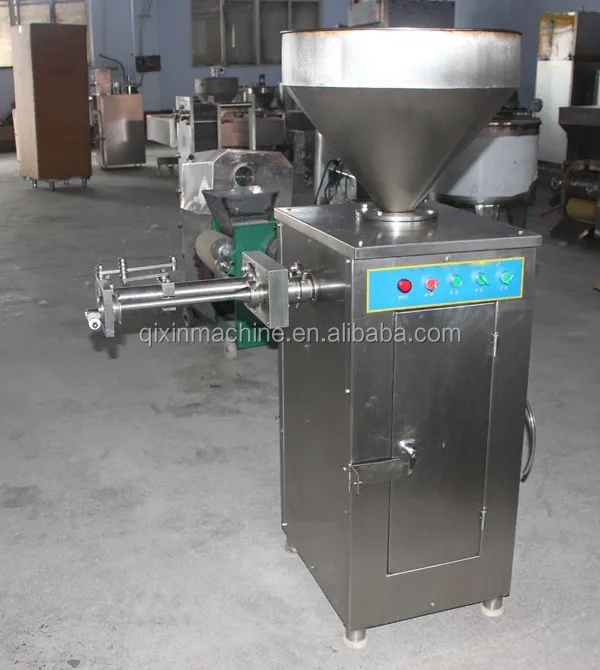

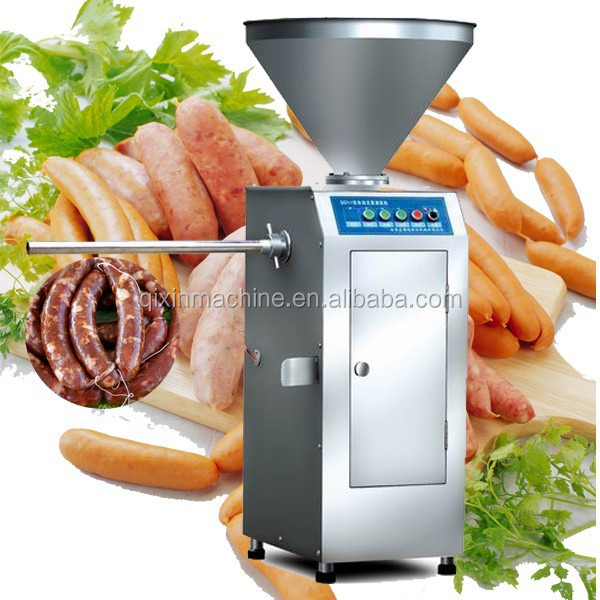

300kgh industrial automatic sausage linker machine susage making machine

Introduce about  automatic sausage linker machine

Feature

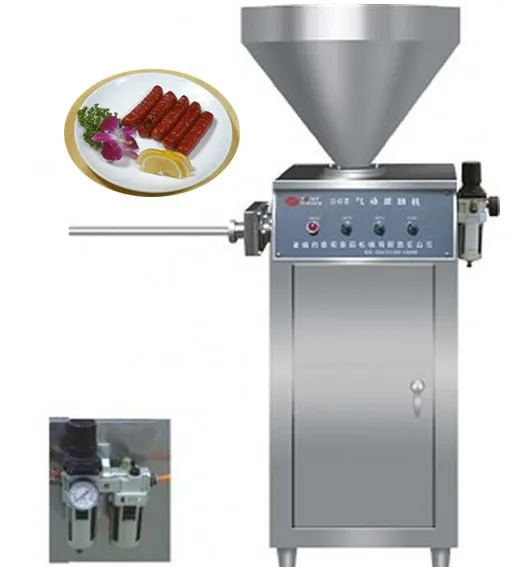

The pneumatic quantitative sausage filling machine is beautiful appearance, excellent workmanship, convenient operation, and safe and reliable usage. The parts of contacting the meat are made of high quality stainless steel, which is easy to wash and meet the food hygiene requirements. The quantitative number can be controlled in the range of 20-1000g and can be arbitrary adjusted and the error just has about 3g.

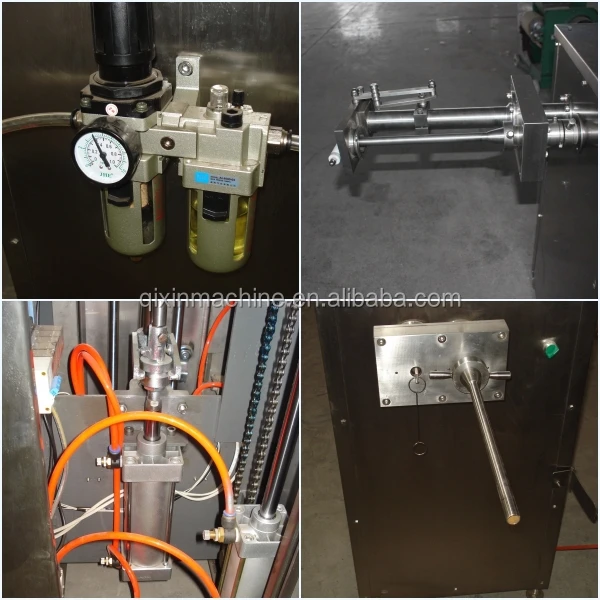

The pneumatic quantitative sausage filling machine adjusts the weight of the sausages with controlling the switch of the cylinder. We can achieve the purpose of controlling each program’s action through operating panel button.   This machine is made based on the quantitative sausage filling machine. This machine is not only achieved quantitative filling sausage but also automatic twisting, which change the situation that the quantitative filling sausage machine can not twist in the production processing.This performance of the machine is stable, safe and reliable. It also improves the capacity in the original foundation.

Technical parameter about automatic sausage linker machine

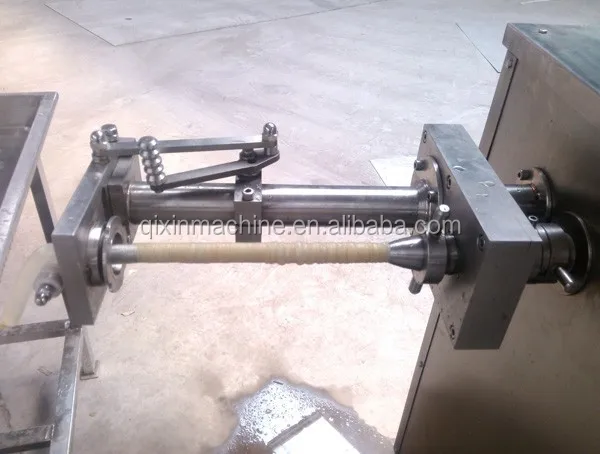

Dia. of fill pipe:12,16,18 mm
The length of fill pipe:300 mm
Diameter of cylinder sleeve hole:64 mm
The hopper volume:30-50 L
Air Pressure:0.5-0.6 Mpa
Filling range: 20-1000g
Capacity:100-500 kg/h
Dimension:640*650*1460 mm
Net Weight:130kg
Voltage: 220v/380v, 50hz

Working principle:

Through the pedal switch and electric control the reversing solenoid valve,control

each air cylinder stroke reversing solenoid valve,control

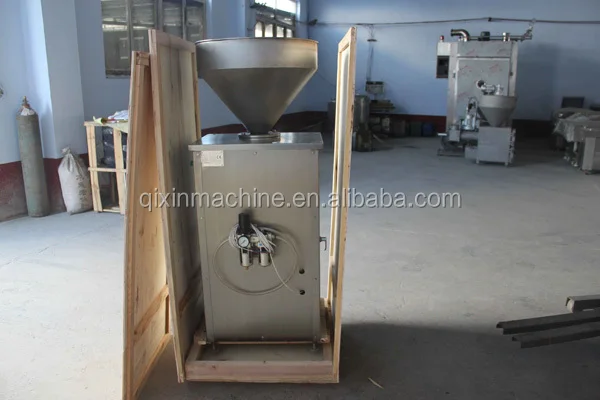

Packaging about automatic sausage linker machine
