Automatic Industrial Nail Collating Making Machines Coil Nail Machinery

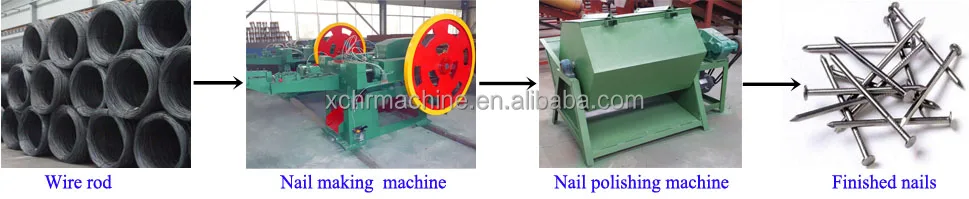

Process flow: wire rod--Nail making--nail polishing--finihsed common nails--nail threading--coil nail collating--finished coil nails
Product Description

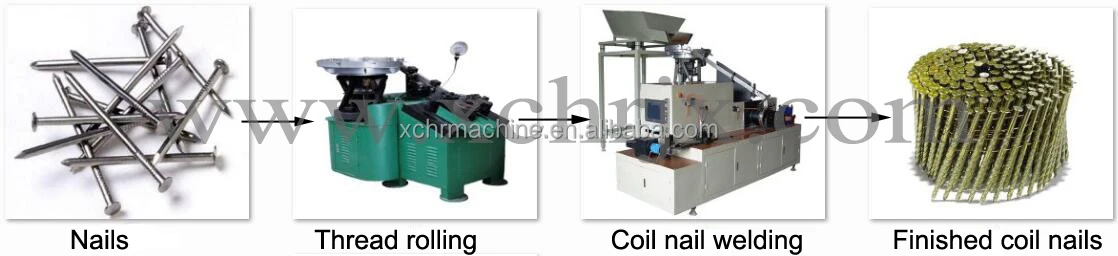

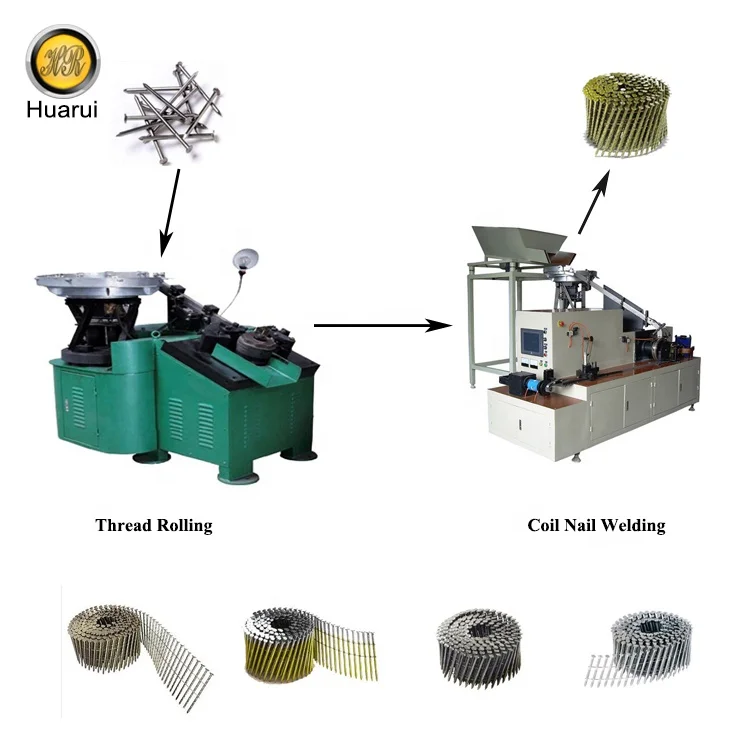

Working flow: wire rod-Nail making --nail threading--coil nail welding --finished coil nails

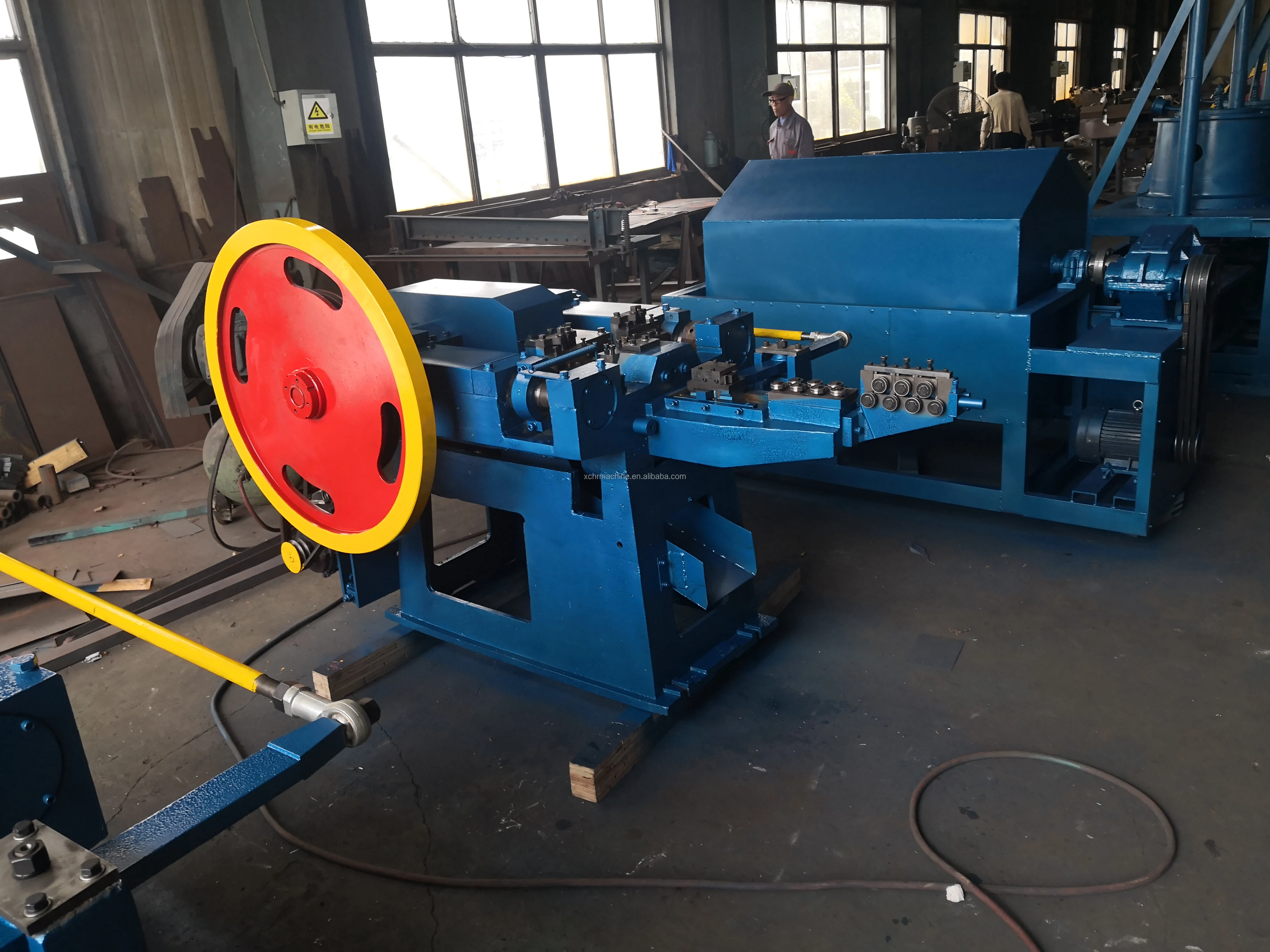

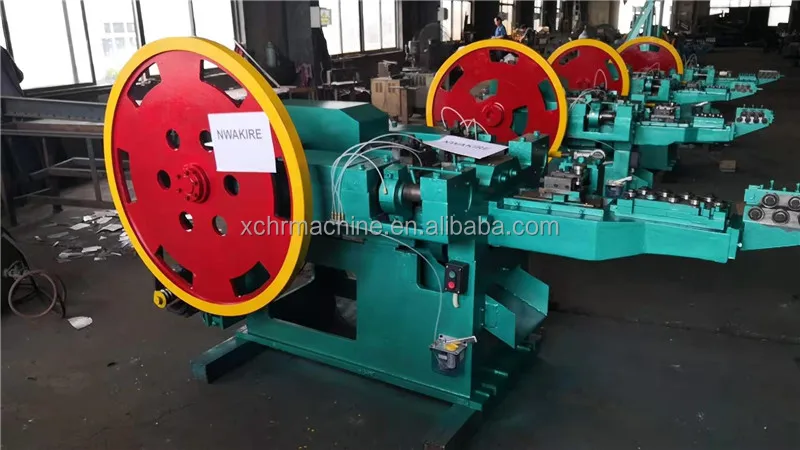

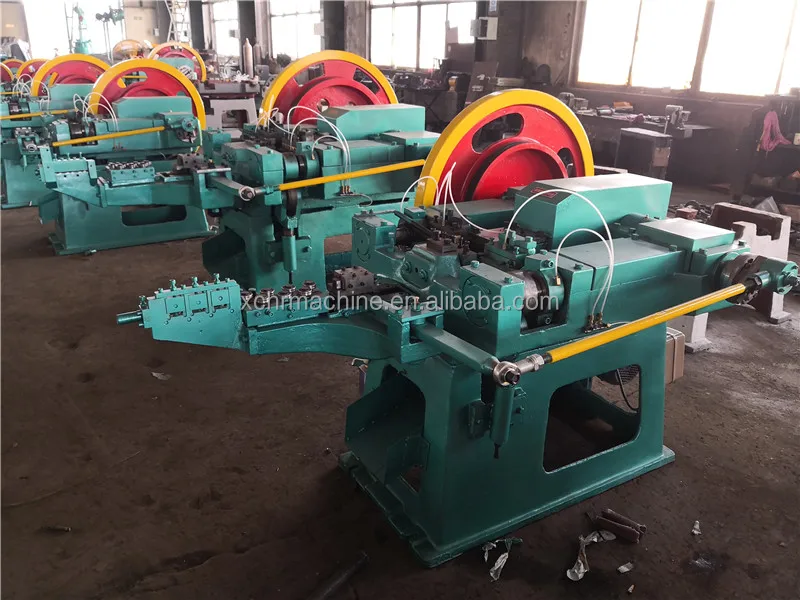

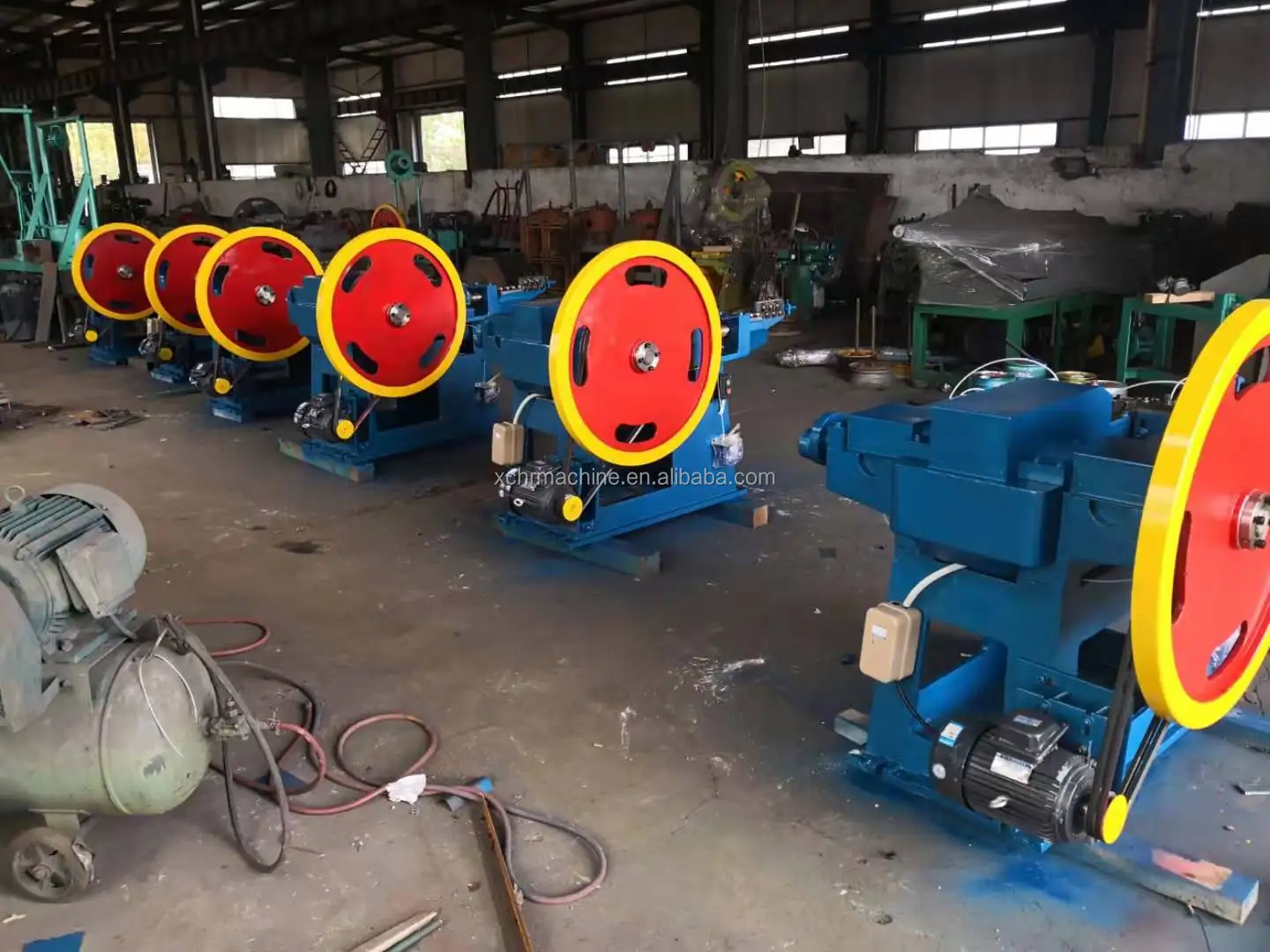

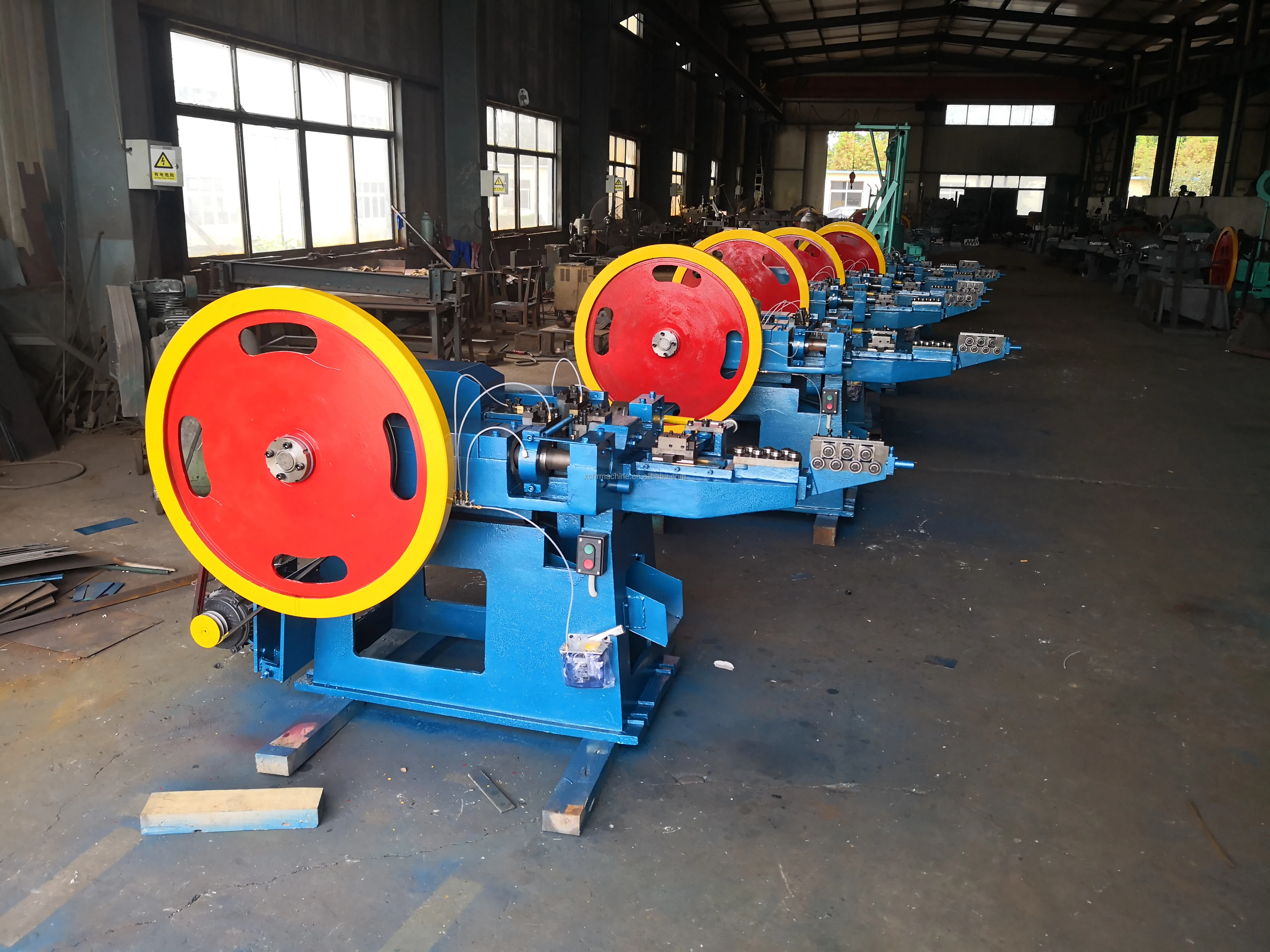

1. Common Wire Nail making machines
Function:This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.
Main technical parameters:
Model | Z94-4C(2) | Z94-4C | Z94-3C | Z94-2C |
Max. dia. of nail | 5.0mm | 4.5mm | 3.5mm | 2.8mm |
Min. dia. of nail | 2.8mm | 2.8 mm | 1.6 mm | 1.2 mm |
Max. Length of nail | 120mm | 100mm | 75mm | 50mm |
Min. length of nail | 50mm | 30 mm | 25mm | 16mm |
Motor power | 4kw | 4kw | 3kw | 2.2kw |
Nail making speed | 260pcs/min | 260pcs/min | 320pcs/min | 380pcs/min |
L*W*H | 2.32*1.55*1.3m | 2.2*1.6*1.65m | 2.0*1.4*1.4m | 1.7*1.3*1.4m |

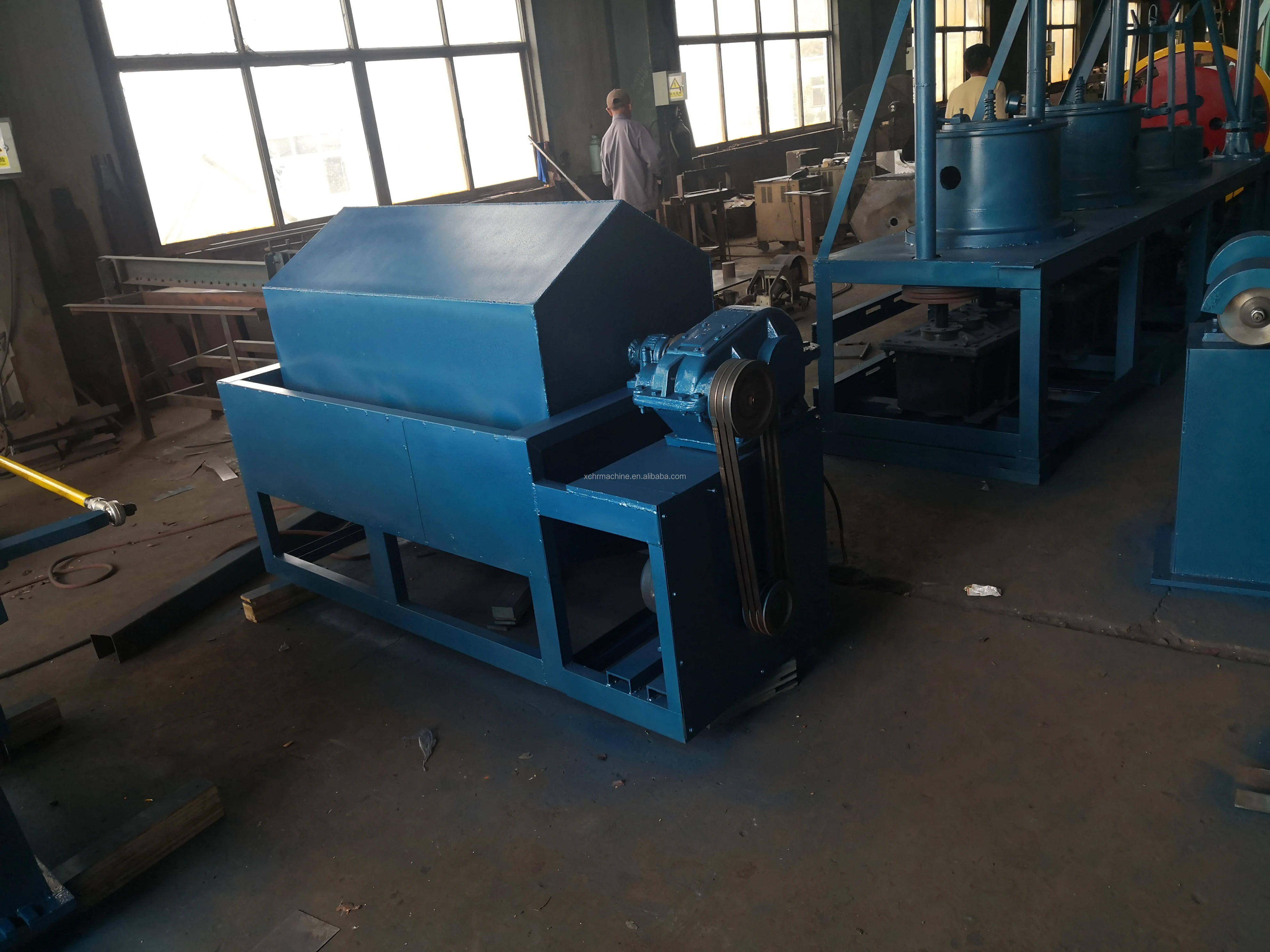

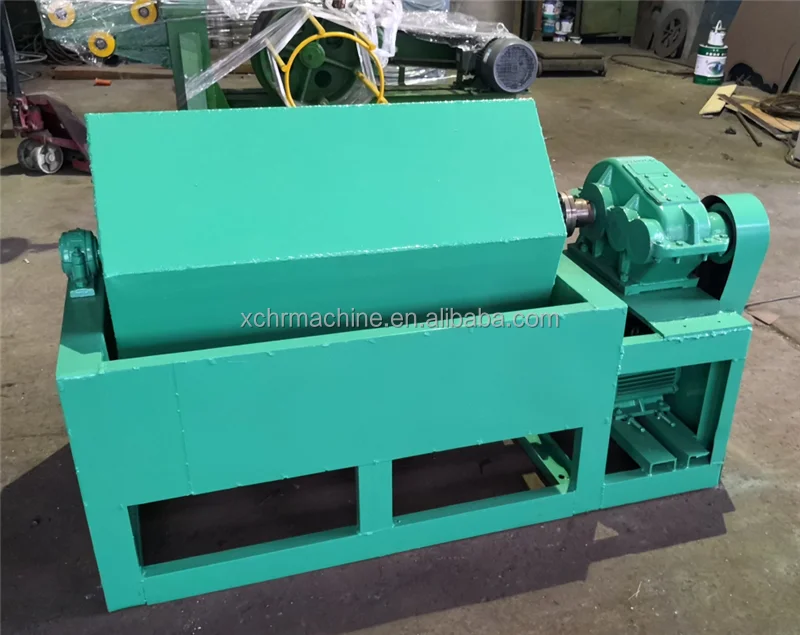

2. Nail polishing machine
Function: This machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.
Main technical parameters:
Model | Motor power | Overall size | Capacity of nails |
SD-400 | 2.2kw | 1.64*0.9*1.0m | 400kg |
SD-600 | 4kw | 2.0*1.0*1.4m | 600kg |
SD-1000 | 7.5kw | 2.0*1.5*1.5m | 1000kg |
SD-2000 | 11kw | 2.5*2.1*2.0m | 2000kg |

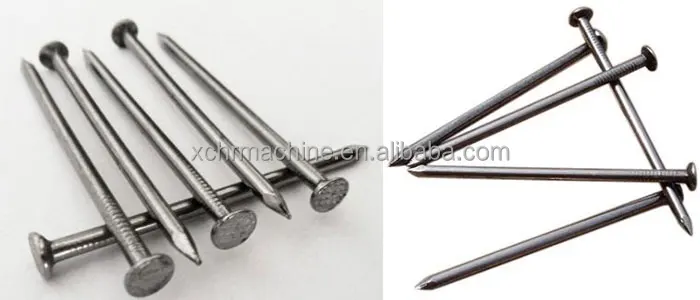

Finished common wire nails

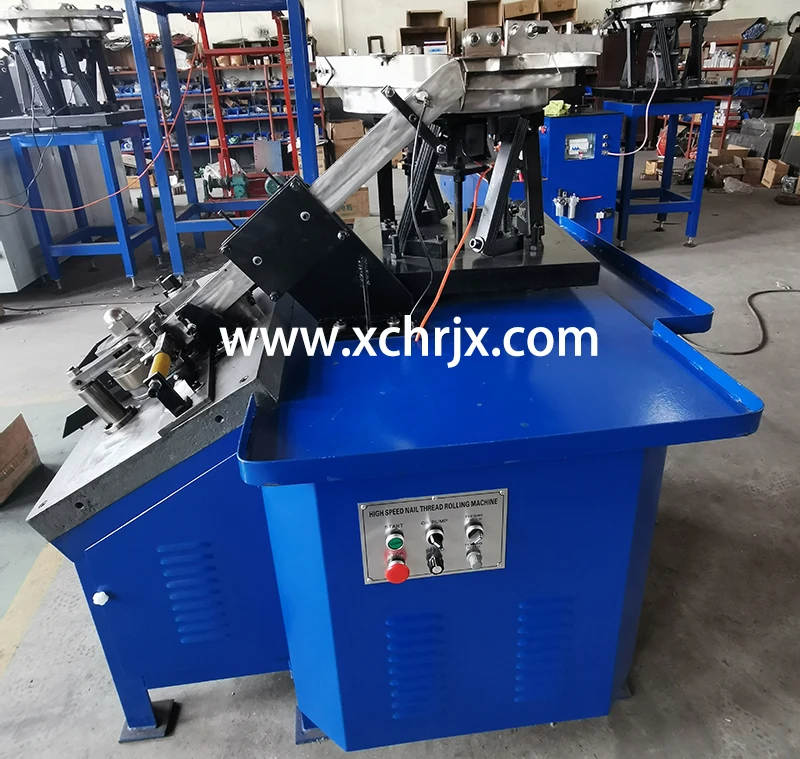

3. High speed nail thread rolling machine
Function: This machine is equipped with professional molds, can produce various kinds of shaped nails.
It is mainly used to produce screw nail, spiral nail and other new type of nails.
Main technical parameters:
Model No. | GS-100 high speed thread rolling machine |
Diameter range | 1.8-4.2mm |
Length range | 25-100mm |
Capacity | 600-1000pcs/min |
Weight | 1500kg |
L*W*H | 1420*1400*1450mm |
Power | 7.5kw |

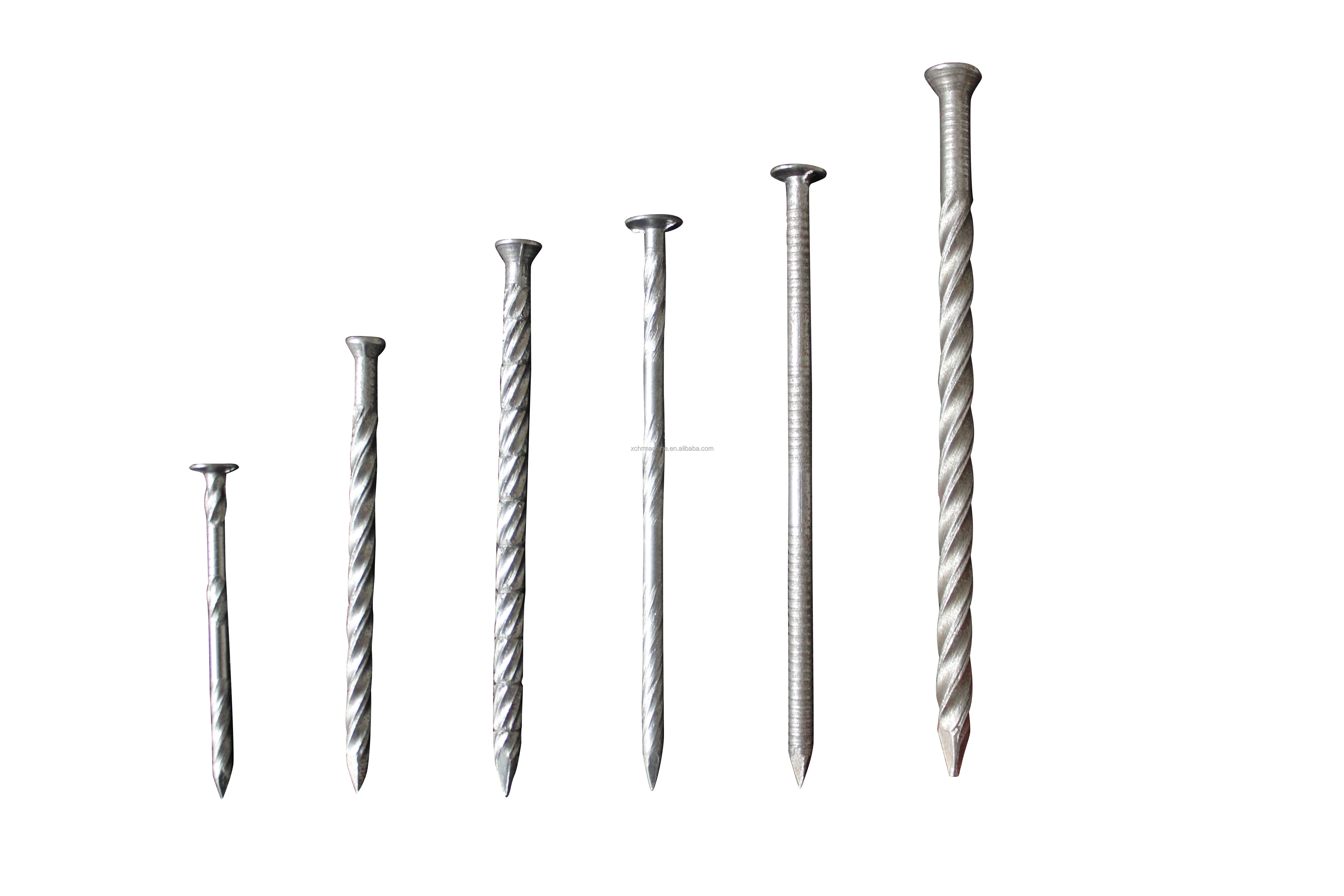

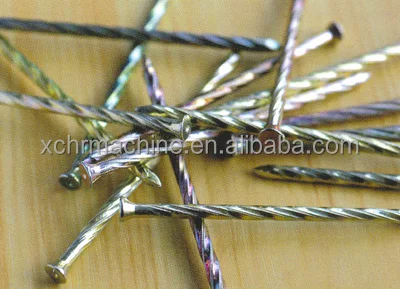

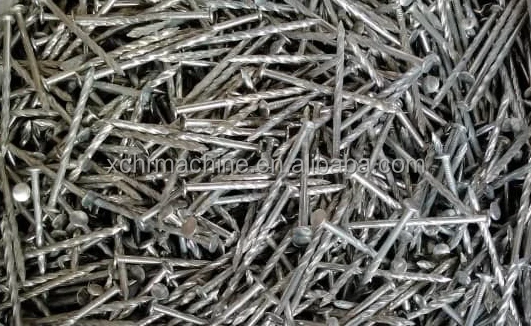

Finished twisted nails

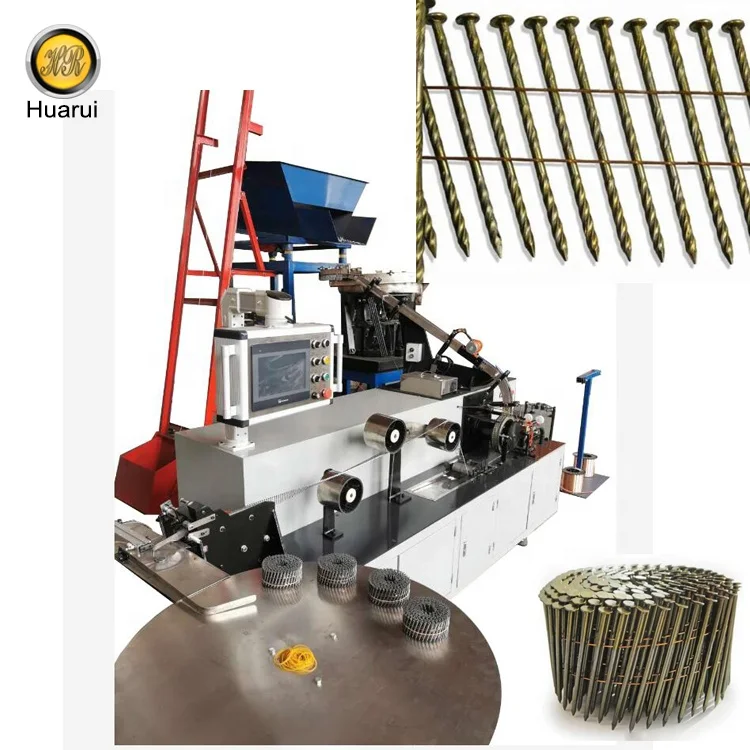

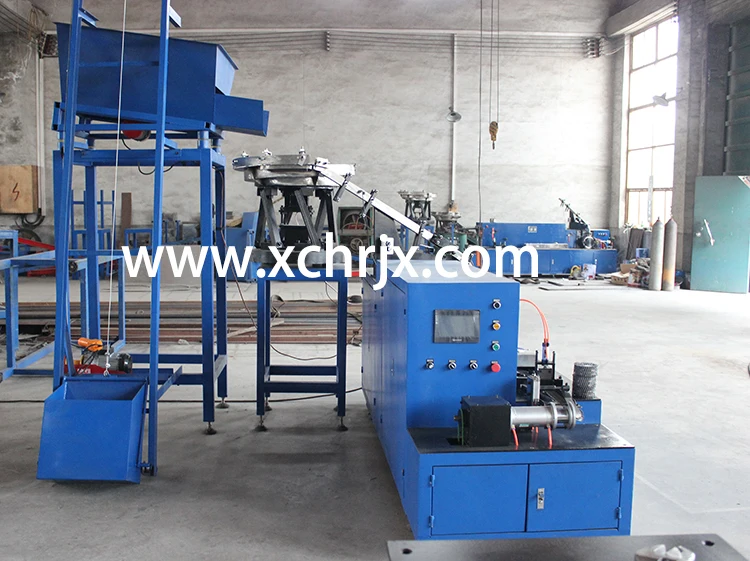

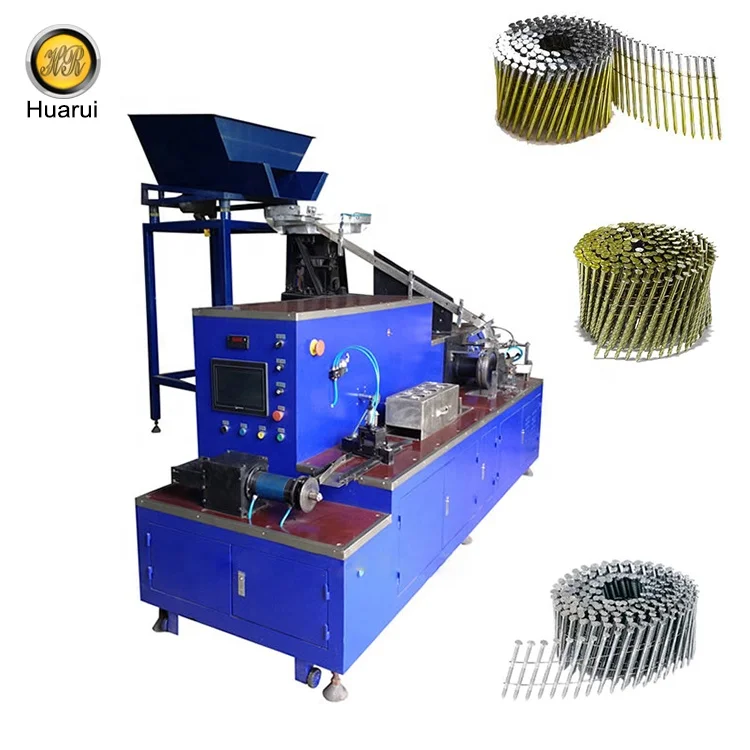

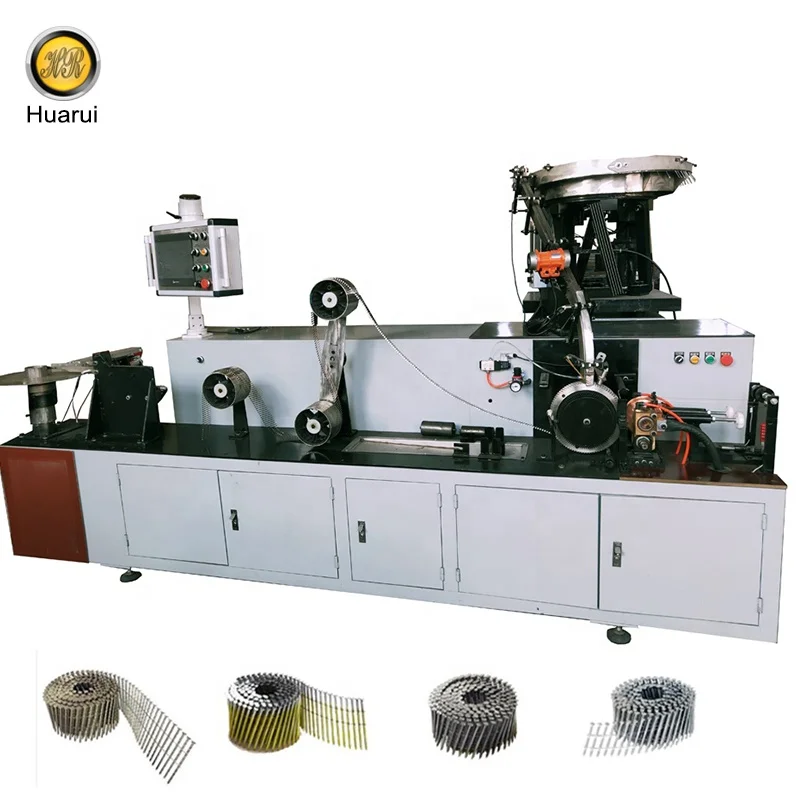

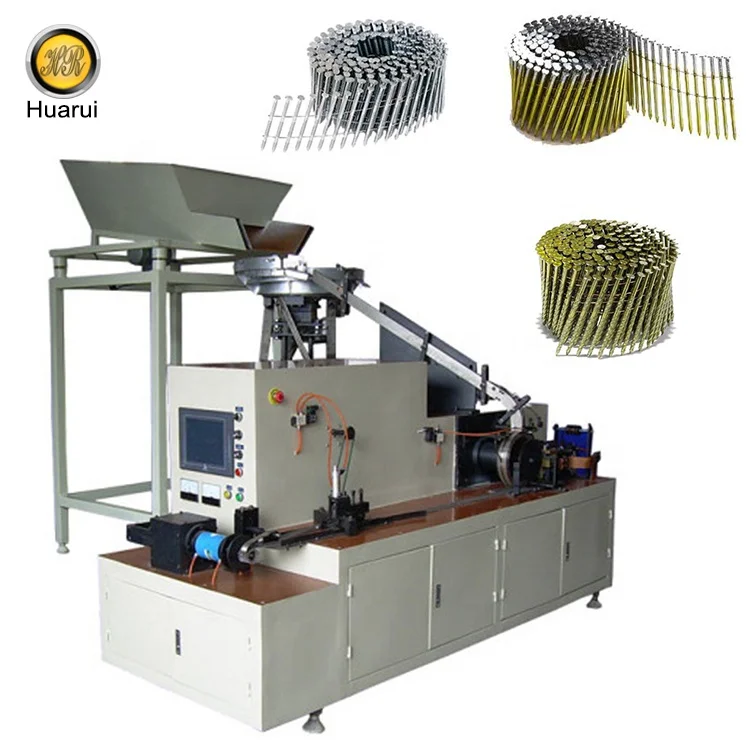

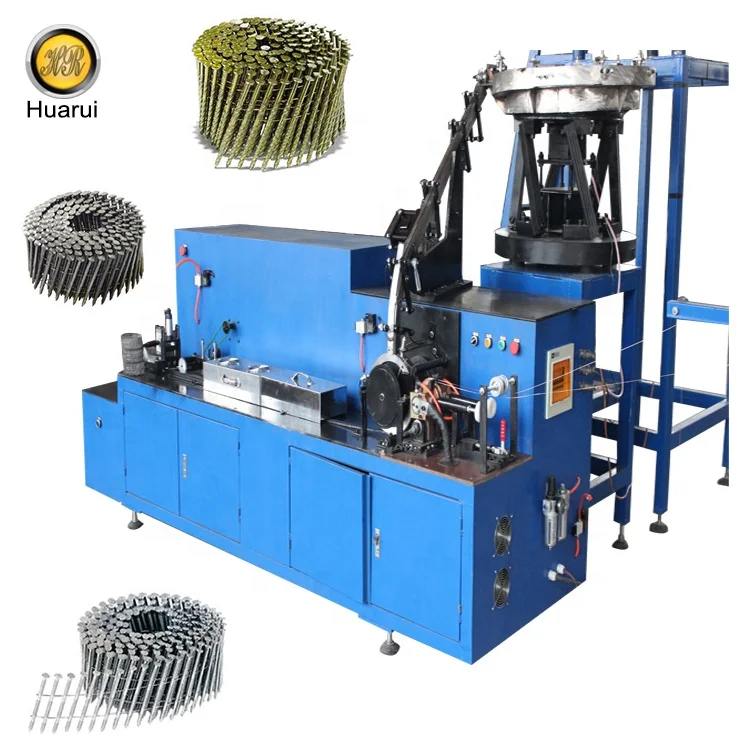

4. Coil nail welding machine
Function: The coil nail welding machine is automatic welding equipment. Put the nails to vibrating disk, the nails will get in welding wheel by feeding tracks in order, weld by two coppered wire, and then through oiled to anti-rusting automatically, drying and counting device, roll it into a dish, cutting off according to the setting quantity of per dish, finally fixed the dish by rubber ring and packing.
Main technical parameters:
Model No. | HRJ-3.5 Coil nail welding machine |
Wire Dia. | Below 4.5mm |
Nail Length | Below 130mm |
vibration disk power | 3kw, 380v |
Rated Power | 15kw |
Coil nail specification | Angle:15°/16° Quantity per roll:120~1200pcs/roll Welding wire for coil nails: 0.6mm,0.7mm,0.8mm |
Working area | 2700*850 |
Production speed | 1000-2800pcs/minute |
Dimension | 2900*1500*1800mm |
Weight | 1500kgs |

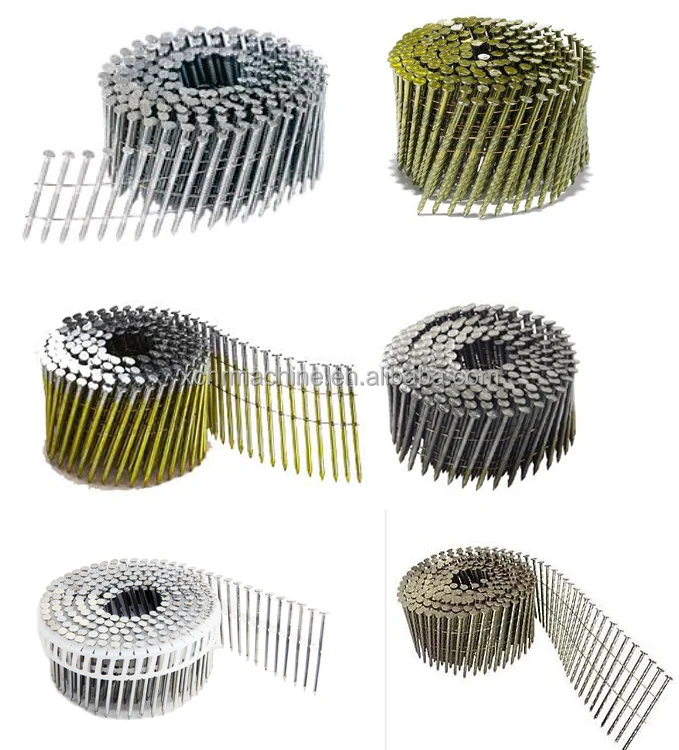

Finished coil nails

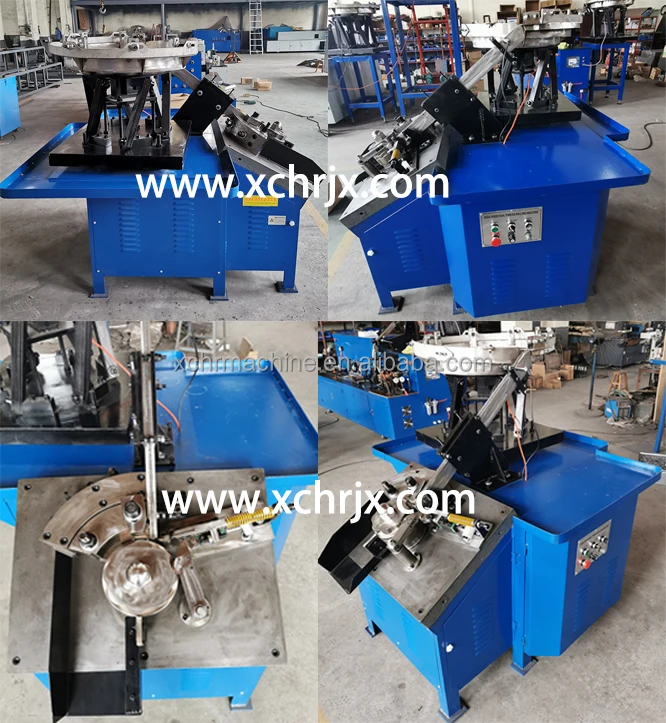

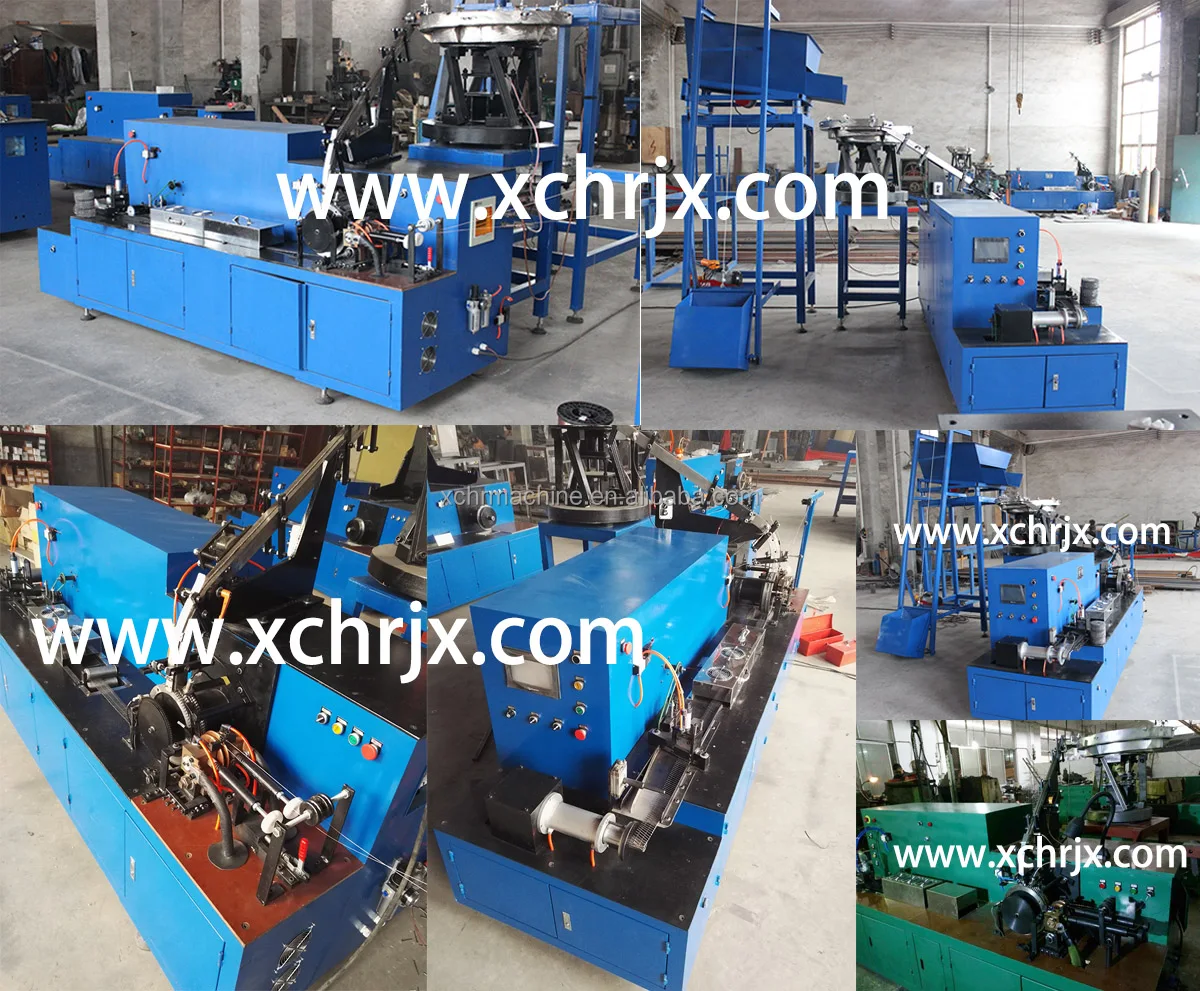

More machine pictures of Coil Nail Machinery

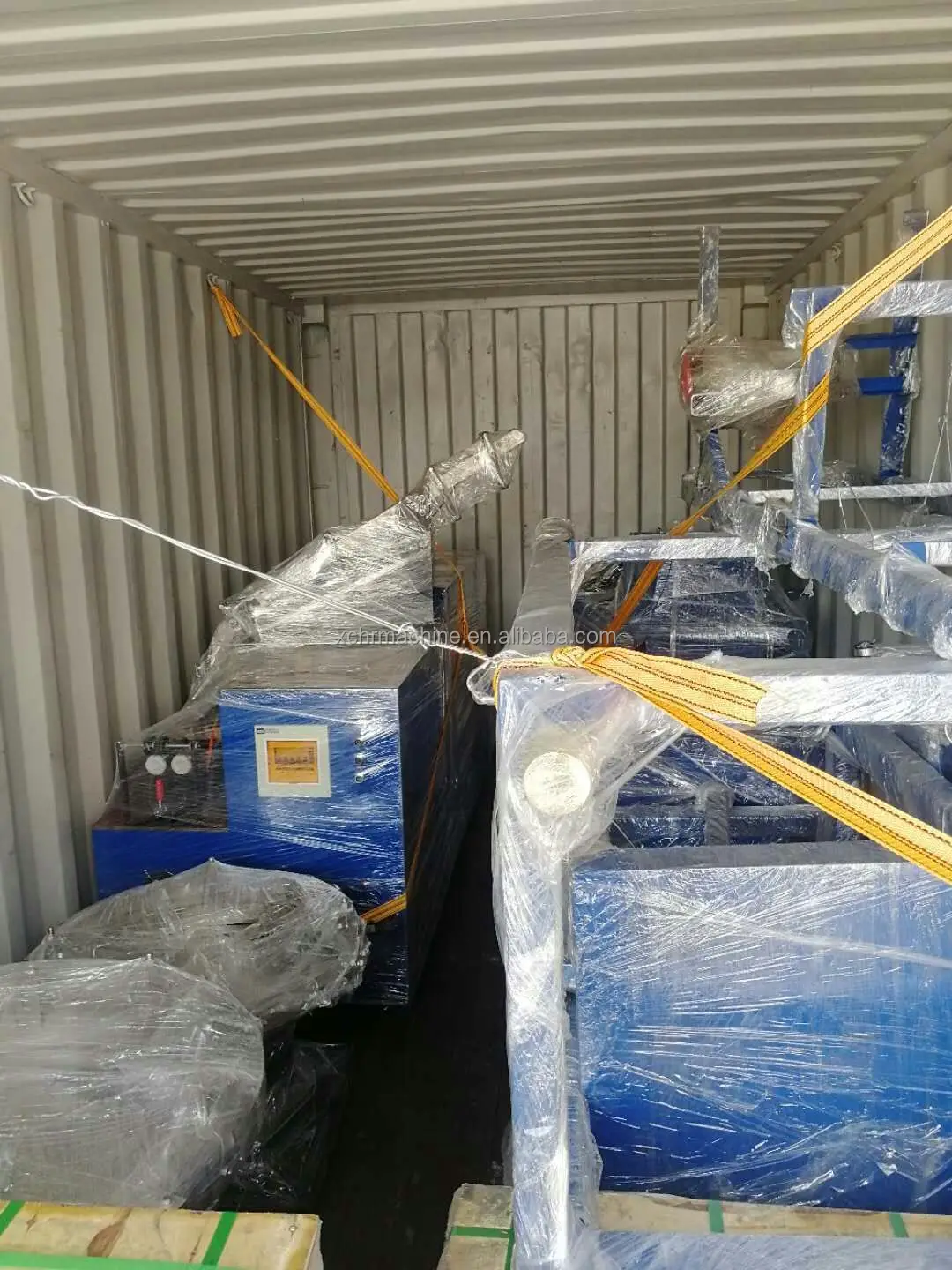

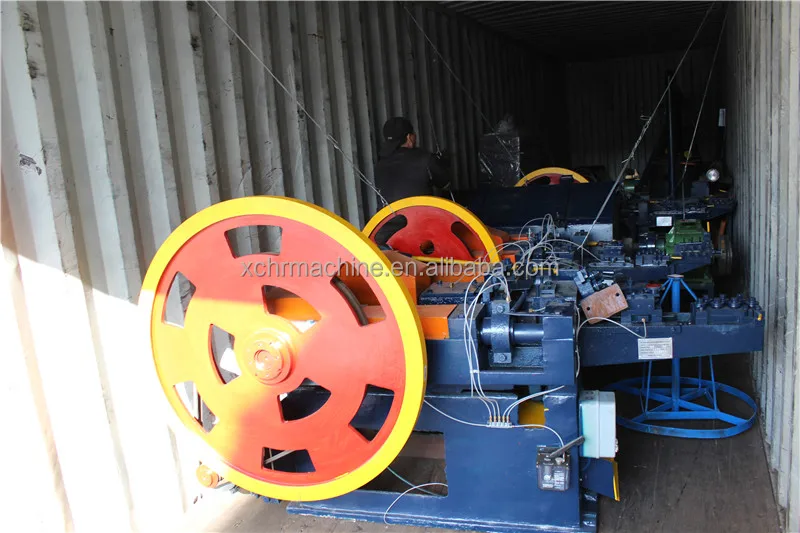

Packaging & Shipping

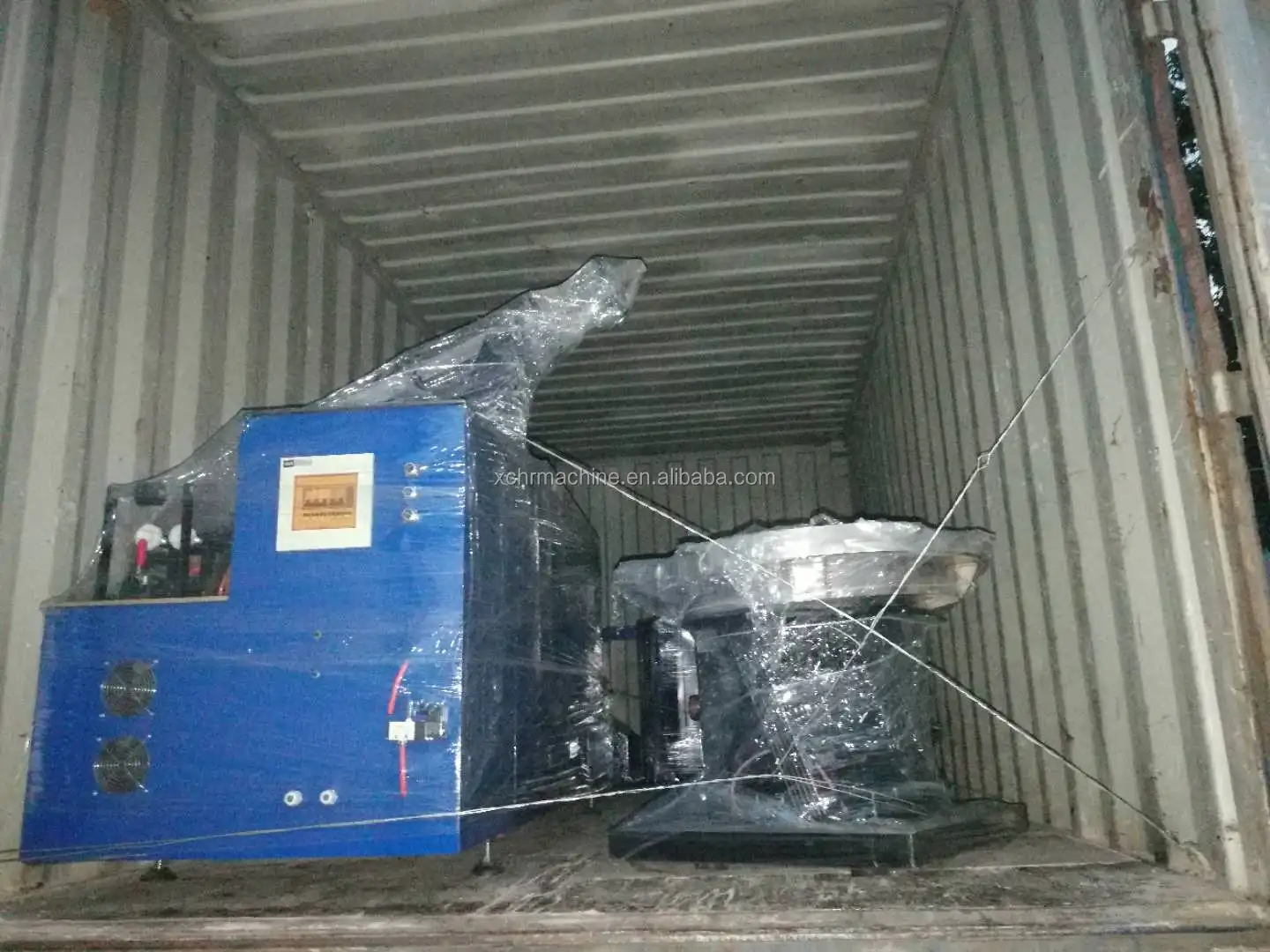

Packaging and Shipping of Coil Nail Machinery

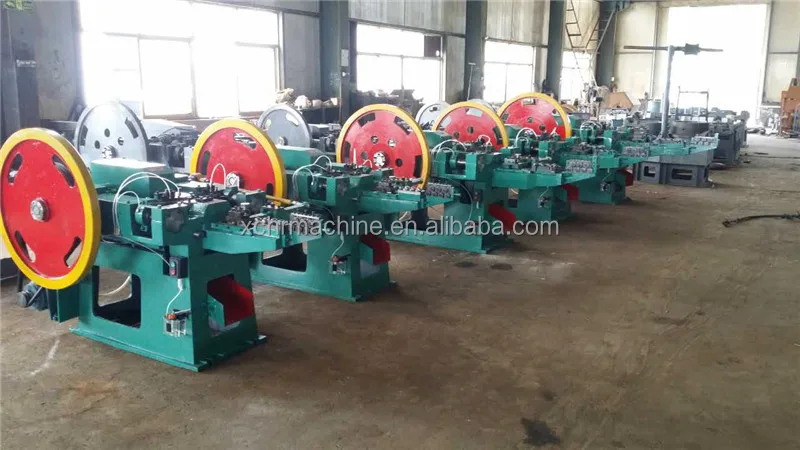

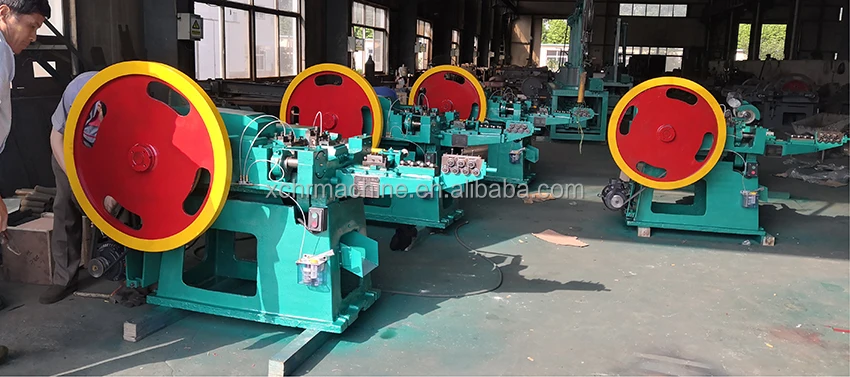

Clients show for automatic nail manufacturing machine:
Our Services
XUCHANG HUARUI MACHINERY CO., LTD
Company introduction
Xuchang Huarui Machinery Co., Ltd. was established in 1990, and already with 12 years exporting experiences. We have our own R&D team. After years of improvement and development, the machine has stable performance, convenient operation, high efficiency and speed, reasonable price and high cost performance.
After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company.
Our main products are Wire nail making machine, roofing nail making machine, coil nail making machine, wire drawing machine, nail polishing machine, screw nail making machine, thread rolling machine, and auxiliary equipment etc. Our scale of production is among the best in the profession, sales network are spread out into all over the world, and have a favorable reputation by customers. As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.
We stick to the principle of "Quality First, Customer Uppermost", and ensure quality first, service first. In order to service customers best, the warranty of all our products are two years. We are ready to join hands with our friends for establishing a bright future.
We have our own designer and technician and engineers, can also customize the machines according to your needs.
Any questions about our machines and latest prices, do not hesitate to contact us
