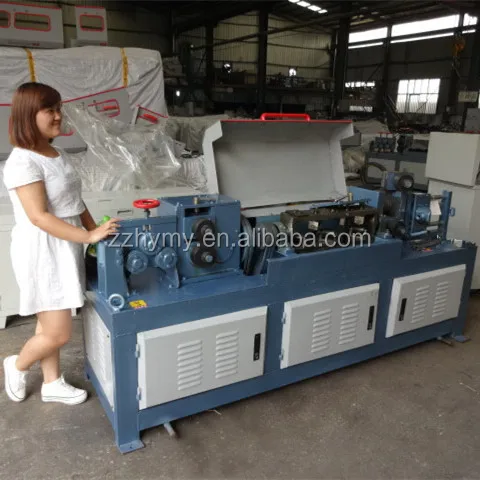

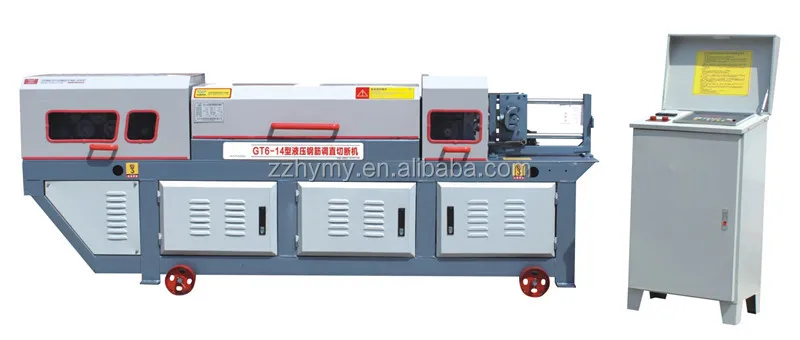

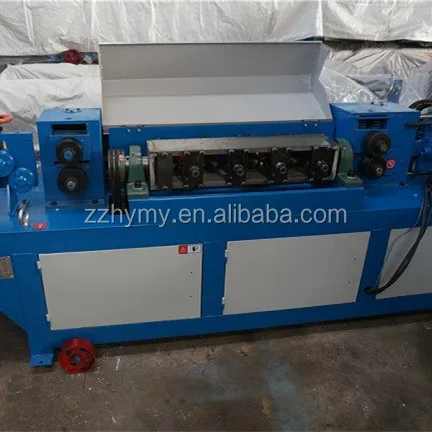

wire straight cutting machine
Product Description
Introduction of wire straight cutting machine

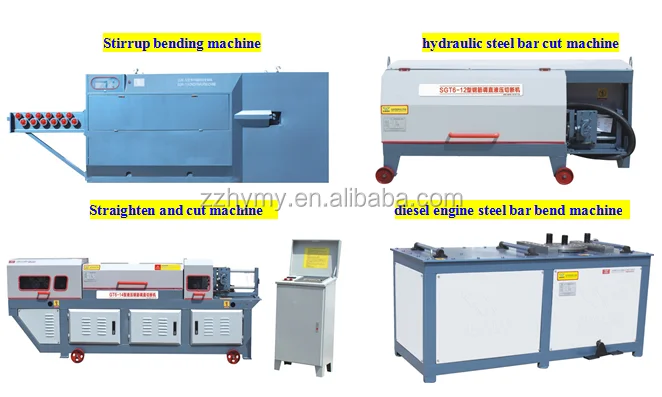

wire straight cutting machine is mainly used for straightening and fixed length cutting steel wire.It's suitable for construction cold rolled level 3 bars,cold rolled round steel bar and it also can adjustable straight hot rolled coil steel.Expect straightening and cutting machine,we also producing steel bar bending machine,steel bar cutting machine and stirrup bending machine.
Main features of wire straight cutting machine
1.A high degree of automation, Traction speed
2.Little strength loss and good straightness
3.Continuous working system
4.Equipped with automatic counting device
5.Good safety performance,easy operation and convenient adjustment
6.Blanking simple,high production efficiency
7.Wire rod surface with almost no scratches after straightening
Technical parameters of wire straight cutting machine
| Model | GT4-12 | GT6-14 |
| Diameter range | Φ4-Φ12mm | Φ6-Φ14mm |
| Wire drawing speed | 45-52m/min | 52m/min |
| Wire specified length | 400-12000mm | 500-9000mm(can be lengthened) |
| Cutting length error | ±1mm | ±1mm |
| Wire straightening degrees | ±2mm/m | ±2mm/m |
| Traction motor power | 7.5KW-4pole | 11KW-4pole |
| Oil pump motor power | 4KW-4pole | 5.5KW-4pole |
| Weight | 1300kg | 1500kg |
| Size | 2100*800*1100mm | 2900*800*1100mm |
Raw wire coils to final straight wire

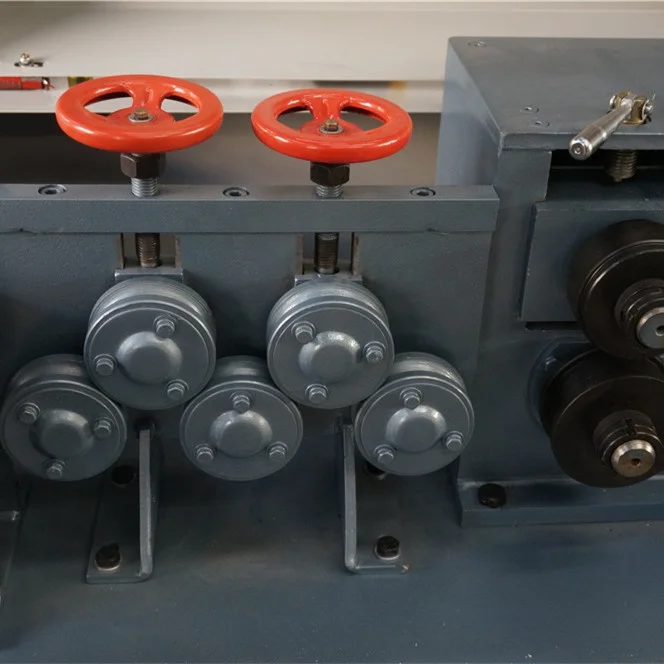

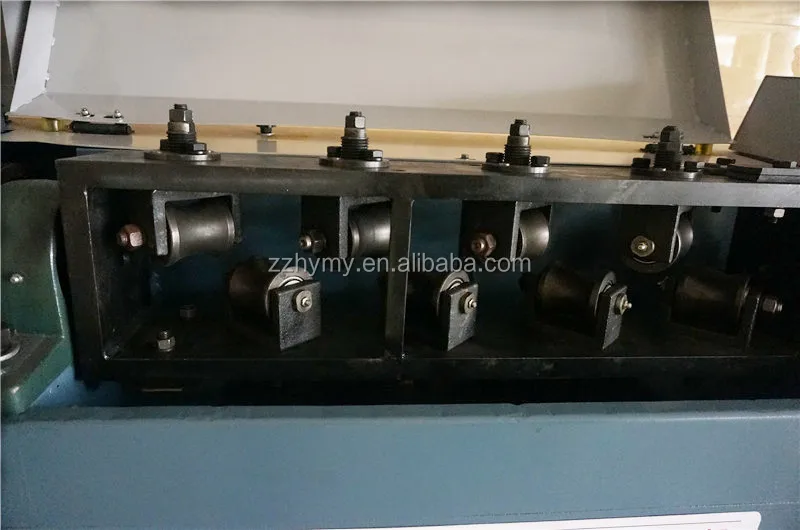

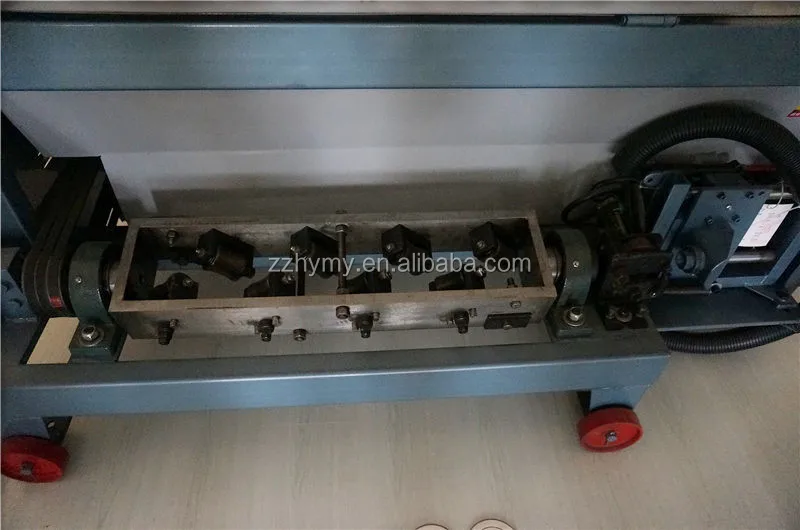

Straightening parts of wire straight cutting machine

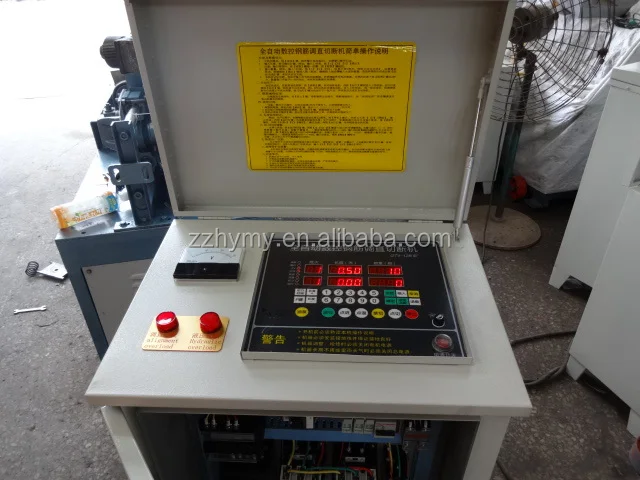

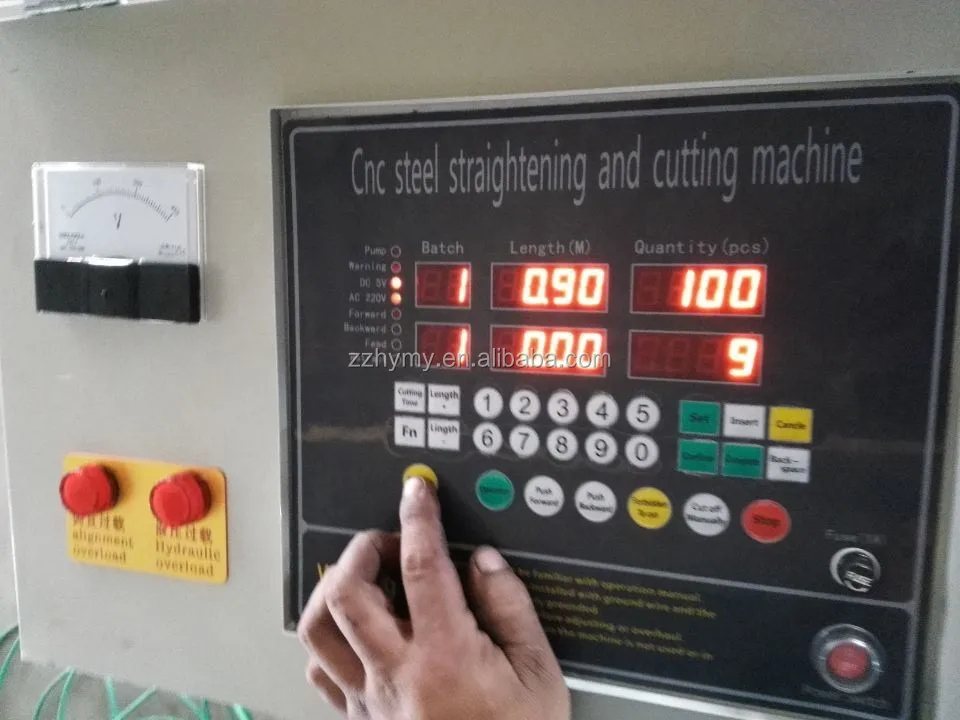

Control parts of wire straight cutting machine

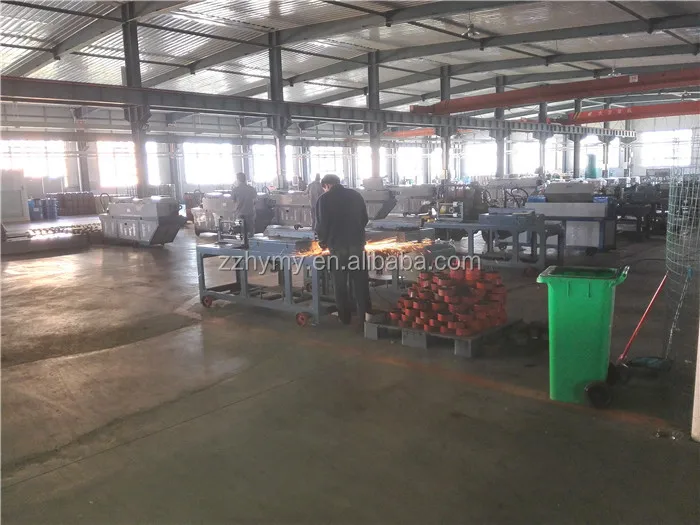

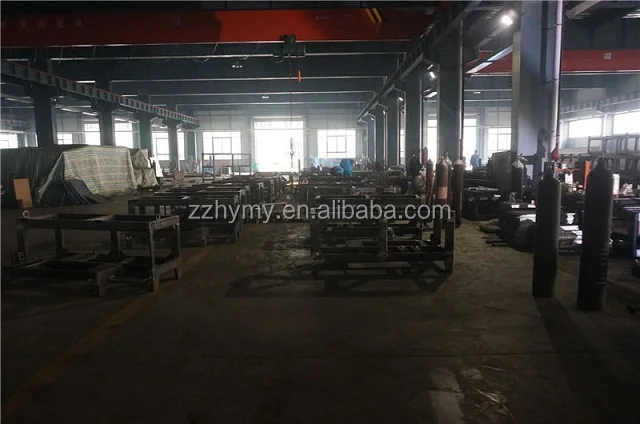

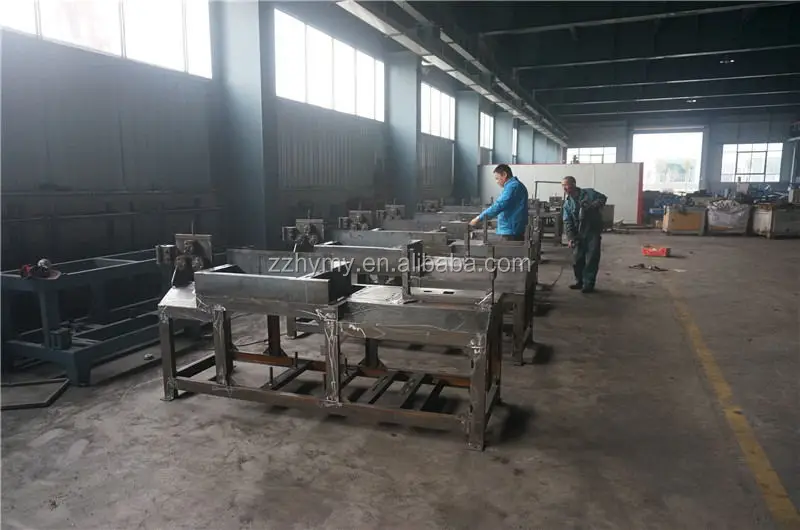

Pictures in workshop
Packaging & Shipping
Company Information
GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China
Our main markets is Bulgaria, Canada, Argentina, Brazil, Malaysia, India, Vietnam, Kenya, South Africa.Our goods get good comments from our clients. Our principle is to offer best price of goods with best quality.
FAQ
Q:Quick wear parts of straightening and cutting machine
A:material feeding part; straightening wheels; traction wheels; cutting blades
Q:Application scope of straightening and cutting machine
A:hot rolled steel
cold rolled steel
low carbon steel
copper wire up to Φ6mm
Q:System of straightening and cutting machine
A:Hydraulic
Q:Functions of straightening and cutting machine
A:1. Unwinding steel from the coils
2. Straightening steel
3. Cleaning surface of steel
4. Cutting into length (according to the established length)
