Профессиональная вакуумная паяльная станция YIHUA 993D с горячим воздухом
- Категория товара: >>>
- Поставщик (Оптовый магазин): Guangzhou,Yihua,Electronic,Equipment,Co.,Ltd.Guangzhou,Ltd.
Поделиться:
Описание и отзывы
Характеристики

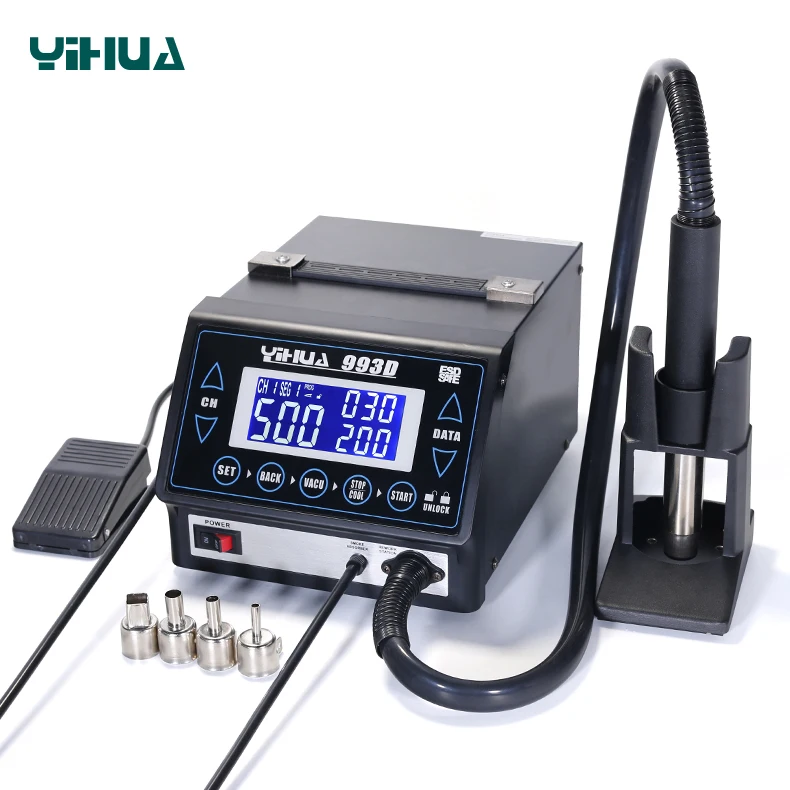

YIHUA 993D professional vacuum suction hot air solder bga rework station
Features

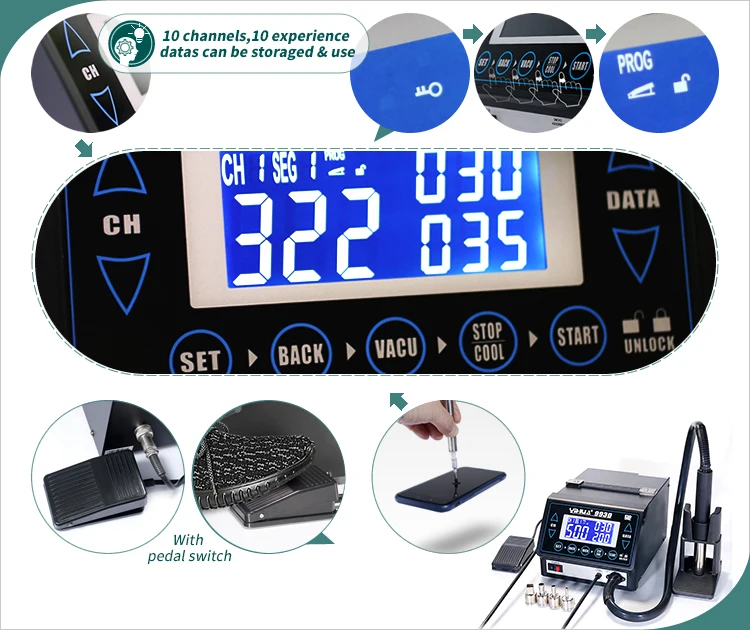

1. Using the touch-screen design, easy to use and quick fashion.
2. Non-programming style:

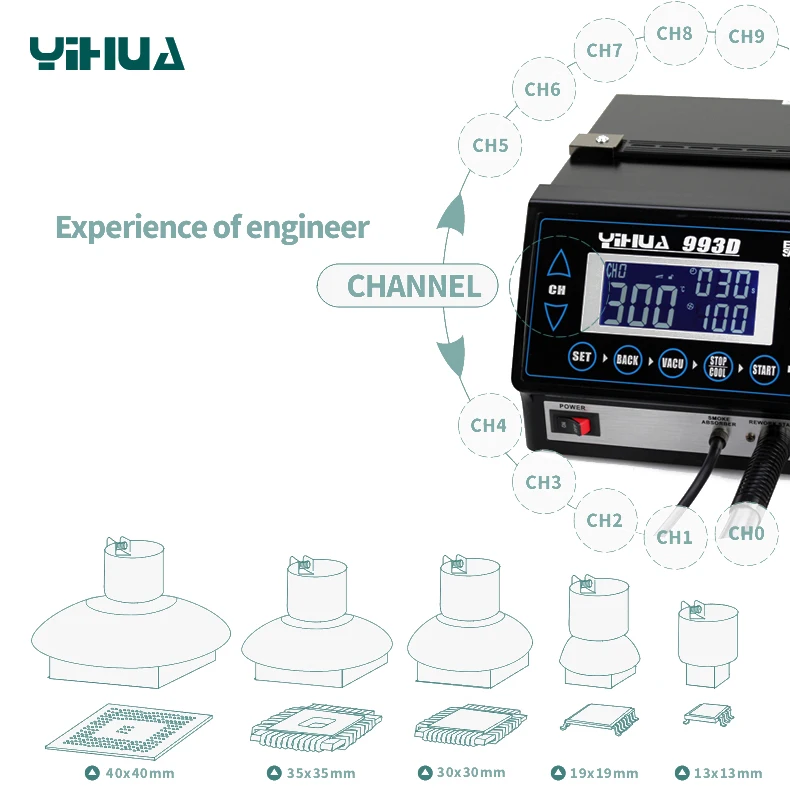

1) Has ten working channel CH0 ~ CH9 can store various parameters, quickly select parameters according
to IC type.
2) Each channel has time to work, air flow, temperature three parameters, set the parameters according
to IC type, time is set to 0 can not afford to startthe machine.
Specification
power | 1300W |
Voltage range | 220v-240v,50-60Hz |
TEMP . range | 100℃~500℃ |
Working time range | 000-999 secs.(“---“shows not controlled by working time) |
Air volume ratio range | 6-200 |
Max .air | 120L/min |
Size(L X H X W) | 230 X 205X170mm |
Weight (including the handle) | 5.5KG |
Working condition | 0-40℃/32-104℉ |
Storage condition | -20-80℃/-4~176℉ |
Storage humidity | 35%~45% |
Functional comparison table
Model |
993D |
993D+ |
993D+ upgrade version |
Display | LCD Display | LCD Display | LCD Display |
Fahrenheit/Celsius | YES | YES | YES |
Control mode | Digit PID | Digit PID | Digit PID |
Screen saving function | YES | YES | YES |
No air protect | YES | YES | YES |
Programming mode | NO programming | programming | Programming/ NO programming |
