Product Description

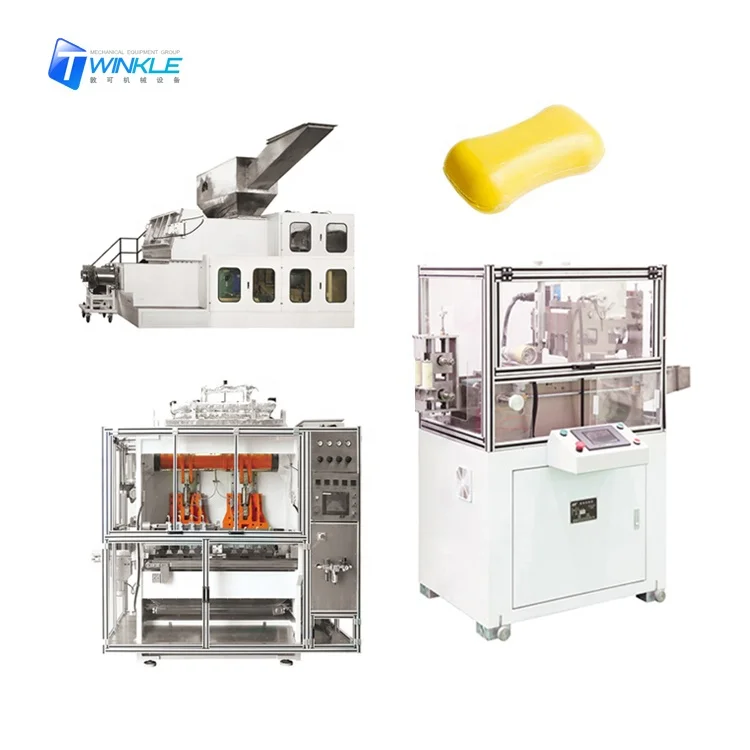

TK-A12 SOAP MAKING MACHINE / SOAP MACHINE

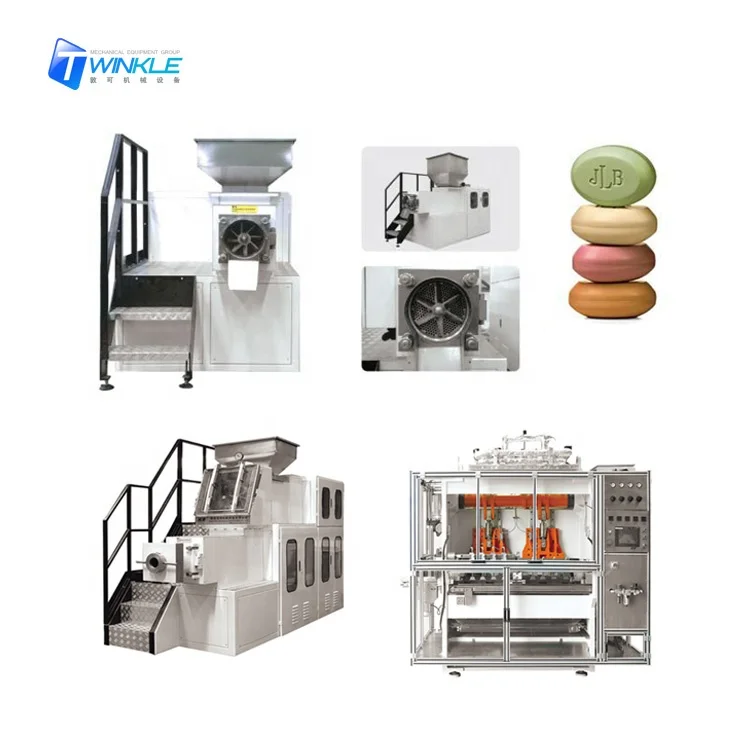

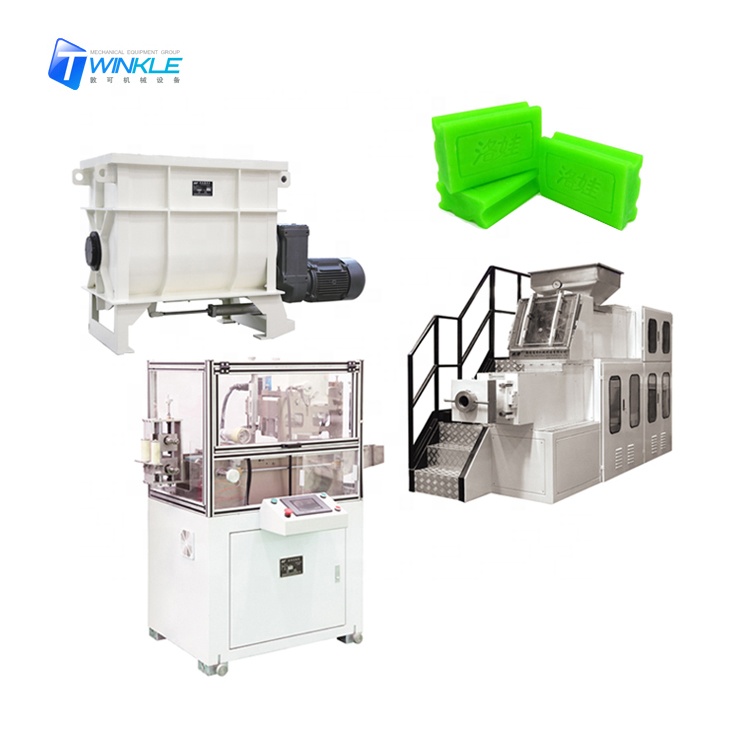

This soap production line regard soap noodles as raw materials or palm oil .The production starts with mixing soap noodles or palm oil . Then the mixed soap noodles enters in the three roller mill by conveyor belt, where soap thin sheets are made. The soap thin sheet then converted into desired long strip soap by the plodder machine.Then the long strip soap are cut into the soap bars required size by cutting machine(there are two kinds of cutting machine.One is mechanical.The other is automatic).Finally, the soap bars gets packed by packing machine if needed.
CAPACITY | 500KG/H |
MATERIALS | SOAP NOODLES ( SOAP GRAINS ) |
WORKSHOP MIN LENGTH * WIDTH | L 26M * W 5M * H 3.5M (include pillow wrapper) |
TOTAL POWER | 40KW 380V 60HZ |
WATER REQUIRED | 1T CIRCULATE WATER |
OPERATOR REQUIRED | 4-5 PERSON |
RAW MATERIALS REQUIRED | 500KG/H |

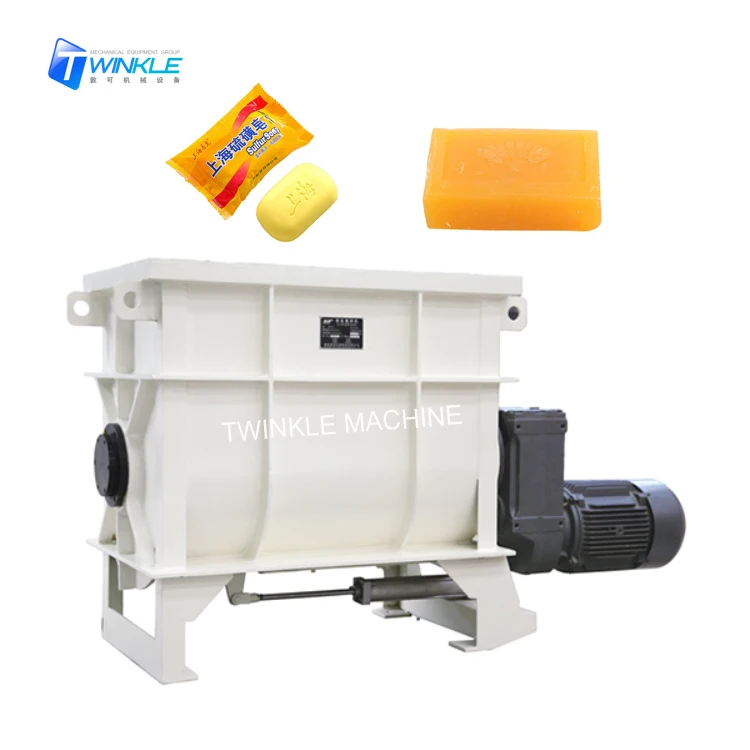

Mixer
One mixing shaft with two mixing paddles is driven by the motor through the gear box and rotating continuously to mix soap noodles, flakes are mixed with all kinds of liquid and solid ingredients inside the mixer chamber. After the mixing, products are discharged through air cylinder controlled discharging door.
Capacity: 100kg
Rotating Speed:37rpm
Mixing Time:4-6min
Motor Power:11kw
Dimensions: 2000x710x1100mm

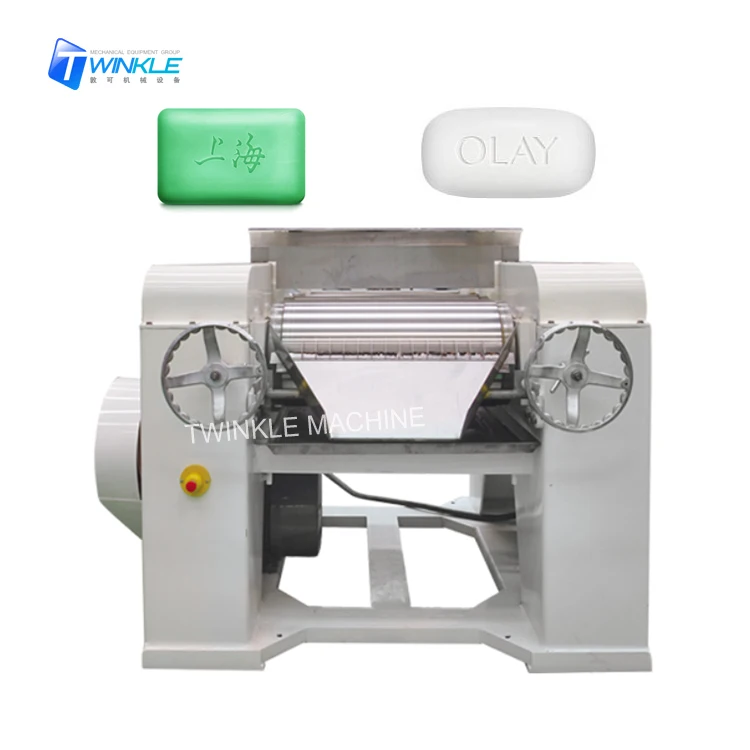

Three Roll Mill
The Three Roll Mill is used for soap refining. Three rolls are horizontally placed with different rotating speeds. The refining function is achieved by pressing and squeezing force between the adjacent rolls.
Capacity (Kg/h): 300~500
Roll Diameter (mm): 260
Roll Length (mm): 675
Power (KW): 7.5
Dimensions(LxWxH,mm): 1680x1320x1100
Weight (kg): 2368
Roll Diameter (mm): 260
Roll Length (mm): 675
Power (KW): 7.5
Dimensions(LxWxH,mm): 1680x1320x1100
Weight (kg): 2368

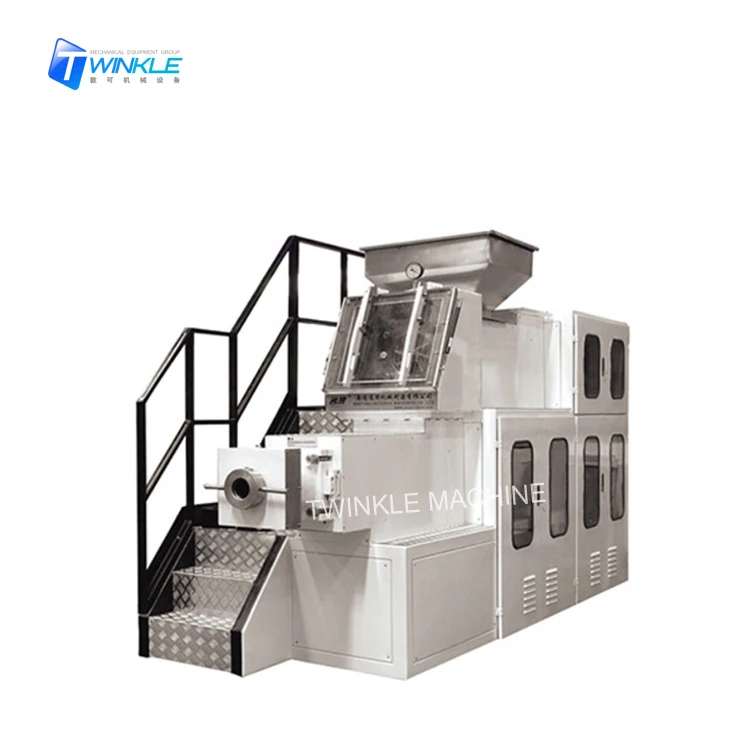

Duplex Plodder
This machine has two stages, driven by independent transmission system. The first plodder is acting as a simplex refining to make soap pellets in the vacuum condition. In the final plodder, the soap is pressed and extruded out in billets through the orifice to feed the downstream cutter or stamper.
Capacity (Kg/h):500
Screw Diameter(mm):200
Screw Speed(rpm):22
Motor Power (KW):7.5+15
Dimensions(LxWxH,mm): 3397x1340x2376
Weight (kg):3760
Screw Diameter(mm):200
Screw Speed(rpm):22
Motor Power (KW):7.5+15
Dimensions(LxWxH,mm): 3397x1340x2376
Weight (kg):3760

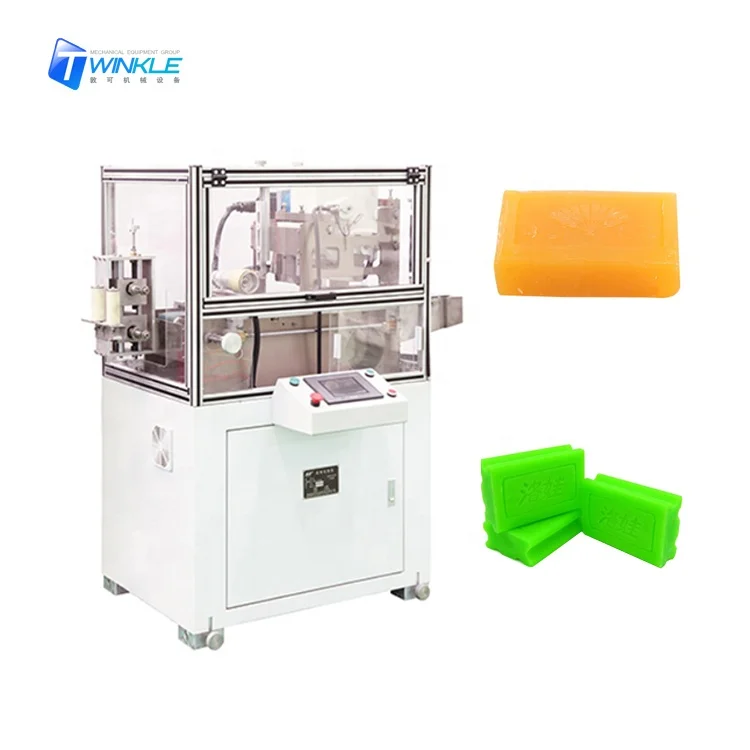

Stamper
This machine is the downstream soap shape forming machine in the soap production line．The transmission part has been enhanced to enforce the stamping. And the biggest soap can be 300g.
Speed (bpm): 50-120
Soap Weight (g): 10-300
Power (KW): 3
Dimensions(LxWxH,mm): 1450x950x1150
Weight (kg): 1200
Soap Weight (g): 10-300
Power (KW): 3
Dimensions(LxWxH,mm): 1450x950x1150
Weight (kg): 1200
