Газовая печь для отверждения порошкового покрытия
- Категория товара: Metal Coating Machinery >>>
- Поставщик (Оптовый магазин): Hangzhou,Color,Powder,Coating,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

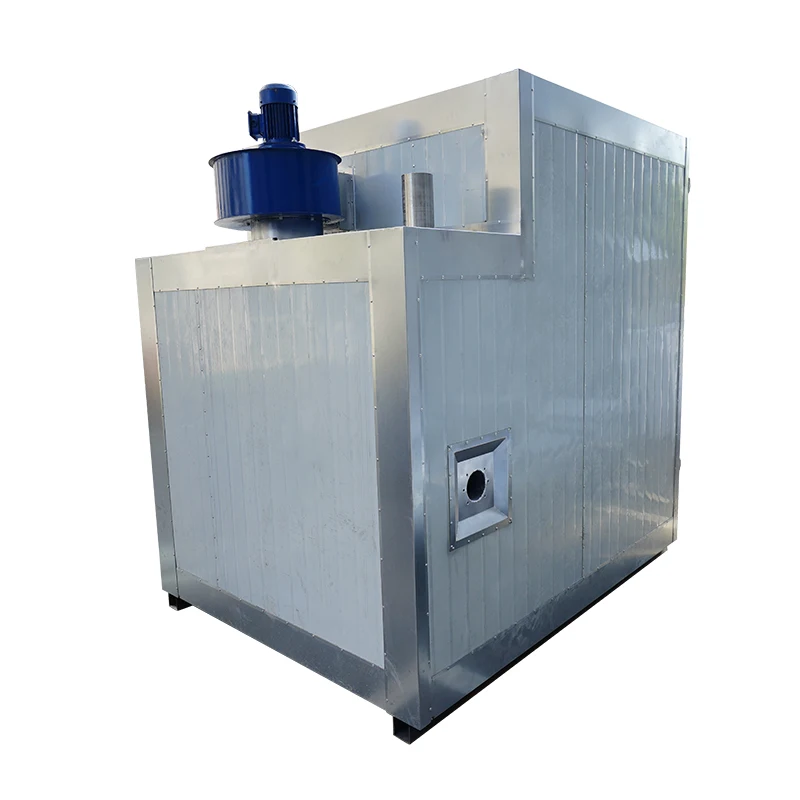

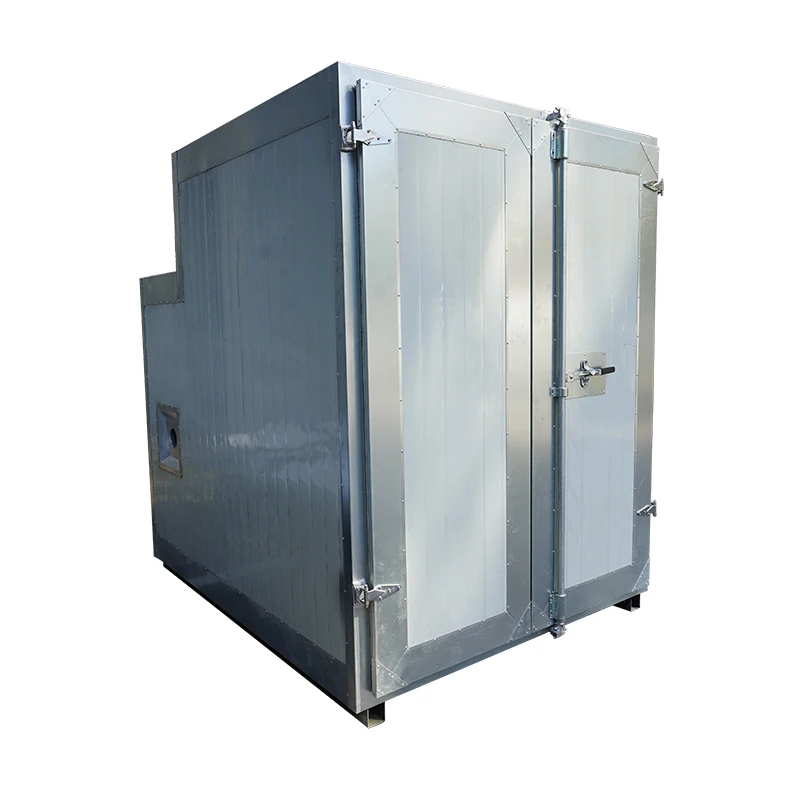

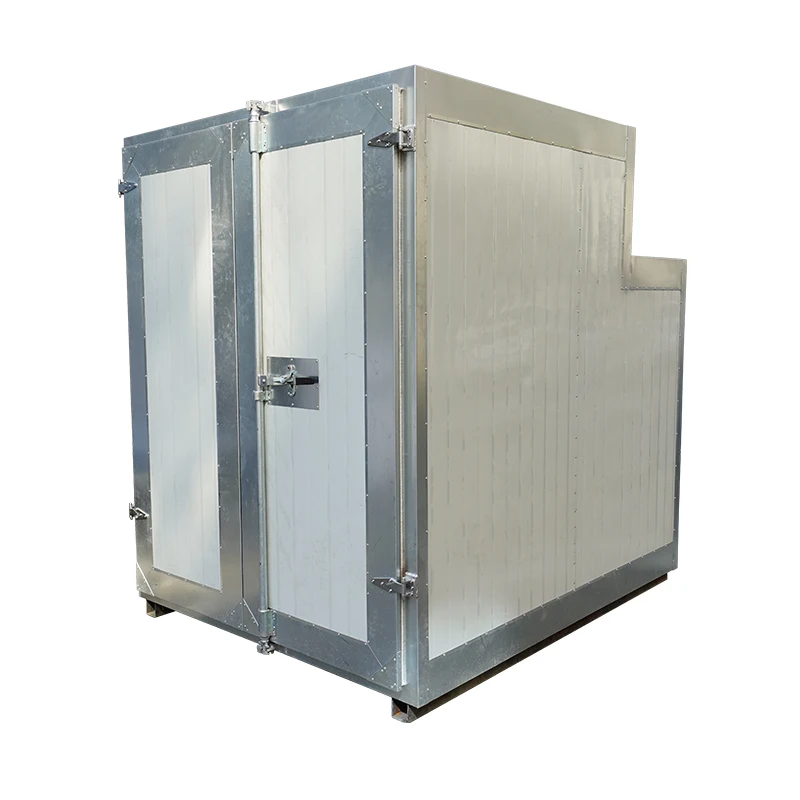

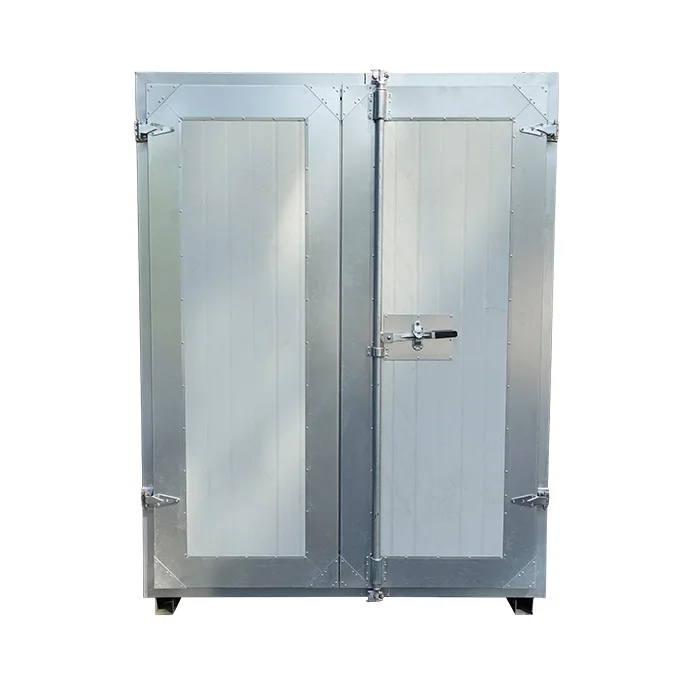

Gas fired powder coating oven
1,COLO gas curing ovens are designed to safely and efficiently cure previously applied to powder coating.
2, Our energy-efficient designs get to temperature quickly and saves fuels
3,Standard and custom sizes range from small workshop units to large plant equipment ovens and conveyorized curing systems.
4. Indirect fired heaters deliver clean, breathable heated air to the entire chamber, causing higher quality cured effect.
Gas fired Powder Coating Oven Features
1. PLC Precise temperature control, furnace tolerance of +/- 3 degrees Celsius.
2. Riello Gas Burner fully burns of fuels, increase heating efficiency.
3, Indirect heating system uses heat exchangers, made of seamless steel tubes 8x8 array, use the combustion liner 310S stainless steel seamless pipe thickness of 3-4mm.
4, Heat-resistent circulation fan creates a closed-round clean efficient heat circulation system
5,All our batch powder coating ovens feature premium 100mm thick insulated wall and roof panels, ensures consisten high temperature
2. Riello Gas Burner fully burns of fuels, increase heating efficiency.
3, Indirect heating system uses heat exchangers, made of seamless steel tubes 8x8 array, use the combustion liner 310S stainless steel seamless pipe thickness of 3-4mm.
4, Heat-resistent circulation fan creates a closed-round clean efficient heat circulation system
5,All our batch powder coating ovens feature premium 100mm thick insulated wall and roof panels, ensures consisten high temperature
Circulation Fan
PLC Control
RIELLO Burner

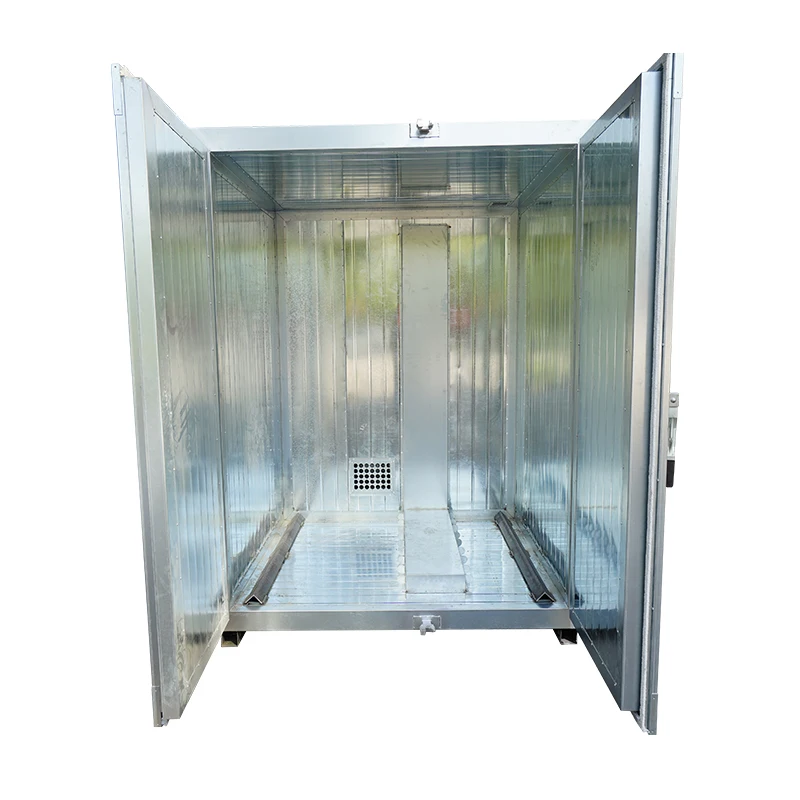

Inner Wall made of 1mm galvanized steel
Bottom track for trolley system
Specification
Model | colo-1864 |
Worksize dimensions | Width1600 x Height1800 x Depth1400 mm |
Power supply | Gas |
Voltage/Frequency | 380V(50-60hz) |
Warm-up time | 15-30 min. (180° C) |
Temperature stability | < ± 3.0-6°C |
Temperature max. | 250° C |
Burner | Italy Riello, 50,0000cal |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Ventilation performance | 1131-2565m3/h |
Motor power | 0.75kW |
Warranty | 12 months |

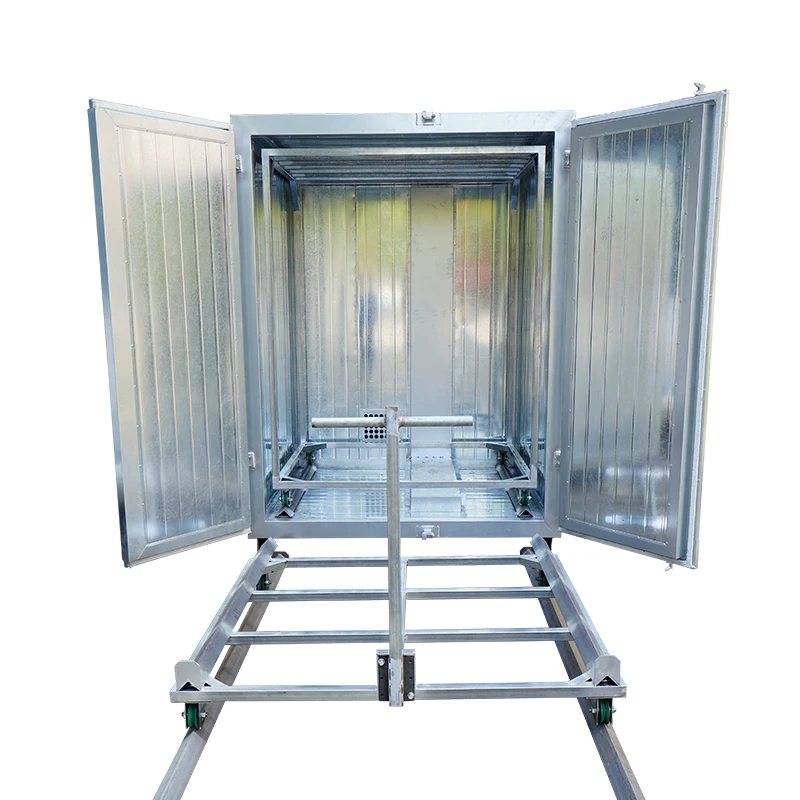

Gas fired powder coating oven cart system
Standardly equipped with two carts:
Internal cart supplied in the form of a frame with high temperature bearings, designed for loading workparts participating in curing process inside the oven.
External cart is used to carry the internal cart for loading and unloading process.
Benefits:
Internal cart supplied in the form of a frame with high temperature bearings, designed for loading workparts participating in curing process inside the oven.
External cart is used to carry the internal cart for loading and unloading process.
Benefits:
- Allows batch loading of workparts with an optimal use of the entire space,
- Carrying heavy elements using a small amount of force.
- Each cart moving across the hall does not contaminate the inside of the oven. ensures high purity painted elements. - Trolley design can be customized for your production needs and convenient.
Packing & Delivery
For small parts or machines, they will be packed with carton or wooden case for good safety.
For powder coating booths, ovens or systems, we will pack with foams and films and ship into a full container.
For powder coating booths, ovens or systems, we will pack with foams and films and ship into a full container.
