Скользящее кольцо со сквозным отверстием

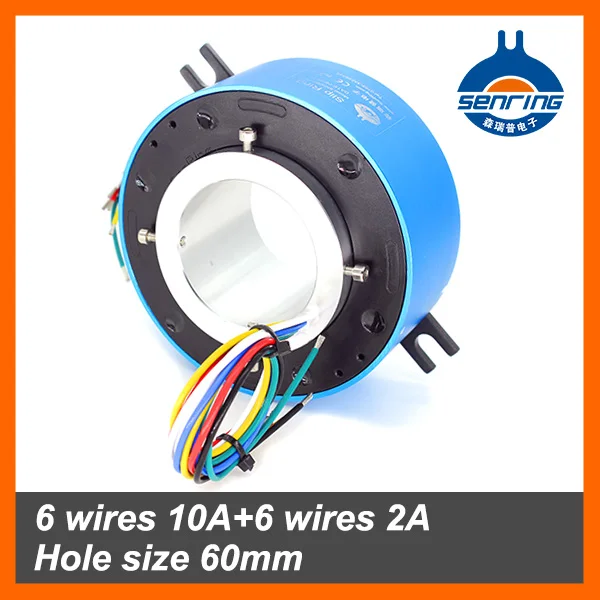

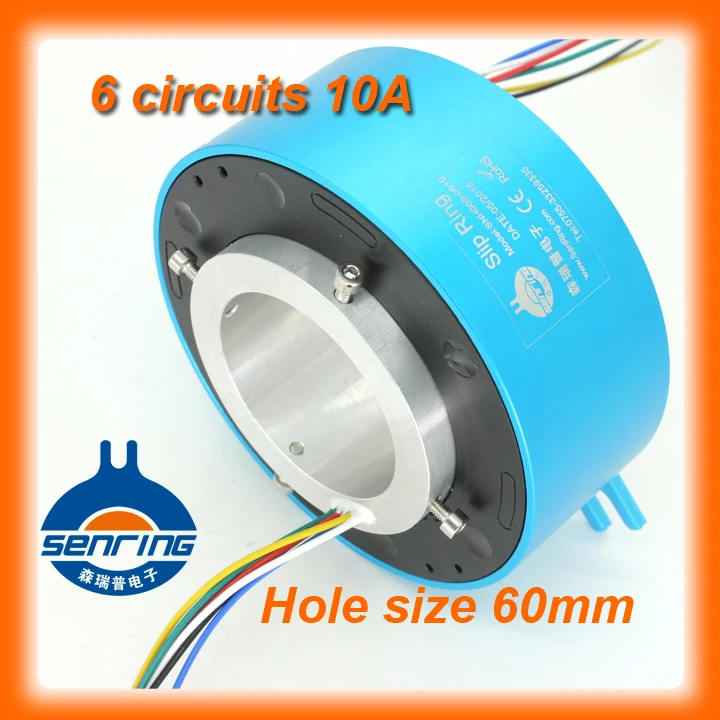

The SNH060, with 60.00mm through bore size and compact 130mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

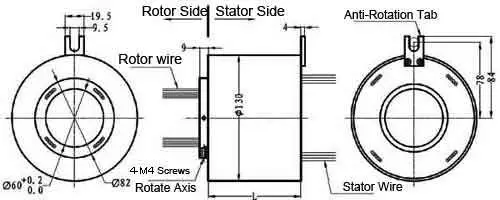

SNH060(Standard) Dimensions



SNH060 Specifications(Standard)

• Contact Material

  Precious metal brush,Silver plated rings

• Current Rating

  10A

• Number of Circuits

  6

• Operating Speed

  300 rpm* continuous

• Lead Wire

  UL Teflon® Awg28,Awg22,Awg16,Awg10 (200 mm)

• Voltage

  600 VAC

• Operating Temp.

  -40°C to 80°C

• Working Humidity

  60%RH

• Torque

  Approx. ≤9.55 g·m (for reference )

• Dielectric Strength

  ≥1000V@50Hz between each circuit

• Insulation Resistance

  1000MΩ@ 600VDC

• Noise

  Less than 60 mΩ @ 6 VDC, 50 mA, 5 rpm

• Housing Material

  Aluminum Alloy

• Protection

  IP54
