CNC цилиндрический шлифовальный станок

Категория товара: Круглошлифовальные станки >>>
Поставщик (Оптовый магазин): Zhengzhou,Timeway,Machine,Tool,Co.,Ltd.

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Description

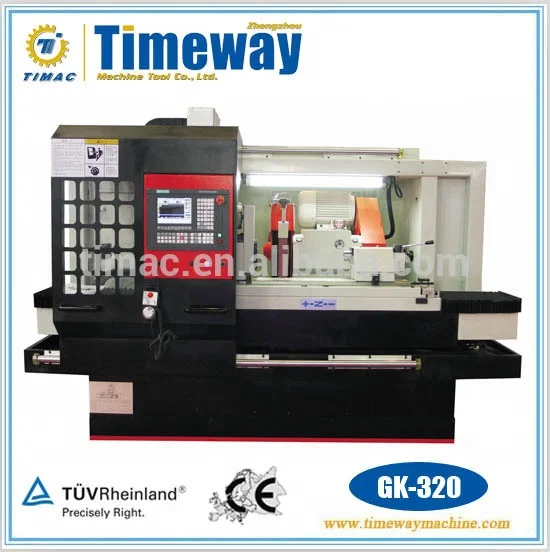

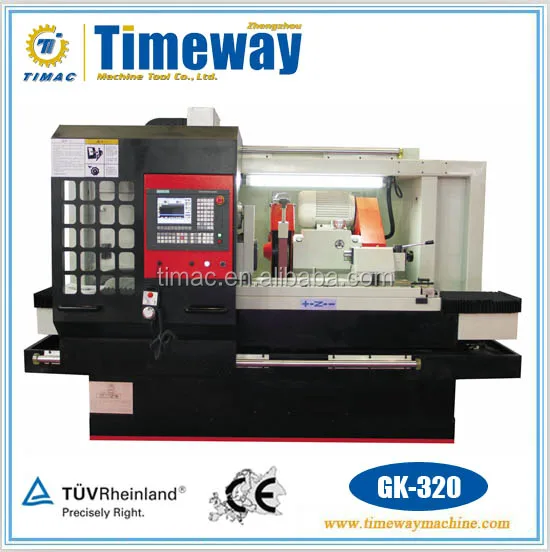

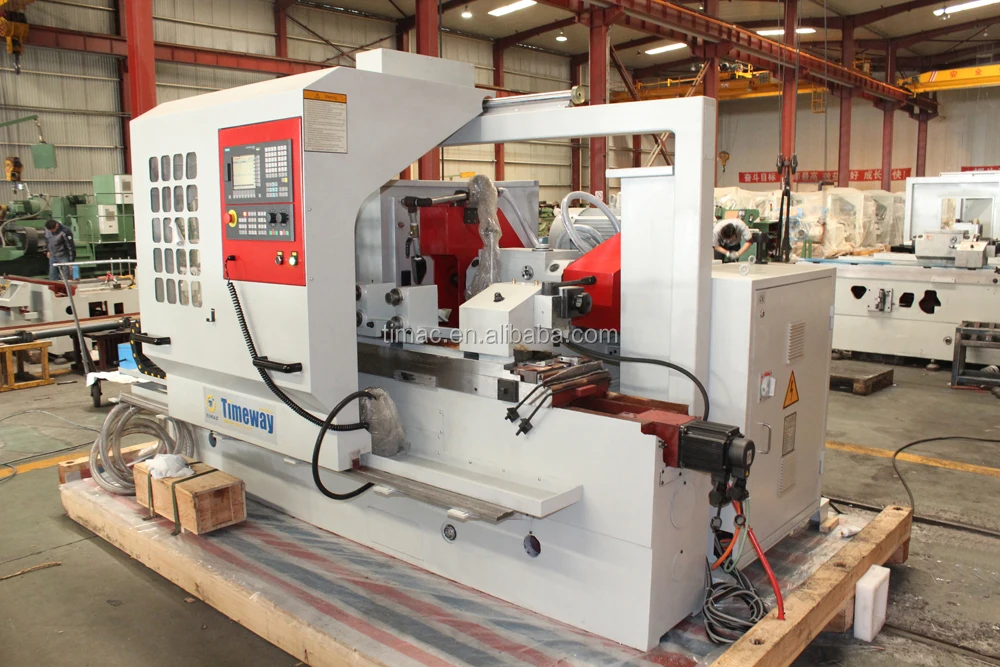

CNC Cylindrical Grinder

Parameter:

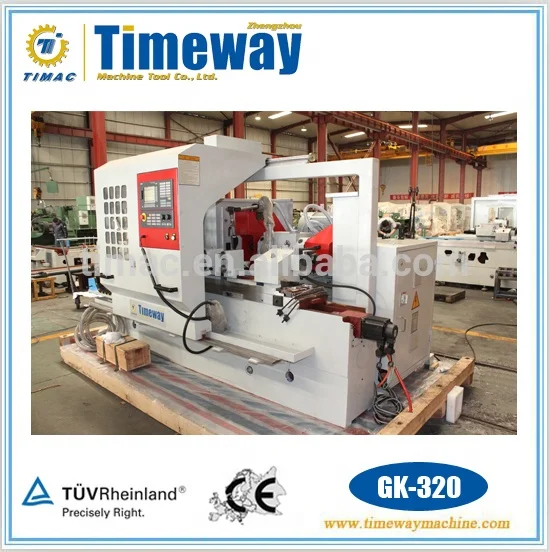

Specification		Unit	GK-200	GK-320
* General capacity
Distance between centers		mm	500,750	1000 1500
Center height		mm	135	180
Dia.ground(O.D)		mm	5-200	8-320
Max.length to be ground(O.D)		mm	500,750	1000 1500
* Workhead
Center taper(MT)		MT	4	5
Spindle speed/stepless		r/min	50HZ:25-380	50HZ:25-220
* Wheel head
Wheel size(O.D×W×I.D)		mm	500×50×203	600×75×305
Wheel peripheral velocity		m/s	35
Min. set unit		mm	0.002
* Internal grinding device
Spindle speed		r/min	----------
* Table
Max. swiveling angle of table	Clockwise	º	3º
	Anticlockwise	º	9º(500), 8º(750)	7º(1000), 6º(1500)
* Tailstock
Center taper(MT)		MT	4
Quill travel		mm	30
* Electric system

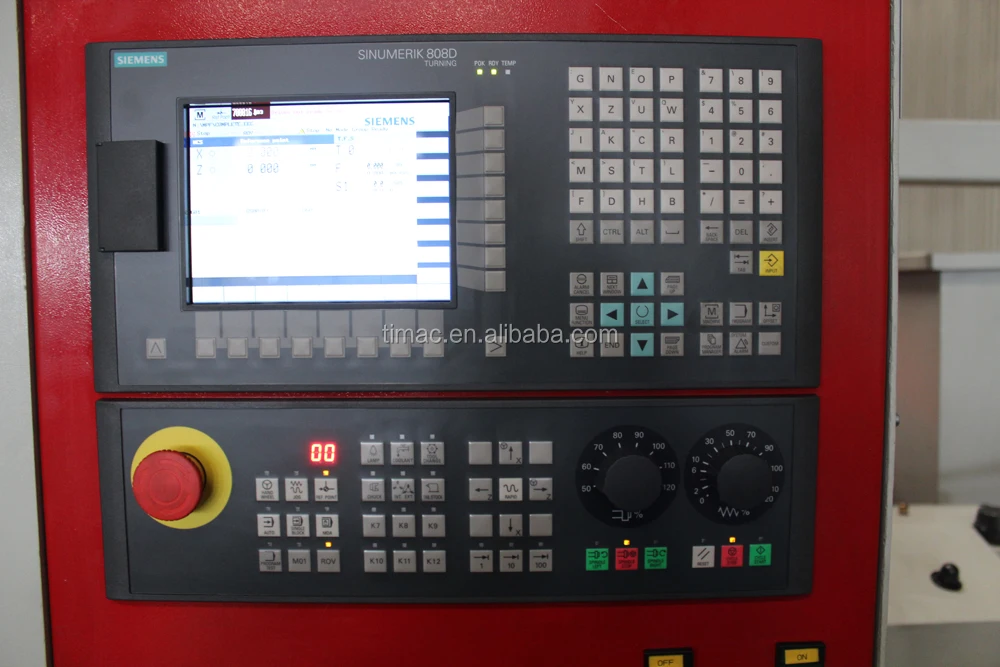

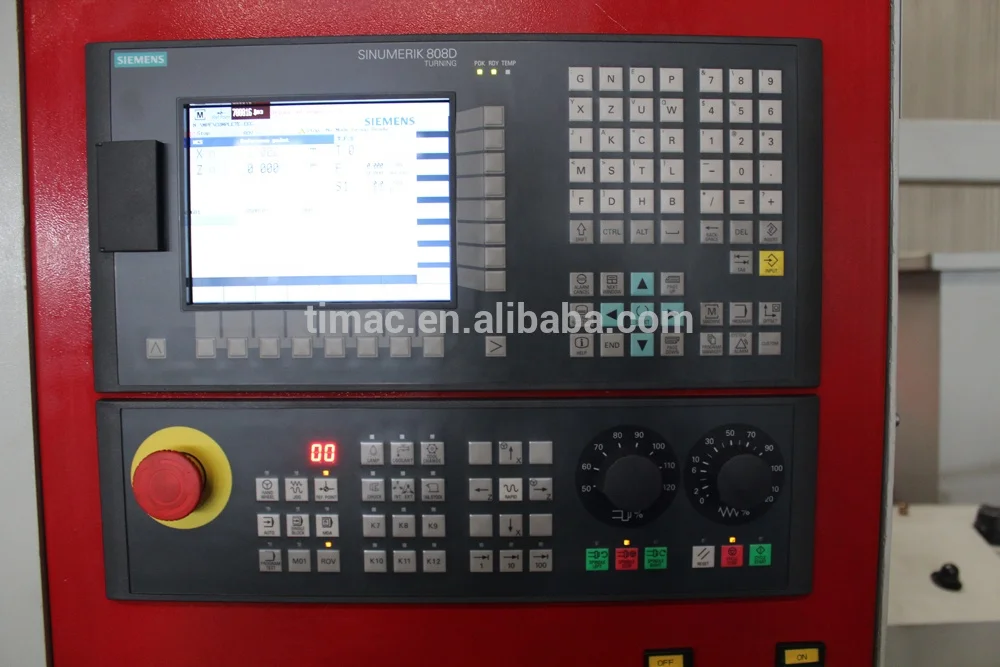

CNC system			Siemens SINUMERIK 808D
Wheelhead motor power		kw	5.5	11
Internal grinding motor power		kw	----------
Workhead motor power		kw	1.1	1.5
*Machine accuracy
Roundness		μm	3
Cylindricity		μm	5(500), 8(750)		8
Roughness		μm	Ra0.32
* Machine
Gross weight		T	4(500), 4.2(750)	5.3(1000), 6.1(1500)
Packing size (L×W×H)			260×206×205(500)	338×200×205(1000)
			300×206×205(750)	438×200×205(1500)

*** Standard Accessories:
Semi isolated table shield, Coolant tank, Wheel dresser, 2 points steady rest (Standard dimension), wheel flange
Wheel, Wheel extractor, Wheel balancing arbor, Center points, 3-jaw chuck, Siemens electrical equipment &
delta transducer, Operation Manual (English edition).

*** Optional Accessories:
Full-closed safety cover, Coolant tank with magnetic separator, Coolant tank with paper filter, Machine safety
relay protection.

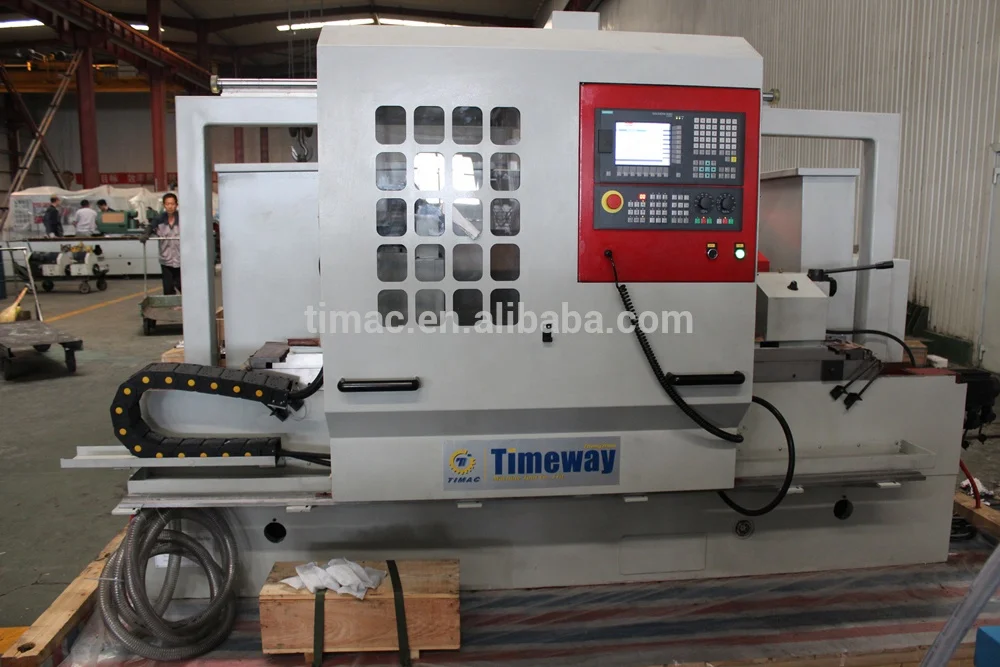

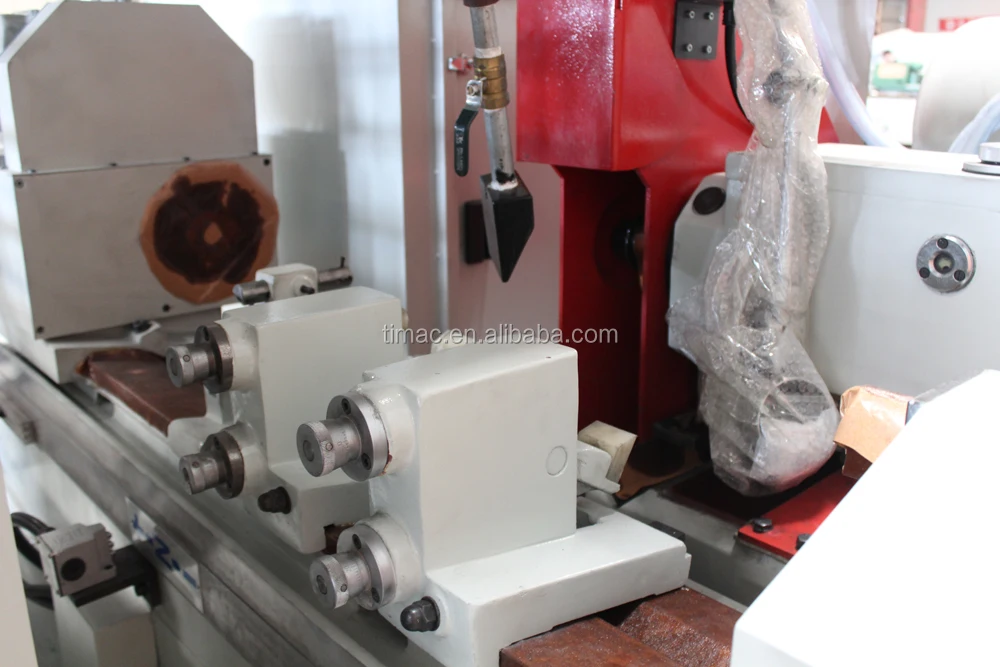

Detailed Images
