RO система очистки воды PP расплавленный фильтрующий картридж
- Категория товара: Water Filter >>>
- Поставщик (Оптовый магазин): Shijiazhuang,Yitong,Filter,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

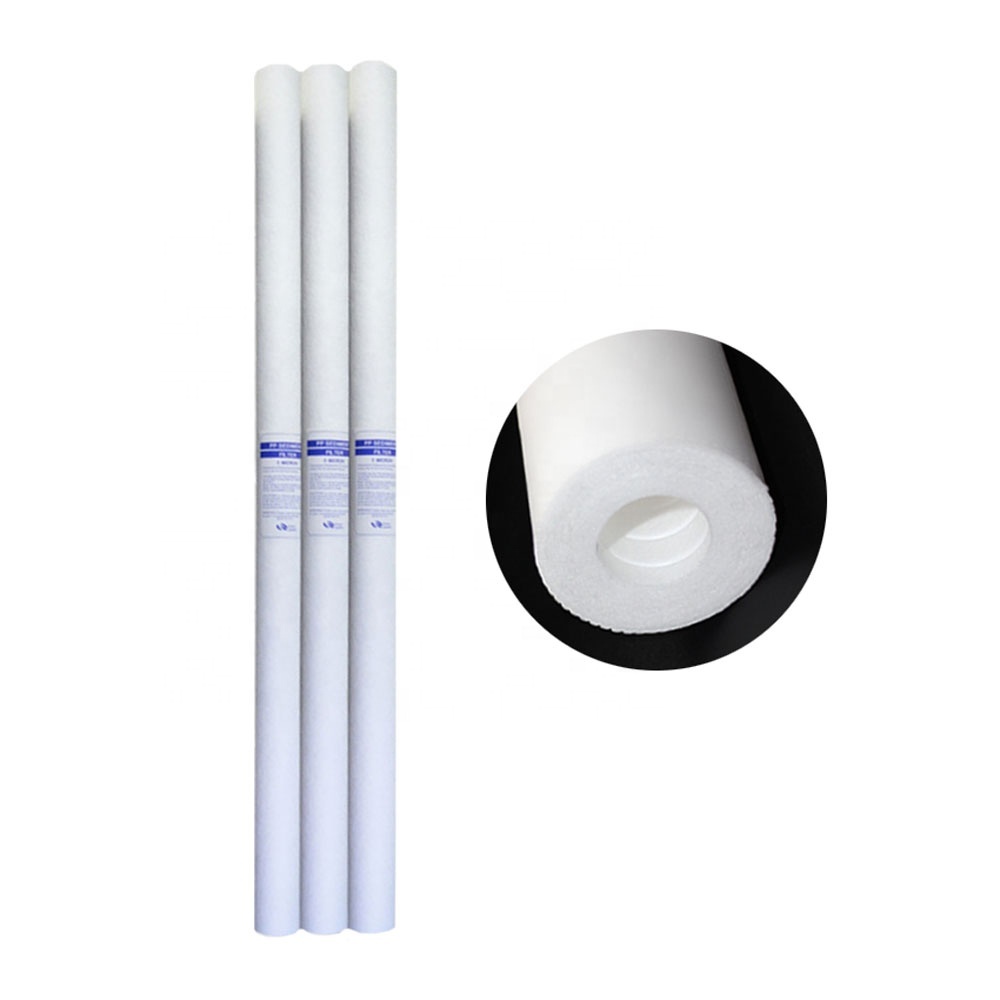

RO water treatment system PP melt blown filter cartridge
Features and Benefits
· 100% high purity polypropylene (melt blown), no adhesives;
· High dirt holding capacity and low pressure loss;
· Many connections(DOE, 226, 222 End caps)are available;
· Wide chemical compatiblity, various micron ratings(1um to 100um);
· One piece construction, up to 1524mm (60");
Typical Applications
· Prefiltration in process water treatment industry;
· Clarification for waste water treatment;
· Bottled water, wine, beer pre-filtration in food&beverage industry;
· Prefiltration before RO system in electronics process water;
· Organic solvents, inks, plating solution, metal cutting, fluids,photoresist filtration;
Specifications
Materials of Construction | Filter Media: | Melt blown polypropylene |
Inner core: | Polypropylene/Coreless | |
Micron Ratings: | 1,5,10,20,50,70,100 | |
Filtration effeciency: | 80% | |
O-rings/Gaskets: | Silicone,Nitrile,Viton, EPDM,Teflon etc. | |
Dimensions | OD: | 63mm (2.5"), 114mm(4.5") |
ID: | 28mm (1.1") | |
Length(base on DOE): | 10"-254mm, 20"-508mm, 30"-752mm, 40"-1016mm | |
Filtration Area(M2) | 0.40m2 per 10" | |
Operation Conditions | Normal Operation Tempreture: | 50℃ (1225℉) |
Max Operation Temperature: | 80℃ (176℉) @ ΔP ≤ 1.0Bar (14PSI) | |
Max Differential Pressure: |
| |
Normal Direction Flow: | 4.0Bar (60PSI) @ 25℃ (77℉) | |
Reverse Direction Flow: | 2.0Bar (29PSI) @ 25℃ (77℉) | |
Ph Value Compatiblity: | 1-13 | |
Sterilization: | not recommended |
Table 1: typical water flow rate @ 25 ℃ (77℉)
