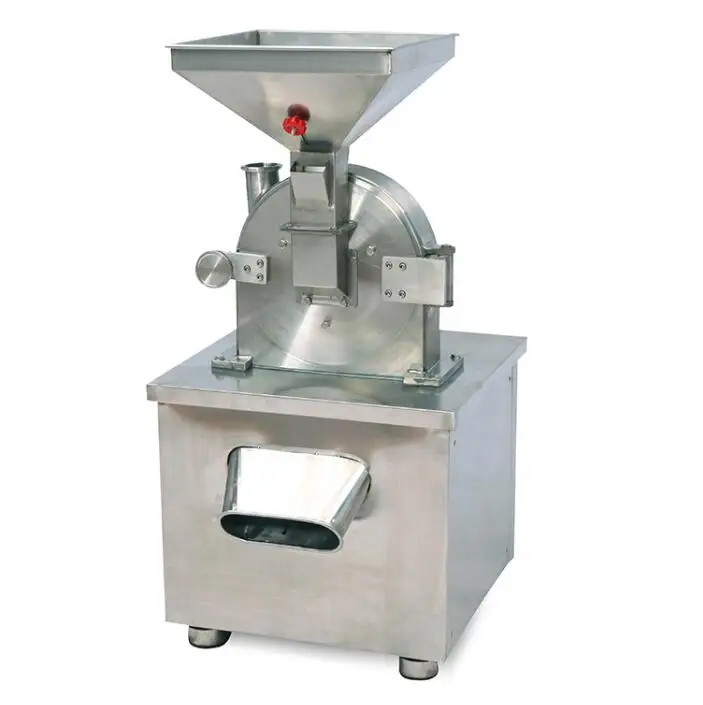

Description of herb grinding machine:
1. This machine is to pulverize grain, Chinese medicine industrial chemical and various materials but no for
inflammable and explosive,it’s applied to medical, chemical and foodstuff.
2. Have confirmed to GMP standards.
3. Made of stainless steel

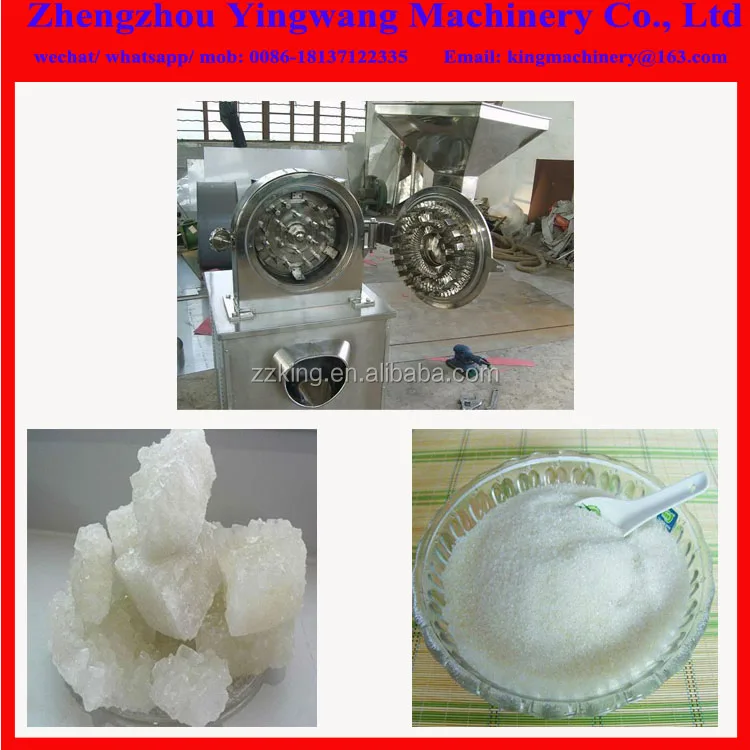

4. Used for Medical , herbal medicine,sugar,salts,dry vegetables,roots ,nuts shellers, dry grains, etc brittle and hard things


Working Method of herb grinding machine :

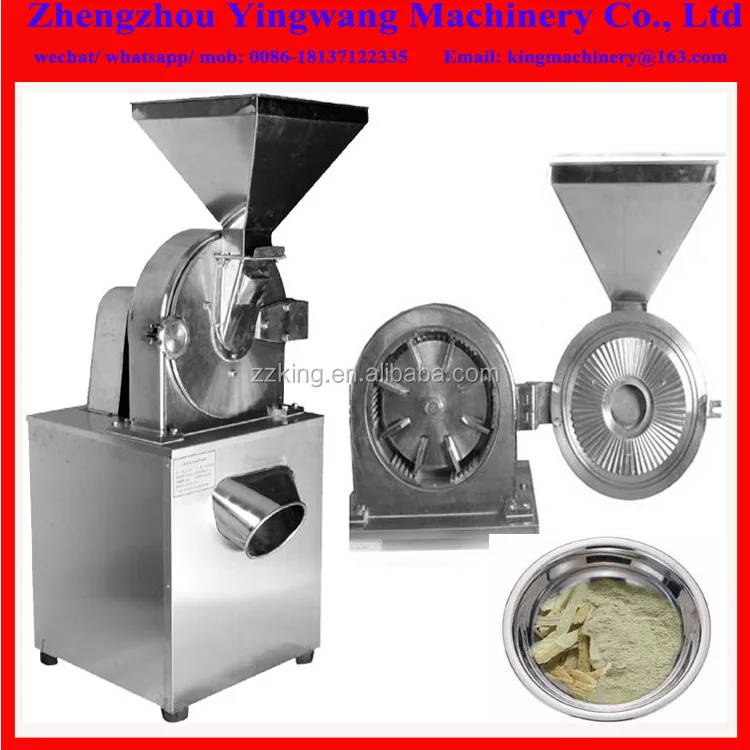

The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and

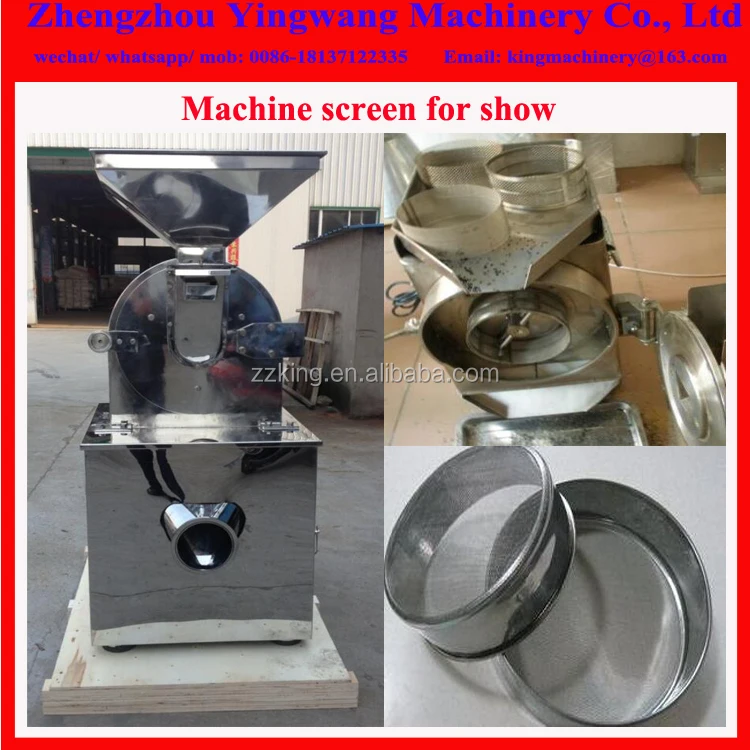

crush the target materials. The size of granules can be achieved by changing of the screen. The machine has the features
of easy structure, solid, stable running and good efficiency. The crushed material is discharged directly from the
grinding chamber of the main frame. In addition, the whole machine is made of stainless steel, with smooth inside walls
to avoid powder accumulation on the inside walls. Those pharmaceutical, chemical and food stuff products from the
machine are in accordance with national requirement, achieving "GMP" standard.
Technical Data
Model | 18 | 20 | 30 | 40 | 60 | 80 | 100 |
Capacity(kg/h) | 10-50 | 60-150 | 100-400 | 160-1000 | 500-1200 | 1000-5000 | 2000-8000 |
Speed of principal axis(r/min) | 6000 | 4500 | 3800 | 3400 | 2800 | 2000 | 1500 |
Size of input granules(mm) | <6 | <6 | <6 | <10 | <12 | <12 | <12 |
Fineness of products(mesh) | 20-120 | 12-120 | 20-120 | 12-120 | 20-120 | 20-120 | 20-120 |
Power(KW) | 2.2 | 4 | 5.5 | 11 | 18.5 | 37 | 55 |
Weight(kg) | 100 | 280 | 350 | 550 | 680 | 1500 | 2500 |
Overall size (mm) | 550*400 *850 | 550*600 *1250 | 600*700 *1450 | 800*900* 1550 | 900*900* 1880 | 1100*950* 1960 | 1350*1000* 2100 |
Main parts of herb grinding machine

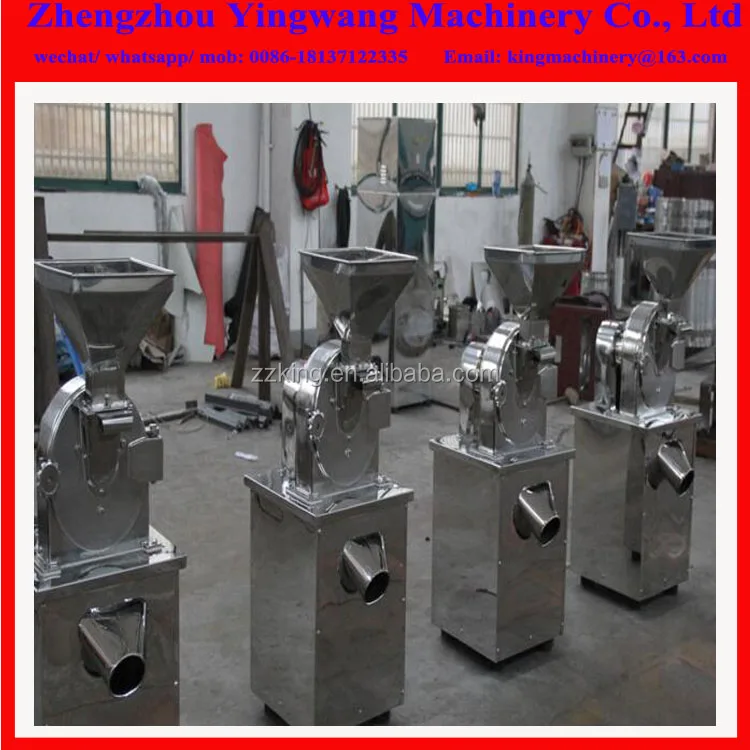

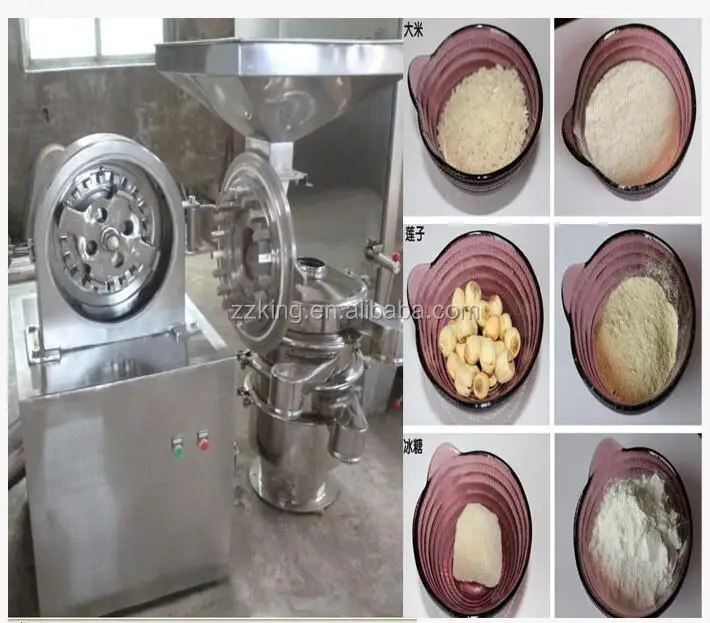

Latest production machine for show

Herb grinding machine before delivery
