15 cbm LPG gas truck factory
ChengLi Special Automobile Co.,Ltd, which is a big and famous special function truck manufacture in China, we also produce LPG aspect devices and vehicles.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.

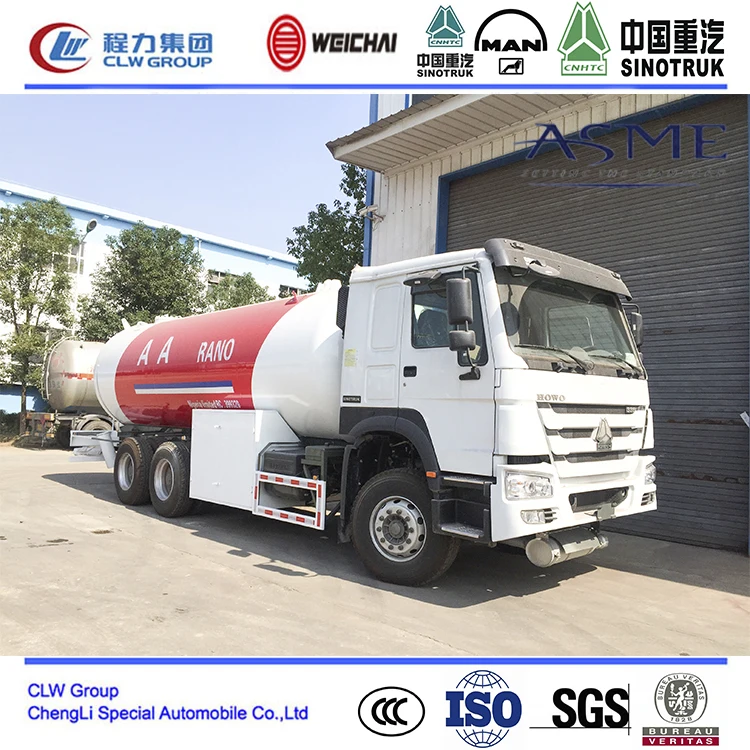

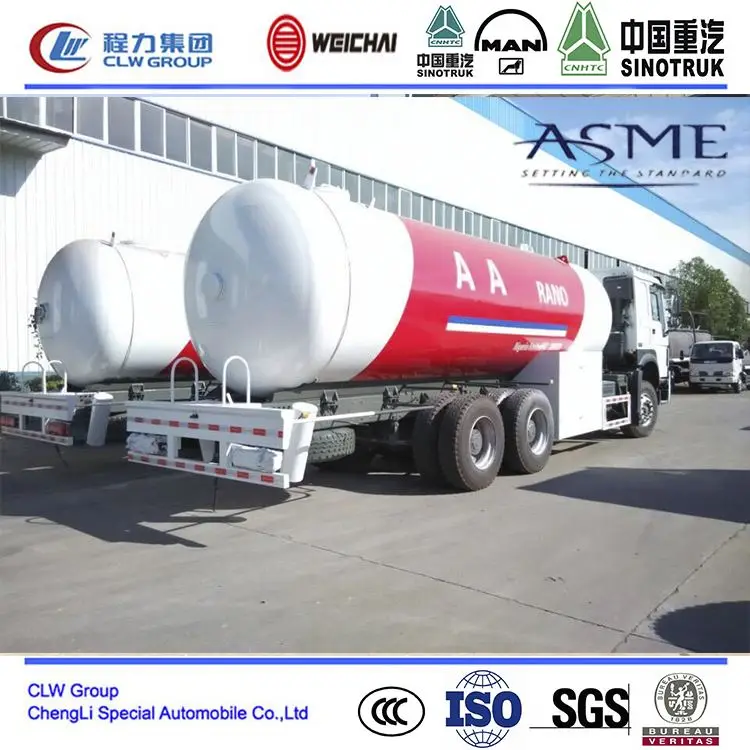

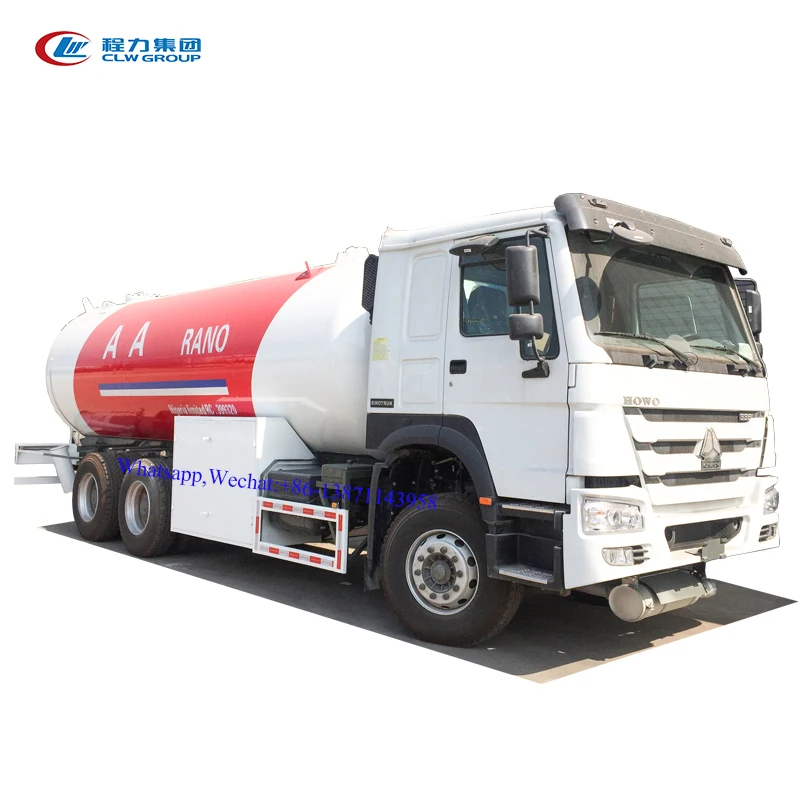

- 15 cbm LPG gas truck factory
- LPG gas truck factory
| Item | Unit | Description | ||||||||
| Model | Howo 25000 liter propane gas recharging truck | |||||||||
| Dimension | mm | 10590*2495*3350 | ||||||||
| Tank Dimension | mm | 7644*2079 Length*diameter | ||||||||
| litter | 25000 liter | |||||||||
| Curb Weight | kg | 14210 | ||||||||
| G.V.W | kg | 30000 | ||||||||
| Wheel Base | mm | 4600+1350 | ||||||||
| F/R track base | mm | 1950 / 1860 | ||||||||
| F/R Axle-Load | Kg | 7000 / 13000 /13000 | ||||||||
| Suspention | Steel Spring Type | |||||||||
| Tire | Model | 30/13 | ||||||||
| Traction system | Type | 6*4 | ||||||||
| Approach/Departure angle | . | 90 | ||||||||
| Max speed | km/h | 12.00-20 / 12 Units+1 Spare | ||||||||
| Engine model | Model | WD615.97E | ||||||||
| Hp | 9726 cc, 221 Kw / 2200 r | |||||||||
| Emission | 300 Hp | |||||||||
| Power | 1500 N.m - 21000 r/min | |||||||||
| Type | Diesel, 6 cylinder, turbocharge, water cooling | |||||||||
| Manufacturer | WeiChai brand Engine | |||||||||
| Gear box | Type | 10 F&1R, Manual , HW15910 | ||||||||
| Electric system | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversable, Manual | |||||||||
| Steering | Powering , LHD or RHD | |||||||||
| Installing | Mp3, Radio | |||||||||
| Air Conditioner | Hot Wind / Cold Wind | |||||||||
| LPG Tank Design | ||||||||||
| Load Substance: | propane | |||||||||
| Load parameter: | 0.42T/m3 | |||||||||
| Designed Pressure: | 1.77Mpa | |||||||||
| Designed TEMP: | 50°C | |||||||||
| Material: | Q345R | |||||||||
| Option ~ Q370R | ||||||||||
| Manufactuere Standard | China GB150, or ASME | |||||||||
| Remark: | Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve, Valve box,Fire extinguisher, plastic pipe of staticproof, Well-secured fenders and mudguards,Tire well-secured,fenders and mudguards.One side liquid output port, | |||||||||

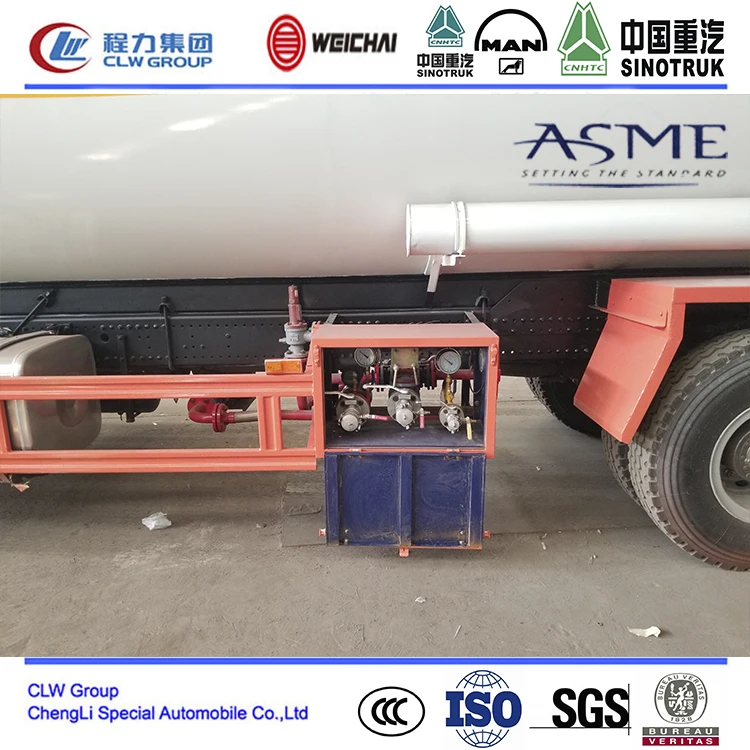

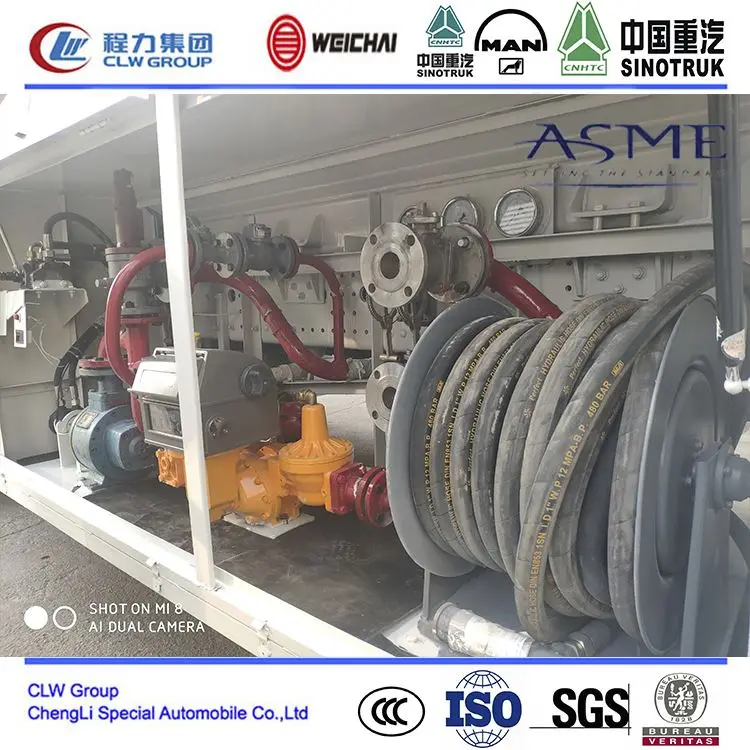

- More photos showing
- 15 cbm LPG gas truck factory
- LPG gas truck factory
- More product photos showing about our LPG products
- LPG gas truck factory
