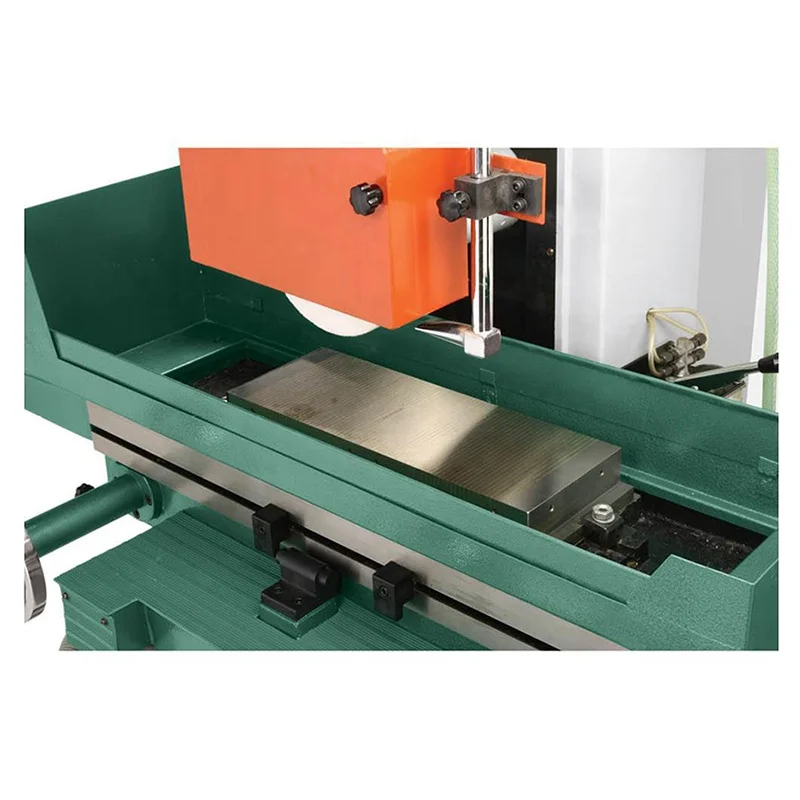

Профессиональный прецизионный шлифовальный станок на продажу
- Категория товара: Шлифовальный станок >>>
- Поставщик (Оптовый магазин): Shandong,China,Coal,Industrial,&,Mining,Supplies,Group,Co.,Ltd.
Поделиться:

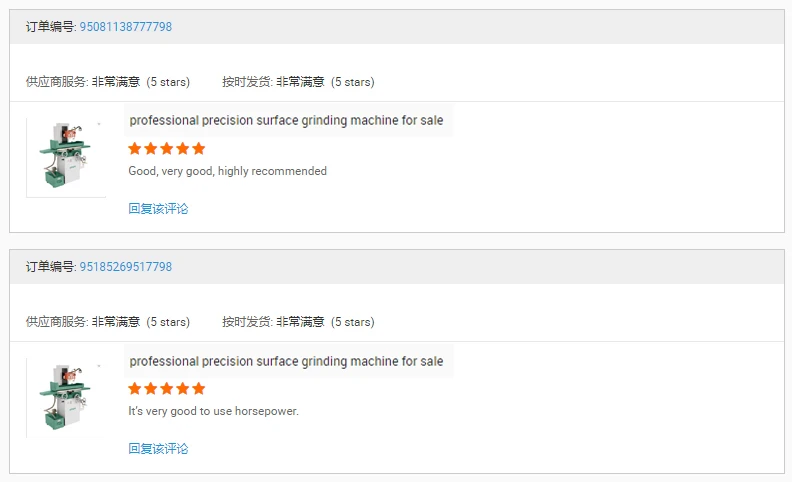

Описание и отзывы
Характеристики
Introduction
Product Introduction

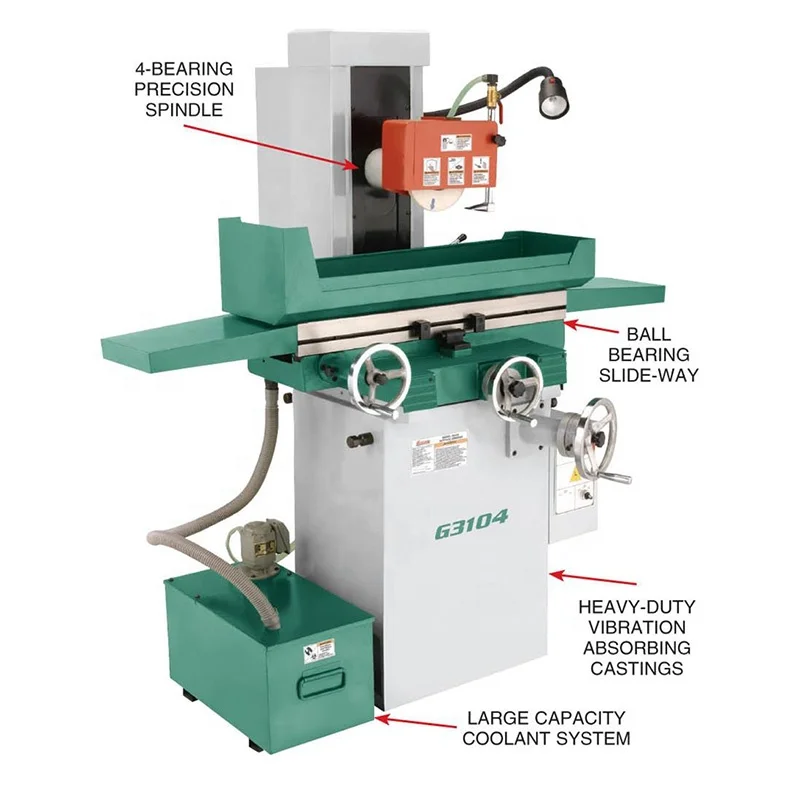

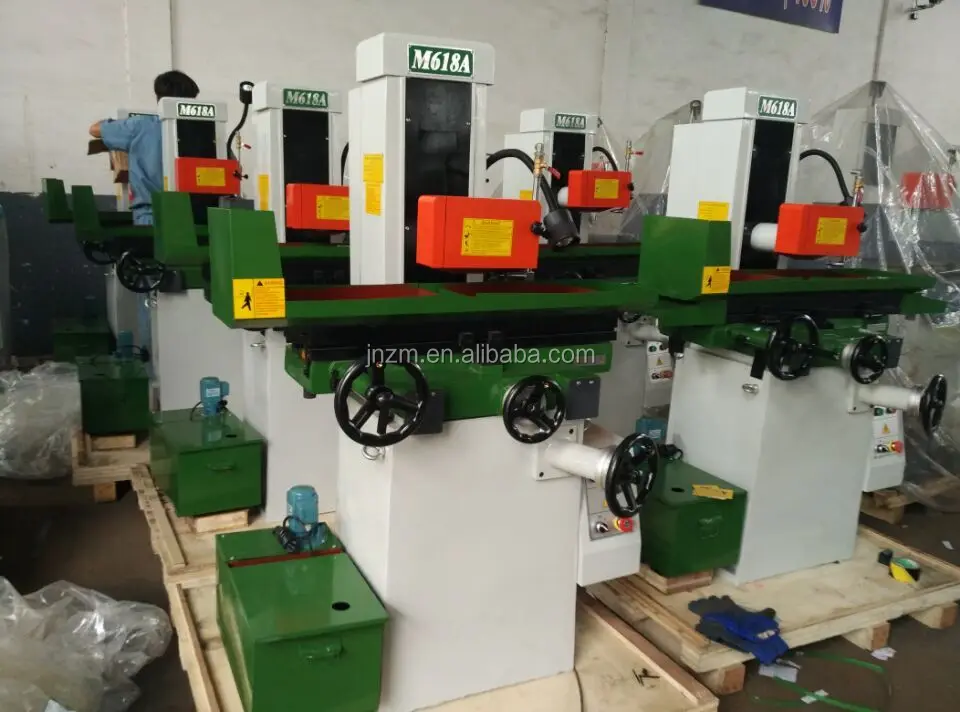

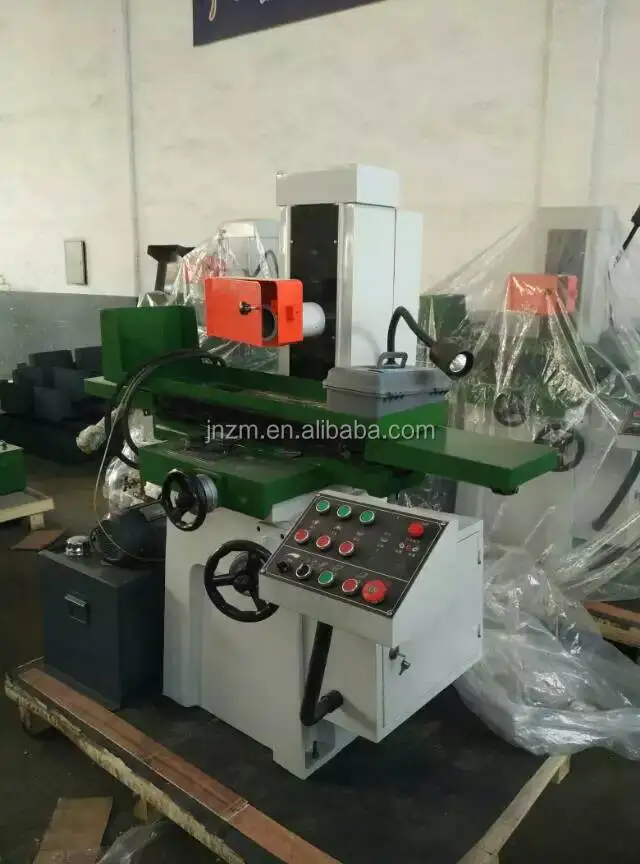

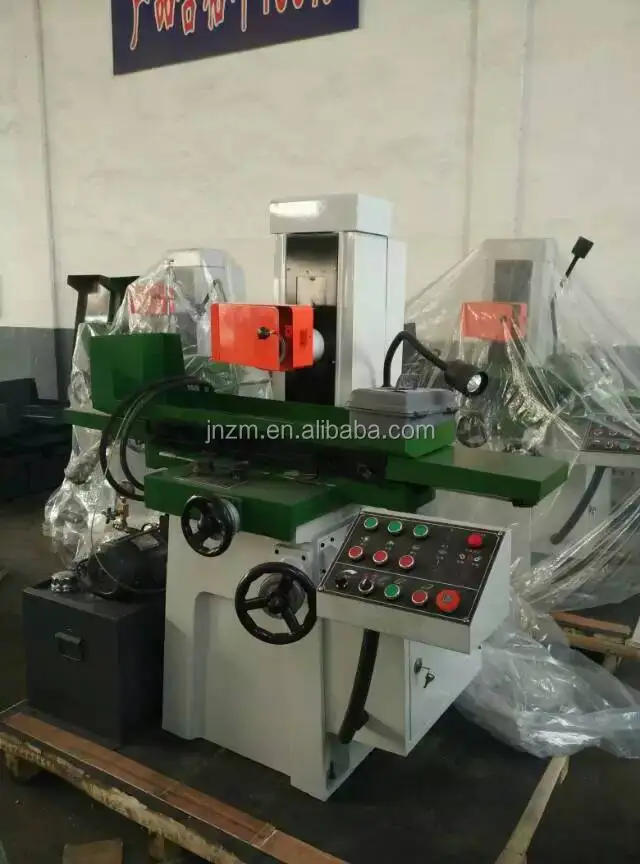

M618 model precision surface grinder machine characteristics of machine tools:
1. spindle adopts ultra precision P4 ball bearing, after measuring pre strict pressure, assembled in the greehhouse, and equipped with a completely waterproof mazy design, in order to ensure the service life and the grinding of bearing surface roughness,which marching with ball screw.
2. it has the advantages of compact structure, easy to operate.
3. a longitudinal guide rail workable adopts rolling guide, rope wheel traction, light and flexible.
Parameter
Main Parameter
Technical Parameters |
| Units | M618 |
Max.workpiece to be Ground |
| mm | 500×190×335 |
( L×W×H) |
|
|
|
Max. Grinding Length |
| mm | 500 |
Max. Grinding Width |
| mm | 190 |
Distance From Table Surface To Spindle Center |
| mm | 335 |
Slide way |
|
| V-type rail with Steel-ball |
V-type rail with Steel-ball |
| Kg | 200 |
Table Size (L×W) |
| mm | 460×180 |
Number of T -Slot |
| mm×n | 14×1 |
Cross Feed On Handwheel |
| mm | 0.02/Graduation 2.5/revolution |
Vertical Feed On Handwheel |
| mm | 0.01/Graduation 1.25/revolution |
Wheel Size (dia.×width×bore ) |
| mm | 200×16×31.75 |
Spindle Speeds | 50Hz | rpm | 2850 |
|
|
| 0-6000 |
Spindle Motor |
| Kw | 1.1 |
Coolant Pump |
| Kw | 0.4 |
Minimum of Numerical Display |
| mm |
|
Machine Size (L×W×H) |
| mm | 1550×1060×1590 |
Packing Size (L×W×H) |
| mm | 1060×1170×1870 |
Gross,Net |
| T | O.75, 0.65 |
Presentation

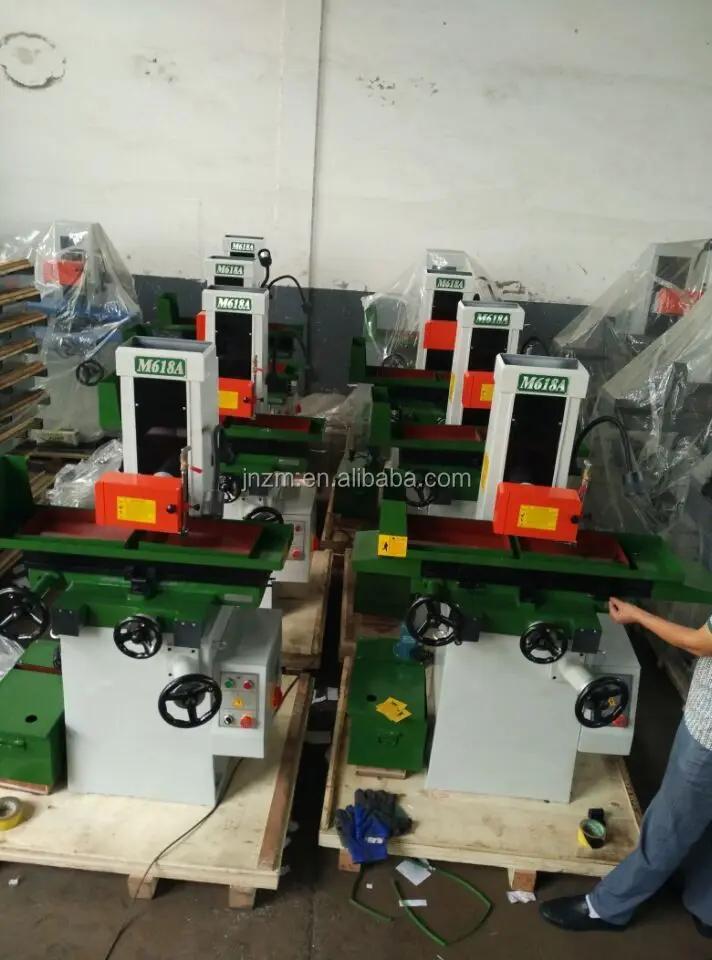

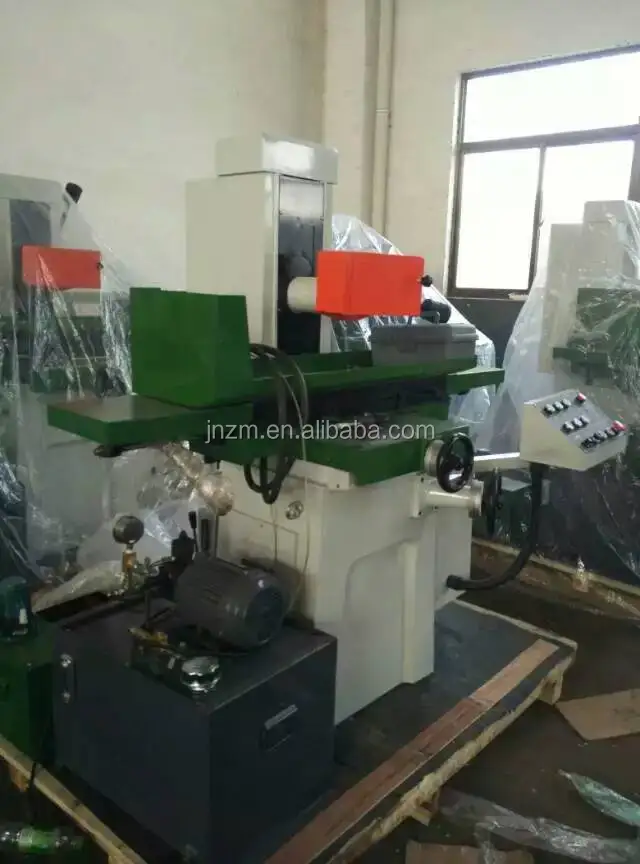

Figure Photos
