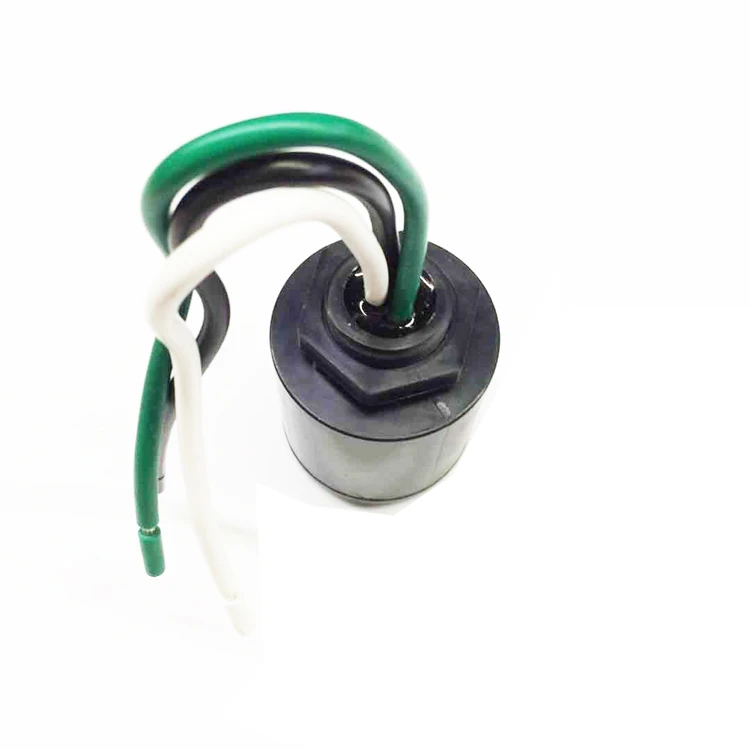

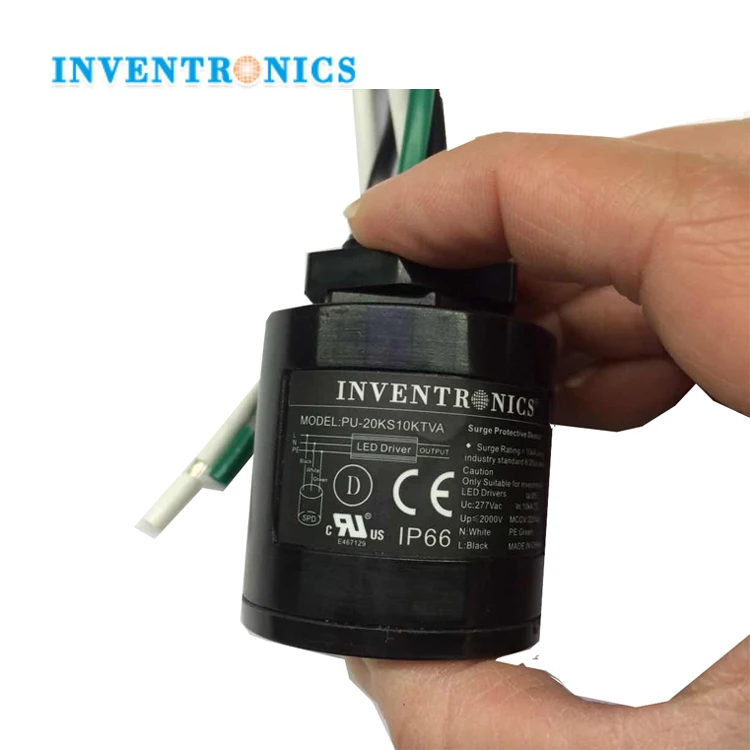

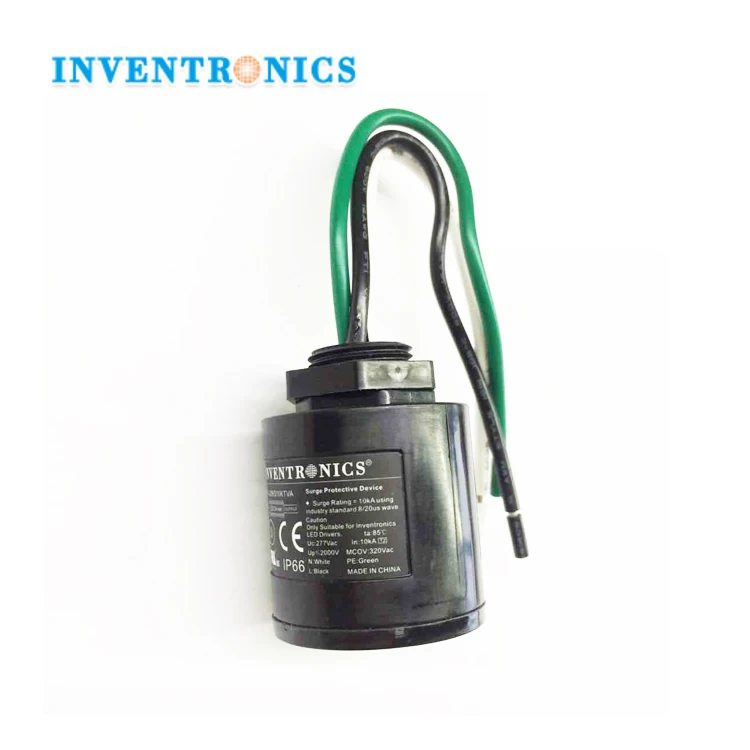

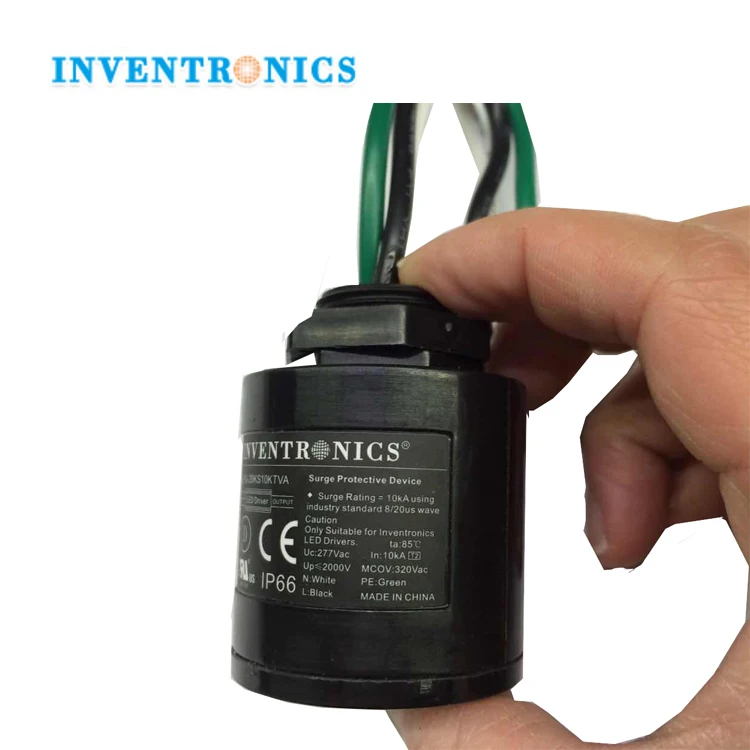

PY-20KS10KTTN IP66 347Vac 15kA Max 10kA LED Driver SPD Inventronics DC Surge Protection Device
220Vac CC LED Driver 26-320W CC LED Driver Potentiometer AOC CC Dip-switch AOC CC Waterproof CV
220V 0-10V PWM Timer 220V 110V Dimmable 7 Years Warranty IP67 300W+ High Power CC DALI LED Driver
10 Years Guarantee 380Vac+ High Voltage Input UFO Round Shape CC Internal Use CC Dimmable Programmer SPD

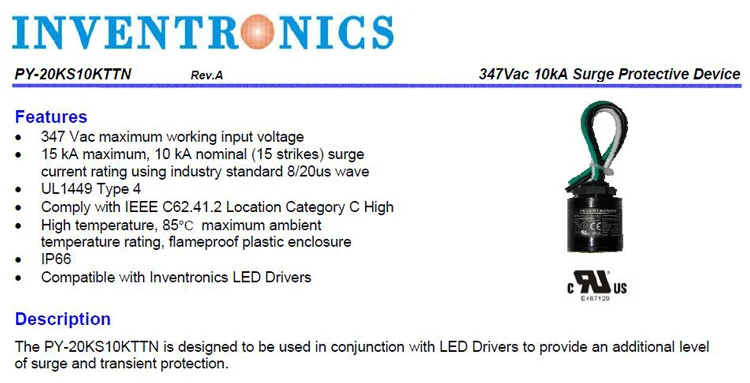

Features:
- 347 Vac maximum working input voltage
- 15 kA maximum, 10 kA nominal (15 strikes) surge current rating using industry standard 8/20us wave
- U*1449 Type 4
- Comply with IEEE C62.41.2 Location Category C High
- High temperature, 85°C maximum ambient temperature rating, flameproof plastic enclosure
- IP66
- Compatible with Inventronics LED Drivers
Description:
The PY-20KS10KTTN is designed to be used in conjunction with LED Drivers to provide an additional level of surge and transient protection.

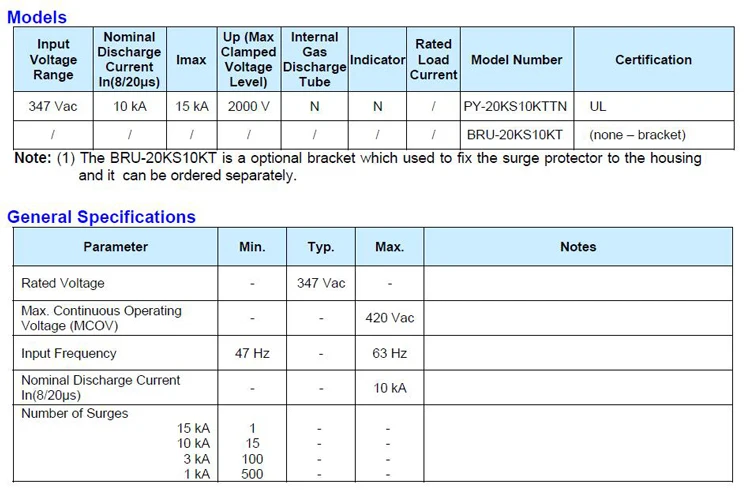

| Input Voltage Range | Nominal Discharge Current In(8/20μs) | Imax | Up (Max Clamped Voltage Level) | Internal Gas Discharge Tube | Indicator | Rated Load Current | Model Number | Certification |
| 347 Vac | 10 kA | 15 kA | 2000 V | N | N | / | PY-20KS10KTTN | U* |
| / | / | / | / | / | / | / | BRU-20KS10KT | (none – bracket) |

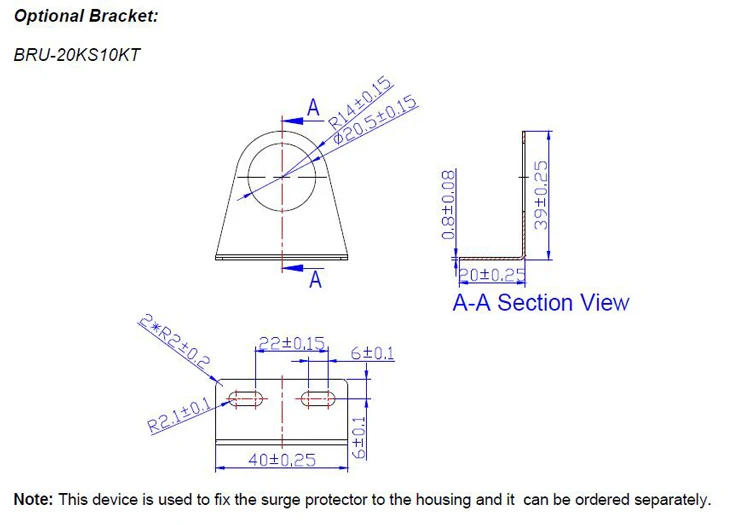

Note: (1) The BRU-20KS10KT is a optional bracket which used to fix the surge protector to the housing and it can be ordered separately.
(For more details, please contact Chela Chen for the datasheet.)
EUG-075SxxxDV EUG-096SxxxDV EUG-150SxxxDV EUG-200SxxxDV EUG-240SxxxDV
EUG-075SxxxDT EUG-096SxxxDT EUG-150SxxxDT EUG-200SxxxDT EUG-240SxxxDT
