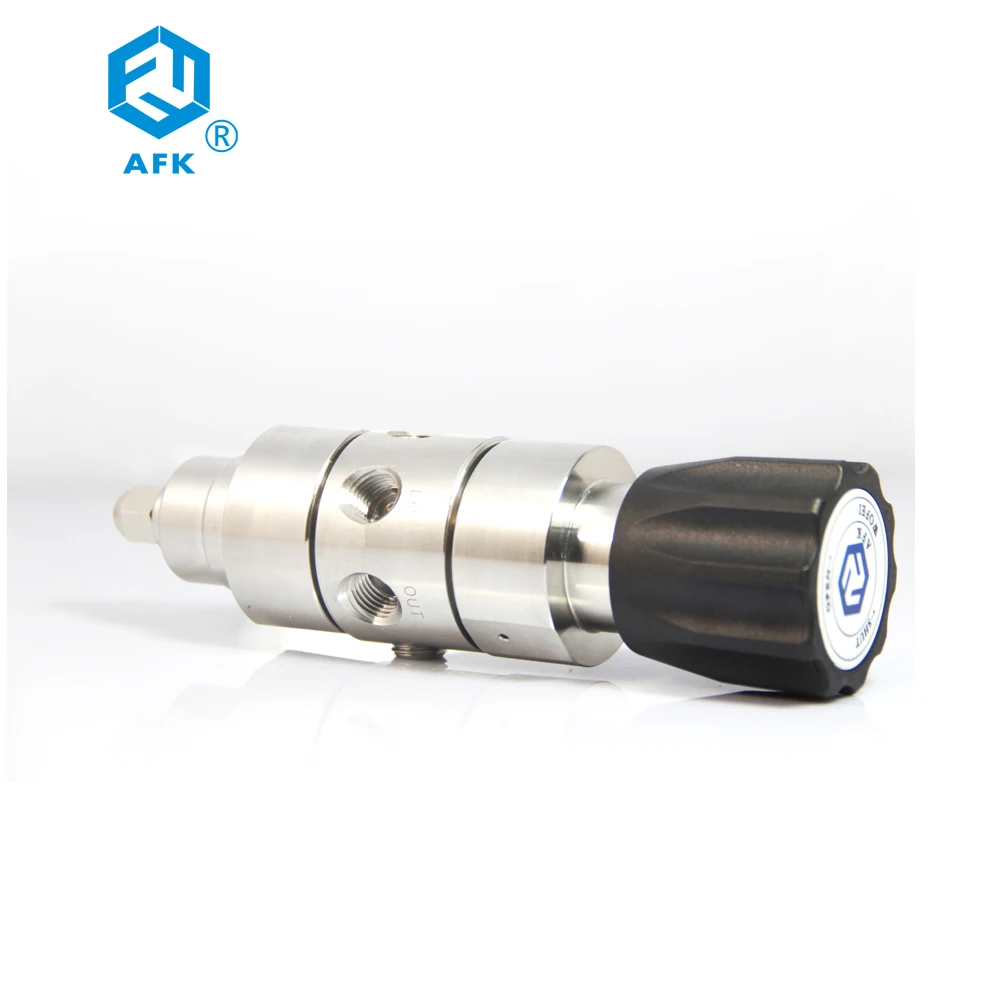

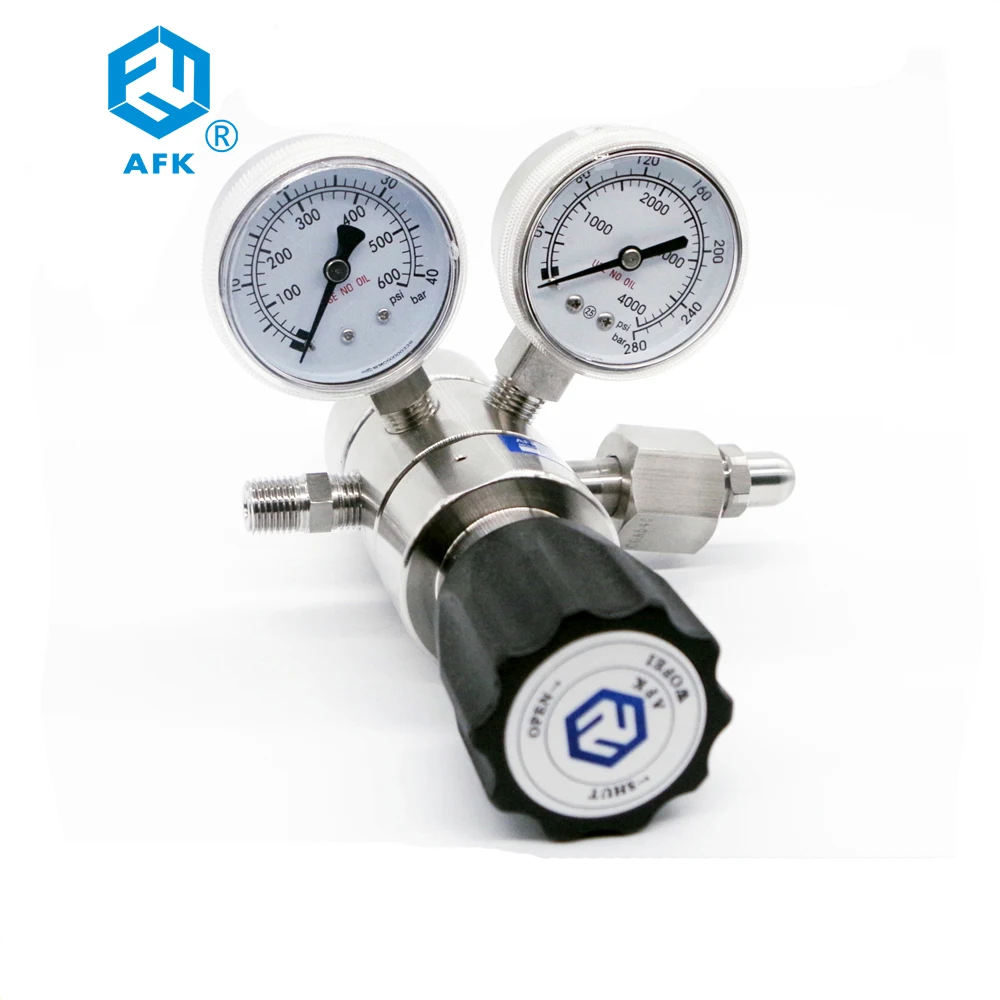

Нержавеющая сталь 316 азота высокого давления 2-ступенчатый регулятор давления газа G5/8
- Категория товара: Pressure Regulators >>>
- Поставщик (Оптовый магазин): Shenzhen,Wofly,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
R31 series stainless steel pressure regulator, double stage diaphragm reducing structure, stable input pressure, suitable for high purity gas, standard gas, corrosive gas etc.
Technical parameters
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
Material of Parts
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||

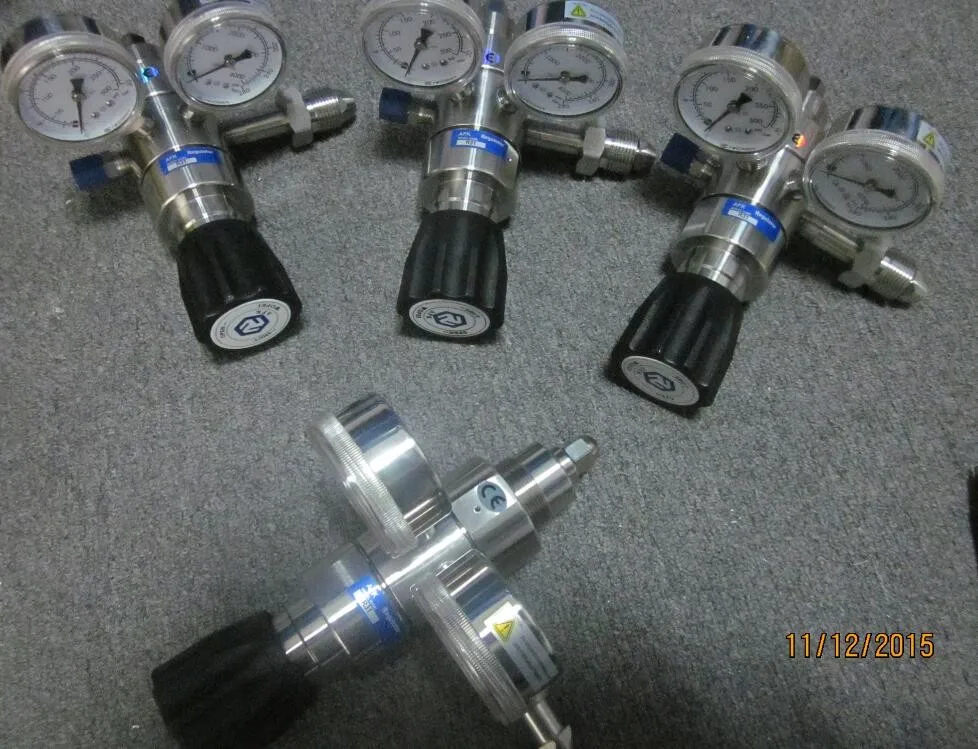

Detailed Image

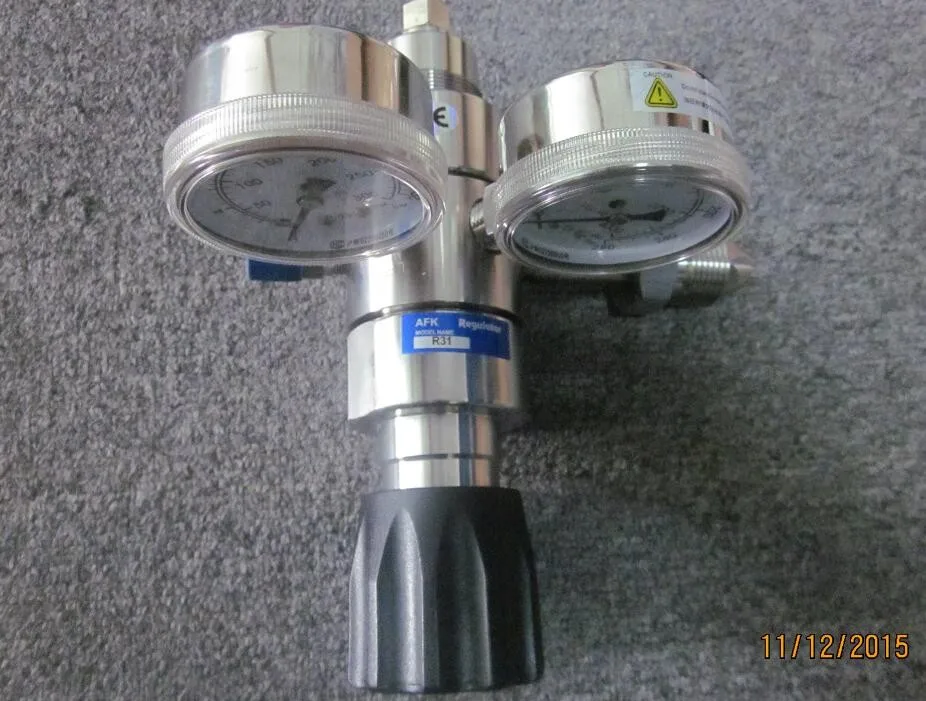

R31 dual stage
Body material: ss316L
R31 dual stage

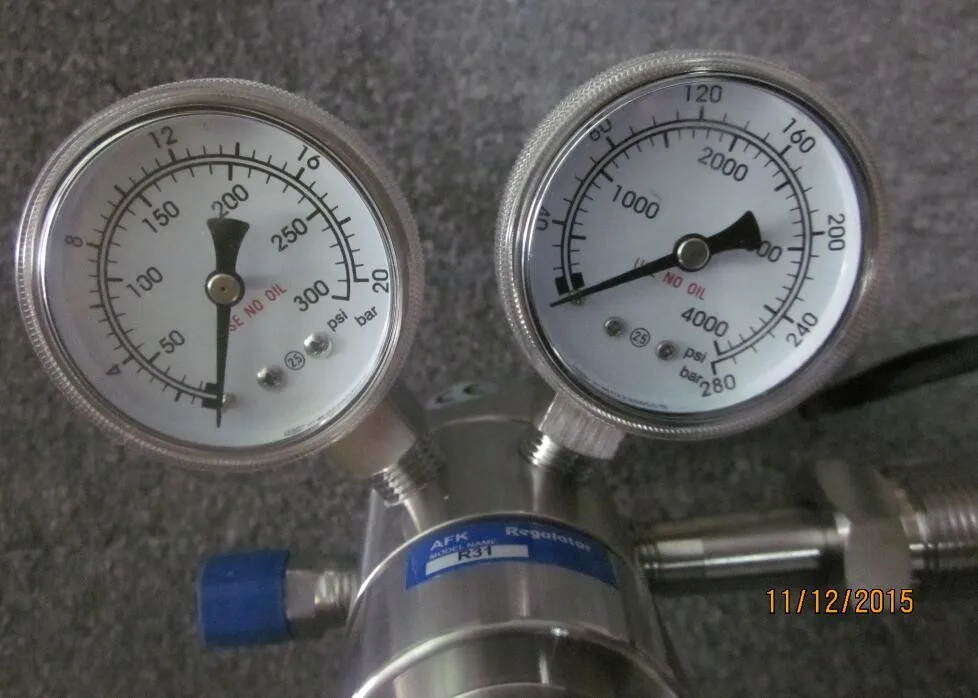

a high gauge, a low gauge
R31 dual stage
inlet connection:GGA590, CGA660
outlet connection: 1/4NPT M

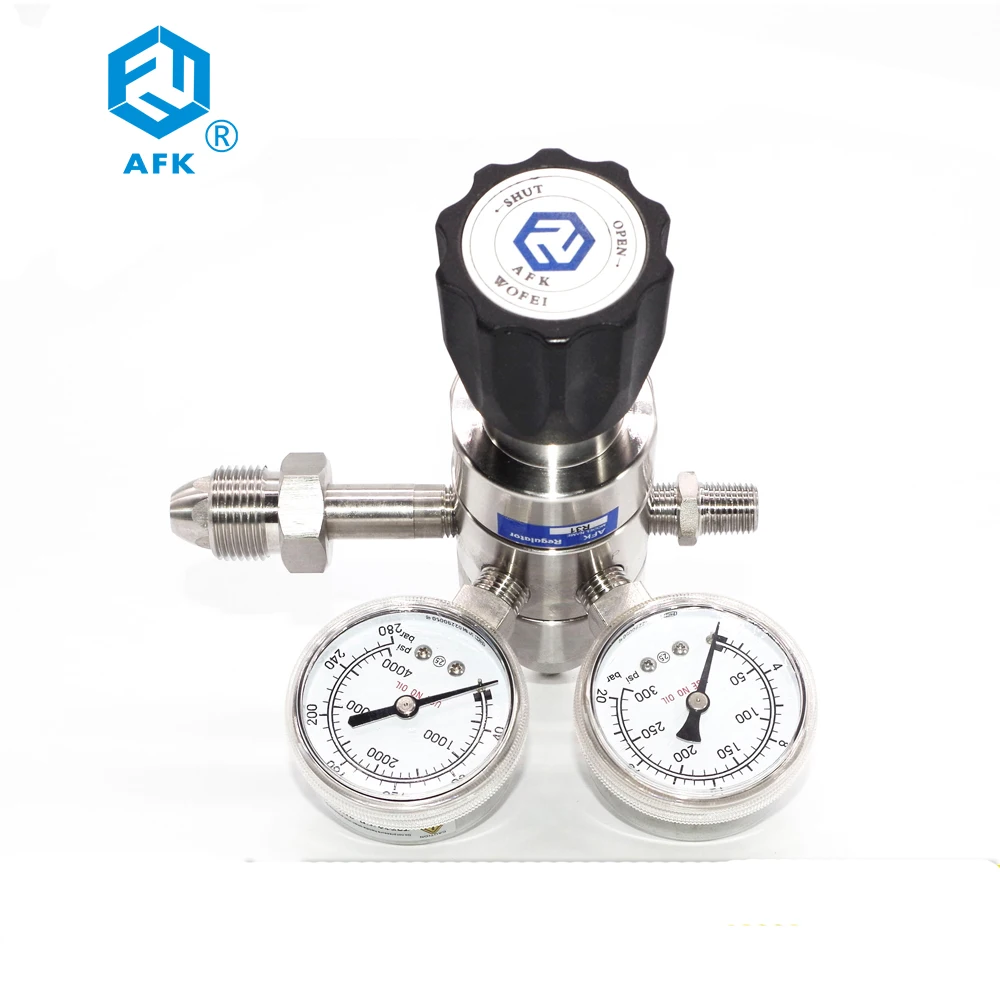

R31 Dual Stage Regulator in Stainless Steel 316L .
Inlet pressure gauge range: 0-3000PSI (other pressure guage ranges are available)
Outlet pressure gauge range:0-100PSI (other pressure guage ranges are available)
Inlet connection: CGA fitting
Outlet connection:1/4NPT M (6mm, 8mm, 10mm, 10mm, 12mm barb fittings are available)

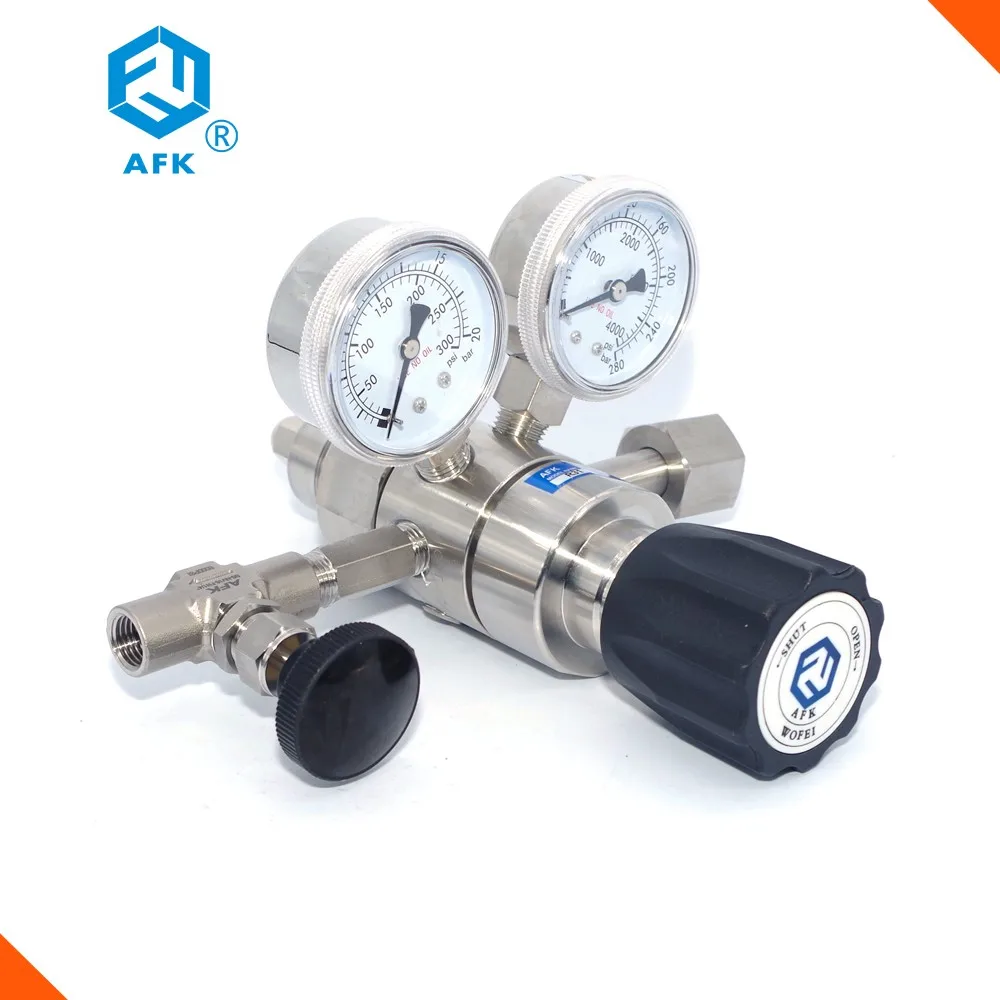

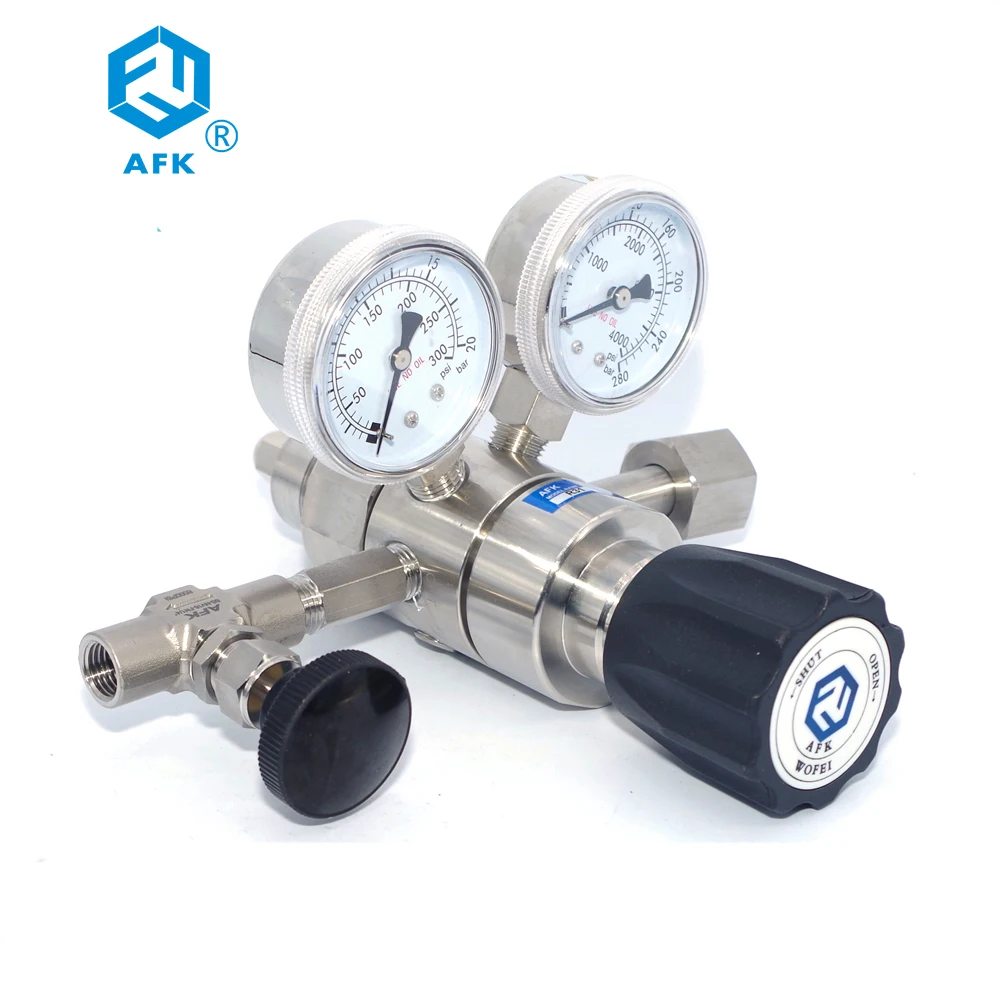

R31 Daul Stage Pressure Regulator With Needle Valve in Stainless Steel 316L
Inlet pressure gauge range: 0-4000PSI
Outlet pressure gauge range:0-300PSI
Inlet connection: cylinder fitting (G5/8, W21.8, BS, DIN, CGA fittings are available)
Outlet connection:1/4NPT female with a needle valve
Outlet pressure gauge range:0-300PSI
Inlet connection: cylinder fitting (G5/8, W21.8, BS, DIN, CGA fittings are available)
Outlet connection:1/4NPT female with a needle valve

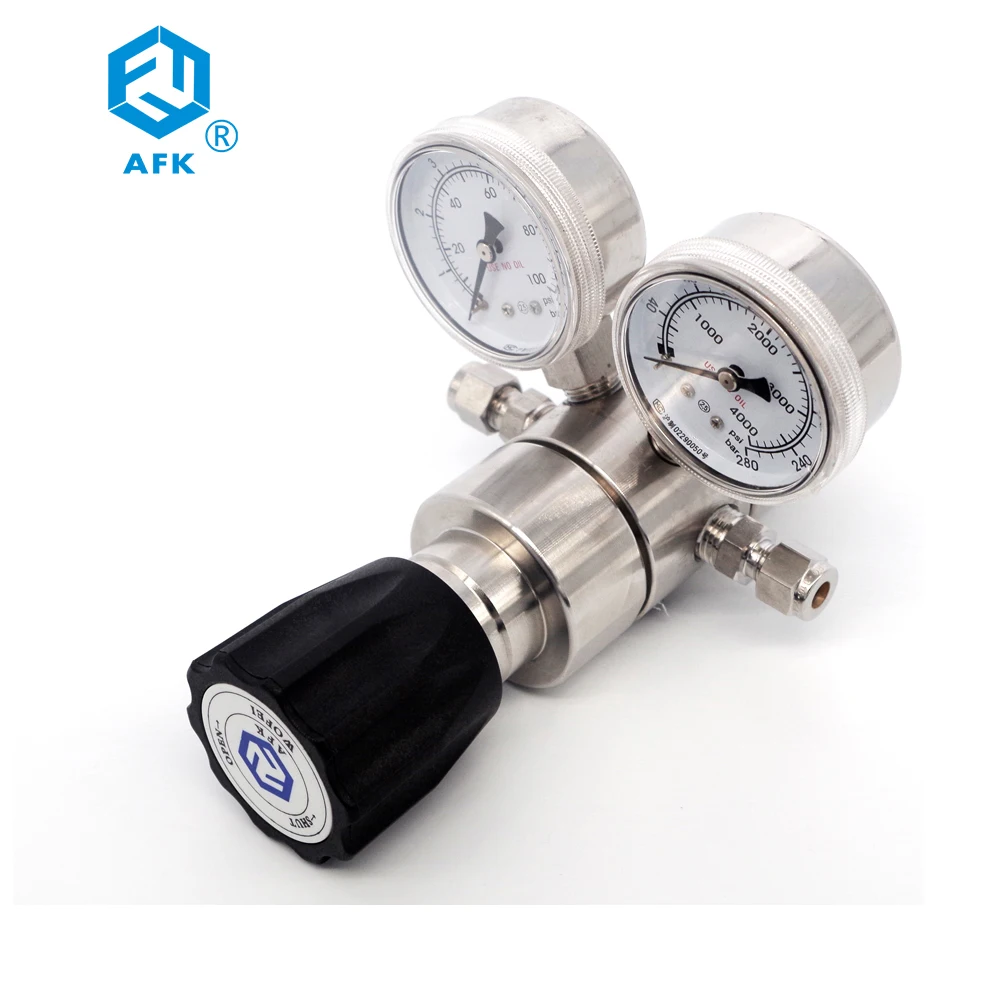

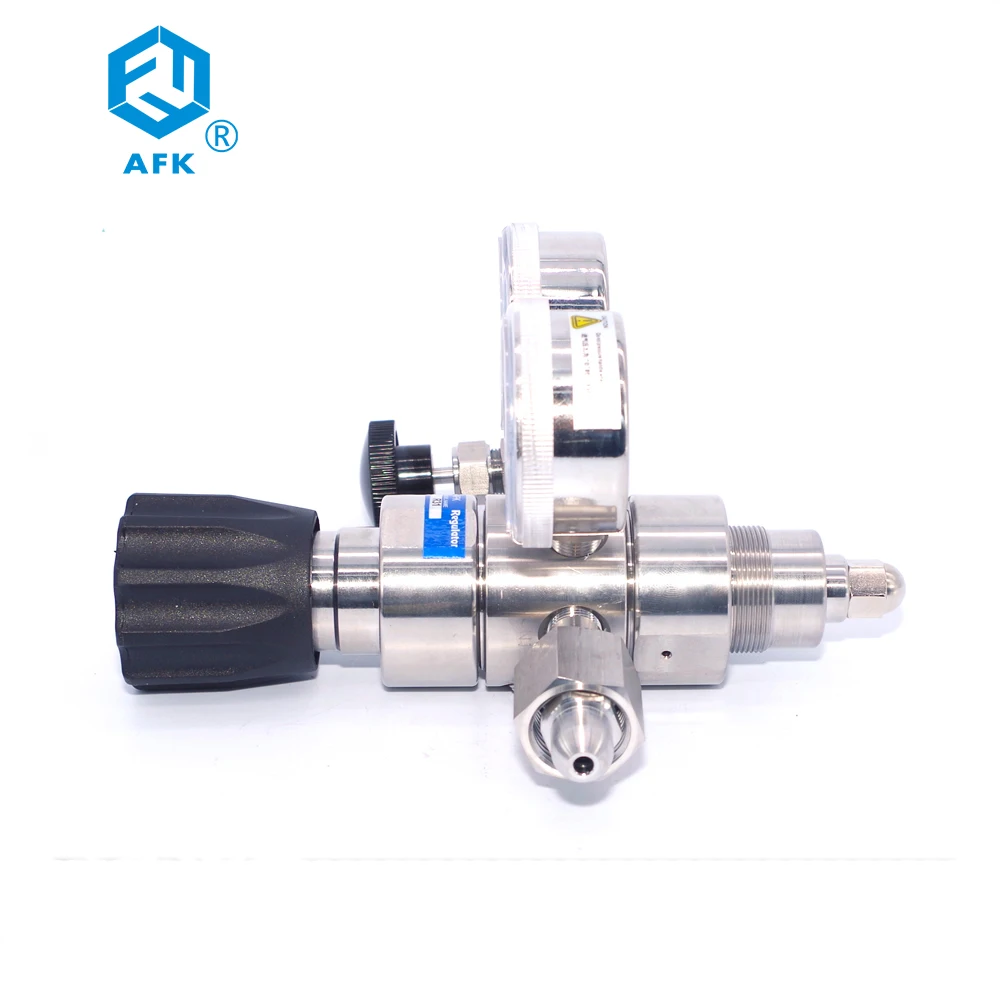

R31 Daul Stage Pressure Regulator in Stainless Steel 316L
Inlet pressure gauge range: 0-4000PSI (other pressure guage ranges are available)
Outlet pressure gauge range:0-300PSI (other pressure guage ranges are available)
Inlet Connection: 1/4 compression fitting (6mm, 8mm, 10mm, 3/8inch are available)
Outlet connection:1/4 compression fitting (6mm, 8mm, 10mm, 3/8inch are available)

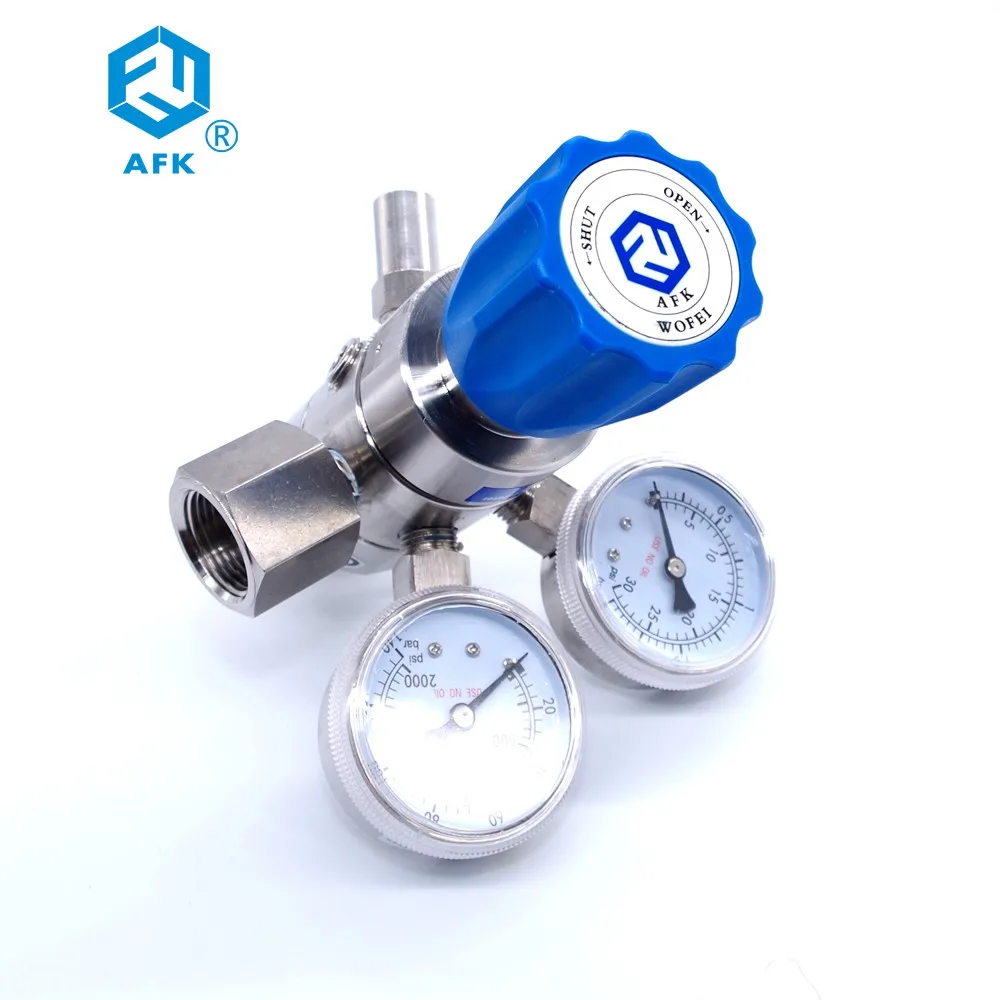

R31 Daul Stage in Stainless Steel 316L with Relief Valve
Inlet pressure gauge range: 0-4000PSI (other pressure guage ranges are available)
Outlet pressure gauge range:0-300PSI (other pressure guage ranges are available)
Inlet Connection:1/2NPT female (1/4NPT F, 3/8NPT F are available)
Outlet connection:1/4NPT F
Outlet Connection: 1/4NPT F relief valve

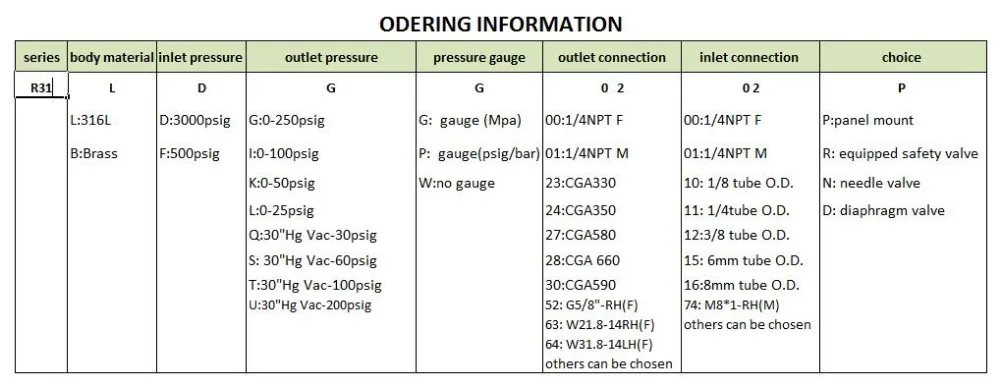

Ordering Information
Once you send the inquiry, pls send order code e.g.:R31-L-M-D-G-P-00-00-P. Or pls send us following information so that we select select model:
1.Media (sevice as)? co2 or?
2.atual inlet pressure and outlet pressure?
3.Flow rate?
4.Inlet connection and out connection?
5.Material or ss316?
6.Quantity?

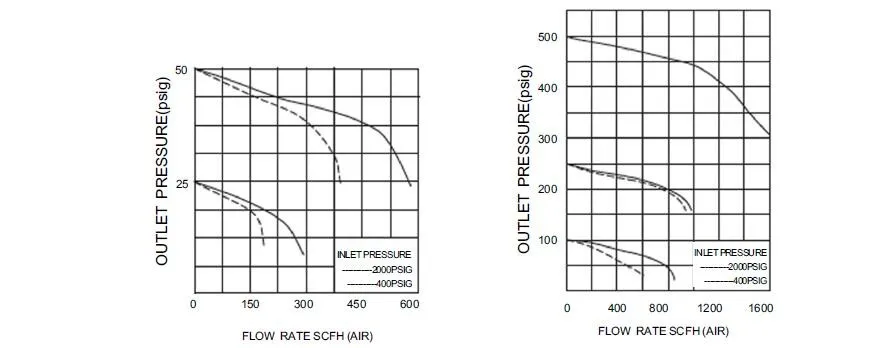

Flow Chart
Application
Laboratory
Electronic factory
Laser
Semiconductor
The quality of metrology institute
Aquarium
